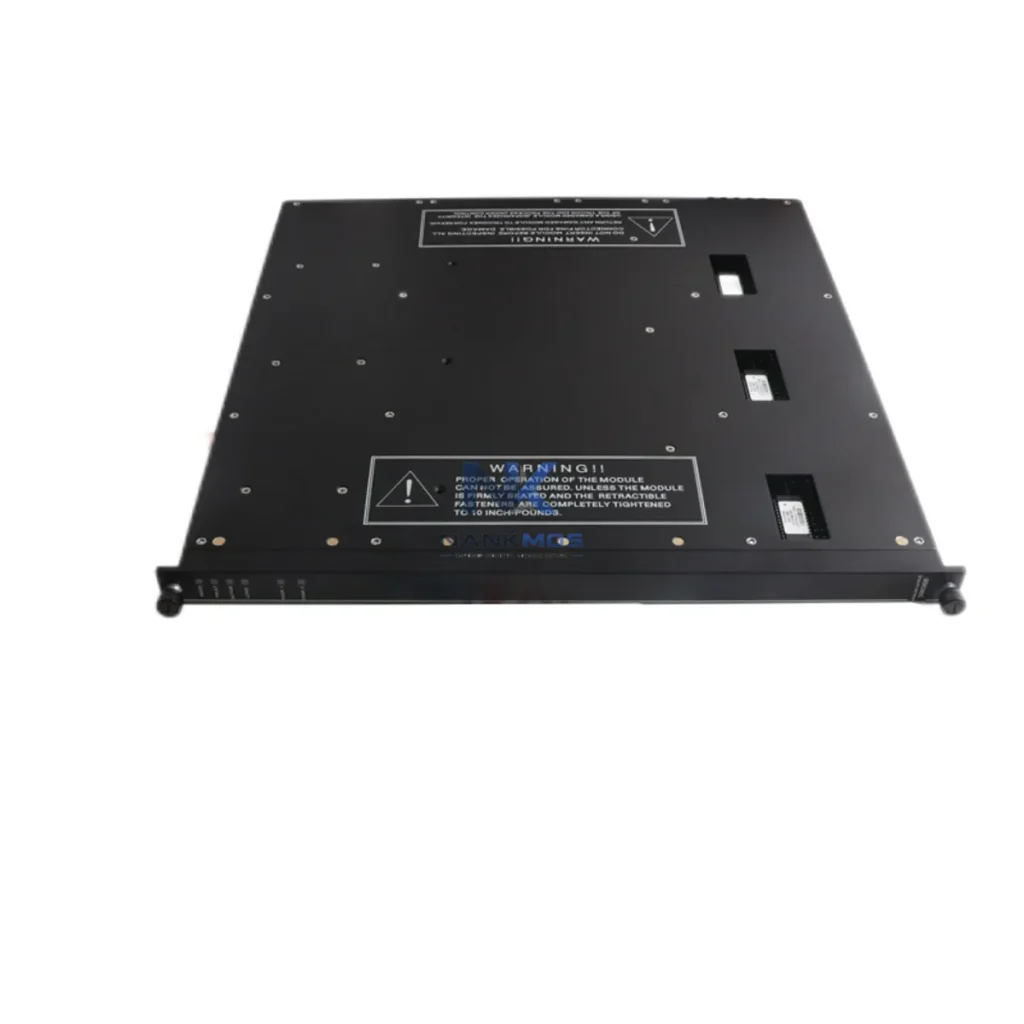

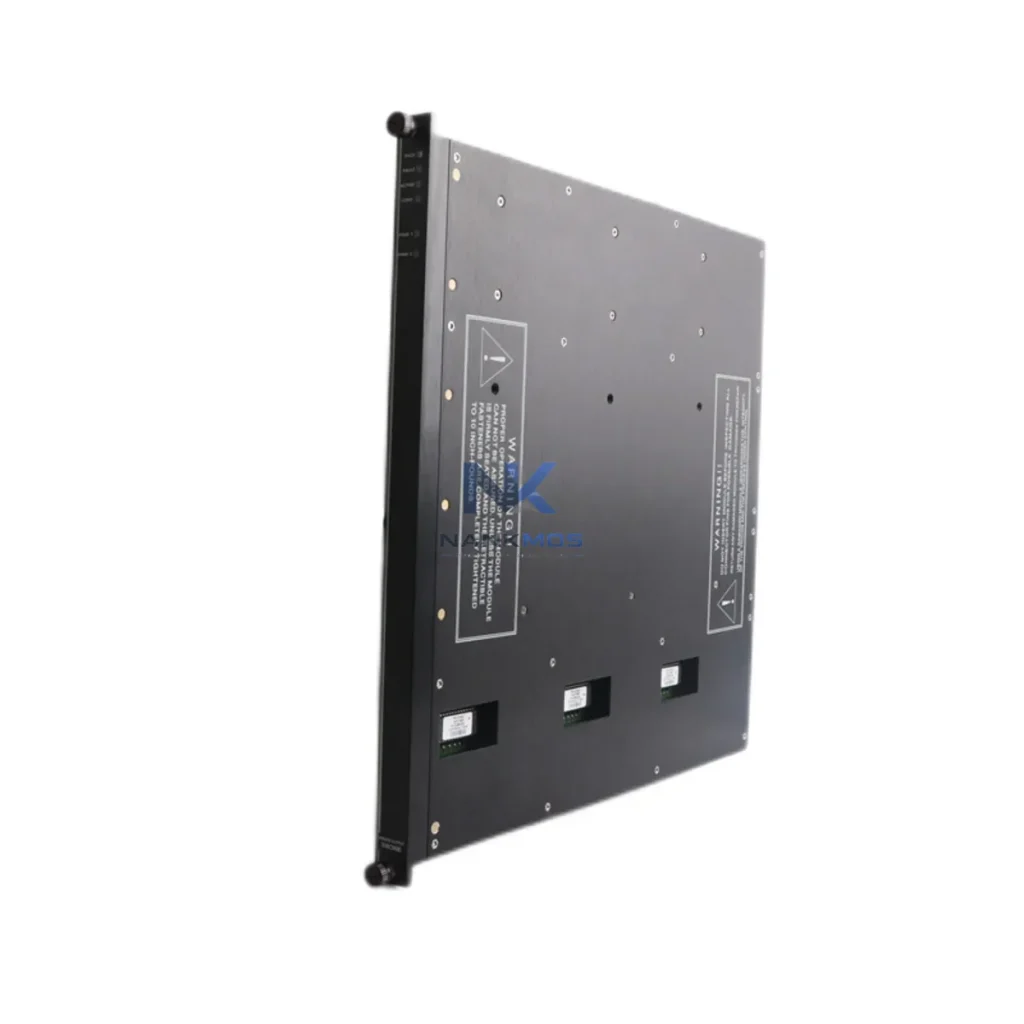

TRICONEX 3806E Analog Input Module

Product Details

3806E Product Description

The TRICONEX 3806E is a high-integrity analog input module engineered for deployment within the Tricon Triple Modular Redundant (TMR) safety control architecture. Designed to meet IEC 61511 SIL3 requirements, the 3806E delivers precise signal acquisition, continuous self-diagnostics, and fault-tolerant operation across the most demanding process safety applications. Its role within the Tricon platform extends beyond simple signal conditioning — it functions as a critical node in a layered control architecture where signal fidelity, redundancy, and deterministic response are non-negotiable. Whether integrated into a new safety instrumented system (SIS) or retrofitted into an existing Tricon chassis, the 3806E maintains full backward compatibility with the Tricon platform's modular backplane and communication infrastructure, ensuring seamless system expansion without architectural disruption.

In process industries including petrochemical refining, LNG terminals, offshore platforms, power generation, and water treatment, the 3806E serves as the primary interface between field transmitters and the Tricon CPU. Its analog input channels accept 4–20 mA signals from pressure transmitters, flow meters, temperature sensors, and level instruments, converting them into digital values processed by the Tricon main processor with full TMR voting logic. This architecture ensures that a single-channel failure does not compromise system integrity, as the remaining two channels continue to provide validated process data to the safety logic solver.

The 3806E integrates directly with the Tricon 3008 Main Processor and the Tricon 3009 Communication Module, forming a cohesive control layer that supports both local and remote I/O expansion. When paired with the TRICONEX 3625 Enhanced Intelligent Communication Module (EICM), the 3806E participates in peer-to-peer communication across distributed safety networks, enabling coordinated shutdown logic across multiple Tricon controllers. The module's compatibility with the Tricon 3700A chassis and the Tricon 3721 Power Supply ensures that power distribution and backplane communication remain stable under all operating conditions, including single-point power failures.

From an engineering integration perspective, the 3806E supports hot-swap replacement without process interruption, a critical capability in continuous-process environments where planned shutdowns are costly. Maintenance teams can extract and replace the module while the Tricon system remains in active control mode, with the TMR architecture absorbing the transient without triggering a spurious trip. This capability, combined with the module's built-in loop diagnostics and channel-level fault reporting, significantly reduces mean time to repair (MTTR) and supports predictive maintenance strategies aligned with IEC 61508 lifecycle requirements.

For HMI integration, the 3806E's analog data streams are accessible through the Tricon Communication Module to SCADA platforms via Modbus TCP or OPC DA/UA, enabling real-time visualization on Wonderware, FactoryTalk View, or Ignition-based operator interfaces. This communication layer ensures that process engineers and control room operators have continuous visibility into analog signal health, channel diagnostics, and module status without requiring physical access to the control cabinet.

All units supplied by NANKMOS undergo pre-shipment functional verification, including channel accuracy testing, loop resistance checks, and TMR voting simulation. Each 3806E is shipped with full documentation and is covered by a 12-Month Warranty against manufacturing defects and operational failures under normal service conditions. NANKMOS maintains ready stock of the 3806E to support urgent MRO requirements, plant turnarounds, and emergency replacement scenarios with short lead times and global logistics coverage.

The TRICONEX 3806E achieves its full operational potential when deployed as part of a complete Tricon-based safety instrumented system. At the control layer, the TRICONEX 3008 Main Processor executes the safety logic and coordinates TMR voting across all I/O modules, including the 3806E. The TRICONEX 3721 Power Supply provides redundant DC power to the chassis backplane, ensuring that analog input acquisition continues uninterrupted during power supply maintenance or failure events.

For digital I/O integration within the same chassis, the TRICONEX 3501E Digital Input Module and TRICONEX 3601E Digital Output Module complement the 3806E's analog acquisition role, enabling a unified I/O strategy across both discrete and continuous process signals. Where analog output is required for valve positioner control or current loop feedback, the TRICONEX 3805E Analog Output Module provides the corresponding signal generation capability within the same TMR framework.

Communication between the Tricon controller and plant-level SCADA or DCS systems is managed through the TRICONEX 3625 Enhanced Intelligent Communication Module (EICM), which supports Modbus RTU, Modbus TCP, and OPC server functionality. For peer-to-peer safety network communication between multiple Tricon controllers in large-scale SIS architectures, the TRICONEX 4351B Tricon Communication Module (TCM) provides the high-speed fiber-optic link required for coordinated emergency shutdown (ESD) logic across geographically distributed control nodes.

At the field termination layer, TRICONEX Model 3000 Series Terminal Panels provide the physical interface between field wiring and the 3806E's input channels, simplifying installation, loop testing, and future maintenance. For applications requiring signal isolation between field instruments and the Tricon chassis — particularly in hazardous area installations — dedicated signal isolators and Zener barriers are integrated at the marshalling cabinet level, preserving the 3806E's channel integrity and preventing ground loop interference.

In HMI-integrated architectures, operator workstations running Tristation 1131 Developer's Workbench provide the engineering environment for logic configuration, online diagnostics, and module-level status monitoring, completing the full engineering and operational lifecycle of the 3806E within the Tricon platform.

Petrochemical & Refining: The 3806E is widely deployed in crude distillation units, hydrocracker reactors, and compressor anti-surge control systems where SIL3-rated analog input acquisition is mandatory for emergency shutdown and pressure relief logic. Its TMR architecture ensures that process variable measurement remains valid even during partial module degradation, preventing spurious trips that would disrupt continuous refining operations.

LNG & Gas Processing: In liquefied natural gas terminals and gas compression stations, the 3806E monitors cryogenic temperature transmitters, high-pressure flow meters, and level sensors in storage tanks. Its optical channel isolation prevents ground loop interference in environments where multiple field instruments share common grounding infrastructure across large plant footprints.

Power Generation: Thermal power plants and combined-cycle gas turbine (CCGT) facilities use the 3806E within turbine protection systems and boiler safety interlocks. The module's fast scan rate and deterministic response time ensure that analog process variables are evaluated within the Tricon safety logic solver's required response window for turbine overspeed and flame failure protection.

Water & Wastewater Treatment: Municipal water treatment facilities and industrial effluent systems deploy the 3806E for continuous monitoring of flow, pressure, pH, and dissolved oxygen transmitters. Its hot-swap capability is particularly valued in water utility applications where 24/7 operation is required and planned maintenance windows are limited.

Mining & Metals: In mineral processing plants and smelting operations, the 3806E provides reliable analog input acquisition for conveyor load cells, furnace temperature sensors, and slurry flow meters, supporting both process optimization and safety interlock functions within a unified Tricon control architecture.

Q1: Is the TRICONEX 3806E compatible with both Tricon and Trident chassis systems? The 3806E is specifically designed for the Tricon 3700A and 3700 Series chassis and is not directly interchangeable with Trident platform I/O modules. Trident systems use a different backplane bus architecture and require Trident-specific I/O modules. For mixed-platform SIS architectures, TRICONEX provides gateway communication modules that enable data exchange between Tricon and Trident controllers without requiring hardware cross-compatibility.

Q2: Can the 3806E be replaced online without shutting down the Tricon system? Yes. The TRICONEX 3806E supports hot-swap replacement while the Tricon system remains in active control mode. The TMR architecture absorbs the module extraction event by continuing to process analog inputs from the remaining two redundant channels. Upon reinsertion of a replacement module, the Tricon system automatically re-synchronizes the new module into the TMR voting logic without operator intervention. This capability is essential for maintaining SIL3 integrity during maintenance activities in continuous-process environments.

Q3: What warranty and supply support does NANKMOS provide for the TRICONEX 3806E? NANKMOS provides a 12-Month Warranty on all TRICONEX 3806E units, covering manufacturing defects and operational failures under normal service conditions. Each unit undergoes pre-shipment functional verification including channel accuracy testing and TMR voting simulation. NANKMOS maintains ready stock of the 3806E to support urgent MRO requirements, plant turnarounds, and emergency replacement scenarios with short lead times and global logistics coverage. For procurement inquiries, contact [email protected] or +86 18359268345.
