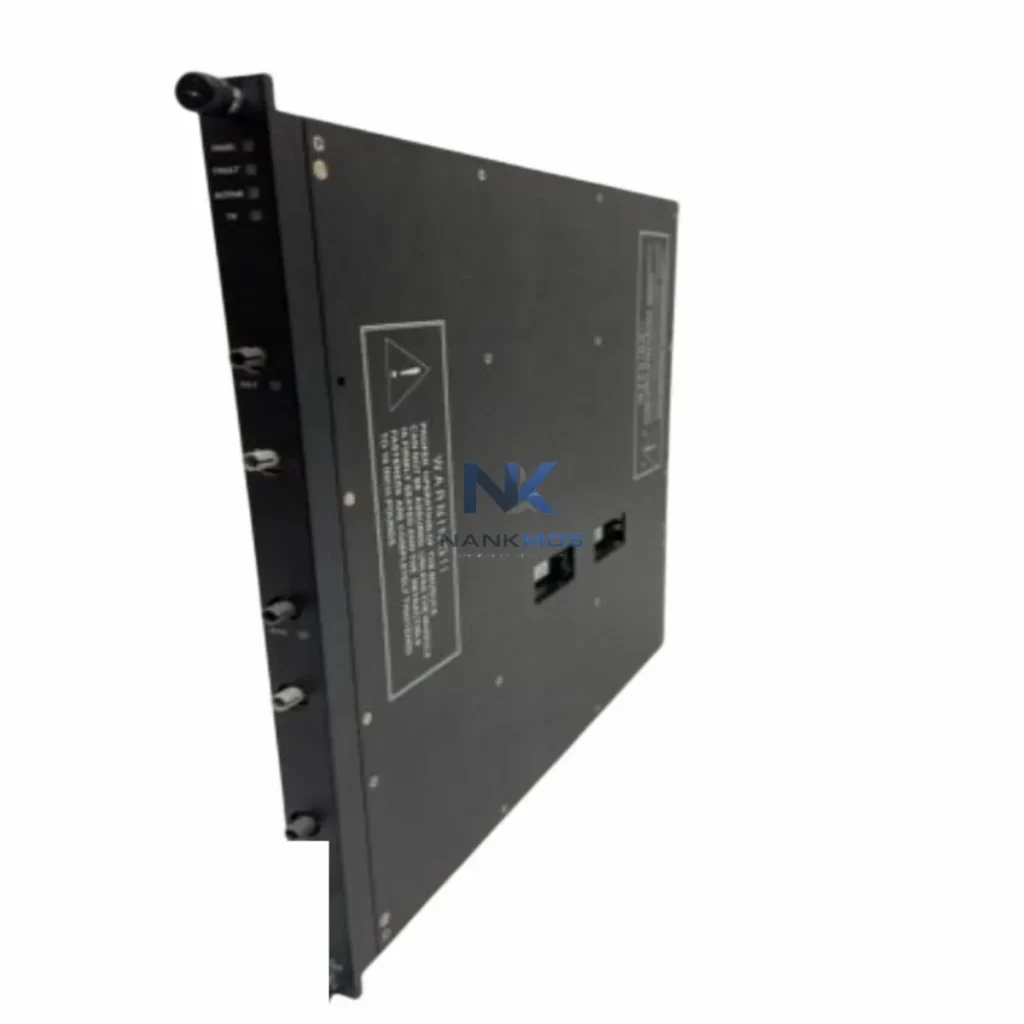

TRICONEX 4200 Fiber Optic Communication Module

Product Details

4200 Product Description

The TRICONEX 4200 Fiber Optic Remote Extender Module (Primary) is a high-integrity communication backbone designed for Triple Modular Redundant (TMR) safety instrumented systems operating in mission-critical industrial environments. As a primary-side fiber optic extender, the 4200 establishes a dedicated, noise-immune data link between the main TRICONEX chassis and remote I/O expansion racks, enabling seamless real-time data exchange across distances that copper-based communication cannot reliably support. In smart factory architectures where process safety, uptime, and data transparency are non-negotiable, the TRICONEX 4200 serves as the physical and logical bridge that keeps distributed safety loops synchronized, monitored, and fully integrated into the plant-wide automation network.

Deployed across oil and gas, petrochemical, power generation, and advanced manufacturing facilities, the 4200 module supports the TRICONEX TMR platform's inherent fault-tolerant design by extending the high-speed SIS (Safety Instrumented System) data bus over fiber optic cable. This architecture eliminates ground loop interference, electromagnetic noise, and signal degradation that commonly disrupt copper-based remote I/O links in electrically harsh plant environments. The result is a stable, deterministic communication channel that feeds real-time process data — valve positions, pressure readings, temperature signals, and emergency shutdown status — directly into the TRICONEX controller for continuous evaluation against safety logic.

In a fully connected smart factory, the TRICONEX 4200 anchors the safety data layer within a multi-tier automation architecture. At the field level, process instruments — including pressure transmitters, thermocouple inputs, and solenoid valve feedback signals — connect to TRICONEX Digital Input Modules (e.g., TRICONEX 3501E and 3604E) housed in remote I/O expansion racks. These racks communicate back to the main Tricon controller chassis via the 4200 fiber optic extender pair, with the companion TRICONEX 4201 Secondary Extender Module installed at the remote end to complete the redundant fiber link.

The Tricon controller — running triple-redundant safety logic — processes all incoming field signals and executes the safety instrumented functions (SIFs) defined in the Safety Requirements Specification. Simultaneously, the controller's communication ports interface with plant-level systems through dedicated communication modules such as the TRICONEX 4352 Enhanced Intelligent Communication Module (EICM) or the TRICONEX 4351B, which translate the proprietary TRICONEX protocol into standard industrial protocols including Modbus RTU, Modbus TCP/IP, and OPC DA/UA. This protocol gateway function allows SCADA platforms — such as Wonderware System Platform, Ignition SCADA, or Emerson DeltaV — to poll live safety data, acknowledge alarms, and display real-time process status on operator HMI screens without any direct coupling to the safety logic execution layer.

At the network infrastructure level, industrial managed switches — such as those from the Hirschmann MACH series or Cisco IE 4000 industrial Ethernet switches — segment the safety network from the process control network (PCN) and the plant information network (PIN), maintaining the required network independence mandated by IEC 61511 and ISA-84. Edge gateway devices, including Moxa MGate protocol converters or HMS Anybus X-gateway modules, further bridge legacy serial field devices into the Ethernet-based data backbone, ensuring that older instrumentation does not create data gaps in the plant-wide visibility layer.

Variable frequency drives (VFDs) controlling compressors, pumps, and fans — such as ABB ACS880 or Rockwell PowerFlex 755 units — report operational status and fault codes through the PCN layer, where data aggregation servers collect, timestamp, and forward this information to the plant historian and MES (Manufacturing Execution System). The TRICONEX 4200's role in this architecture is foundational: by maintaining a reliable, high-speed fiber optic link between the remote I/O racks and the safety controller, it ensures that every field signal reaches the TMR voting logic without latency or data corruption, preserving the integrity of the entire safety instrumented system from sensor to final element.

Industrial automation sites frequently encounter data gaps that undermine process transparency, safety performance, and operational efficiency. The TRICONEX 4200 directly addresses several of the most persistent connectivity challenges in SIS-integrated plant environments.

Protocol Fragmentation: Many plants operate a mix of legacy serial devices, proprietary safety bus systems, and modern Ethernet-based control networks. The TRICONEX 4200, paired with TRICONEX communication modules, bridges the proprietary TMR data bus to standard industrial protocols, eliminating the protocol mismatch that would otherwise isolate safety system data from the broader SCADA and historian infrastructure.

Data Islands in Remote I/O: Without a reliable fiber optic extender, remote I/O racks located hundreds of meters from the main controller chassis become effectively isolated during electrical disturbances or cable degradation events. The 4200's fiber optic medium is inherently immune to EMI, RFI, and ground potential differences, ensuring continuous data flow even in electrically noisy environments such as motor control centers (MCCs) and high-voltage switchgear rooms.

Remote Monitoring and Diagnostics: Maintenance teams require real-time visibility into the health of remote I/O racks, module status, and communication link quality. The TRICONEX TMR architecture, supported by the 4200 extender, provides continuous self-diagnostics and fault reporting that surface through the TriStation 1131 programming environment and connected SCADA displays, enabling remote fault identification without requiring physical inspection of the remote rack location.

Production Line Transparency and Alarm Tracking: Integrating safety system data into plant-wide alarm management systems requires a stable, low-latency communication path from the SIS controller to the DCS or SCADA alarm server. The 4200 ensures that emergency shutdown events, partial stroke test results, and safety function demand signals are transmitted in real time, supporting accurate alarm rationalization, event chronology reconstruction, and regulatory compliance reporting.

System Scalability: As plant capacity expands, additional remote I/O racks can be added to the TRICONEX system using additional 4200/4201 extender pairs, allowing the safety architecture to scale without redesigning the core controller infrastructure. This modular expansion capability protects the initial capital investment while accommodating future process additions.

Q1: What is the maximum fiber optic cable distance supported by the TRICONEX 4200 extender pair? The TRICONEX 4200 (Primary) and its companion 4201 (Secondary) extender modules support multi-mode fiber optic cable runs typically up to 1 km, depending on fiber specification and installation conditions. This range is sufficient for most within-plant remote I/O deployments, including those spanning multiple process units or buildings. For exact distance ratings, consult the TRICONEX hardware reference manual or contact NANKMOS for application-specific guidance.

Q2: Is the TRICONEX 4200 compatible with both Tricon and Trident safety controller platforms? The 4200 module is designed for the TRICONEX TMR platform. Compatibility with specific Tricon or Trident chassis versions depends on the system firmware revision and hardware generation. NANKMOS technical staff can verify compatibility against your existing system configuration prior to shipment. All units undergo pre-shipment functional testing as part of our standard quality assurance process.

Q3: How does the fiber optic link affect communication latency in the safety instrumented system? Fiber optic transmission introduces negligible propagation delay compared to the scan cycle time of the TRICONEX TMR controller. The 4200 extender maintains the deterministic communication timing required by IEC 61511-compliant SIS designs, ensuring that remote I/O data is available to the safety logic solver within each controller scan cycle without measurable latency impact on safety function response time.

Q4: What warranty and after-sales support does NANKMOS provide for the TRICONEX 4200? All TRICONEX 4200 modules supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures. Units are sourced from verified supply channels, inspected upon receipt, and tested prior to dispatch. In-stock units are available for same-week shipment globally. For technical support, replacement coordination, or system integration consultation, contact the NANKMOS team directly.
