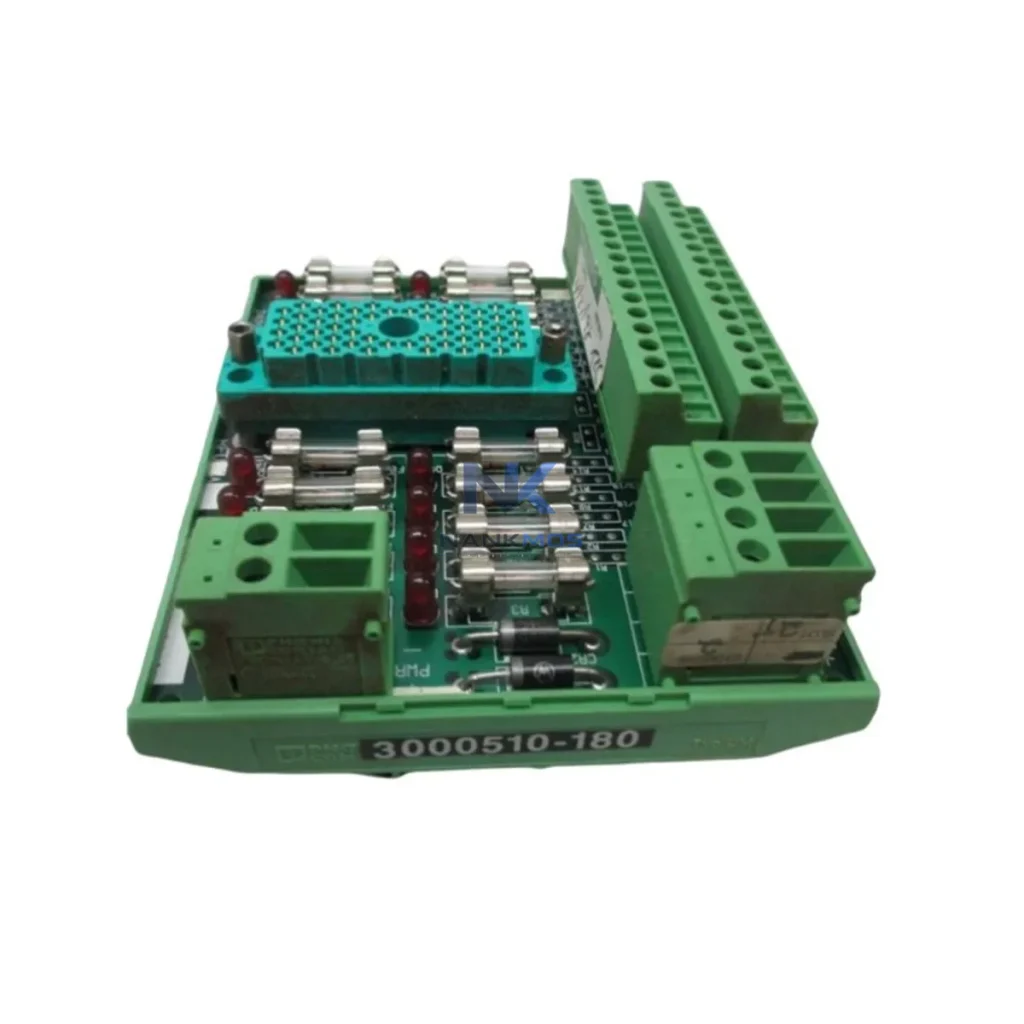

TRICONEX 3000510-180 Termination Board

Product Details

3000510-180 Product Description

The TRICONEX 3000510-180 is a precision-engineered termination board designed for seamless integration within the Tricon Triple Modular Redundancy (TMR) safety instrumented system architecture. As a critical interface component at the field wiring layer, the 3000510-180 provides structured, fault-tolerant signal termination that underpins the reliability and diagnostic integrity of the entire safety control platform. Engineered to Schneider Electric's Triconex standards, this termination board ensures that field signals are cleanly routed, electrically isolated, and consistently presented to the Tricon I/O modules — preserving the TMR voting logic that defines SIL-rated process safety.

In modern safety-critical environments — including oil and gas, petrochemical refining, power generation, and offshore platforms — the termination board is far more than a passive wiring interface. The 3000510-180 actively contributes to system consistency by providing a standardized, repeatable connection point that reduces installation variability, simplifies commissioning, and supports long-term maintenance efficiency. Its design eliminates the need for custom field wiring directly to I/O modules, reducing the risk of wiring errors that could compromise the TMR voting architecture's integrity.

NANKMOS maintains verified stock of the TRICONEX 3000510-180, supported by a 12-Month Warranty and full pre-shipment functional testing. Each unit is inspected against original Triconex specifications before dispatch, ensuring that your safety system receives a component that meets the exacting standards of TMR architecture deployment.

The TRICONEX 3000510-180 termination board operates as a foundational element within a layered Tricon TMR control architecture. Understanding its role requires examining how it interacts with adjacent system layers to deliver the fault tolerance and diagnostic transparency that safety-critical applications demand.

At the control layer, the Tricon Main Chassis — housing the Tricon TMR Main Processor modules such as the TRICONEX 3008 or 3006 — executes the TMR voting logic that compares three independent signal paths. The 3000510-180 ensures that field signals arriving at the I/O layer are presented cleanly and consistently, so that the processor's triple-redundant comparison is not compromised by wiring inconsistencies or termination variability.

At the I/O layer, the termination board connects directly to Tricon digital or analog I/O modules — such as the TRICONEX 3501E Digital Input Module or the TRICONEX 3703E Analog Input Module. These modules rely on the 3000510-180 to provide a stable, repeatable field interface. The board's screw-terminal design allows field engineers to connect, verify, and re-terminate individual channels without disturbing adjacent circuits, which is essential during loop testing and commissioning phases.

At the power layer, the Tricon Power Supply modules — including the TRICONEX 8312 Power Supply — provide redundant DC power to the main chassis and I/O modules. The termination board itself draws no active power, but its correct installation is prerequisite to the powered I/O modules achieving stable channel operation. Power quality at the cabinet level directly affects signal integrity at the termination board's field connections.

At the communication layer, the Tricon system communicates with supervisory SCADA platforms and DCS systems via the TRICONEX 4351B or 4119A Communication Modules, which support Modbus, HART, and proprietary Triconex protocols. The 3000510-180 supports this communication chain by ensuring that field-side signal data is accurately captured at the I/O module level — data that is then transmitted upstream through the communication modules to the control room.

At the HMI and supervisory layer, operators monitoring the Tricon system via Triconex TriStation 1131 engineering workstations or integrated SCADA displays depend on accurate field data. The 3000510-180's role in maintaining clean signal termination directly supports the data quality that operators rely on for process decisions and safety function verification.

At the protection and redundancy layer, the TMR architecture's three-channel voting logic is only as reliable as the field signal inputs it receives. The 3000510-180 contributes to redundancy integrity by providing a consistent, low-resistance termination path for each channel. In systems where TRICONEX 3625 Relay Output Modules or TRICONEX 3805E Digital Output Modules are used to drive final control elements, the upstream signal quality maintained by the termination board is critical to ensuring that output commands are based on accurate, unambiguous field data.

At the maintenance layer, the 3000510-180's modular design supports hot-swap maintenance procedures consistent with Tricon TMR's online maintenance philosophy. Field technicians can replace or re-terminate individual channels during system operation without requiring a full shutdown, provided that proper TMR maintenance procedures are followed. This capability is essential in continuous-process industries where unplanned downtime carries significant operational and safety consequences.

Oil, Gas & Petrochemical: The TRICONEX 3000510-180 is widely deployed in emergency shutdown (ESD) and safety instrumented systems (SIS) for upstream and downstream hydrocarbon processing. In these environments, the termination board interfaces with field instruments — pressure transmitters, temperature sensors, and valve position switches — that monitor critical process variables. The TMR architecture ensures that a single field wiring fault or sensor failure does not compromise the safety function, and the 3000510-180's structured termination design supports the rigorous loop testing and proof-test procedures required by IEC 61511.

Power Generation & Utilities: In thermal, nuclear, and combined-cycle power plants, the Tricon TMR system is used for turbine protection, boiler management, and reactor safety systems. The 3000510-180 provides the field termination interface for critical sensor inputs — including vibration, temperature, and flow signals — that feed the TMR voting logic. Its standardized design simplifies the periodic proof testing required by power plant safety management systems.

Water Treatment & Municipal Infrastructure: Water and wastewater treatment facilities use Tricon TMR systems for high-integrity control of chemical dosing, pump protection, and overflow prevention. The 3000510-180 supports reliable field signal termination in environments where signal integrity must be maintained across wide temperature ranges and in the presence of electrical noise from variable-frequency drives and motor control centers.

Mining & Metals: In mining and metallurgical processing, the Tricon system manages conveyor protection, crusher control, and smelter safety interlocks. The 3000510-180's robust termination design supports reliable operation in high-vibration, high-dust environments typical of mineral processing facilities.

Marine & Offshore: Offshore platforms and FPSO vessels deploy Tricon TMR systems for fire and gas detection, emergency shutdown, and process control integration. The 3000510-180 is suitable for marine-grade control cabinet installations where space efficiency, vibration resistance, and long-term reliability are paramount.

Q1: Is the TRICONEX 3000510-180 compatible with all Tricon TMR I/O module types?The 3000510-180 is designed for use with specific Tricon I/O modules within the Tricon TMR system family. Compatibility depends on the I/O module type (digital input, digital output, analog input, analog output) and the specific Tricon chassis configuration. Engineers should verify the module-to-termination-board pairing against the Triconex system documentation for their specific chassis revision. NANKMOS technical support can assist with compatibility verification prior to order placement.

Q2: Can the 3000510-180 be replaced online without shutting down the Tricon TMR system?The Tricon TMR architecture is designed to support online maintenance, including I/O module and termination board replacement, under specific conditions defined in the Triconex maintenance procedures. Online replacement requires that the TMR system is operating in a healthy state with all three channels functional, and that proper isolation and re-termination procedures are followed. NANKMOS recommends consulting the Triconex Tricon System Planning and Installation Guide before performing any online maintenance on safety-critical systems.

Q3: What warranty and quality assurance does NANKMOS provide for the TRICONEX 3000510-180?NANKMOS provides a 12-Month Warranty on the TRICONEX 3000510-180, covering functional defects under normal operating conditions. Each unit undergoes pre-shipment inspection and functional verification against original Triconex specifications. In-stock units are available for immediate dispatch, supporting urgent maintenance and replacement requirements. For warranty claims or technical support, contact NANKMOS at [email protected] or +86 18359268345.
