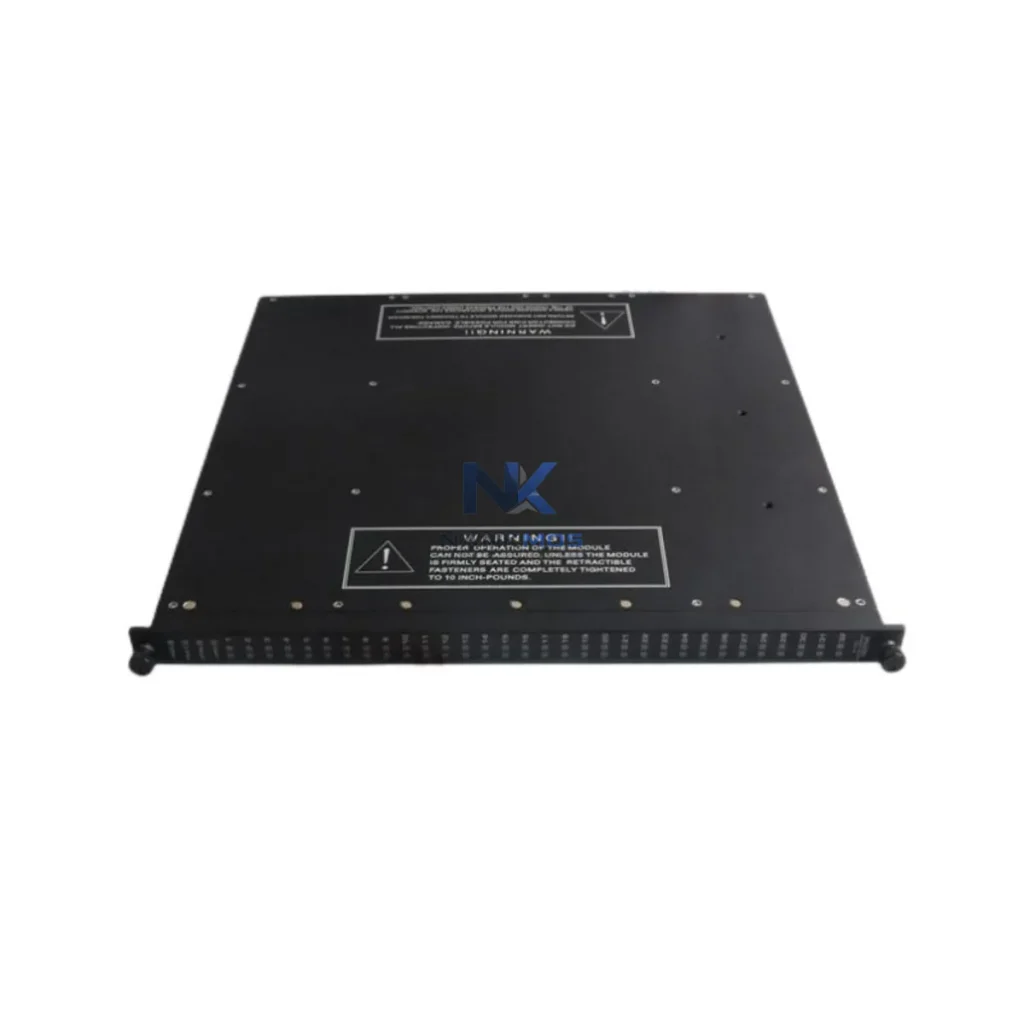

TRICONEX 9760-210 Industrial Network Interface

Product Details

9760-210 Product Description

The TRICONEX 9760-210 is a high-integrity industrial network interface module engineered for Tricon Triple Modular Redundant (TMR) safety systems. Designed to bridge the gap between field-level safety controllers and plant-wide communication networks, the 9760-210 enables seamless data exchange across SCADA platforms, DCS environments, HMI workstations, and enterprise-level monitoring systems. In modern smart factory deployments, where every millisecond of data latency and every node of connectivity carries operational weight, the 9760-210 delivers the protocol translation, network stability, and real-time throughput that safety-critical automation demands.

Industrial facilities operating Tricon safety instrumented systems (SIS) require a reliable communication backbone that connects the TMR controller to the broader automation architecture without compromising the integrity of the safety loop. The 9760-210 fulfills this role by providing a dedicated network interface that supports Modbus TCP, OPC DA/UA, and proprietary Triconex communication protocols, enabling the Tricon controller to exchange process data with upstream SCADA servers, historian databases, and remote engineering workstations in real time.

In a fully integrated smart factory, the TRICONEX 9760-210 sits at the intersection of the safety layer and the operational technology (OT) network. The data flow begins at the field device level, where sensors, transmitters, and final control elements feed process variables — pressure, temperature, flow, level — into the Tricon TMR controller via the TRICONEX 3703E or TRICONEX 3805E analog and digital I/O modules. These field signals are processed through the TMR logic solver, and the 9760-210 then exports the resulting process data, alarm states, and diagnostic information upstream to the plant network.

On the network layer, the 9760-210 communicates with SCADA servers running platforms such as Wonderware System Platform or Ignition SCADA, delivering live process values and safety system status at configurable polling rates. HMI workstations connected to the same industrial Ethernet segment — including Schneider Electric Magelis HMI panels or third-party operator interfaces — receive real-time data feeds that allow control room operators to monitor safety loop integrity, valve positions, and interlock status without interrupting the TMR execution cycle.

For facilities that operate a layered automation architecture, the 9760-210 also supports integration with DCS platforms via OPC DA/UA server connections. A Modbus TCP gateway or an industrial protocol converter such as the MOXA MGate MB3480 can be deployed in parallel to extend connectivity to legacy field devices or third-party PLCs that do not natively support Triconex communication protocols. This ensures that the safety system data remains accessible across heterogeneous network environments without requiring proprietary middleware on every node.

Edge computing nodes and industrial IoT gateways — such as the Advantech ECU-1251 or similar edge gateway platforms — can subscribe to the OPC UA data streams published by the 9760-210, enabling local data preprocessing, anomaly detection, and condition-based maintenance analytics at the plant edge before forwarding aggregated data to cloud-based MES or ERP systems. Industrial managed switches, including HIRSCHMANN RS20 or MOXA EDS-308 series, provide the network segmentation and VLAN isolation necessary to keep safety system traffic separated from general plant Ethernet while maintaining deterministic communication latency.

Variable frequency drives (VFDs) and motor control centers connected to the process through the Tricon I/O modules can have their operational status — run/stop commands, fault codes, speed references — reflected in the SCADA historian via the 9760-210 data path, enabling complete drive performance trending and predictive maintenance scheduling. Power monitoring modules and industrial power supplies feeding the Tricon chassis, such as the TRICONEX 8312 power module, are also monitored through the TMR diagnostics channel, with power quality events logged and transmitted through the network interface for remote review.

Protocol Fragmentation: Many industrial sites operate a mix of legacy serial-based field devices alongside modern Ethernet-connected systems. The 9760-210 resolves protocol fragmentation by providing a standardized TCP/IP communication path from the Tricon TMR controller to any OPC-compatible SCADA or DCS platform, eliminating the need for custom serial-to-Ethernet converters at the controller level.

Data Silos: Safety system data is often isolated from the broader plant information system due to security and integrity concerns. The 9760-210 enables controlled, read-optimized data sharing between the SIS and the process control network, breaking down data silos while preserving the independence of the safety function. Operators gain visibility into safety loop status, trip history, and diagnostic counters directly from their SCADA dashboards without requiring direct access to the Tricon programming environment.

Remote Monitoring and Diagnostics: For facilities with distributed or unmanned process units, the 9760-210 supports remote engineering access to the Tricon controller via the plant WAN or VPN-secured network. Maintenance engineers can retrieve diagnostic logs, review I/O module health, and verify safety function execution from a central engineering workstation, reducing the need for on-site intervention and accelerating fault resolution timelines.

Production Line Transparency: By feeding real-time safety system data into the plant historian and MES layer, the 9760-210 contributes to production line transparency initiatives. Shift supervisors and process engineers can correlate safety system events — interlock activations, partial stroke test results, proof test records — with production throughput data, enabling root cause analysis and continuous improvement of safety instrumented function (SIF) performance.

Alarm Management and Traceability: The 9760-210 transmits time-stamped alarm and event data from the Tricon controller to the SCADA alarm management system, supporting IEC 62682-compliant alarm rationalization and audit trail requirements. Every safety system event is logged with millisecond-resolution timestamps, providing the traceability required for functional safety audits and regulatory compliance reviews.

System Scalability: As plant automation architectures evolve toward IIoT and Industry 4.0 frameworks, the 9760-210 provides a stable, standards-based communication foundation that can be extended without modifying the safety application. Additional SCADA clients, historian nodes, and edge analytics platforms can be added to the OPC UA subscription model without impacting the TMR execution cycle or requiring safety system re-validation.

Q: What communication protocols does the TRICONEX 9760-210 support, and is it compatible with third-party SCADA platforms? A: The 9760-210 supports Modbus TCP, OPC DA, OPC UA, and the native Triconex Communication Protocol over TCP/IP. It is compatible with all major SCADA platforms that support OPC DA/UA client connections, including Wonderware, Ignition, iFIX, and Citect SCADA, as well as any Modbus TCP master device. No proprietary middleware is required on the SCADA server side.

Q: What is the typical communication latency, and is the 9760-210 suitable for time-critical safety applications? A: The 9760-210 is designed for data reporting and remote monitoring functions, not for safety-critical command execution. Communication latency over the plant Ethernet network is typically in the range of 10–100 ms depending on network load and polling configuration. The TMR safety logic execution remains independent of the network interface, ensuring that network latency does not affect the safety function response time.

Q: Can the 9760-210 be integrated into an existing plant network without modifying the Tricon safety application? A: Yes. The 9760-210 is installed as a network interface module within the Tricon chassis and communicates with the TMR controller through the internal backplane. Integration with the plant SCADA or DCS network is configured through the TriStation 1131 engineering environment without requiring changes to the safety application logic. This preserves the safety system's functional safety integrity level (SIL) certification.

Q: What does the 12-month warranty cover, and what pre-shipment testing is performed? A: Every TRICONEX 9760-210 unit supplied by NANKMOS is covered by a 12-month warranty from the date of shipment. Pre-shipment inspection includes functional power-on testing, communication interface verification, and visual inspection for physical integrity. Units are shipped in anti-static packaging with full traceability documentation. Warranty claims are processed directly through NANKMOS with a target response time of 48 hours.
