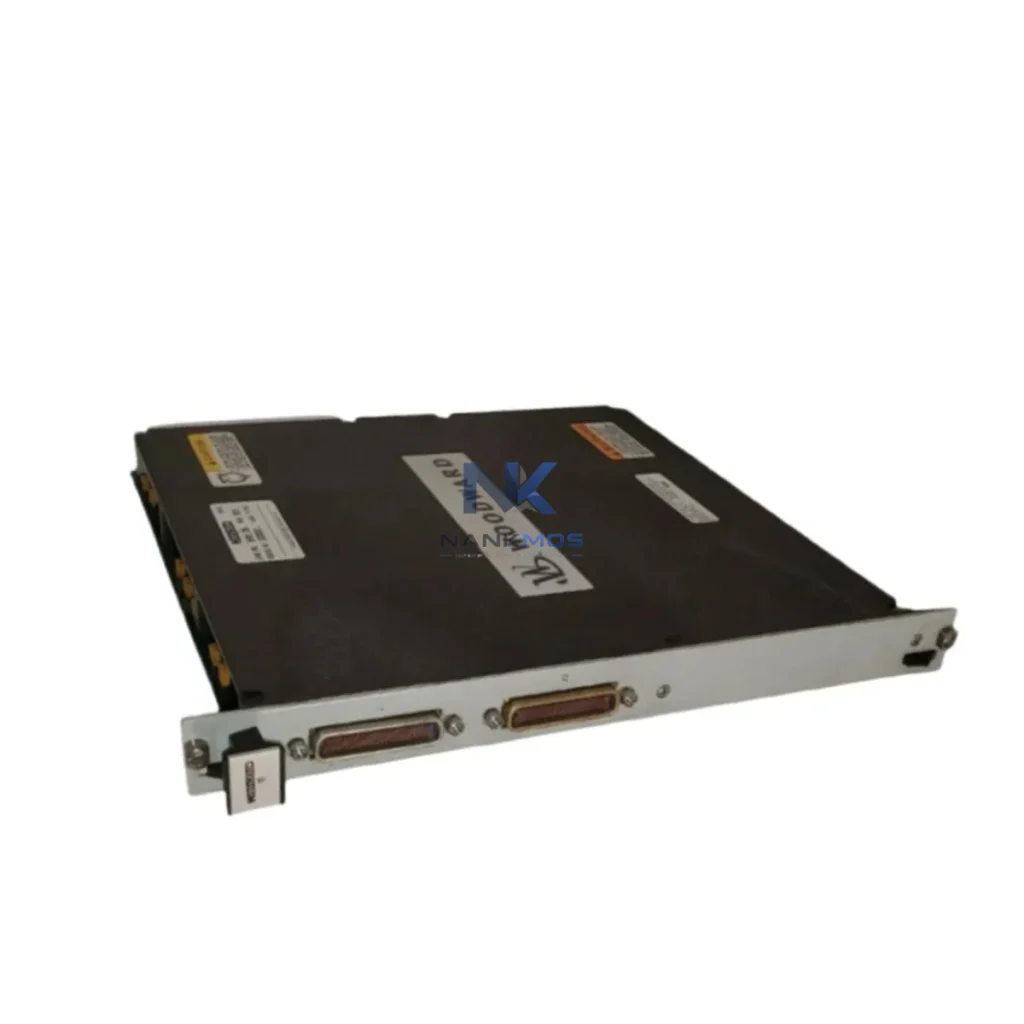

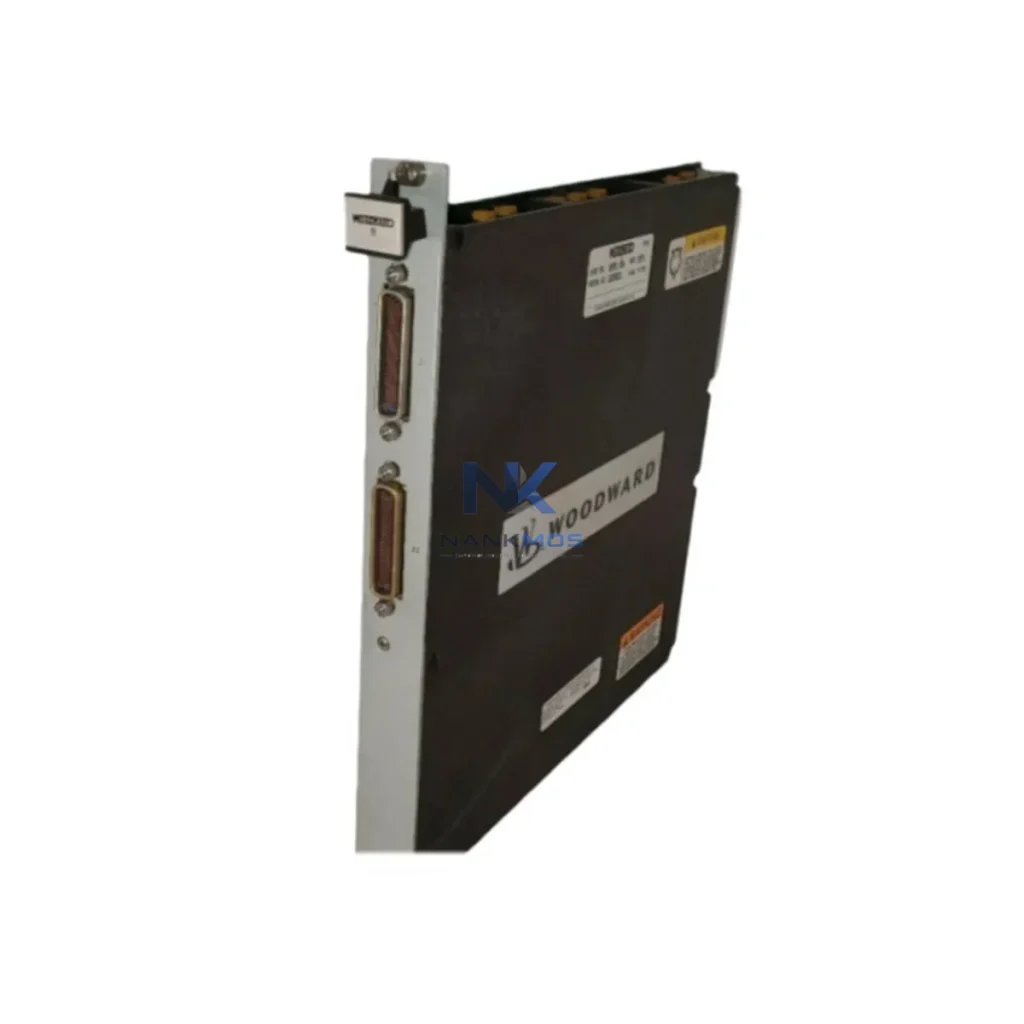

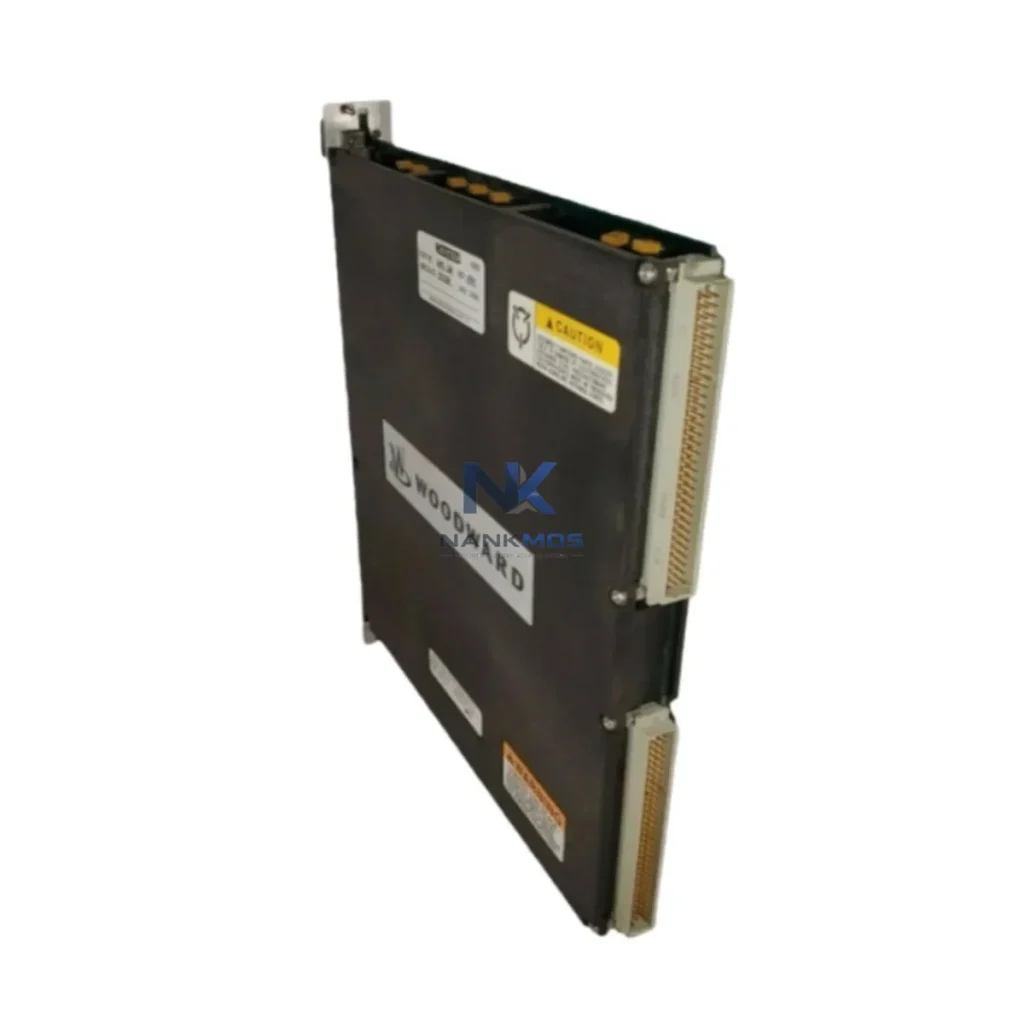

Woodward 5466-354 Digital Control Module

Product Details

5466-354 Product Description

The Woodward 5466-354 Digital Control Module is engineered as a core processing node within the NetCon distributed control architecture, a platform widely deployed across turbine control, generator management, and industrial prime mover applications. Rather than functioning as a standalone component, the 5466-354 achieves its full operational value when integrated within a layered automation system that spans the control layer, I/O layer, communication layer, power layer, HMI layer, actuator layer, protection layer, and maintenance layer.

At the control layer, the 5466-354 coordinates with companion Woodward NetCon CPU modules and supervisory controllers to execute closed-loop speed governing, load sharing, and process sequencing. Its deterministic scan cycle ensures that control commands are issued with the timing precision required for rotating machinery and critical process equipment. When paired with Woodward 5466-258 or 5466-369 I/O expansion modules, the system gains the analog and digital signal capacity needed to interface with field sensors, actuators, and protective relays across a full turbine or compressor train.

At the communication layer, the 5466-354 participates in the NetCon serial bus topology, enabling real-time data exchange between distributed control nodes without introducing latency that could compromise governor response. For facilities requiring integration with SCADA or DCS platforms, the Woodward 2301D Load Sharing and Speed Control or the Woodward easYgen-3000 series generator controller can serve as supervisory gateways, translating NetCon data into Modbus RTU or Modbus TCP/IP for upstream systems. This contextual integration capability ensures that the 5466-354 does not operate in isolation but contributes structured process data to the broader plant information architecture.

At the power layer, the module relies on a stable 24 VDC supply rail. Deploying a dedicated Woodward or equivalent industrial DIN-rail power supply with sufficient hold-up time and surge protection ensures that the 5466-354 maintains continuous operation during grid disturbances or generator transfer events. Redundant power feed configurations, where a secondary supply monitors and backs up the primary rail, are recommended for critical applications in power generation and oil and gas facilities.

At the HMI layer, operator interaction with the 5466-354 control system is typically managed through Woodward's Toolkit configuration software or through panel-mounted operator terminals connected via the NetCon communication bus. This allows engineers to monitor real-time control parameters, adjust setpoints, and review alarm histories without interrupting the control loop. For larger installations, integration with a plant-level SCADA system via the easYgen or 2301D gateway modules provides centralized visibility across multiple control nodes simultaneously.

At the actuator and execution layer, the 5466-354 drives fuel valve actuators, inlet guide vane positioners, and load control contactors through its analog output channels and relay outputs. Precise signal conditioning at this layer — supported by Woodward signal isolators and terminal modules — ensures that command signals reach actuators without ground loop interference or common-mode noise, which is especially critical in high-voltage generator environments.

At the protection layer, the 5466-354 works in conjunction with dedicated overspeed detection modules and protective relay systems. Woodward's ProTech-GII overspeed protection system, for example, can be configured to receive speed reference signals from the same sensor network used by the 5466-354, creating a coherent protection architecture where the control module and the protective device share a common process view without creating single points of failure.

At the maintenance layer, the modular design of the NetCon platform means that the 5466-354 can be replaced or upgraded without requiring a full system shutdown in architectures that support hot-standby redundancy. Maintaining a verified spare unit — sourced from a supplier with documented pre-shipment testing and a 12-Month Warranty — is a standard practice in facilities where unplanned downtime carries significant operational or safety consequences. NANKMOS supplies the 5466-354 with full functional verification, ensuring that replacement units are ready for immediate commissioning.

Power Generation: The 5466-354 is widely applied in gas turbine and steam turbine generator sets, where it manages speed governing, load sharing between parallel generators, and automatic synchronization sequences. Its deterministic control cycle supports the tight frequency regulation required by grid-connected generation assets.

Oil and Gas: In upstream and midstream compression stations, the 5466-354 controls reciprocating and centrifugal compressor drivers, coordinating with anti-surge controllers and process safety systems to maintain throughput while protecting equipment from surge and overspeed events.

Petrochemical and Refining: Process heater trains, boiler feed pump turbines, and fluid catalytic cracking unit (FCCU) expanders rely on NetCon-based control architectures for their combination of reliability, modularity, and long-term vendor support. The 5466-354 provides the digital control backbone for these applications.

Marine and Offshore: Shipboard diesel generator sets and offshore platform power management systems benefit from the 5466-354's robust operating temperature range and its compatibility with marine-grade control cabinet designs. Load sharing across multiple generator sets in island-mode operation is a primary use case.

Water and Wastewater: Pump station variable-speed drive coordination and aeration blower control systems use the 5466-354 to maintain process setpoints across varying demand conditions, integrating with SCADA systems for remote monitoring and alarm management.

Q1: Is the Woodward 5466-354 compatible with existing NetCon control cabinets and backplane configurations? The 5466-354 is designed for the Woodward NetCon distributed control platform and is compatible with standard NetCon backplane and communication bus configurations. When replacing an existing module, engineers should verify firmware revision compatibility with the supervisory controller and confirm that the I/O channel assignments match the existing wiring schedule. NANKMOS can provide documentation support and pre-shipment configuration verification upon request.

Q2: What commissioning steps are required when integrating the 5466-354 into a running control system? Commissioning the 5466-354 typically involves loading the application configuration via Woodward Toolkit software, verifying analog input calibration against field sensor references, confirming communication bus node addressing, and performing a controlled functional test of all output channels before returning the system to automatic operation. For turbine applications, a supervised speed ramp test is recommended to validate governor response before full-load operation. NANKMOS supplies units with pre-shipment functional testing documentation to reduce on-site commissioning time.

Q3: What does the 12-Month Warranty cover, and what inventory availability can be expected for long-term maintenance planning? The 12-Month Warranty provided by NANKMOS covers functional defects identified under normal operating conditions, with replacement or repair support coordinated through our technical team. For long-term maintenance planning, NANKMOS maintains verified stock of the 5466-354 and related NetCon series modules, enabling facilities to establish a spare parts program without relying on unpredictable lead times from the original equipment manufacturer. Contact [email protected] or +86 18359268345 to confirm current stock levels and discuss volume procurement arrangements.
