GE Multilin 745-W2-P5-G5-HI-A-L-R-E-H Protection Relay

Product Details

745-W2-P5-G5-HI-A-L-R-E-H Product Description

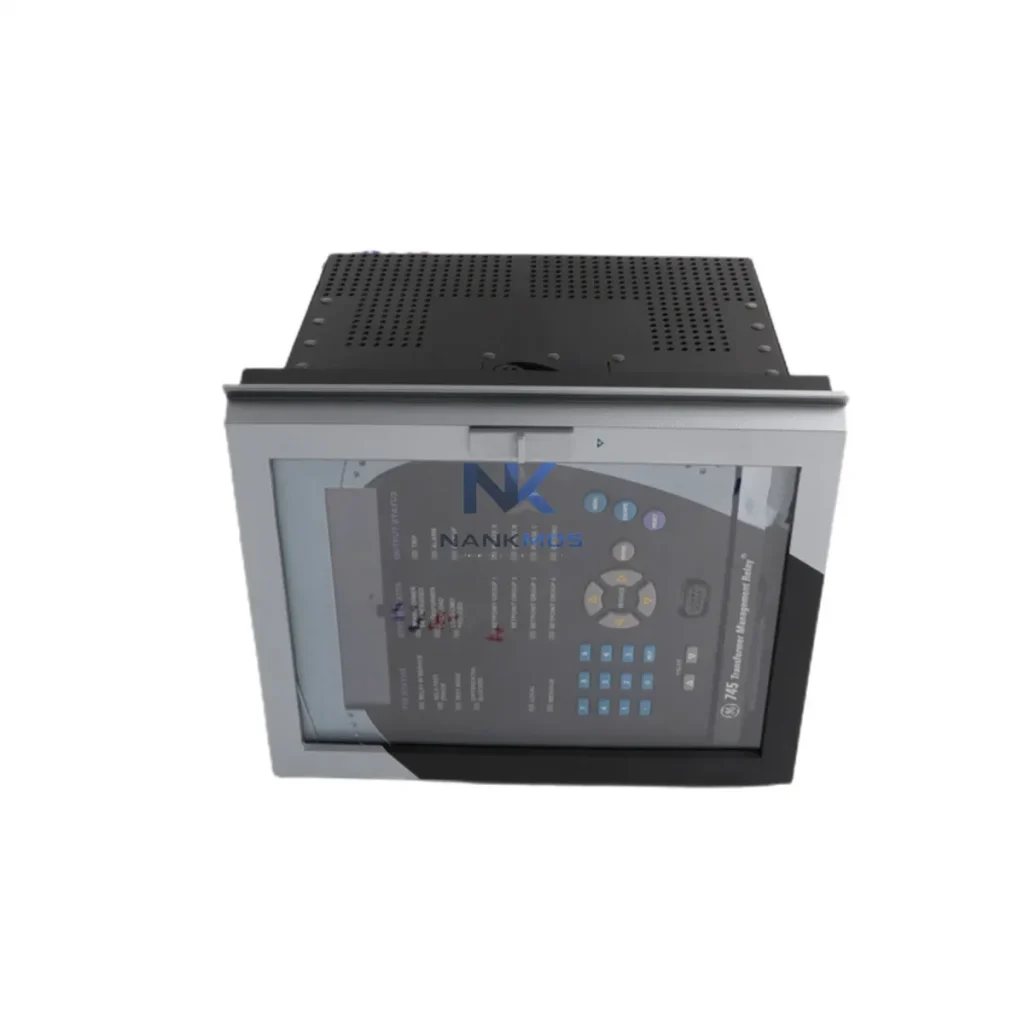

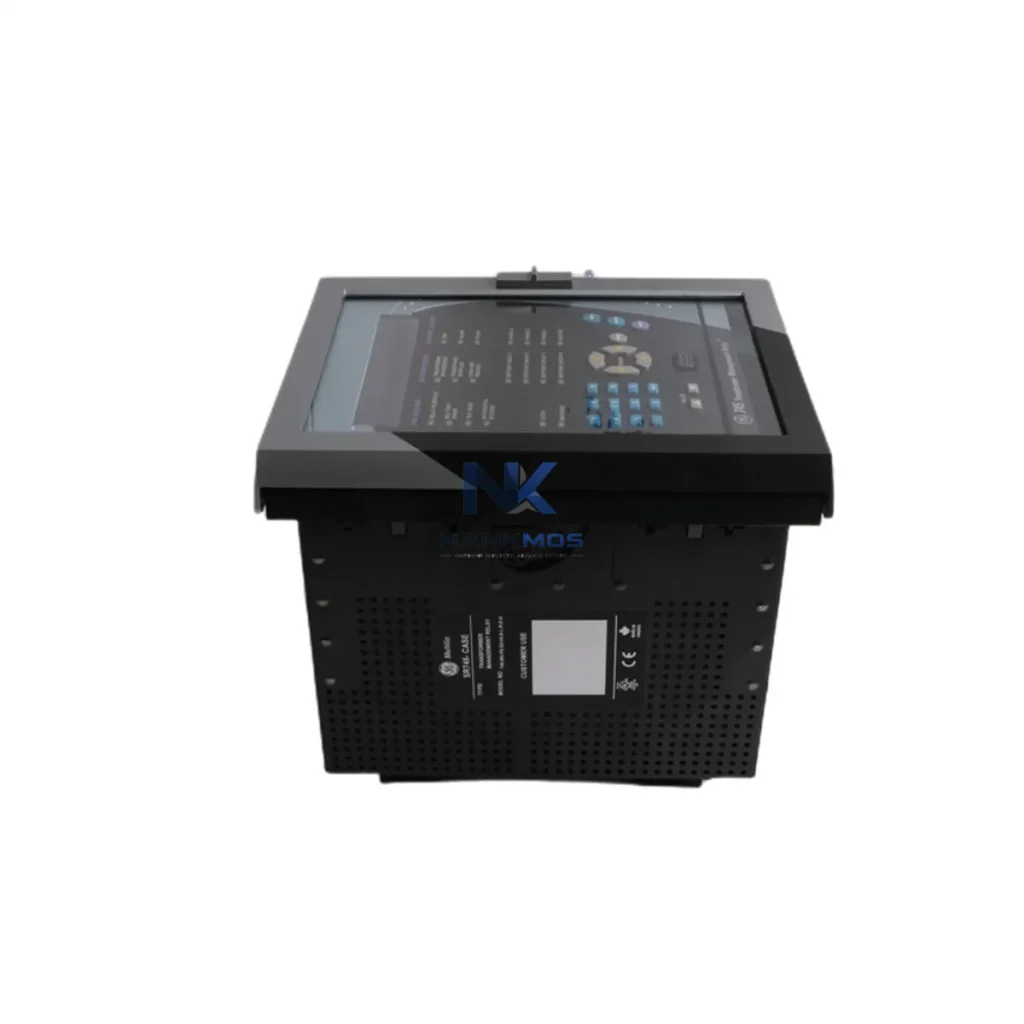

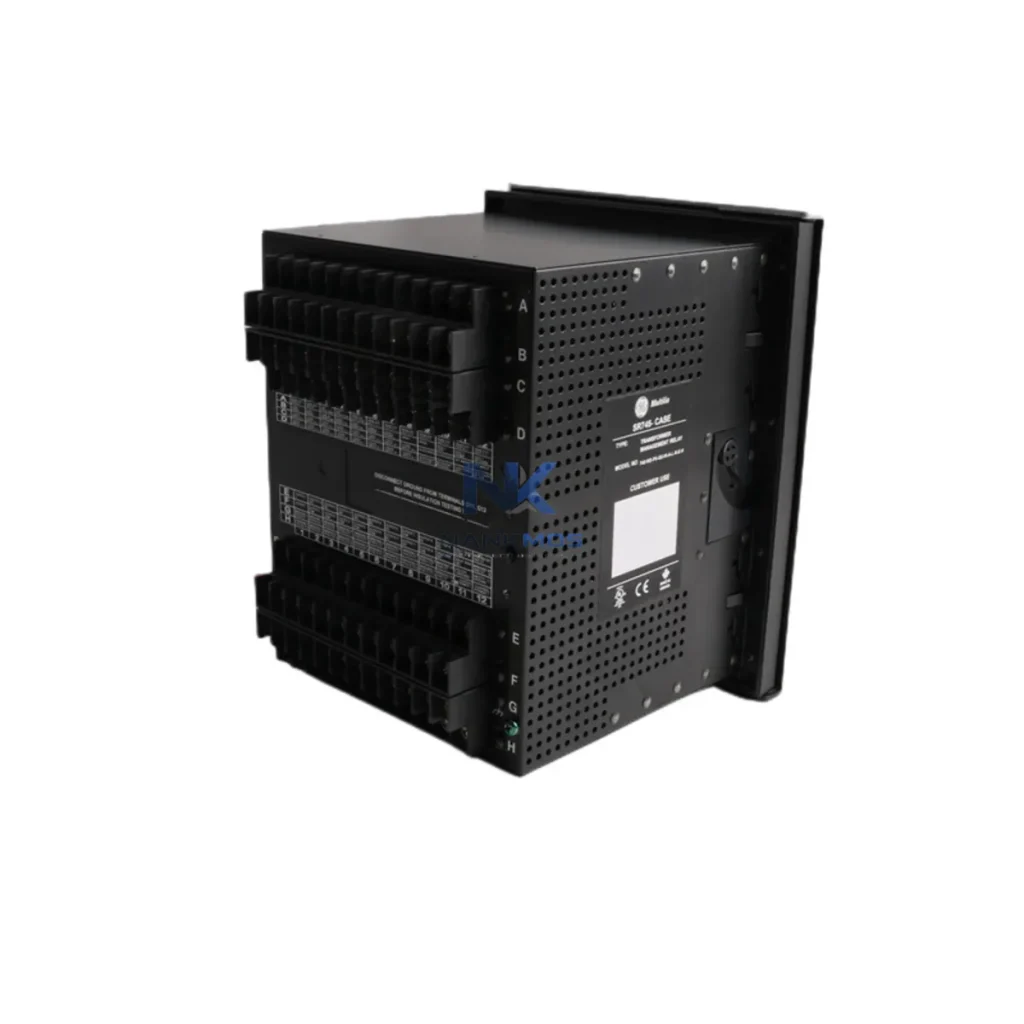

The GE Multilin 745-W2-P5-G5-HI-A-L-R-E-H is a high-performance transformer protection relay engineered for energy-conscious industrial environments. Designed to operate within the Multilin 745 platform, this relay delivers precise differential, overcurrent, and thermal protection while actively contributing to load management and energy optimization across smart production lines. Its multi-function architecture reduces the need for redundant protective devices, lowering panel footprint, heat dissipation, and overall system energy consumption.

In modern industrial facilities where energy efficiency is a measurable KPI, the 745-W2-P5-G5-HI-A-L-R-E-H plays a central role in transformer health monitoring and load-side energy governance. By continuously evaluating thermal capacity, harmonic distortion, and differential current, it enables operators to maintain transformers at optimal loading levels — avoiding both under-utilization and thermal overload, both of which degrade energy efficiency and shorten equipment lifespan.

This relay integrates seamlessly with GE's broader automation ecosystem. When paired with a GE PACSystems RX3i PLC or a Fanuc Series 30i CNC controller, the 745 relay provides real-time protection status and energy load data that feeds directly into supervisory control logic. Combined with a GE Multilin 850 feeder protection relay on the upstream distribution side, the system creates a layered protection and energy monitoring architecture that minimizes fault-induced downtime and unnecessary load shedding.

The 745-W2-P5-G5-HI-A-L-R-E-H is built for integration within multi-device automation architectures where energy visibility and load control are critical. In a typical smart factory deployment, this relay communicates over Modbus RTU or IEC 61850 GOOSE messaging to a GE PACSystems RX3i PLC, which aggregates protection events and load data for plant-wide energy scheduling. Upstream, a GE Multilin 750 series feeder relay monitors incoming power quality, while downstream motor loads are managed by ABB ACS880 variable frequency drives that respond to load-shedding commands triggered by the 745's thermal model outputs.

For facilities running servo-driven production equipment, the relay's harmonic restraint function is particularly valuable. High-frequency switching from Siemens SINAMICS S120 servo drives and Yaskawa Sigma-7 servo amplifiers introduces harmonic currents that stress transformer windings and inflate reactive power demand. The 745's harmonic restraint algorithm filters these signatures from the differential protection logic, preventing nuisance trips while still accurately detecting genuine fault conditions — maintaining production line rhythm without sacrificing protection integrity.

On the monitoring side, the relay's IEC 61850 interface connects directly to a GE iFIX SCADA system or an Ignition-based energy management platform, where thermal capacity utilization, load current, and fault event logs are visualized in real time. A Schneider Electric PowerLogic PM8000 power monitoring module installed on the same bus provides complementary energy metering data, enabling operators to correlate transformer loading trends with production cycle data from the MES layer. This closed-loop visibility is the foundation of predictive maintenance and energy optimization programs.

I/O expansion modules such as the GE Multilin B30 bus differential relay or a Moxa NPort serial device server can extend the relay's communication reach to remote monitoring stations, ensuring that energy and protection data is available across distributed plant topologies without additional infrastructure investment.

Transformer inefficiency is one of the most overlooked sources of energy waste in industrial facilities. Overloaded transformers operate at elevated core temperatures, increasing resistive losses and accelerating insulation degradation — both of which translate directly into higher energy costs and unplanned downtime. The GE Multilin 745-W2-P5-G5-HI-A-L-R-E-H addresses this at the source by continuously modeling transformer thermal capacity and issuing pre-fault alarms before thermal limits are breached.

In production line applications, this capability enables energy managers to implement dynamic load scheduling. When the relay signals that a transformer is approaching 85% thermal capacity during a peak production shift, the plant's PLC-based load management logic can defer non-critical loads — such as HVAC compressors, auxiliary conveyor drives, or battery charging stations — to off-peak windows. This demand-side management strategy reduces peak energy consumption, lowers utility demand charges, and extends transformer service life simultaneously.

The relay's overcurrent and differential protection functions also contribute to production line stability. By isolating transformer faults within milliseconds, the 745 prevents fault energy from propagating to downstream drives, motors, and control panels — avoiding the cascading failures that cause extended line stoppages. Faster fault isolation means shorter recovery times, higher equipment utilization rates, and more consistent production throughput.

For facilities pursuing ISO 50001 energy management certification or internal carbon reduction targets, the 745-W2-P5-G5-HI-A-L-R-E-H provides the metering and event logging infrastructure needed to document transformer efficiency improvements over time. Its data logging capabilities support energy audits, baseline comparisons, and continuous improvement reporting — making it a strategic asset beyond its core protection function.

Every unit shipped by NANKMOS undergoes full functional testing prior to dispatch, including protection function verification, communication port validation, and thermal model calibration checks. Units are supplied with a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions, with in-stock availability ensuring minimal lead times for urgent replacement or new installation projects.

Q1: How does the 745-W2-P5-G5-HI-A-L-R-E-H contribute to energy savings in a transformer substation? The relay's continuous thermal model prevents transformers from operating in the overload zone where resistive losses increase non-linearly. By issuing early alarms and enabling load-shedding automation, it keeps transformers in their optimal efficiency band, reducing energy waste and cooling load simultaneously.

Q2: Is this relay compatible with existing SCADA and energy management systems? Yes. The 745 supports Modbus RTU, DNP3, and IEC 61850 GOOSE protocols, making it compatible with most industrial SCADA platforms including GE iFIX, Wonderware, Ignition, and ABB System 800xA. Integration with energy management systems for real-time load monitoring and reporting is fully supported.

Q3: Can this unit replace an older GE Multilin 745 relay without rewiring? In most cases, yes. The 745-W2-P5-G5-HI-A-L-R-E-H is form-factor and function compatible with earlier Multilin 745 variants. Configuration migration is supported via EnerVista 745 Setup software. We recommend verifying the option codes against your existing installation before ordering; our technical team can assist with compatibility confirmation.

Q4: What does the 12-Month Warranty cover, and what is the typical lead time? The 12-Month Warranty covers all manufacturing defects and functional failures under normal industrial operating conditions from the date of shipment. Units are in stock and typically dispatched within 1–3 business days. Pre-shipment testing records are available upon request for quality assurance documentation purposes.
