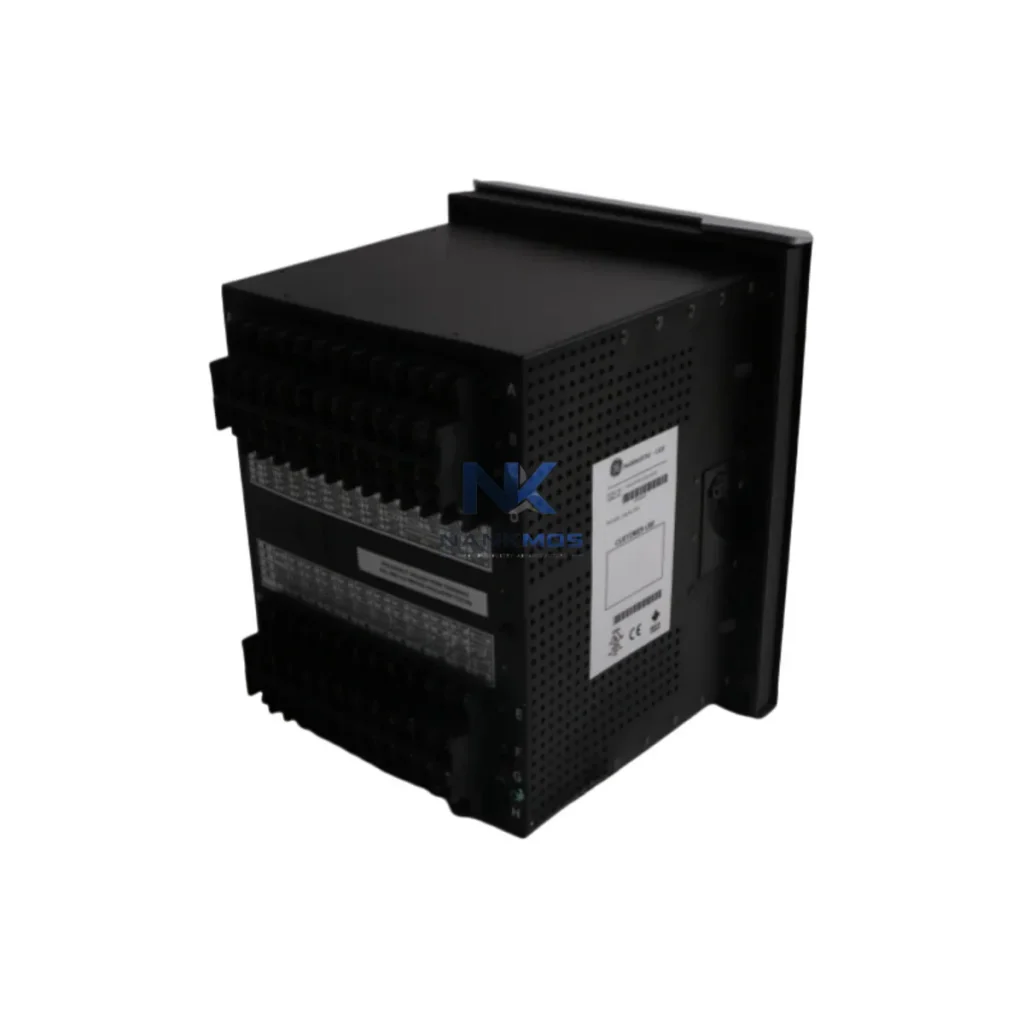

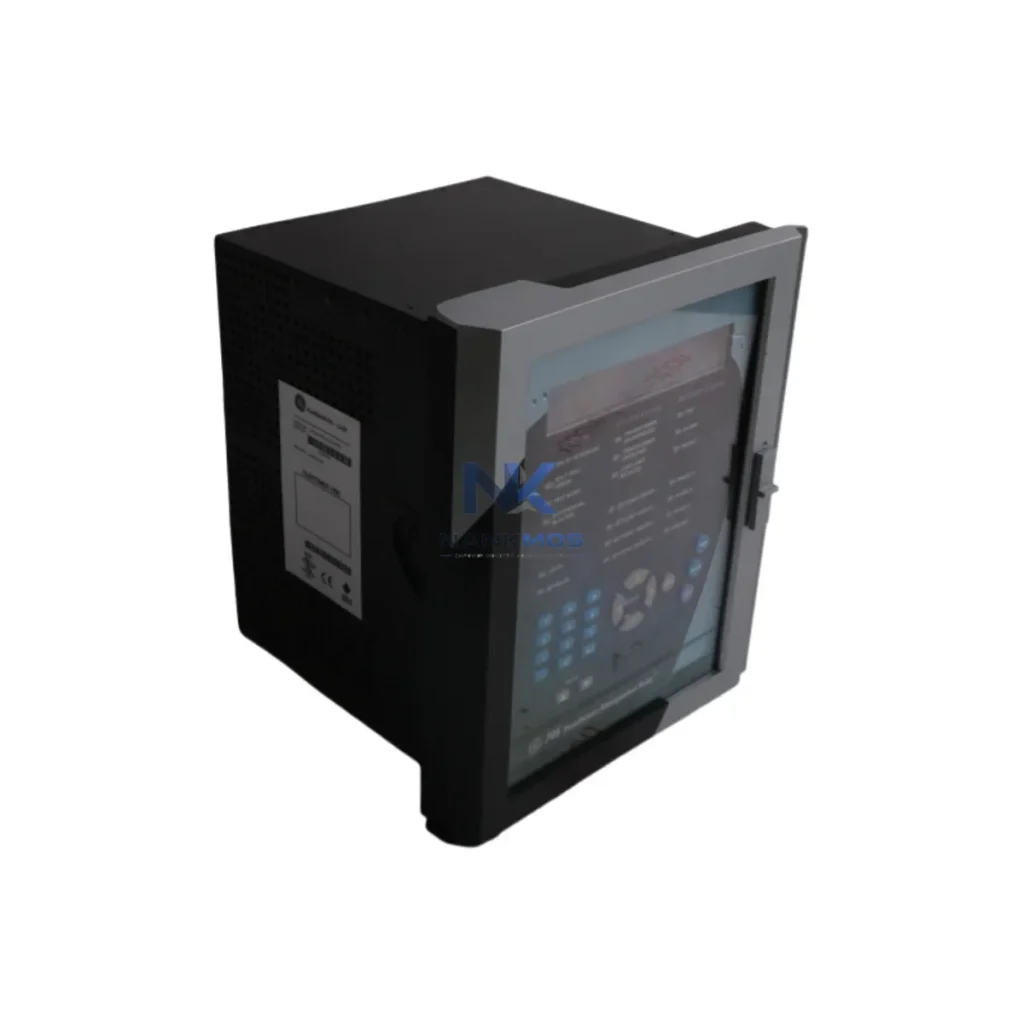

GE Multilin 745-W3-P511-G51-HI-R-E

Product Details

745-W3-P511-G51-HI-R-E Product Description

The GE Multilin 745-W3-P511-G51-HI-R-E is engineered not as a standalone device but as a precision node within a layered power protection and automation architecture. In modern substation and industrial power systems, transformer protection cannot be evaluated in isolation — it must be assessed in terms of how it coordinates with upstream and downstream protection devices, communicates with the control layer, and integrates into the plant-wide SCADA or DCS environment.

At the protection layer, the 745 relay operates alongside feeder protection relays such as the GE Multilin 750/760 Feeder Protection Relay and the GE Multilin 850 Universal Relay, forming a coordinated protection zone that covers the transformer, associated feeders, and bus sections. Differential protection (87T) is the primary function, with high-impedance restricted earth fault (64) providing sensitive ground fault detection on the transformer windings. Inrush restraint algorithms prevent nuisance tripping during energization — a critical feature when the transformer is part of a frequently switched distribution network.

At the communication layer, the 745 relay supports RS-485 Modbus RTU and DNP3.0 natively, enabling direct integration with GE D20MX RTUs, GE UR Series gateways, and third-party SCADA platforms including GE iFIX, Wonderware, and Ignition SCADA. Where IEC 61850 is deployed, the optional Ethernet module enables GOOSE messaging for high-speed inter-relay tripping, coordinating with GE Multilin 489 Generator Management Relays or GE Multilin 369 Motor Management Relays on the same substation LAN. This communication architecture ensures that protection events are logged, time-stamped, and transmitted to the control room without latency.

At the control and I/O layer, the relay's digital inputs and output contacts interface directly with transformer tap changer controls, cooling fan contactors, and lockout relays (86T). In substations using GE Entellisys Low Voltage Switchgear or GE Power Defense Molded Case Circuit Breakers, the 745 relay's trip outputs can be wired into the switchgear's protection bus, enabling zone-selective interlocking and reducing fault clearing time. The relay's analog I/O supports RTD-based thermal monitoring (49), providing continuous winding temperature data to the DCS historian.

At the power supply layer, the wide-range DC input (88–300 V DC) of the 745-W3-P511-G51-HI-R-E makes it compatible with standard substation battery systems — 110 V DC or 125 V DC — without requiring additional DC/DC converters. This simplifies panel wiring and reduces the number of auxiliary power components in the protection panel, improving overall system reliability. Redundant DC supply inputs can be configured where station battery redundancy is required.

At the HMI and diagnostics layer, the relay's front-panel LCD and keypad provide local access to metering, event records, fault reports, and setting groups. Remote access via GE EnerVista 745 PC Software enables engineers to upload/download settings, retrieve oscillography records, and perform relay self-test diagnostics without interrupting protection. This capability is essential during commissioning and periodic maintenance cycles, reducing outage windows and improving diagnostic efficiency across multi-relay protection panels.

The 745-W3-P511-G51-HI-R-E is deployed across a wide range of power-intensive industries where transformer protection is mission-critical. In electric utilities and grid substations, it protects distribution transformers (1 MVA–100 MVA) with full differential and overcurrent coordination, supporting NERC CIP compliance through event logging and access control. In oil & gas and petrochemical plants, it protects unit transformers feeding motor control centers (MCCs) and variable frequency drives (VFDs), where inrush restraint and thermal protection are essential for process continuity. In mining and metals processing, the relay protects furnace transformers and rectifier transformers operating under high harmonic loading, with harmonic restraint settings preventing false differential trips. In water and wastewater treatment facilities, it provides reliable protection for pump station transformers in remote, unmanned locations, with DNP3.0 communication enabling SCADA-based remote monitoring. In marine and offshore platforms, the wide operating temperature range and robust construction make it suitable for switchboard transformer protection in harsh environments. In data center and critical facility power systems, the relay protects medium-voltage transformers feeding UPS systems and critical loads, with fast fault clearing minimizing downtime risk.

Q1: Is the 745-W3-P511-G51-HI-R-E compatible with IEC 61850 substation automation systems? The base 745 platform supports RS-485 Modbus RTU and DNP3.0. The "-E" suffix in this model designates the Ethernet communication option, which enables IEC 61850 GOOSE messaging and MMS protocol for integration with IEC 61850-compliant substation automation systems (SAS). This allows the relay to participate in high-speed inter-relay tripping schemes and report to IEC 61850 SCADA gateways without protocol converters. Confirm the specific firmware version supports IEC 61850 Ed.1 or Ed.2 as required by your SAS design.

Q2: How does the 745 relay coordinate with upstream and downstream protection devices in a transformer protection zone? The 745 relay is designed for zone-based protection coordination. The differential zone (87T) covers the transformer windings between the CT sets on the primary and secondary (and tertiary, if applicable) sides. Overcurrent elements (50/51) provide backup protection and coordinate with upstream feeder relays (e.g., GE Multilin 750/760) and downstream MCC protection. Setting group switching allows the relay to adapt protection characteristics for different transformer loading conditions or system configurations, supporting N-1 contingency planning in the protection coordination study.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for in-stock units? All 745-W3-P511-G51-HI-R-E units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment, including protection function verification, communication port testing, and I/O continuity checks. In-stock units are typically dispatched within 3–5 business days. For project-critical timelines, contact [email protected] or +86 18359268345 to confirm current inventory availability and expedited shipping options.
