Triconex 8110 Safety PLC Chassis

Product Details

8110 Product Description

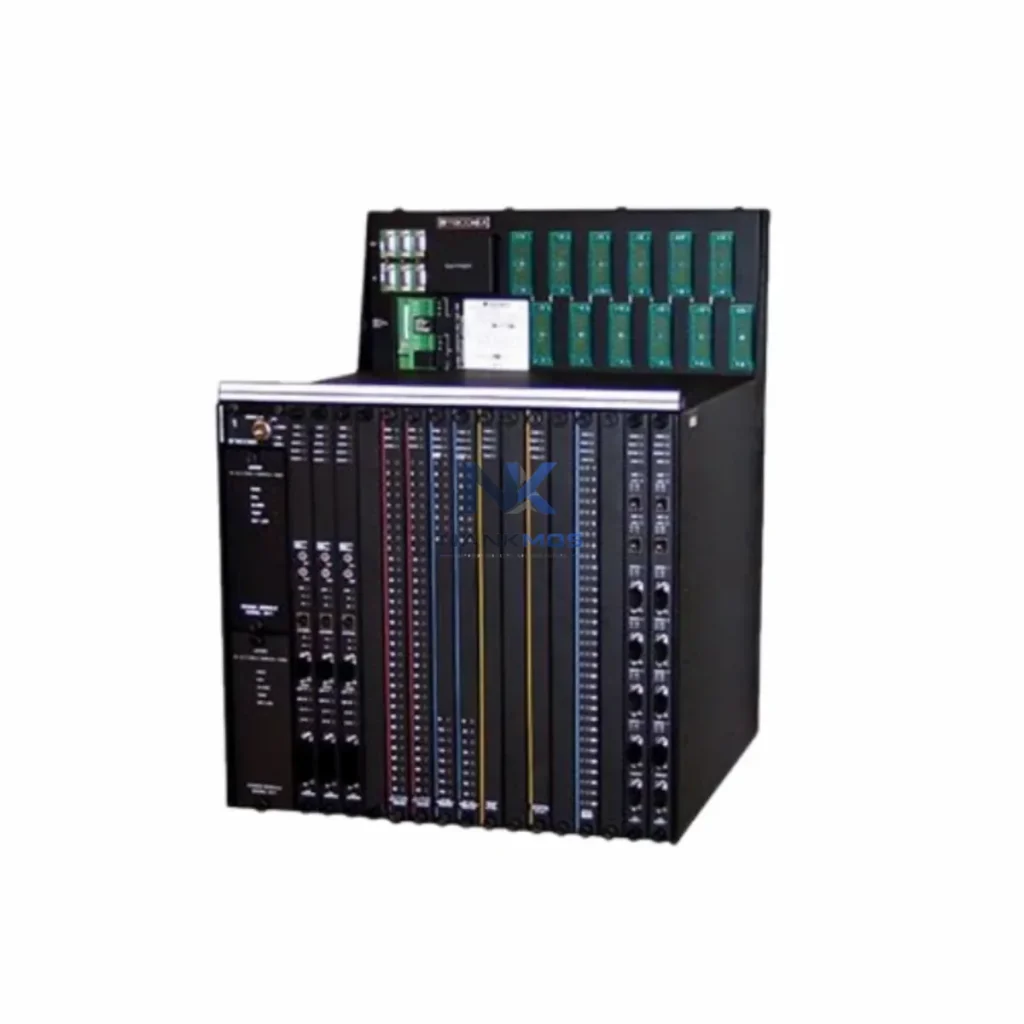

The Triconex 8110 is the foundational main chassis of the Tricon Triple Modular Redundant (TMR) Safety Instrumented System, engineered to deliver uncompromising fault tolerance, deterministic control execution, and SIL 3-rated protection across the most demanding industrial environments. As the structural and electrical backbone of the Tricon platform, the 8110 chassis integrates the control layer, I/O layer, communication layer, and power distribution layer into a single, cohesive rack architecture — enabling seamless module coordination, continuous self-diagnostics, and long-term operational reliability without single-point failure exposure.

Designed for process-critical applications in oil and gas, petrochemical, power generation, nuclear, offshore, and chemical processing industries, the 8110 chassis supports the full Tricon module ecosystem. Its backplane architecture provides high-speed, deterministic data exchange between the three independent processing channels — Channel A, Channel B, and Channel C — ensuring that voted outputs remain accurate and safe even when one or two channels experience faults. This TMR voting architecture is the cornerstone of functional safety compliance under IEC 61508 and IEC 61511 standards.

The Triconex 8110 chassis is the integration hub for a complete Tricon TMR safety platform. In a fully configured safety system, the 8110 chassis houses the Triconex 3008 Main Processor (MP) — the triple-redundant CPU that executes the safety application logic across all three channels simultaneously. Power is supplied by dual-redundant Triconex 8312 Power Supply Modules, which feed the backplane rails independently to eliminate power-related single points of failure.

Digital and analog field signals are acquired through Triconex 3501 Digital Input Modules and Triconex 3601T Analog Input Modules, which interface directly with field transmitters, pressure sensors, and temperature elements. Output commands are executed via Triconex 3625 Analog Output Modules and Triconex 3511 Digital Output Modules, driving final control elements such as solenoid valves, motor starters, and shutdown actuators.

Network connectivity and supervisory integration are achieved through the Triconex TCM 4351B Tricon Communication Module, which supports Modbus TCP and OPC UA communication to DCS hosts, historian servers, and SCADA platforms. For applications requiring peer-to-peer safety communication between Tricon controllers, the Triconex ACM 4351 Advanced Communication Module provides high-integrity data exchange over dedicated safety networks.

In extended I/O architectures, the 8110 main chassis connects to Triconex 8110E Expansion Chassis units via the Tricon Remote I/O (RIO) bus, enabling distributed I/O placement across large process units without compromising TMR integrity. Signal conditioning and isolation for legacy 4–20 mA loops are supported by external MTL or P+F signal isolators mounted in the marshalling cabinet, ensuring clean, noise-free signal delivery to the Tricon I/O modules. HMI visualization and operator interface are typically provided by Wonderware InTouch or Emerson DeltaV Operate connected via OPC DA/UA to the TCM communication module.

The Triconex 8110 chassis is deployed across a broad spectrum of safety-critical industries where process uptime, personnel protection, and regulatory compliance are non-negotiable:

Oil & Gas and Petrochemical: The 8110 forms the core of Emergency Shutdown Systems (ESD) and High Integrity Pressure Protection Systems (HIPPS) on offshore platforms, LNG terminals, and refinery process units. Its TMR architecture ensures that a single module failure does not compromise the safety function, meeting the requirements of IEC 61511 for SIS design.

Power Generation: In gas turbine control and boiler management systems, the 8110 chassis provides the deterministic, fault-tolerant control backbone required for turbine trip systems, burner management systems (BMS), and generator protection relays. Its fast scan cycle and voted output architecture minimize spurious trip rates while maintaining SIL 3 safety integrity.

Chemical and Specialty Processing: Batch reactor safety interlocks, exothermic reaction monitoring, and toxic gas detection systems rely on the Tricon 8110 chassis for reliable, auditable safety logic execution. The chassis supports HART pass-through communication for online valve diagnostics without interrupting the safety function.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the 8110 chassis in pump protection, chemical dosing safety interlocks, and overflow prevention systems, where long-term reliability and low maintenance overhead are critical operational requirements.

Mining and Metals: Conveyor belt protection, crusher overload shutdown, and ventilation safety systems in underground and surface mining operations benefit from the 8110's robust backplane design, wide operating temperature range, and resistance to electrical noise in high-power drive environments.

Q1: Is the Triconex 8110 chassis compatible with both legacy Tricon v9 and current v10 system modules? Yes. The 8110 main chassis is backward-compatible with Tricon v9 MP modules, I/O modules, and communication modules, as well as fully supporting the current Tricon v10 platform. Mixed v9/v10 configurations are supported within the same chassis, allowing phased migration without full system replacement. Always verify firmware revision compatibility between the MP and I/O modules using the Triconex System Configuration Guide before commissioning.

Q2: How does the 8110 chassis support redundant power and what happens during a power module failure? The 8110 chassis is designed to accept two Triconex 8312 Power Supply Modules operating in hot-standby redundancy. If one power module fails, the second immediately assumes full load without interrupting the safety application or triggering a spurious shutdown. The chassis backplane continuously monitors power rail voltages and reports fault status to the Main Processor for alarm annunciation and maintenance scheduling. Replacement of a failed power module is performed online without system shutdown.

Q3: What is covered under the 12-Month Warranty and how is long-term spare parts availability managed? The 12-Month Warranty covers all manufacturing defects, backplane connector integrity, module slot interface faults, and electrical failures under normal operating conditions. Warranty service includes advance replacement of confirmed defective units to minimize process downtime. For long-term maintenance planning, NANKMOS maintains dedicated inventory of Triconex 8110 chassis units and associated Tricon modules, supporting both immediate spare requirements and scheduled turnaround maintenance programs. Contact [email protected] or +86 18359268345 for availability confirmation and lead time quotation.
