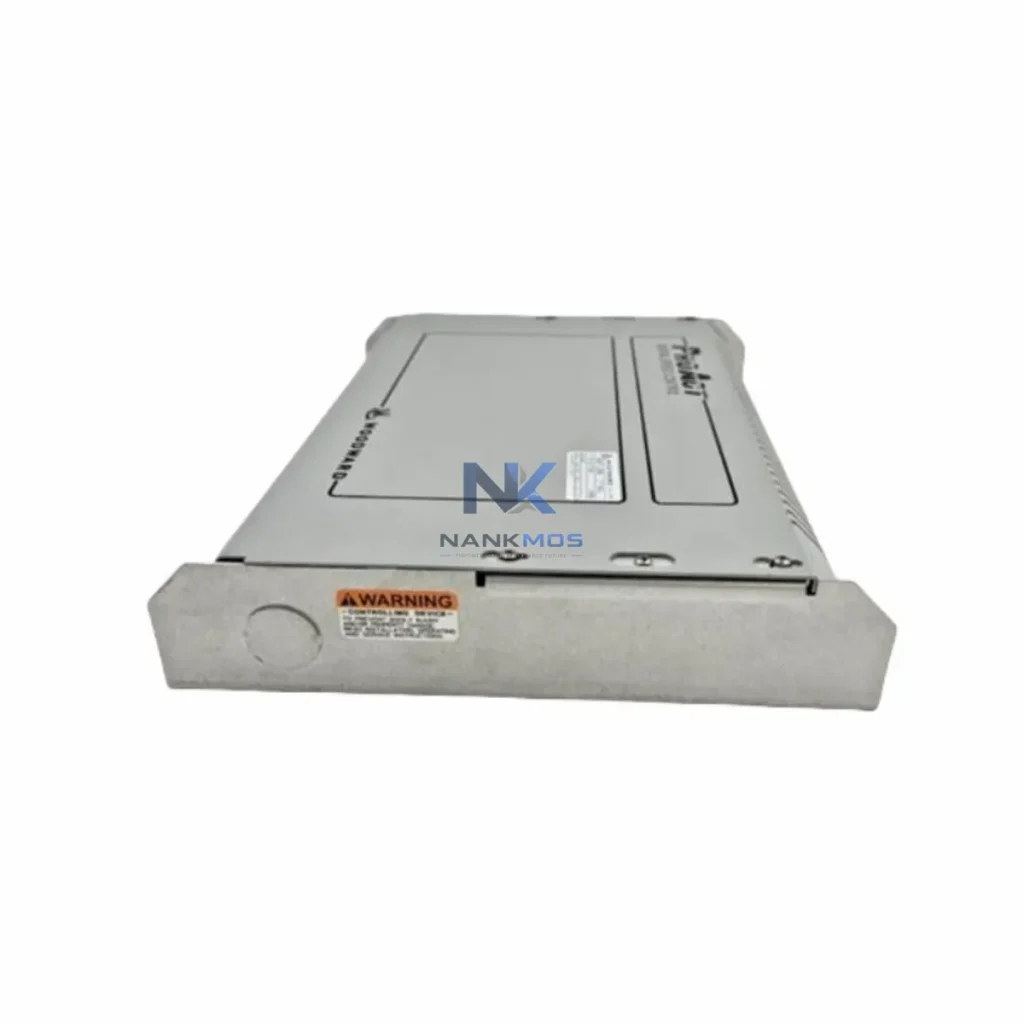

Woodward 8400-016 Electronic Control Module

Product Details

8400-016 Product Description

The Woodward 8400-016 Energy-Control Electronic Control Module is a high-performance governor control component engineered for industrial turbine and engine management systems. Designed to operate within the Woodward 8400 series governor platform, this module delivers precise fuel and speed regulation, enabling production facilities to achieve measurable reductions in energy consumption, thermal load, and unplanned downtime. Whether deployed in power generation, oil and gas processing, or heavy industrial manufacturing, the 8400-016 serves as the intelligent core of a load-aware, energy-optimized control architecture.

Built to meet the demands of continuous industrial operation, the 8400-016 integrates seamlessly into distributed control environments where real-time feedback, adaptive load management, and system-level energy visibility are essential. Its robust signal processing capability supports stable closed-loop control across variable load conditions, making it a critical enabler of production line rhythm stability and overall equipment effectiveness (OEE).

In modern industrial energy management, no single component operates in isolation. The Woodward 8400-016 is designed to function as part of a broader, power-aware automation ecosystem. When integrated with a Woodward EG3P actuator or Woodward ProAct actuator, the 8400-016 delivers precise fuel metering commands that directly translate into reduced fuel burn and lower exhaust thermal output — a critical factor in facilities targeting ISO 50001 energy management compliance.

On the control network side, the 8400-016 interfaces with plant-level PLCs — such as Siemens S7-300 or Allen-Bradley ControlLogix platforms — via analog or discrete I/O signals, enabling supervisory load dispatch commands to be executed with millisecond-level response. This tight integration with the PLC layer ensures that load shedding and load pickup events are handled smoothly, preventing the energy spikes that typically accompany abrupt governor transitions.

For facilities operating variable frequency drives (VFDs) on auxiliary equipment such as cooling fans, lube oil pumps, and fuel gas compressors, the 8400-016's stable speed reference output allows VFD setpoints to track turbine load in real time. This coordinated control between the governor module and the VFD layer eliminates unnecessary motor overrun, reducing auxiliary power consumption by maintaining equipment at optimal operating points rather than fixed-speed defaults.

Power quality and consumption visibility are further enhanced when the 8400-016 is paired with power monitoring modules such as the Schneider Electric PowerLogic ION series or equivalent multifunction power meters. These devices capture real-time kW, kVAR, and power factor data from the generator bus, feeding the SCADA layer with the energy telemetry needed to validate governor performance and identify efficiency drift before it becomes a maintenance event.

Communication between the 8400-016 control loop and the plant's SCADA system — whether OSIsoft PI, Ignition SCADA, or a DCS-integrated historian — is typically mediated through the site PLC or a dedicated communication gateway module supporting Modbus RTU, Modbus TCP, or PROFIBUS DP. This architecture ensures that governor status, speed deviation alarms, and load demand signals are continuously logged and available for energy performance analysis and regulatory reporting.

At the HMI layer, operators interact with governor setpoints and load targets through industrial HMI panels — such as Siemens SIMATIC TP or Weintek cMT series — where real-time speed, load percentage, and fuel valve position are displayed alongside energy KPIs. This visibility empowers operators to make informed load management decisions without requiring engineering-level access to the control system.

Sensor inputs — including magnetic pickup speed sensors for engine RPM feedback and 4–20 mA pressure transmitters for inlet and exhaust monitoring — feed directly into the 8400-016's analog input channels, closing the control loop with high-fidelity process data. Accurate sensor integration is the foundation of the module's ability to maintain tight speed regulation under variable load, which is the primary mechanism through which fuel efficiency is achieved.

Production line energy optimization is not simply about reducing peak power draw — it is about maintaining consistent, predictable equipment behavior across every operating cycle. The Woodward 8400-016 contributes to this goal by ensuring that the prime mover — whether a gas turbine, diesel engine, or gas engine genset — responds to load changes with controlled, damped transitions rather than abrupt speed excursions.

Uncontrolled speed excursions are a primary source of energy waste in turbine-driven production systems. When a governor module fails to maintain tight droop control, the engine overshoots its target speed, burns excess fuel during the correction phase, and generates thermal stress on exhaust components and downstream heat exchangers. The 8400-016's closed-loop PID control architecture is tuned to minimize overshoot, reducing both fuel consumption and thermal cycling in a single control action.

From a production rhythm perspective, stable governor control directly supports consistent line throughput. In facilities where the prime mover drives mechanical loads — such as gas compression trains, pump drives, or mill drives — speed instability translates directly into process variability. By maintaining speed within tight tolerance bands, the 8400-016 enables downstream processes to operate at their designed throughput rates, reducing scrap, rework, and the energy embedded in off-spec production.

Predictive maintenance integration is another dimension of the 8400-016's contribution to energy optimization. By continuously monitoring speed deviation trends, load response times, and actuator duty cycles through the connected SCADA historian, maintenance teams can identify governor performance degradation before it causes a forced outage. Planned maintenance windows are far less energy-intensive than emergency shutdowns, which typically require extended restart sequences with elevated fuel consumption during warm-up phases.

NANKMOS maintains verified inventory of the Woodward 8400-016 and related 8400 series components, with each unit function-tested prior to shipment. Our logistics process is designed to support urgent MRO requirements, with same-day dispatch available for in-stock items and full traceability documentation provided with every order.

Q1: How does the Woodward 8400-016 contribute to measurable energy savings in a turbine-driven facility?The 8400-016 achieves energy savings primarily through precise closed-loop speed regulation. By minimizing speed overshoot during load transients, the module reduces the excess fuel injected during correction phases. In continuous operation, this translates to lower average fuel consumption per unit of output — a directly measurable efficiency gain when benchmarked against uncontrolled or degraded governor performance.

Q2: Is the Woodward 8400-016 compatible with existing PLC and SCADA infrastructure?Yes. The 8400-016 communicates via standard analog (4–20 mA, 0–10 V) and discrete I/O signals, making it compatible with virtually all major PLC platforms including Siemens S7, Allen-Bradley, Schneider Modicon, and Mitsubishi MELSEC series. Integration with SCADA systems is achieved through the site PLC or a dedicated communication gateway, with no proprietary protocol requirements on the governor side.

Q3: What is the recommended replacement and testing procedure for the 8400-016?Replacement should be performed with the prime mover at rest and all control power isolated. After installation, the module requires a governor tuning verification — checking droop setting, speed reference calibration, and actuator response — before returning the unit to service. NANKMOS supplies each 8400-016 with a pre-shipment function test report, and our technical team can provide application-specific commissioning guidance upon request.

Q4: What warranty and supply assurance does NANKMOS provide for the Woodward 8400-016?Every Woodward 8400-016 supplied by NANKMOS is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. We maintain standing inventory of the 8400-016 and key 8400 series accessories to support both planned procurement and emergency MRO requirements. Orders are processed with full documentation including test records, packing lists, and country-of-origin certification.
