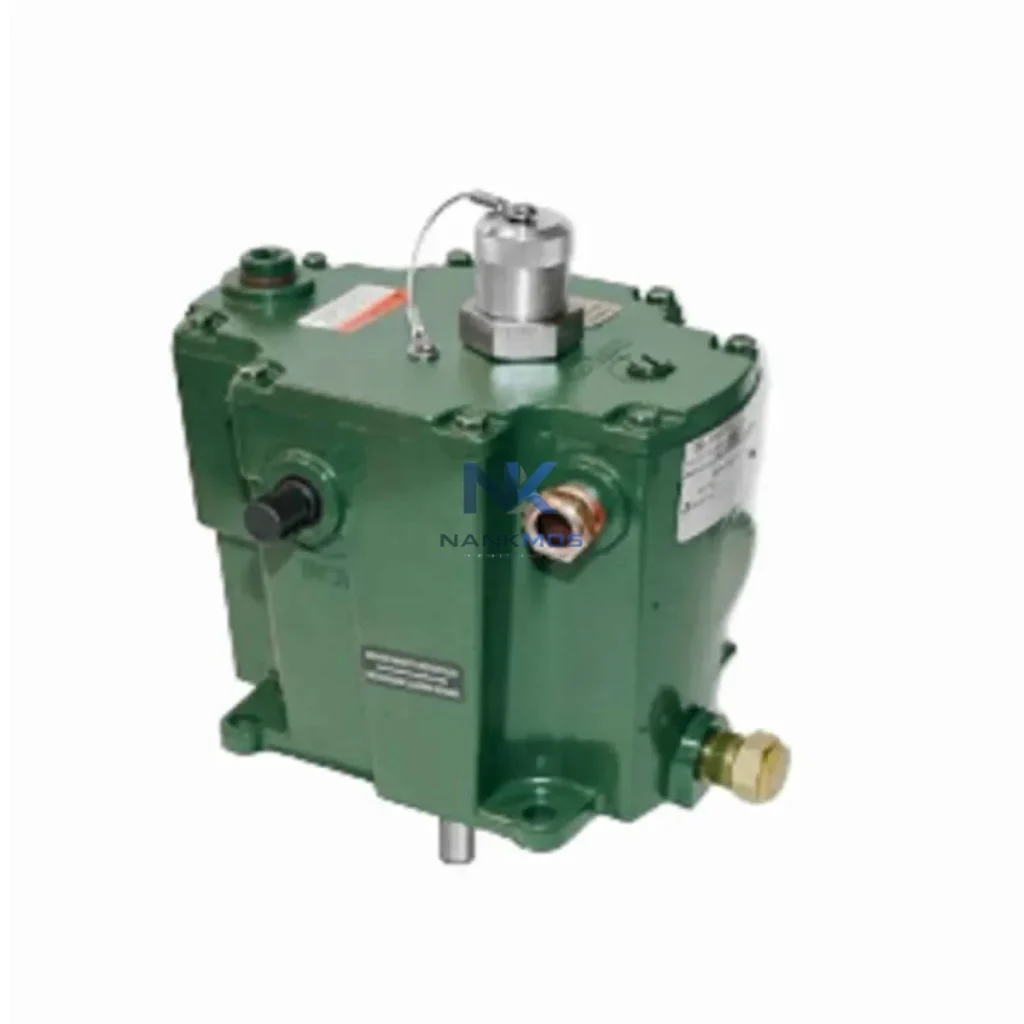

Woodward 8516-085 Turbine Actuator

Product Details

8516-085 Product Description

The Woodward 8516-085 is a precision-engineered turbine actuator designed for seamless integration within the Woodward 8516 Series governor and control platform. In high-stakes turbine control environments — spanning gas turbines, steam turbines, and hydro-turbine installations — the 8516-085 serves as the critical mechanical execution layer that translates governor output signals into precise fuel valve or blade pitch positioning. Its role within the control architecture is not peripheral; it is the terminal actuator node that closes the loop between the digital control layer and the physical prime mover, making system-level coherence and signal fidelity non-negotiable requirements.

Within a layered industrial control architecture, the 8516-085 operates at the execution layer, receiving positioning commands from the Woodward 505 Digital Governor or the Woodward 723PLUS Speed Controller. These governor platforms generate 4–20 mA or discrete positioning signals that the 8516-085 converts into proportional mechanical displacement with high repeatability and low hysteresis. The actuator's internal LVDT feedback mechanism ensures closed-loop position verification, enabling the governor to continuously correct for load transients, fuel pressure variations, and mechanical wear — all without operator intervention.

The 8516-085 achieves its full performance potential when deployed within a coherent Woodward control platform. At the control layer, the Woodward 505 Digital Governor provides the primary speed and load management logic, issuing actuator positioning commands based on real-time turbine speed feedback from magnetic pickup sensors. For applications requiring dual-fuel or split-range control, the Woodward 723PLUS Speed Controller complements the 505 by managing secondary actuator channels or auxiliary governor functions, ensuring that the 8516-085 receives clean, conditioned command signals regardless of load step magnitude.

At the I/O and signal conditioning layer, the Woodward 2301D Load Sharing and Speed Control module manages parallel generator sets, coordinating actuator demand signals across multiple 8516-085 units in multi-turbine installations. Signal integrity between the governor and actuator is maintained through shielded instrumentation cabling and, where required, Woodward ProAct Digital Actuator Interface modules that provide digital-to-analog conversion and signal isolation. This isolation layer is particularly critical in environments with high electromagnetic interference from variable frequency drives, large motor starters, or high-voltage switchgear.

The power supply layer for the 8516-085 and its associated governor platform typically relies on a 24 VDC regulated DIN-rail power supply with redundant input capability, ensuring that actuator response is not compromised during utility voltage fluctuations or generator transfer events. For critical turbine applications, an uninterruptible power supply (UPS) module is integrated upstream of the governor and actuator power rails to maintain control continuity during grid disturbances.

At the HMI layer, operator interface panels running Woodward Toolkit configuration software provide real-time actuator position monitoring, governor tuning parameter access, and alarm annunciation. These HMI connections are typically established via RS-232 or USB service ports on the governor, with the 8516-085 actuator position data reflected in the governor's internal diagnostics. For remote monitoring, Modbus RTU or Modbus TCP gateway modules bridge the governor's serial diagnostic port to plant-level SCADA systems, enabling continuous actuator health trending without requiring physical access to the turbine skid.

In redundant turbine control architectures, a secondary Woodward 8516-series backup actuator or a Woodward ProAct actuator may be installed in a hot-standby configuration, with automatic transfer logic managed by the governor's redundancy management firmware. This architecture ensures that a single actuator failure does not result in turbine trip, protecting both equipment and process continuity in critical power generation or compression applications.

Power Generation: In gas turbine generator sets, the 8516-085 controls the fuel gas metering valve, responding to governor speed error signals to maintain synchronous speed under varying electrical load. Its high-force output and fast response time make it suitable for both base-load and peaking turbine applications where load acceptance speed is a key performance criterion.

Oil & Gas Compression: Centrifugal and reciprocating compressor trains in upstream and midstream oil and gas facilities use the 8516-085 to control inlet guide vanes, recycle valves, or fuel admission valves on gas-engine-driven compressors. The actuator's robust construction and sealed internals provide reliable operation in hydrocarbon-rich environments with elevated ambient temperatures.

Petrochemical Process Control: Steam turbine drives for large centrifugal pumps and compressors in refinery and petrochemical complexes rely on the 8516-085 for steam admission valve control. The actuator's LVDT feedback ensures precise steam flow modulation, supporting tight process pressure and flow control requirements without hunting or instability.

Marine Propulsion and Auxiliary Power: Shipboard diesel and gas turbine generator sets use the 8516-085 in conjunction with Woodward marine-certified governors to maintain frequency stability during large hotel load changes. The actuator's vibration tolerance and sealed construction meet the mechanical demands of marine engine room environments.

Mining and Mineral Processing: Large diesel-driven generator sets and gas turbine power plants at remote mining sites depend on the 8516-085 for reliable fuel control under variable altitude and temperature conditions. Its compatibility with the Woodward 505 governor simplifies spare parts management and reduces site-specific engineering requirements.

Q1: Is the Woodward 8516-085 directly compatible with the Woodward 505 Digital Governor without additional interface hardware?Yes. The 8516-085 is designed as a native execution-layer component for the Woodward 8516 Series governor platform, which shares signal architecture with the 505 Digital Governor. The 505 outputs a 4–20 mA actuator demand signal that the 8516-085 accepts directly, provided the governor's actuator output channel is configured for the correct current range and the actuator's internal gain settings are matched to the valve or pitch mechanism being driven. No additional signal conditioning hardware is required in standard installations, though signal isolation modules are recommended in high-EMI environments.

Q2: What maintenance intervals and diagnostic checks are recommended to ensure long-term actuator reliability in continuous-duty turbine applications?For continuous-duty applications, a functional stroke test of the 8516-085 should be performed at each scheduled turbine outage, verifying full-range travel, LVDT linearity, and return spring force. Internal seal inspection and lubrication of the actuator's mechanical linkage should be conducted at 8,000–10,000 operating hours or annually, whichever occurs first. The Woodward Toolkit software provides actuator position calibration routines that should be re-executed after any mechanical linkage adjustment. All units supplied by NANKMOS include a 12-Month Warranty covering manufacturing defects and functional performance, with pre-shipment functional testing documented for each unit.

Q3: Can the 8516-085 be used in a redundant actuator architecture, and what governor firmware features support automatic actuator transfer?Yes. Redundant actuator configurations using dual 8516-series actuators are supported by the Woodward 505 governor's redundancy management firmware, which monitors actuator position feedback from both channels and executes bumpless transfer to the standby actuator upon detection of a primary actuator fault. The transfer logic is configurable for automatic or operator-initiated modes, with transfer time typically under 100 milliseconds to prevent turbine speed excursion. Proper implementation requires matched actuator calibration on both channels and periodic transfer testing to verify standby actuator readiness. NANKMOS maintains in-stock inventory of the 8516-085 to support rapid replacement in redundant architectures, minimizing the window during which a turbine operates in simplex control mode.
