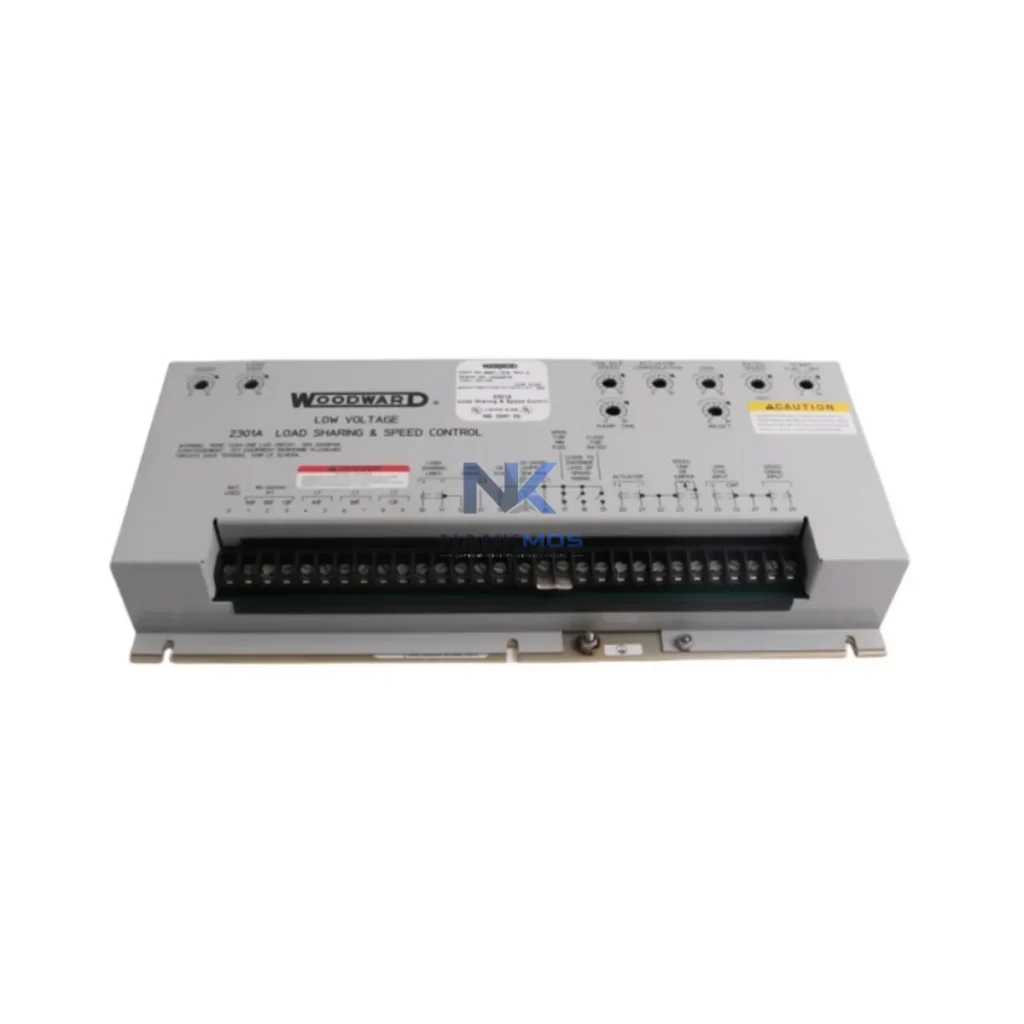

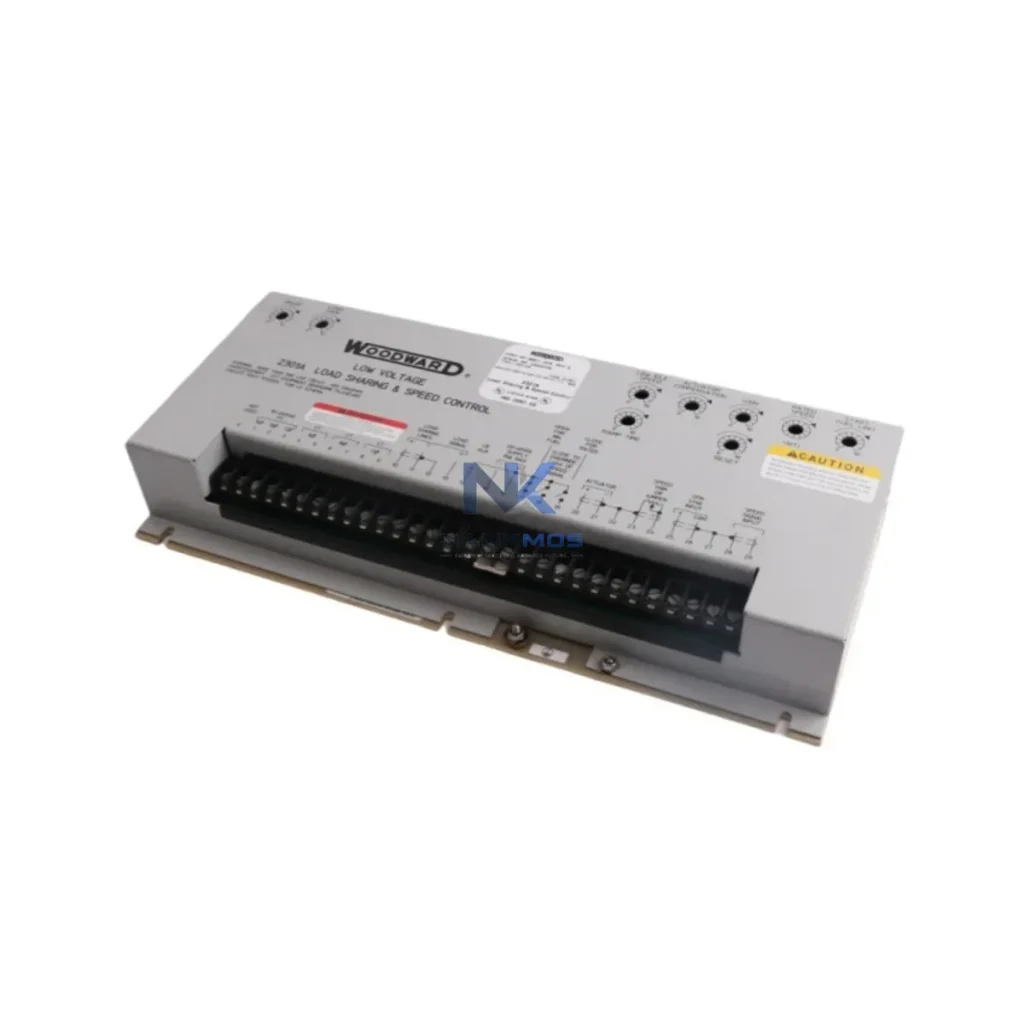

Woodward 9907-018/2301A Speed Control Module

Product Details

9907-018/2301A Product Description

The Woodward 9907-018/2301A is a precision-engineered speed control module purpose-built for the Woodward 2301A governor control architecture. Designed to deliver consistent, reliable speed regulation across demanding industrial environments, this module serves as a critical node within multi-layer automation systems — integrating seamlessly across the control layer, I/O layer, communication layer, power layer, and protection layer to ensure system-wide coherence and long-term operational stability.

In modern industrial automation, no component operates in isolation. The 9907-018/2301A is engineered with this principle at its core. Its role within the 2301A platform extends beyond simple speed regulation: it actively participates in signal flow management, redundancy architecture, modular expansion, and diagnostic efficiency — making it an indispensable element of any turbine or engine control system that demands precision, uptime, and maintainability.

The Woodward 9907-018/2301A achieves its full performance potential when deployed within a coherent, multi-layer automation architecture. At the control layer, it works in direct coordination with the Woodward 2301A Load Sharing and Speed Control base unit, receiving speed reference signals and translating them into precise actuator commands. This tight integration eliminates signal latency and ensures deterministic response times critical for turbine governor applications.

At the I/O layer, the module interfaces with Woodward 2301D Digital Control expansion I/O modules, enabling engineers to extend analog and discrete signal capacity without redesigning the core control loop. This modularity is essential in large-scale installations where process variables — fuel flow, exhaust temperature, inlet pressure — must be monitored simultaneously across multiple control zones.

For communication stability, the 9907-018/2301A integrates with Woodward easYgen-3000 Series genset controllers and Woodward MicroNet TMR redundant control platforms, supporting cross-platform signal validation and enabling hot-standby redundancy configurations. In high-availability environments such as offshore platforms or continuous process plants, this redundancy architecture ensures zero-interruption control even during module maintenance cycles.

At the power layer, the module is typically paired with Woodward 5464-839 or equivalent 24 VDC regulated power supply modules, ensuring clean, stable power delivery that protects the speed control circuitry from grid-side transients. Proper power layer design directly impacts the signal integrity of the MPU input and actuator output — both of which are sensitive to voltage ripple.

HMI integration is achieved through Woodward Toolkit Service Software and compatible SCADA interfaces, allowing operators to monitor speed setpoints, actuator position, and diagnostic fault codes in real time. This visibility layer is critical for predictive maintenance scheduling and rapid fault isolation during unplanned shutdowns.

At the execution layer, the 9907-018/2301A drives Woodward EG-3P Actuators and Woodward TM-series Electro-Hydraulic Actuators, translating electronic control signals into precise mechanical fuel valve positioning. The actuator interface is calibrated to the 2301A output curve, ensuring linearity across the full operating range.

Protection layer coordination is handled through integration with Woodward 9907-838 Overspeed Protection Modules, which provide independent hardware-level overspeed trip circuits that operate in parallel with the 9907-018/2301A's software-based protection logic. This dual-layer protection architecture meets IEC 61511 functional safety requirements for SIL-rated installations.

For maintenance layer efficiency, the module's diagnostic output is compatible with Woodward Watch Window real-time data logging tools, enabling field engineers to capture transient events, tune PID parameters, and validate control loop stability without interrupting production. This capability significantly reduces commissioning time and supports long-term performance optimization across the asset lifecycle.

The Woodward 9907-018/2301A is deployed across a broad spectrum of industrial sectors where precise speed governance is non-negotiable:

Power Generation: In gas turbine and diesel generator sets, the module governs engine speed during load pickup, load shedding, and parallel operation with the grid. Its fast response characteristic — typically under 100ms — ensures frequency stability during sudden load changes, protecting sensitive downstream electrical equipment.

Oil & Gas / Petrochemical: In compressor train control systems, the 9907-018/2301A regulates driver speed to maintain suction and discharge pressure within process limits. Its compatibility with hazardous area enclosures (when properly housed) makes it suitable for Zone 2 classified installations in refineries and LNG terminals.

Water & Wastewater Treatment: Pump station speed control applications benefit from the module's smooth ramp-up and ramp-down profiles, reducing water hammer effects in long pipeline systems. Integration with SCADA via analog setpoint signals allows remote speed adjustment without local operator intervention.

Marine & Offshore: Vessel propulsion and auxiliary engine control systems use the 9907-018/2301A for main engine speed governing and shaft generator control. Its wide operating temperature range (-40°C to +70°C) and vibration tolerance make it suitable for engine room environments.

Mining & Metallurgy: In ore processing and smelting facilities, the module controls crusher drives, conveyor prime movers, and ventilation fan engines, ensuring consistent throughput and protecting mechanical drivetrain components from speed excursions.

Packaging & Process Lines: High-speed packaging machinery requires precise speed synchronization between multiple drive axes. The 9907-018/2301A provides the stable speed reference signal needed to maintain product registration accuracy across multi-station production lines.

Q1: Is the Woodward 9907-018/2301A compatible with existing 2301A control panels without hardware modification?A: Yes. The 9907-018/2301A is designed as a direct system-matched replacement and expansion module for the 2301A governor platform. It uses the same wiring harness pinout, power supply range (18–40 VDC), and actuator output interface as the standard 2301A series. In most retrofit scenarios, no hardware modification to the existing control panel is required. Engineers should verify the MPU signal frequency range and actuator gain settings during commissioning using Woodward Toolkit software to ensure optimal PID loop performance within the existing architecture.

Q2: How does the 12-Month Warranty apply, and what does it cover for system integration scenarios?A: All Woodward 9907-018/2301A units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects, component failure under normal operating conditions, and firmware integrity. The warranty applies from the date of shipment and covers the module as a standalone unit. For system integration scenarios, NANKMOS provides pre-shipment functional testing documentation, including actuator output linearity verification and MPU input sensitivity confirmation, ensuring the module is validated before installation. Warranty claims are processed through [email protected] with full technical support throughout the resolution process.

Q3: What is the recommended inventory strategy for the 9907-018/2301A in critical continuous-process installations?A: For installations where unplanned downtime carries significant production or safety consequences — such as power plants, offshore platforms, or continuous chemical processes — NANKMOS recommends maintaining a minimum of one spare 9907-018/2301A module on-site. Given the module's role as the primary speed governor, mean-time-to-repair (MTTR) is directly dependent on spare availability. NANKMOS maintains bonded stock of the 9907-018/2301A and can support emergency same-day dispatch for critical applications. Long-term supply agreements are available for operators managing fleets of 2301A-based control systems across multiple sites.
