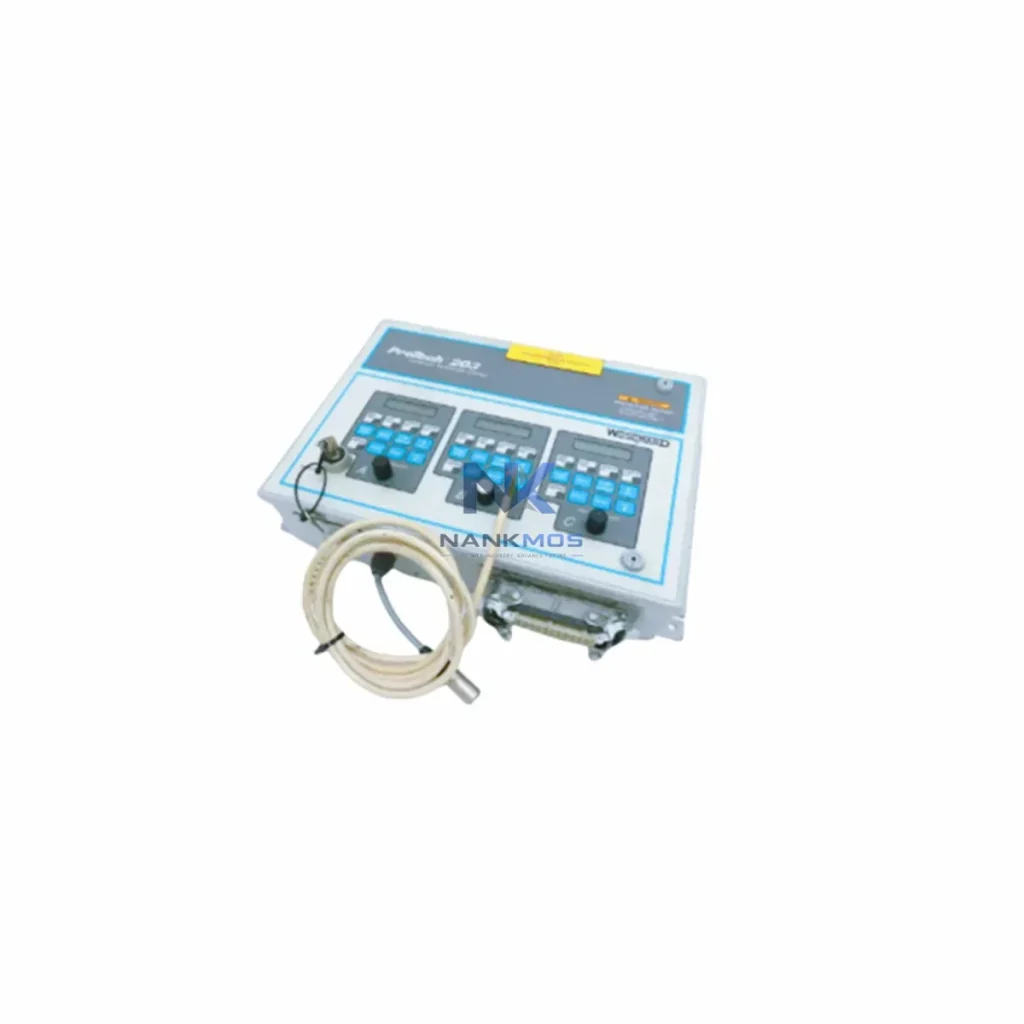

Woodward 9907-345 Overspeed Protection Module

Product Details

9907-345 Product Description

The Woodward 9907-345 is a precision overspeed protection module engineered for turbine-driven production environments where energy efficiency, load stability, and operational continuity are non-negotiable. Designed to integrate seamlessly within the Woodward MicroNet control platform, this module delivers real-time shaft speed monitoring, trip relay actuation, and load shedding coordination — all critical functions in reducing unnecessary energy consumption and preventing costly unplanned shutdowns across smart production lines.

In modern industrial facilities, overspeed events represent not only a safety hazard but also a significant source of energy waste. Uncontrolled acceleration in turbine or motor-driven systems leads to thermal overload, excessive mechanical stress, and elevated power draw. The 9907-345 addresses these challenges by providing deterministic overspeed detection with configurable trip thresholds, enabling plant engineers to maintain optimal rotational speed bands that align with energy-efficient operating windows.

The 9907-345 does not operate in isolation — its value is fully realised when integrated within a coordinated automation architecture. In a typical turbine-driven production line, the module interfaces directly with the Woodward MicroNet controller, which serves as the central processing unit for fuel control, load sharing, and speed governing. The MicroNet's I/O expansion modules receive discrete trip signals from the 9907-345, enabling the PLC logic to initiate controlled load shedding sequences rather than abrupt shutdowns that waste stored kinetic energy.

On the power monitoring side, the 9907-345 works alongside power measurement modules such as the Woodward 5417-1366 analog input card, which tracks real-time generator output and flags deviations from the target efficiency band. When the 9907-345 detects an approaching overspeed condition, it signals the MicroNet to reduce fuel valve opening via the Woodward 8272-1031 actuator driver, smoothly decelerating the turbine rather than triggering a hard trip — a strategy that significantly reduces thermal stress on the generator windings and associated drive components.

For facilities running variable-speed compressor or pump drives alongside turbine systems, the 9907-345 trip output can be wired into the enable circuit of a Siemens SINAMICS G120 variable frequency drive or an ABB ACS880 industrial drive, ensuring that downstream motor loads are gracefully ramped down in the event of a turbine overspeed condition. This coordinated response prevents cascading load spikes that would otherwise force the facility's power management system to draw excess grid power.

HMI visibility is equally important. The 9907-345 status and trip history can be surfaced on a Woodward 5464-1036 operator panel or integrated into a broader SCADA system via the MicroNet's Modbus RTU or Ethernet/IP communication gateway. Plant operators gain real-time insight into speed trends, trip event logs, and energy consumption patterns — enabling proactive maintenance scheduling before efficiency losses compound. Paired with a Woodward 5417-1388 thermocouple input module, exhaust temperature data can be correlated with speed excursions to identify combustion inefficiencies that drive up fuel consumption.

In smart manufacturing environments, energy optimisation is not a single-point solution — it is a system-level discipline. The Woodward 9907-345 contributes to this discipline by ensuring that turbine prime movers operate within their designed efficiency envelope at all times. When shaft speed is held within the optimal band, combustion efficiency improves, fuel consumption decreases, and heat rejection to the environment is minimised — directly reducing the thermal load on cooling systems and lowering overall facility energy intensity.

From a production line rhythm perspective, the 9907-345 enables tighter speed regulation, which translates to more consistent mechanical output for driven equipment such as compressors, pumps, and generators. Consistent mechanical output means fewer process interruptions, reduced scrap rates in precision manufacturing cells, and more predictable cycle times — all of which contribute to higher overall equipment effectiveness (OEE).

Predictive maintenance is another dimension where the 9907-345 delivers energy savings. By logging overspeed events and near-trip conditions, maintenance teams can identify bearing wear, coupling misalignment, or governor degradation before these faults escalate into full failures. Early intervention reduces unplanned downtime, eliminates the energy penalty of emergency restarts, and extends the service life of associated drive train components.

Every unit of the Woodward 9907-345 supplied by NANKMOS undergoes full functional testing prior to shipment, including trip threshold verification, relay output continuity checks, and speed input signal validation. This ensures that the module performs to specification from day one, with no commissioning surprises that could delay production start-up. All units are covered by a 12-Month Warranty, with in-stock availability for immediate dispatch to minimise procurement lead times.

Q1: How does the Woodward 9907-345 contribute to energy savings in turbine-driven systems?The 9907-345 maintains shaft speed within the optimal efficiency band by providing fast, accurate overspeed detection and coordinated trip actuation. This prevents the energy waste associated with uncontrolled acceleration, thermal overload, and emergency shutdowns. By enabling smooth, controlled deceleration rather than hard trips, the module reduces fuel consumption spikes and lowers the thermal burden on cooling infrastructure.

Q2: Is the 9907-345 compatible with third-party PLCs and SCADA systems beyond the Woodward MicroNet platform?Yes. The 9907-345 provides dry-contact relay outputs that are universally compatible with any PLC discrete input card, including Siemens S7-300/400, Allen-Bradley ControlLogix, and Schneider Electric Modicon platforms. Its speed sensor inputs accept standard magnetic pickup signals, making it straightforward to integrate into existing SCADA architectures via the host controller's communication stack.

Q3: What is the recommended replacement or upgrade path for ageing overspeed protection systems?For facilities currently operating legacy mechanical overspeed trips or older electronic modules, the 9907-345 offers a direct upgrade path with improved response time, configurable trip thresholds, and digital status outputs. It is recommended to pair the upgrade with a MicroNet controller refresh and updated HMI displays to fully leverage the module's diagnostic and energy monitoring capabilities.

Q4: What testing and warranty coverage is provided with each unit?Every Woodward 9907-345 supplied by NANKMOS is tested prior to shipment, covering trip threshold accuracy, relay output function, and speed input signal integrity. Units are available from in-stock inventory for immediate dispatch. A 12-Month Warranty is included with every unit, covering manufacturing defects and functional performance. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
