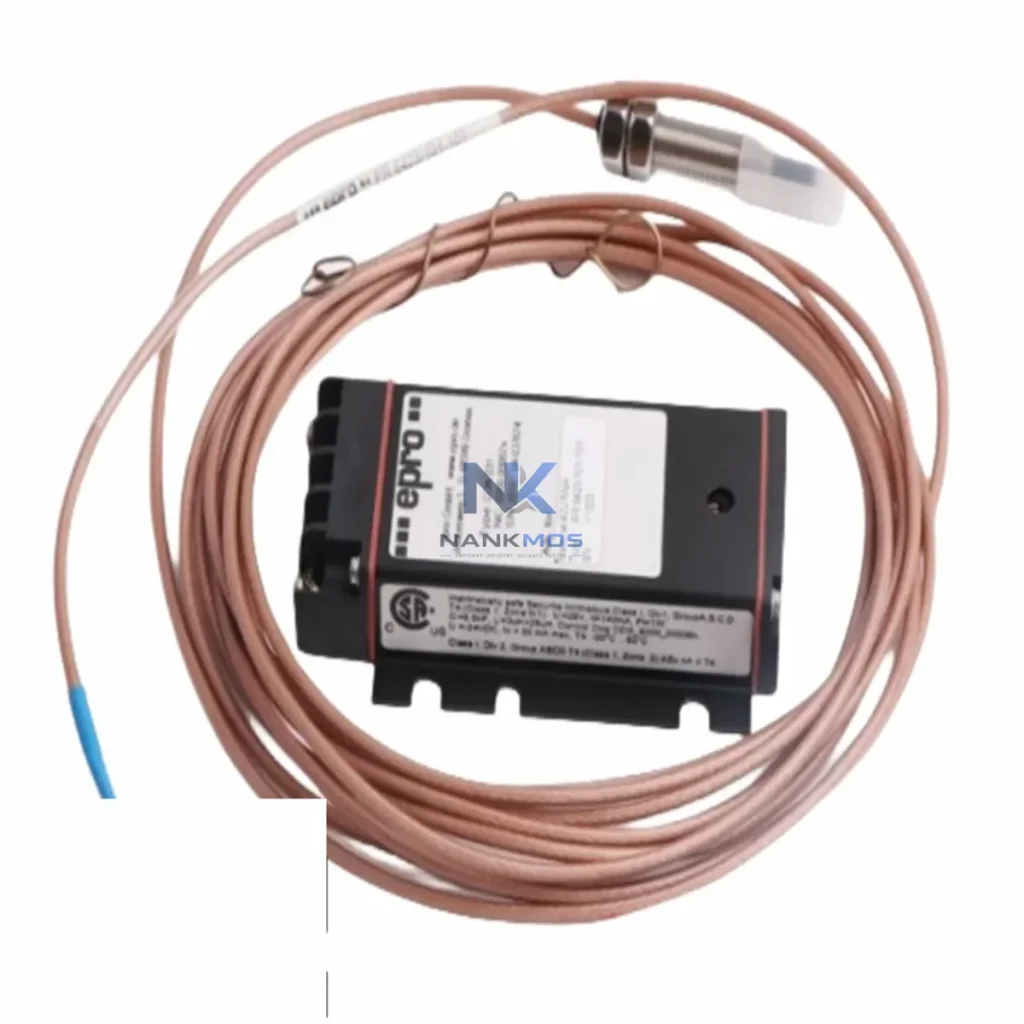

EPRO PR6424/013-110 CON021 Eddy Current Sensor Product Description

The EPRO PR6424/013-110-CON021 eddy current sensor is not a standalone measurement device — it is a precision signal-layer component embedded within a layered machinery protection and process control architecture. Its role begins at the field sensing layer, where it delivers continuous, non-contact displacement and vibration data from rotating shafts directly into the signal conditioning and monitoring chain.

At the signal conditioning layer, the PR6424/013-110-CON021 operates in conjunction with the EPRO CON021 signal conditioner, which provides the regulated −24 VDC excitation and converts the raw eddy current gap signal into a calibrated DC voltage output. This conditioned signal feeds directly into vibration monitoring modules such as the EPRO MMS 6120 or MMS 6110 — dual-channel vibration monitors that process shaft displacement, velocity, and acceleration data in real time. These monitors interface with the plant DCS or safety PLC via standard 4–20 mA or relay outputs, ensuring that the vibration data is fully integrated into the control layer without signal degradation.

Within a complete machinery protection system, the PR6424/013-110-CON021 sensor set is typically deployed alongside EPRO MMS 6823 speed and phase reference modules, which provide the tachometer reference signal required for synchronous vibration analysis and balancing diagnostics. The combination of displacement sensors, speed references, and monitoring modules forms the core of a Bently Nevada 3500-compatible or EPRO MMS 6000-series protection rack — a modular, rack-mounted architecture that supports hot-swap module replacement and continuous online diagnostics without process interruption.

At the control layer, the vibration monitor outputs connect to safety PLCs such as the ABB AC800M or Siemens S7-400H redundant controllers, where vibration trip setpoints are enforced through hardwired relay logic or PROFIBUS DP / Modbus RTU communication. This integration ensures that shaft vibration exceedances trigger coordinated protective actions — including turbine trip, compressor unload, or pump isolation — across the full control hierarchy without latency introduced by software polling cycles.

For power supply integrity at the field instrument layer, the PR6424 sensor system relies on dedicated instrument power rails supplied by EPRO PS-24VDC or equivalent DIN-rail mounted power supplies with redundant feed capability. Stable, low-ripple DC supply is critical to eddy current sensor accuracy, as supply voltage fluctuations directly affect the gap-to-voltage transfer function and can introduce false vibration readings. Redundant power architectures with automatic changeover are standard practice in turbine protection applications.

At the communication and data layer, vibration data from the MMS 6000 monitoring rack is transmitted to the plant historian and condition monitoring platform via OPC DA/UA gateways or dedicated Ethernet interfaces. Integration with asset management platforms such as ABB Asset Vision or third-party CMMS systems enables trend analysis, alarm history review, and predictive maintenance scheduling — extending the diagnostic value of the PR6424/013-110-CON021 sensor beyond real-time protection into long-term asset health management.

In HMI and SCADA layer integration, vibration trends and alarm states from the protection rack are visualized on operator stations running Wonderware InTouch, Siemens WinCC, or equivalent SCADA platforms. Operators can monitor shaft centerline plots, orbit diagrams, and vibration trend charts in real time, enabling informed decisions on load reduction, maintenance scheduling, or emergency shutdown without leaving the control room.

The modular design of the PR6424 series supports system expansion without rewiring. Additional sensor channels — including EPRO PR6424/002-110 (short-range variant) or PR6424/080-110 (extended cable) — can be added to the same monitoring rack to cover additional measurement planes (X-Y shaft displacement, axial position, differential expansion) as machinery protection requirements evolve. This scalability is a key advantage in greenfield plant design and brownfield retrofit projects alike.

Power Generation (Steam and Gas Turbines): The PR6424/013-110-CON021 is a standard component in turbine shaft monitoring systems at power stations. Deployed in pairs at each bearing journal, the sensors provide X-Y displacement data that feeds directly into the turbine protection system. Trip setpoints for high vibration, shaft bow, and eccentricity are enforced through the MMS 6000 monitoring rack, with relay outputs hardwired to the turbine trip solenoid. This architecture ensures sub-100 ms protective response times compliant with IEC 61511 SIL 2 requirements.

Oil and Gas / Petrochemical (Compressor Trains): In centrifugal and reciprocating compressor applications, the PR6424 sensor system monitors shaft radial vibration and axial position simultaneously. Integration with the plant safety instrumented system (SIS) via hardwired relay or PROFIBUS PA ensures that compressor surge, bearing failure, or seal degradation events trigger coordinated protective actions across the compressor train — including anti-surge valve actuation, driver unload, and isolation valve closure.

Water and Wastewater Treatment (Large Pump Stations): High-capacity pump stations operating centrifugal pumps above 500 kW benefit from continuous shaft vibration monitoring using the PR6424/013-110-CON021. Early detection of impeller imbalance, cavitation-induced vibration, and bearing wear allows maintenance teams to schedule corrective action during planned outages rather than responding to unplanned failures — reducing mean time to repair (MTTR) and extending pump service life.

Metallurgy and Mining (Rolling Mills and Crushers): In heavy industrial applications such as rolling mill drives and primary crushers, the PR6424 sensor provides real-time shaft displacement data that feeds into the mill drive protection system. Integration with the drive controller (e.g., ABB ACS880 or Siemens SINAMICS S120) via analog input cards enables vibration-based speed derating — automatically reducing drive output when vibration thresholds are approached, preventing catastrophic bearing or coupling failure.

Marine and Offshore (Propulsion and Auxiliary Machinery): Shipboard applications require vibration monitoring systems that meet DNV GL, Lloyd's Register, or ABS classification society requirements. The PR6424/013-110-CON021, combined with MMS 6000 monitoring modules, provides a classification-compliant shaft monitoring solution for main propulsion shafts, auxiliary diesel generators, and cargo pump drives — supporting continuous operation monitoring and automated alarm/trip functions required for unmanned machinery space (UMS) certification.

Q1: Is the PR6424/013-110-CON021 compatible with Bently Nevada 3500 series monitoring racks? Yes. The PR6424/013-110-CON021 eddy current sensor system is designed to be electrically and mechanically compatible with Bently Nevada 3500 series proximity transducer inputs. The CON021 signal conditioner outputs a standard −24 VDC-powered, 200 mV/mil sensitivity signal that is accepted by 3500/40M and 3500/42M vibration monitor modules without modification. This cross-compatibility makes the PR6424 system a cost-effective replacement or expansion option for existing Bently Nevada installations, with no rewiring required at the monitor rack terminal blocks.

Q2: What is the recommended installation and commissioning procedure for the PR6424/013-110-CON021 in a new turbine protection system? Installation follows a three-stage process: (1) mechanical mounting — the sensor probe is installed in a threaded boss at the bearing housing, with gap set to the midpoint of the linear range (approximately 1.0 mm / 40 mil) using a non-ferrous feeler gauge or DC voltmeter reading the CON021 output; (2) signal verification — with the shaft stationary, the DC output voltage is confirmed at approximately −10 VDC (midscale), and cable continuity and shield grounding are verified; (3) system integration — the conditioned output is connected to the MMS 6000 or 3500 monitor input, alarm and trip setpoints are configured per the machinery OEM specification, and a slow-roll vibration baseline is recorded for future trend comparison. Full commissioning documentation should reference EPRO installation manual IM-PR6424 and the applicable machinery protection system design standard.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS ensure stock quality before shipment? All PR6424/013-110-CON021 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects, signal output accuracy within published specifications, and mechanical integrity of the sensor probe, extension cable, and connector assembly. Prior to shipment, each unit undergoes pre-shipment functional verification including DC output linearity check, insulation resistance test, and connector integrity inspection. Units are shipped in original or equivalent protective packaging with individual test records available on request. In the event of a warranty claim, NANKMOS provides direct technical support and replacement coordination to minimize plant downtime. Contact [email protected] or +86 18359268345 for warranty service.
