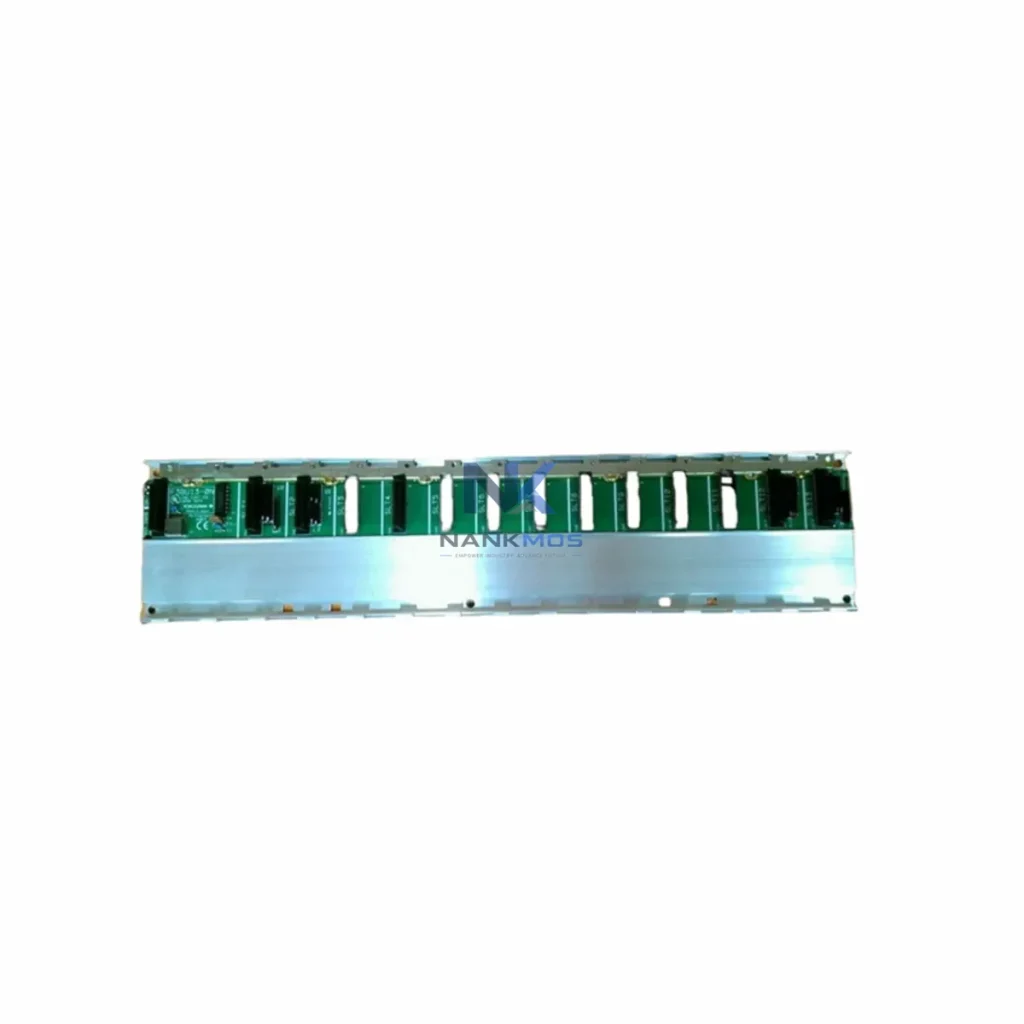

YOKOGAWA F3BU13-0N Base Module

Product Details

F3BU13-0N Product Description

The Yokogawa F3BU13-0N Base Module serves as the structural and electrical backbone of the FA-M3 modular PLC platform, enabling engineers to build scalable, high-density control architectures across demanding industrial environments. Its 13-slot configuration accommodates a broad mix of FA-M3 system components within a single rack, supporting Contextual Integration across all automation layers without requiring external expansion chassis in most standard deployments.

At the control layer, the F3BU13-0N hosts FA-M3 CPU modules such as the F3SP71-4S and F3SP76-7S, which deliver high-speed ladder and structured text execution with deterministic scan cycles suited for process and discrete manufacturing. The base module's internal bus architecture ensures low-latency data exchange between the CPU and all installed I/O and communication modules, maintaining system coherence even under high-throughput conditions.

For I/O layer integration, the F3BU13-0N accommodates analog input modules like the F3AD08-6R and digital output modules such as the F3YD32-0N, enabling precise signal acquisition and actuation across field devices. Engineers deploying the base module in process control applications can mix thermocouple input modules (F3WT04-0N) with high-speed counter modules to address multi-signal environments within a single rack footprint.

At the communication layer, the F3BU13-0N supports plug-in network modules including the F3LE01-5T Ethernet communication module and F3LP02-0N PROFIBUS-DP master module, enabling seamless integration with SCADA systems, distributed I/O nodes, and third-party field devices. This communication flexibility is critical in architectures where the FA-M3 rack must interface with Yokogawa CENTUM VP DCS systems or upstream MES platforms via standard industrial protocols.

Power distribution within the rack is managed through compatible FA-M3 power supply modules such as the F3PU20-0S and F3PU30-0S, which provide regulated 5 VDC and 24 VDC rails to all installed modules via the F3BU13-0N's internal power bus. This integrated power architecture eliminates the need for external power conditioning in most panel configurations, reducing wiring complexity and improving overall system reliability.

For HMI and operator interface integration, the FA-M3 rack built on the F3BU13-0N can be paired with Yokogawa's UM33A panel meters or connected to third-party HMI terminals via the Ethernet or serial communication modules installed in the base unit's communication slots. This enables real-time process visualization and operator control without additional gateway hardware.

The F3BU13-0N is deployed across a wide range of industrial sectors where modular PLC architecture, system scalability, and long-term maintainability are engineering priorities.

In power generation and utilities, the FA-M3 rack built on the F3BU13-0N provides the structural platform for turbine control, boiler management, and substation automation systems. Its compliance with IEC 61131-2 vibration and environmental standards ensures reliable operation in high-vibration generator rooms and outdoor switchgear enclosures.

In oil, gas, and petrochemical applications, the F3BU13-0N supports redundant CPU configurations and hot-standby architectures when paired with FA-M3R series redundancy modules, meeting the availability requirements of continuous process plants where unplanned downtime carries significant operational and safety consequences.

In water and wastewater treatment facilities, the base module's wide operating temperature range and humidity tolerance make it suitable for pump station control panels and filtration system automation, where environmental conditions vary significantly across seasons and geographic locations.

In automotive and discrete manufacturing, the F3BU13-0N's 13-slot capacity supports high-density I/O configurations for assembly line control, robotic cell integration, and quality inspection systems, where rapid I/O scanning and deterministic CPU response are essential for maintaining production throughput.

In mining and metallurgy, the FA-M3 rack architecture provides the modular expansion capability required for conveyor control, crusher automation, and smelting process management, where system configurations evolve over the operational life of the facility and field-replaceable module design minimizes maintenance downtime.

Q1: Is the F3BU13-0N compatible with both FA-M3 and FA-M3R redundant system configurations? The F3BU13-0N is the standard base unit for FA-M3 single-CPU configurations. For FA-M3R hot-standby redundant architectures, Yokogawa provides dedicated redundant base units designed to accommodate dual CPU modules and redundancy control modules. Engineers planning redundant deployments should confirm the specific base unit model required for their FA-M3R system configuration with Yokogawa's technical documentation or authorized distributor. NANKMOS maintains stock of both standard and redundancy-capable FA-M3 base units to support project-specific requirements.

Q2: How many I/O and communication modules can be installed in the F3BU13-0N, and what slot allocation rules apply? The F3BU13-0N provides 13 slots for module installation. Slot allocation follows FA-M3 system rules: the CPU module occupies a designated slot (typically slot 1), the power supply module occupies its dedicated position, and the remaining slots are available for I/O, communication, and special function modules. Mixed module configurations are supported, allowing engineers to combine analog, digital, thermocouple, high-speed counter, and network modules within a single rack. Yokogawa's FA-M3 system configuration tool should be used to validate slot assignments and power budget before finalizing the rack design.

Q3: What warranty and supply chain support does NANKMOS provide for the F3BU13-0N? All F3BU13-0N units supplied by NANKMOS are covered by a 12-Month Warranty from the verified shipment date, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to confirm electrical integrity and module slot connectivity before dispatch. NANKMOS maintains inventory of FA-M3 base modules and associated system components to support both new project deployments and emergency replacement requirements, with global shipping capability to minimize lead times for time-critical maintenance situations.
