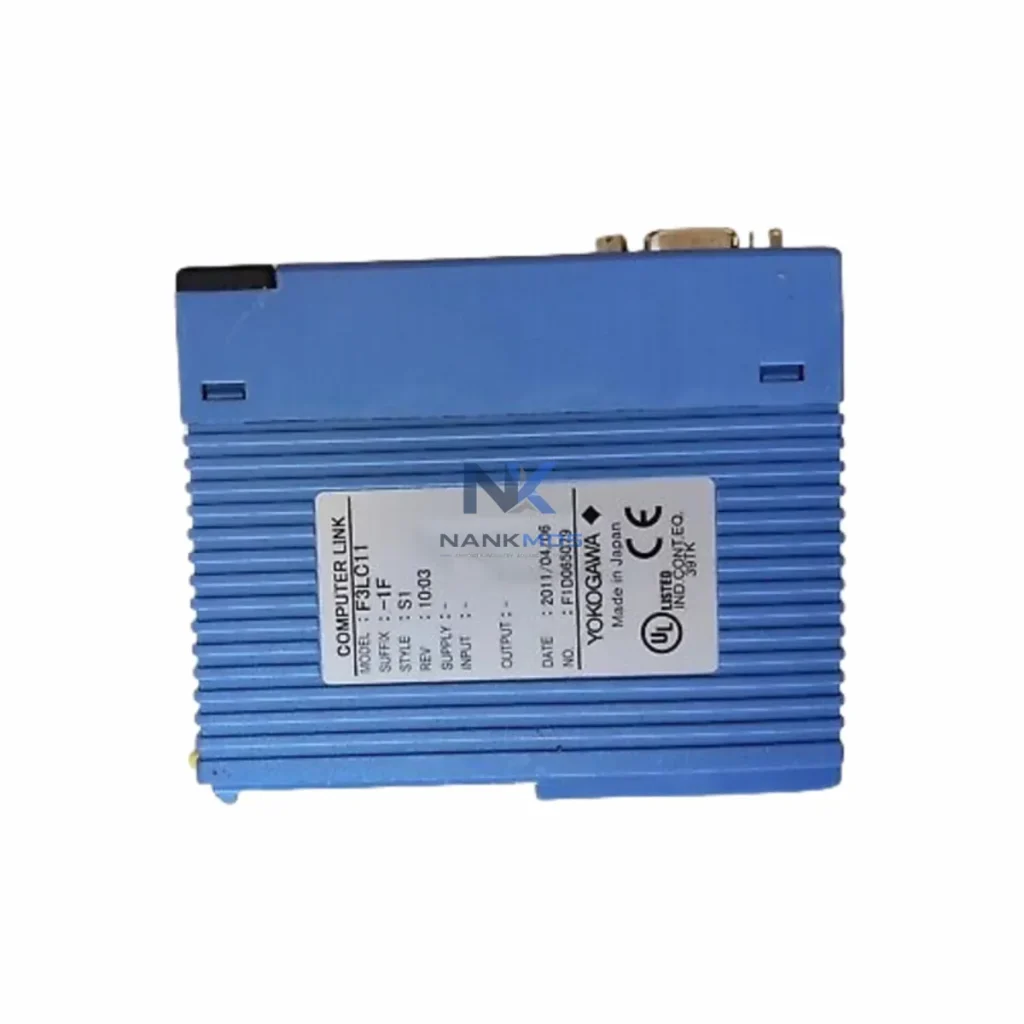

YOKOGAWA F3LC11-1F PLC Communication Module

Product Details

F3LC11-1F Product Description

The Yokogawa F3LC11-1F is a high-performance PC Link Module designed for the FA-M3 modular PLC platform, engineered to deliver reliable, low-latency data exchange between programmable logic controllers and supervisory PC systems. In energy-intensive industrial environments — including process manufacturing, discrete assembly, and utilities — the F3LC11-1F serves as a critical communication bridge that enables real-time visibility into energy consumption, load distribution, and equipment operating states. By ensuring that control data flows accurately and without interruption between the FA-M3 CPU and connected PC-based SCADA or HMI systems, this module directly supports the energy management strategies that modern production lines depend on to reduce waste and improve throughput.

Designed for seamless integration within the FA-M3 rack architecture, the F3LC11-1F occupies a standard I/O slot and communicates via the FA-M3 internal bus, minimizing wiring complexity and reducing the thermal footprint of the control cabinet. Its compact, slot-mounted form factor contributes to lower heat generation within the panel, which in turn reduces the cooling load on enclosure climate control systems — a meaningful contributor to overall facility energy efficiency. When paired with the FA-M3 CPU modules such as the F3SP71-4N or F3SP76-7N, the F3LC11-1F enables high-speed cyclic data transfer that keeps energy monitoring loops responsive and production scheduling data current.

The F3LC11-1F operates at the intersection of control and energy intelligence. In a typical FA-M3-based automation architecture, the module connects the PLC's internal data registers — holding real-time values from F3AD04-1N analog input modules, F3YP04-0N pulse output modules, and F3XD32-3H digital I/O modules — to a PC running energy management or SCADA software. This data pathway allows operators to monitor motor load curves, track drive efficiency trends from connected Yaskawa CIMR-series variable frequency drives, and correlate energy consumption with production output in near real time.

When integrated with FA-M3 motion control modules such as the F3NC96-0N, the F3LC11-1F enables the PC-side energy management system to receive axis position and velocity data alongside power draw metrics, supporting coordinated load shedding during peak demand windows. In facilities using Yokogawa's STARDOM or CENTUM VP distributed control systems, the F3LC11-1F can serve as a gateway node that feeds FA-M3 field data into the plant-wide energy dashboard, enabling cross-system load balancing without requiring additional communication hardware.

The module also supports integration with power monitoring devices such as the Yokogawa WT series power analyzers or third-party power transducers connected through FA-M3 analog input cards. By routing measured kW, kVAR, and power factor values from the field into the PC energy management application, the F3LC11-1F enables demand forecasting algorithms to adjust drive setpoints, compressor staging, and conveyor speeds in response to real-time grid conditions — reducing peak demand charges and improving overall energy cost performance. Ethernet-based communication modules such as the F3LE01-5T can complement the F3LC11-1F by providing a parallel data path to cloud-based energy analytics platforms, creating a layered communication architecture that supports both real-time control and long-term efficiency trending.

In smart production environments, energy waste most commonly originates from three sources: idle equipment running at full power, uncoordinated load starts that create demand spikes, and delayed fault response that allows inefficient operating states to persist. The Yokogawa F3LC11-1F addresses all three by ensuring that the FA-M3 PLC's operational data — including equipment run/stop states, cycle counts, alarm registers, and analog process values — is continuously available to the PC-based energy management and production scheduling systems that govern line-level decisions.

By enabling the PC system to read FA-M3 internal registers at high speed, the F3LC11-1F supports the implementation of energy-aware production scheduling: the ability to stagger motor starts, pre-cool or pre-heat process equipment during off-peak tariff windows, and automatically reduce conveyor and pump speeds during planned low-throughput periods. These strategies, when executed through coordinated PLC logic and PC-side energy management software, can reduce a facility's peak demand by 10–20% without impacting production output or product quality.

The module's deterministic communication behavior also supports predictive maintenance workflows. When FA-M3 analog input modules report gradual changes in motor current draw or vibration sensor outputs, the F3LC11-1F ensures that this data reaches the PC historian without scan-cycle jitter, preserving the time-series integrity needed for accurate trend analysis. Early detection of bearing wear, insulation degradation, or pump cavitation allows maintenance teams to schedule interventions during planned downtime rather than responding to unplanned failures — reducing both energy waste from degraded equipment and the production losses associated with emergency shutdowns. All units supplied by NANKMOS are dispatched following outgoing functional testing and are covered by a 12-Month Warranty, ensuring operational confidence from day one of installation.

Q1: How does the F3LC11-1F contribute to energy savings on the production line? The F3LC11-1F enables real-time data exchange between the FA-M3 PLC and PC-based energy management or SCADA systems. This communication link allows supervisory software to monitor equipment load states, coordinate motor start sequences, and implement demand response strategies — directly reducing peak energy consumption and idle-state waste without modifying the underlying PLC control logic.

Q2: Is the F3LC11-1F compatible with third-party SCADA and HMI platforms? Yes. The F3LC11-1F uses the FA-M3 PC Link protocol, which is supported by Yokogawa's own WideField3 engineering software as well as a broad range of third-party SCADA and HMI platforms via dedicated FA-M3 communication drivers. It is commonly deployed alongside PC-based HMI systems and historian servers in multi-vendor automation environments. For Ethernet-based integration, the F3LE01-5T Ethernet module can be used in parallel to extend connectivity to additional supervisory systems.

Q3: What is the recommended replacement or upgrade path for aging FA-M3 PC Link installations? For existing FA-M3 installations using earlier PC Link modules, the F3LC11-1F is a direct slot-compatible replacement that maintains backward compatibility with established communication configurations. No rack modification or CPU firmware upgrade is required in most cases. NANKMOS recommends verifying the FA-M3 CPU firmware revision and PC driver version prior to installation to confirm compatibility with the specific system revision in use.

Q4: What testing and warranty coverage is provided with each unit? Every F3LC11-1F supplied by NANKMOS undergoes outgoing inspection and functional verification prior to dispatch. Units are confirmed operational across their specified communication parameters before shipment. All units are covered by a 12-Month Warranty from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions. NANKMOS maintains in-stock inventory of the F3LC11-1F to support urgent replacement and MRO procurement requirements with short lead times.
