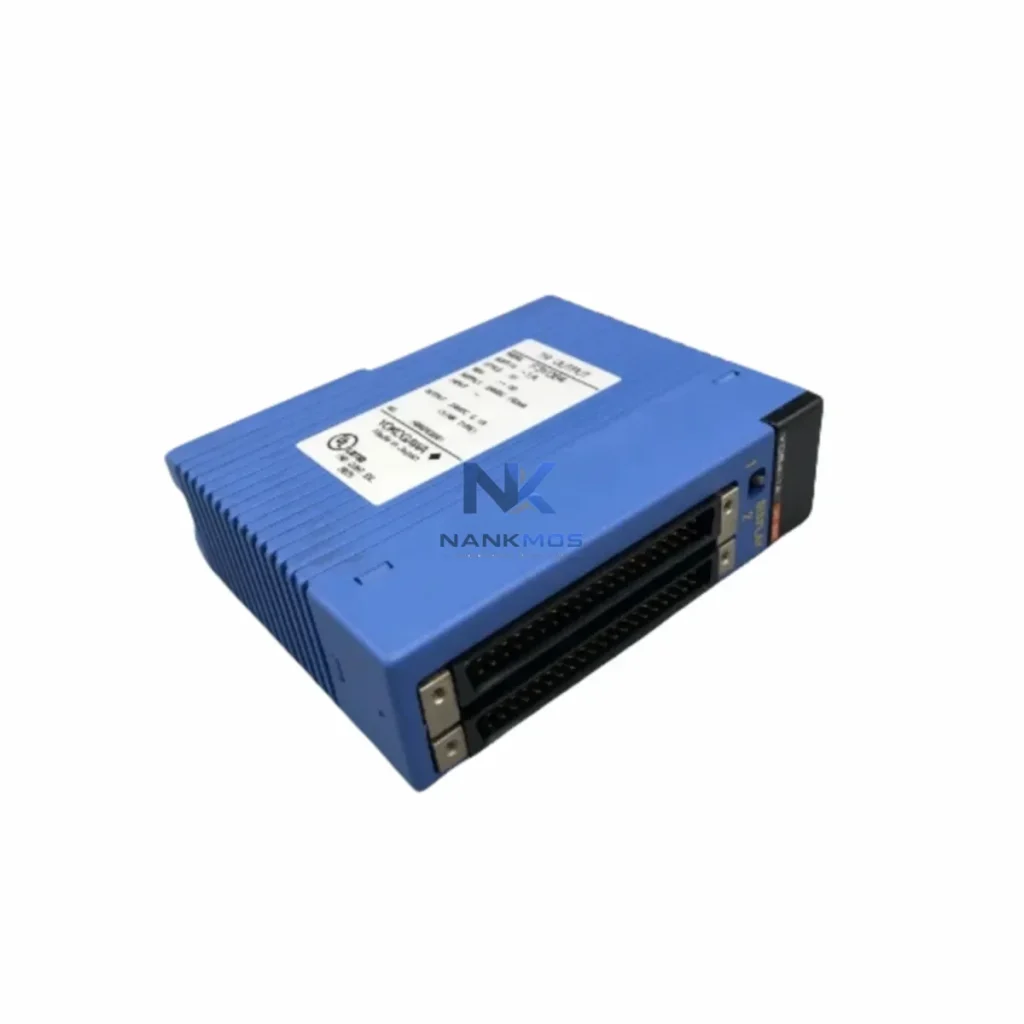

YOKOGAWA F3YD64-1A Transistor Output Module

Product Details

F3YD64-1A Product Description

The Yokogawa F3YD64-1A is a 64-point NPN transistor output module engineered for the STARDOM FCN/FCJ autonomous controller platform. Designed to serve as a high-density digital output node within distributed control architectures, the F3YD64-1A delivers reliable, low-latency signal switching across field devices, actuators, and relay-driven loads — forming a critical link in the smart factory data chain from field layer to supervisory systems.

In modern industrial environments, the path from a sensor signal to a SCADA dashboard involves multiple layers of protocol conversion, network transmission, and real-time data processing. The F3YD64-1A sits at the field-device layer of this chain, receiving commands from the STARDOM FCN controller and translating them into precise transistor switching actions that drive solenoid valves, indicator lights, motor starters, and other discrete actuators. Its 64-point capacity allows a single module to manage a dense cluster of output signals, reducing cabinet footprint while maintaining full network visibility.

The F3YD64-1A operates as a downstream output executor within a layered industrial network. At the field level, sensors and encoders feed real-time process data into the Yokogawa STARDOM FCN-100 or FCN-500 autonomous controller via analog and digital input modules such as the F3AD08-1N (analog input) and F3XD32-3H (digital input). The FCN controller processes this data using its onboard logic engine and issues output commands to the F3YD64-1A, which then drives field actuators with millisecond-level response.

Network connectivity is maintained through the FCN's built-in Ethernet port, which supports Modbus TCP and OPC-UA communication to upstream SCADA platforms such as Yokogawa's FAST/TOOLS or third-party systems like Wonderware and Ignition. This allows the F3YD64-1A's output states to be monitored, logged, and alarmed in real time from a central control room or remote operations center. Engineers can view the live status of all 64 output channels on an HMI panel — such as the Yokogawa FG3000 series operator interface — without requiring physical access to the field cabinet.

For plants deploying edge computing strategies, the STARDOM FCN can be paired with an industrial edge gateway (e.g., Yokogawa OpreX Field Device Advisor or compatible third-party IIoT gateways) to push output state data to cloud-based analytics platforms. This enables predictive maintenance workflows where abnormal output switching patterns — such as a valve cycling too frequently — trigger automated alerts before equipment failure occurs.

In multi-node architectures, the F3YD64-1A modules can be distributed across remote I/O racks connected via PROFIBUS DP or DeviceNet gateway adapters, extending the FCN's control reach across large plant floors without running individual signal cables back to a central panel. Industrial managed switches — such as those in the Yokogawa STARDOM network infrastructure or compatible Hirschmann MACH series switches — provide the redundant ring topology that ensures zero-packet-loss communication even during network reconfiguration events.

Variable frequency drives (VFDs) controlling pump and fan motors receive run/stop and speed-reference commands through the F3YD64-1A's transistor outputs, while feedback signals from the drives' digital status outputs are captured by companion input modules. This closed-loop arrangement — output command from F3YD64-1A → VFD action → status feedback to FCN input module → SCADA confirmation — forms the backbone of energy-efficient motor management in smart factory environments.

Many industrial sites face persistent challenges with protocol fragmentation, data silos, and limited remote visibility. The F3YD64-1A, deployed within the STARDOM FCN platform, directly addresses these issues:

Protocol Unification: The FCN controller's multi-protocol gateway capability allows the F3YD64-1A's output states to be exposed via Modbus TCP, OPC-UA, or FOUNDATION Fieldbus — eliminating the need for separate protocol converters between the field layer and SCADA systems. Plants running mixed-vendor environments can integrate Yokogawa output modules alongside Siemens, Mitsubishi, or Allen-Bradley PLCs through standard industrial Ethernet protocols.

Data Silo Elimination: By connecting the F3YD64-1A's output activity to the FCN's data historian function, every switching event is timestamped and logged. This data can be forwarded to MES (Manufacturing Execution Systems) or ERP platforms, giving production managers full traceability of actuator commands — critical for quality audits and regulatory compliance in pharmaceutical, food processing, and chemical industries.

Remote Monitoring and Diagnostics: The STARDOM FCN platform supports remote engineering access via secure VPN connections, allowing maintenance engineers to monitor the F3YD64-1A's channel status, diagnose output faults, and modify control logic without traveling to site. Alarm conditions — such as output overcurrent or load disconnection — are transmitted immediately to SCADA and mobile notification systems, reducing mean time to repair (MTTR).

Production Line Transparency: Real-time output state visualization on SCADA dashboards gives operations teams instant insight into which actuators are active, which are in fault, and which are idle — enabling faster root-cause analysis during unplanned downtime events.

System Scalability: The modular STARDOM I/O architecture allows additional F3YD64-1A modules to be added to existing FCN racks without system shutdown, supporting phased capacity expansion as production lines grow.

Q1: What communication protocols does the Yokogawa F3YD64-1A support for SCADA integration?The F3YD64-1A operates on the STARDOM FCN internal I/O bus. The FCN controller exposes output data to SCADA systems via Modbus TCP, OPC-UA, and optionally FOUNDATION Fieldbus or PROFIBUS DP through gateway modules. This makes it compatible with major SCADA platforms including Yokogawa FAST/TOOLS, Wonderware, Ignition, and iFIX without additional protocol converters.

Q2: Can the F3YD64-1A be used in remote I/O configurations with extended network distances?Yes. When paired with STARDOM FCN remote I/O expansion units and industrial Ethernet switches supporting fiber-optic uplinks, the F3YD64-1A can be deployed in remote cabinets located hundreds of meters from the main controller. Managed switches with RSTP/ring redundancy ensure network stability and sub-50ms recovery in the event of a link failure.

Q3: How is network stability maintained during high-frequency output switching?The STARDOM FCN platform uses a deterministic scan cycle that decouples I/O processing from network communication tasks. The F3YD64-1A's output states are updated at the controller's configured scan rate (typically 10–100ms), while network data transmission occurs asynchronously. This architecture prevents output jitter caused by network congestion and ensures consistent actuator response times even under heavy SCADA polling loads.

Q4: What does the 12-Month Warranty cover, and how is remote diagnostics support provided?The 12-Month Warranty covers manufacturing defects, premature component failure, and functional non-conformance under normal operating conditions. Remote diagnostics support is available through the STARDOM FCN's built-in web server and engineering tool interface, allowing Yokogawa-certified engineers to perform online diagnostics, firmware checks, and configuration audits via secure remote access — minimizing on-site service visits and reducing support response time.
