GE Automation IC697BEM733 Remote I/O Scanner Module

Product Details

IC697BEM733 Product Description

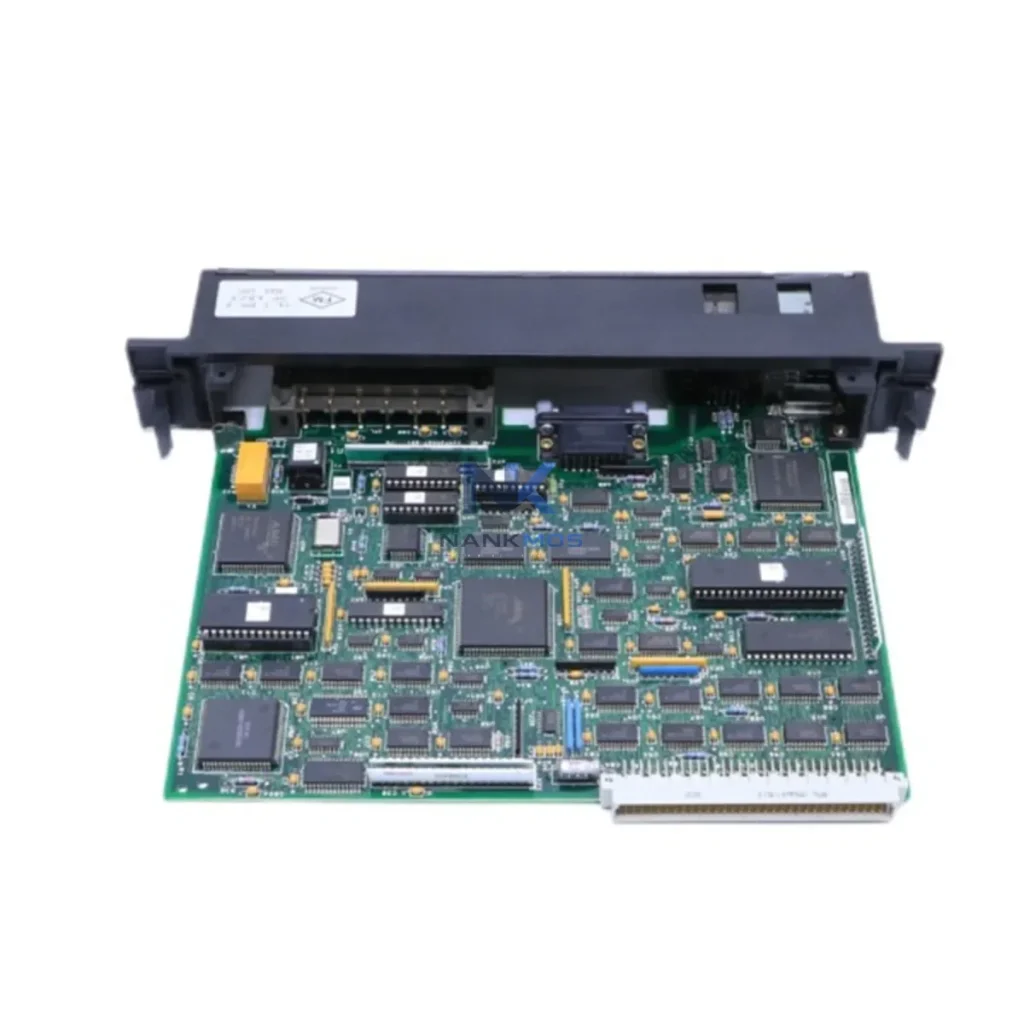

The GE IC697BEM733 is a Genius Bus Remote I/O Scanner Module engineered for GE Series 90-70 PLC platforms, delivering deterministic, high-speed data exchange across distributed automation architectures. In modern smart factory environments, where production transparency, real-time diagnostics, and seamless protocol interoperability are non-negotiable, the IC697BEM733 serves as a critical data link between field-level devices and upper-layer control and monitoring systems. Its role spans the full automation data chain — from signal acquisition at the sensor level, through PLC-controlled logic execution, to SCADA visualization and remote engineering access.

Designed for demanding industrial environments, the IC697BEM733 integrates directly into the Series 90-70 rack backplane, enabling the host CPU — such as the IC697CPU772 or IC697CPU781 — to communicate with remote I/O drops distributed across the plant floor via the Genius Bus. Each Genius Bus segment supports up to 32 devices, including discrete I/O blocks, analog I/O modules, and intelligent field devices, all managed through a single scanner module with deterministic scan cycle performance. This architecture eliminates point-to-point wiring complexity and reduces installation footprint while maintaining the signal integrity required for precision process control.

The IC697BEM733 sits at the heart of a layered industrial data flow architecture. At the field level, sensors — including pressure transmitters, temperature RTDs, proximity switches, and flow meters — connect to Genius I/O blocks such as the IC670MDL640 discrete input block or IC670ALG230 analog input module. These field devices transmit real-time process values over the Genius Bus to the IC697BEM733 scanner, which aggregates the data and passes it to the Series 90-70 CPU via the backplane at deterministic scan intervals.

The Series 90-70 CPU executes ladder logic and function block programs, applying control algorithms to the incoming I/O data. Outputs are written back through the IC697BEM733 to actuators, motor starters, and variable frequency drives (VFDs) connected as Genius Bus devices. For multi-axis or high-power drive applications, GE's own drive platforms or third-party VFDs with Genius Bus interface cards can be integrated directly into the same bus segment, enabling coordinated motion and process control from a single PLC scan.

Above the PLC layer, the Series 90-70 system connects to SCADA and HMI platforms via Ethernet or serial communication modules — such as the IC697CMM742 Ethernet Interface or IC697CMM711 serial communications module — enabling real-time data visualization in GE iFIX, Wonderware, or Ignition SCADA environments. Operators gain live dashboards showing I/O status, alarm states, and production KPIs sourced directly from the Genius Bus data collected by the IC697BEM733.

For remote diagnostics and engineering access, the Series 90-70 platform supports remote programming via Proficy Machine Edition or legacy Logicmaster 90 software, allowing engineers to monitor Genius Bus device health, scan cycle performance, and fault registers without physical presence on-site. Edge gateway devices — such as Moxa industrial routers or Advantech WISE series gateways — can be deployed alongside the Series 90-70 rack to bridge legacy Genius Bus data into modern IIoT platforms, enabling cloud-based analytics, predictive maintenance dashboards, and OEE reporting.

Industrial Ethernet switches — such as unmanaged DIN-rail switches from Moxa EDS or Hirschmann RS series — provide the network backbone connecting the Series 90-70 Ethernet module to the plant-wide LAN, ensuring reliable, low-latency data paths between the PLC, SCADA server, historian, and MES systems. The IC697BEM733 thus anchors a complete, scalable data chain from the sensor to the enterprise layer.

Many legacy automation sites face persistent challenges: protocol fragmentation, data silos between field devices and upper systems, limited remote visibility, and difficulty scaling I/O capacity without major rewiring. The IC697BEM733 directly addresses these pain points within GE Series 90-70 environments.

Protocol Unification: The Genius Bus protocol provides a unified communication layer for all field devices on the bus segment, eliminating the need for individual point-to-point wiring between the PLC and each field device. All Genius-compatible I/O blocks, drives, and intelligent devices share a single bus, simplifying network topology and reducing wiring errors.

Eliminating Data Silos: By aggregating distributed I/O data through the IC697BEM733 and surfacing it to the Series 90-70 CPU, all field-level signals become accessible to SCADA, HMI, and historian systems in real time. There are no isolated data islands — every sensor reading, actuator state, and alarm condition is visible across the automation hierarchy.

Remote Monitoring and Diagnostics: The IC697BEM733 supports Genius Bus device status reporting, enabling the PLC to detect bus faults, device dropouts, and communication errors programmatically. Combined with remote Ethernet access via the IC697CMM742, maintenance engineers can diagnose field device issues, review fault logs, and initiate corrective actions from remote engineering stations or mobile devices.

Production Line Transparency: Real-time I/O data from the Genius Bus feeds directly into SCADA trend displays and production dashboards, giving operations teams full visibility into machine states, cycle counts, and process variables. Alarm tracking is automated — fault conditions on any Genius Bus device trigger PLC alarm logic and SCADA notifications without manual intervention.

System Scalability: The IC697BEM733 supports up to 32 Genius devices per bus segment, and multiple scanner modules can be installed in the same Series 90-70 rack to expand I/O capacity. As production lines grow, additional Genius I/O drops can be added to the bus without modifying the existing PLC program structure, protecting the original automation investment.

Q1: What communication protocol does the GE IC697BEM733 use, and is it compatible with modern SCADA systems? The IC697BEM733 uses GE's Genius Bus protocol — a deterministic serial fieldbus designed for real-time distributed I/O. While Genius Bus is a GE-proprietary protocol, the Series 90-70 PLC connects to modern SCADA systems (iFIX, Wonderware, Ignition) via Ethernet or serial communication modules such as the IC697CMM742, making the IC697BEM733 fully compatible with contemporary monitoring and visualization platforms.

Q2: How does the IC697BEM733 handle network stability and communication latency in high-speed production environments? The Genius Bus operates with deterministic scan cycles, ensuring consistent, predictable I/O update rates regardless of bus load. The IC697BEM733 manages bus arbitration and device polling autonomously, minimizing latency between field device state changes and PLC program execution. For critical applications, bus redundancy can be implemented using dual-port Genius Bus connections to improve fault tolerance.

Q3: Can the IC697BEM733 support remote diagnostics and fault detection without on-site access? Yes. The IC697BEM733 reports Genius Bus device status — including communication faults, device dropouts, and bus errors — directly to the Series 90-70 CPU via the backplane. These fault states can be mapped to PLC alarm logic and surfaced to remote SCADA or HMI systems via Ethernet, enabling engineers to diagnose and respond to field device issues from remote locations without requiring physical access to the panel.

Q4: What warranty and pre-shipment testing does the IC697BEM733 include? Every IC697BEM733 unit supplied by NANKMOS is covered by a 12-month warranty and undergoes functional testing prior to shipment. Testing verifies Genius Bus communication integrity, backplane interface operation, and module self-diagnostics. Units are shipped with appropriate anti-static packaging and documentation. In-stock units are available for fast global dispatch to minimize production downtime.
