Bender IRDH275-427 Insulation Monitoring Relay

Product Details

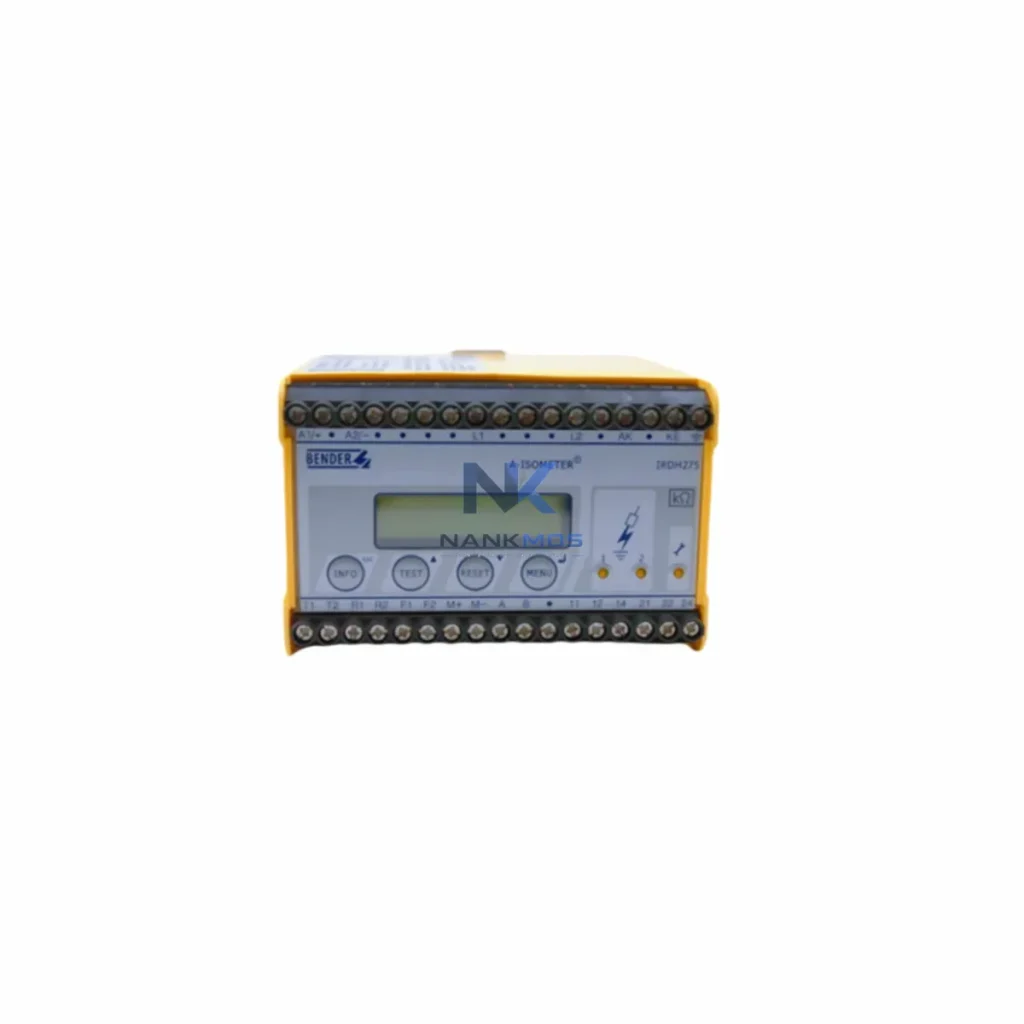

IRDH275-427 Product Description

The Bender IRDH275-427 is a high-performance insulation monitoring relay from the renowned ISOMETER series, engineered to deliver continuous ground-fault detection and insulation resistance monitoring in unearthed IT power systems. Designed for demanding industrial environments — including smart manufacturing, automated production lines, process plants, and energy-intensive facilities — the IRDH275-427 plays a critical role in energy-aware automation strategies by preventing unplanned shutdowns, reducing reactive maintenance costs, and enabling predictive fault management across the entire electrical infrastructure.

With a nominal measuring voltage range of up to 690 V AC/DC and a response value adjustable from 1 kΩ to 10 MΩ, the IRDH275-427 provides granular control over insulation thresholds, allowing plant engineers to calibrate alarm sensitivity to match the specific load profiles and energy consumption patterns of each production zone. Its integrated AMP (Adaptive Measuring Principle) technology ensures reliable measurement accuracy even in systems with high capacitive leakage currents — a common challenge in variable-frequency drive (VFD) environments and long cable runs typical of large-scale factory floors.

In modern smart production environments, energy efficiency is not achieved through a single device — it is the result of a tightly integrated ecosystem of components working in concert. The Bender IRDH275-427 sits at the intersection of electrical safety and energy intelligence, feeding critical insulation status data into the broader automation architecture.

When paired with a Siemens SIMATIC S7-1500 PLC or a Schneider Electric Modicon M340 PLC, the IRDH275-427 can relay insulation alarm signals directly into the control logic, enabling automated load shedding or equipment isolation before a fault escalates into a costly production halt. This integration reduces both energy waste from fault-induced restarts and the thermal stress placed on connected motors and drives.

In drive-intensive lines, the IRDH275-427 works alongside ABB ACS880 variable frequency drives and Siemens SINAMICS G120 inverters to monitor the insulation integrity of motor windings and cable networks under variable load conditions. VFDs inherently generate high-frequency leakage currents; the IRDH275-427's AMP technology filters these interference signals, ensuring alarm accuracy without nuisance tripping — a key factor in maintaining stable production rhythm and avoiding unnecessary energy-consuming restart cycles.

For servo-driven axes and precision positioning systems, the relay complements Panasonic MINAS A6 servo drives and Yaskawa Σ-7 servo amplifiers by providing a safety layer that protects servo motor insulation from degradation caused by moisture ingress or thermal cycling. Early detection of insulation deterioration allows maintenance teams to schedule interventions during planned downtime windows rather than reacting to emergency failures — directly improving Overall Equipment Effectiveness (OEE) and reducing idle energy consumption during unplanned stops.

The IRDH275-427 also integrates with Janitza UMG 96RM-E power monitoring modules and Siemens SENTRON PAC3200 power meters to create a unified energy management layer. While the power meters track active, reactive, and apparent power consumption at the panel level, the IRDH275-427 ensures the insulation health of the distribution network — together, they provide a complete picture of both energy flow and electrical system integrity. This dual-layer monitoring approach is foundational to ISO 50001 energy management compliance in industrial facilities.

At the field level, the relay's alarm outputs connect to Phoenix Contact QUINT-PS industrial power supplies and distributed Beckhoff EtherCAT I/O modules, enabling zone-level isolation of affected circuits without interrupting the entire production line. This granular fault containment strategy minimises energy waste by keeping healthy production zones operational while isolating and addressing the fault zone — a critical capability in high-throughput manufacturing environments where line-wide shutdowns carry significant energy and productivity costs.

For operator visibility, alarm status from the IRDH275-427 can be displayed on Siemens SIMATIC HMI TP1200 Comfort panels or integrated into Wonderware InTouch SCADA dashboards, giving energy managers and production supervisors real-time insulation health data alongside production KPIs. This visibility enables data-driven decisions about load balancing, maintenance scheduling, and energy optimisation — closing the loop between electrical safety monitoring and operational energy management.

Insulation failures are among the most disruptive and energy-wasteful events in industrial production. A single ground fault in an IT system can trigger cascading shutdowns, damage sensitive equipment, and force energy-intensive restart sequences that consume disproportionate power during motor acceleration phases. The Bender IRDH275-427 addresses this challenge at its root by providing continuous, real-time insulation resistance monitoring that detects degradation trends long before a fault occurs.

By establishing adjustable alarm thresholds, plant engineers can implement a two-stage warning strategy: a pre-alarm at a higher resistance value signals early-stage insulation degradation, prompting a scheduled inspection; a main alarm at a lower threshold triggers automated protective actions. This proactive approach eliminates the reactive energy penalty of emergency shutdowns and allows production to continue at full efficiency while maintenance is planned.

The IRDH275-427's continuous monitoring capability also supports predictive maintenance programmes by generating trend data on insulation resistance over time. Declining resistance values — often caused by moisture, thermal ageing, or mechanical stress on cable insulation — are identified weeks or months before failure, enabling targeted maintenance that extends equipment service life, reduces replacement costs, and avoids the energy overhead of premature equipment cycling.

In terms of production line rhythm stability, the IRDH275-427 contributes directly to takt time consistency. Unplanned electrical faults disrupt production cadence, force manual resets, and introduce variability into cycle times. By eliminating fault-induced interruptions, the relay helps maintain the steady, predictable production rhythm that is essential for lean manufacturing and energy-efficient batch processing.

Thermal load management is another key benefit. Electrical faults and insulation breakdowns generate localised heat that stresses adjacent components, increases cooling system load, and accelerates wear on motors, drives, and switchgear. The IRDH275-427's early fault detection reduces thermal stress events, lowering the aggregate cooling energy demand of the facility and extending the mean time between failures (MTBF) of connected equipment.

All units supplied by NANKMOS are sourced from authorised distribution channels, undergo pre-shipment functional verification, and are backed by a 12-month warranty. In-stock availability ensures short lead times for both new installations and replacement requirements, minimising production downtime associated with procurement delays.

Q1: How does the IRDH275-427 contribute to measurable energy savings on a production line?The IRDH275-427 prevents energy waste by detecting insulation faults before they cause unplanned shutdowns. Emergency stops and restart cycles are among the highest energy-consumption events in industrial operations — eliminating them through predictive fault detection directly reduces the facility's energy intensity per unit of output. Additionally, by enabling targeted maintenance rather than reactive repairs, it reduces the energy overhead of emergency response logistics and equipment replacement.

Q2: Is the IRDH275-427 compatible with existing PLC and SCADA systems without additional hardware?Yes. The IRDH275-427 provides relay alarm outputs (normally open / normally closed contacts) that connect directly to PLC digital input modules without additional signal conditioning. For SCADA integration, the optional RS-485 / Modbus RTU interface allows direct communication with most industrial SCADA platforms. Compatibility has been confirmed with Siemens SIMATIC, Schneider Electric Modicon, and Beckhoff TwinCAT control environments, among others.

Q3: Can the IRDH275-427 replace older Bender insulation monitoring relays in existing installations?The IRDH275-427 is designed as a direct functional replacement for earlier ISOMETER series devices in IT system applications. Panel cutout dimensions and terminal assignments are consistent with the ISOMETER product family, simplifying retrofit installations. It is recommended to verify the nominal system voltage and response value settings of the existing installation before replacement to ensure correct threshold configuration.

Q4: What does the 12-month warranty cover, and what is the typical lead time for in-stock units?The 12-month warranty provided by NANKMOS covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. In-stock units are available for immediate dispatch, with typical lead times of 3–7 business days for international shipments. Pre-shipment testing is performed on all units to verify relay output function, alarm threshold response, and communication interface integrity before delivery.
