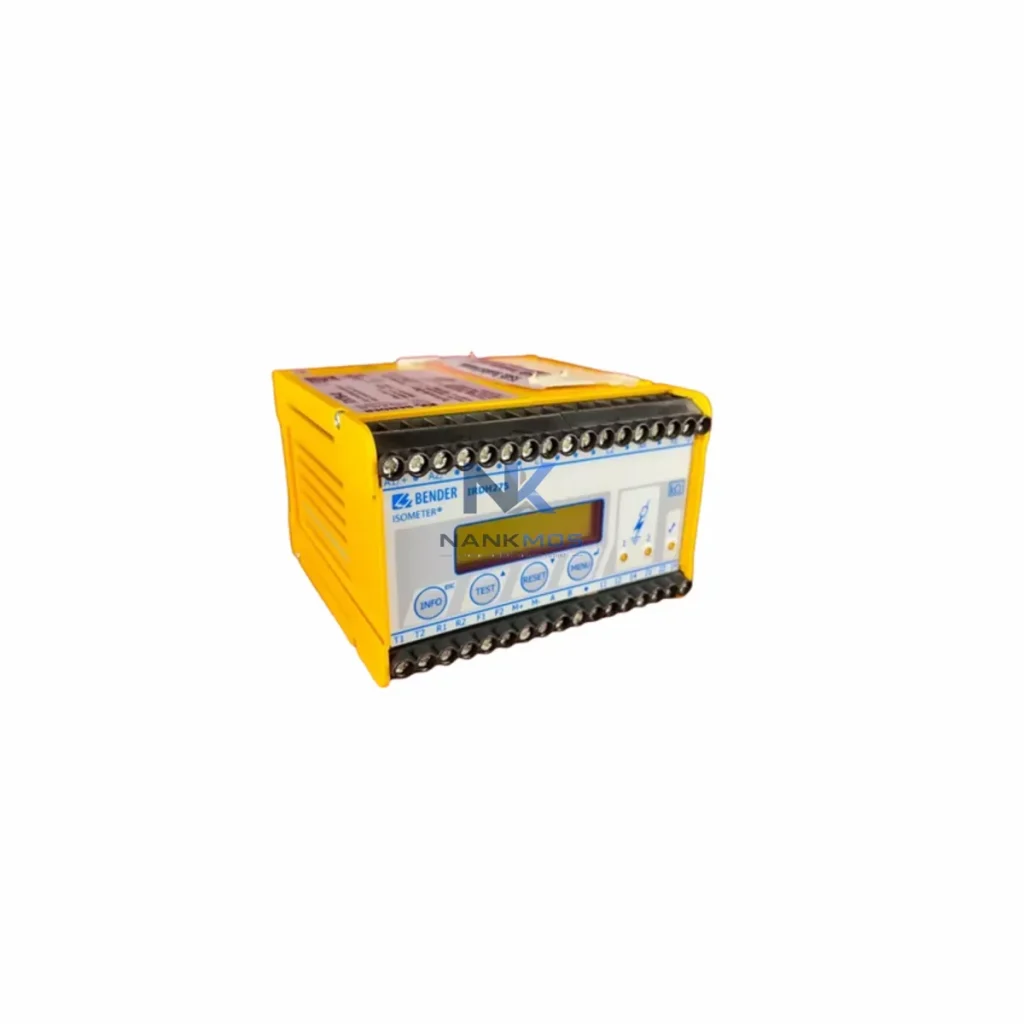

Bender IRDH275B-425 Insulation Monitoring Device

Product Details

IRDH275B-425 Product Description

The Bender IRDH275B-425 is engineered as a core protection layer component within IT-system-based industrial control architectures. Its role extends far beyond simple insulation measurement — it functions as a continuous, real-time guardian of electrical integrity across the entire automation platform, enabling system engineers to maintain operational continuity without interrupting live processes.

In a fully integrated control architecture, the IRDH275B-425 operates in close coordination with the Bender ISOMETER iso685 series for high-voltage IT system monitoring, and pairs naturally with the Bender EDS460 or EDS490 earth fault location systems to pinpoint the exact location of insulation degradation once an alarm is triggered. This combination transforms a reactive fault response into a proactive, location-aware maintenance workflow — dramatically reducing mean time to repair (MTTR) in complex panel environments.

At the control layer, the IRDH275B-425 communicates via RS-485 Modbus RTU, enabling seamless integration with Siemens S7-300 / S7-400 / S7-1500 PLCs, Schneider Electric Modicon M340 or M580 CPUs, and Rockwell Automation ControlLogix or CompactLogix platforms. Engineers deploying the unit within a Siemens ET 200SP or ET 200M distributed I/O rack can route insulation status data directly into the PLC diagnostic buffer, enabling unified fault visualization on Siemens SIMATIC HMI panels or Weintek cMT series touchscreens without additional protocol conversion hardware.

For power layer integration, the IRDH275B-425 wide-range supply input (AC/DC 24–240 V) allows direct connection to standard 24 VDC control cabinet power supplies such as the Phoenix Contact QUINT-PS or Siemens SITOP PSU8200, eliminating the need for dedicated auxiliary transformers. In redundant power architectures, the device maintains continuous monitoring even during power source switchover events, ensuring no insulation fault window is created during UPS transitions or generator changeovers.

At the communication layer, the RS-485 bus topology supports multi-drop configurations, allowing a single Bender COM465IP Ethernet gateway or BMS COM465DP PROFIBUS gateway to aggregate insulation data from multiple IRDH275B-425 units distributed across different switchgear panels or MCC sections. This architecture is particularly valuable in large-scale process plants, offshore platforms, and hospital power systems where dozens of IT system segments must be monitored from a single SCADA workstation running systems such as Wonderware InTouch, Ignition SCADA, or Siemens WinCC.

The dual relay output (fault alarm + pre-alarm) integrates directly with safety relay modules such as the Pilz PNOZ series or Schmersal SRB series, enabling the insulation fault signal to participate in machine safety logic without additional signal conditioning. For installations requiring signal isolation, the Phoenix Contact MCR-SL-UI-UI signal isolator or Weidmüller ACT20P series can be inserted between the IRDH275B-425 relay output and the PLC digital input module to eliminate ground loop interference in long-cable panel environments.

Power Generation & Distribution: In medium-voltage substations and generator protection panels, the IRDH275B-425 continuously monitors IT-system insulation resistance across transformer secondary circuits, providing early warning of moisture ingress, cable aging, or insulation breakdown before a ground fault escalates to a system trip. Its wide operating temperature range (−25 °C to +70 °C) makes it suitable for outdoor switchgear kiosks and arctic-rated generator enclosures.

Petrochemical & Offshore: In ATEX-classified process areas where uninterrupted power supply is critical, the IRDH275B-425 enables continuous insulation monitoring without system shutdown — a mandatory requirement under IEC 60364-7-710 for medical locations and IEC 60092 for marine electrical installations. Offshore platform engineers integrate the device into their IEC 61511 functional safety architecture as a non-safety-rated monitoring layer that feeds diagnostic data to the safety PLC.

Water Treatment & Utilities: Municipal water treatment facilities operating submersible pump systems in wet environments rely on IT system architectures to prevent nuisance tripping from ground faults. The IRDH275B-425 provides the insulation monitoring backbone for these installations, with its adjustable response threshold (1 kΩ – 10 MΩ) allowing site engineers to fine-tune alarm sensitivity based on cable length, motor insulation class, and ambient humidity conditions.

Manufacturing & Packaging Lines: In high-speed packaging and assembly lines where servo drives, frequency inverters (such as Siemens SINAMICS G120 or Danfoss VLT series), and robotic controllers share a common IT system bus, the IRDH275B-425 provides continuous background monitoring that does not interfere with drive operation. Its Modbus RTU interface allows the line PLC to log insulation trend data over time, enabling predictive maintenance scheduling based on insulation degradation curves rather than fixed calendar intervals.

Mining & Metallurgy: Underground mining electrical systems operating under IEC 60364-7-705 (agricultural and horticultural premises) and equivalent mining standards require continuous insulation monitoring as a personnel protection measure. The IRDH275B-425 ruggedized operating range and compliance with IEC 61557-8 make it a standard specification item for mining switchgear OEMs and panel builders supplying equipment to coal, copper, and gold mining operations globally.

Q1: Can the IRDH275B-425 be integrated into an existing Siemens TIA Portal project for centralized fault diagnostics? Yes. The IRDH275B-425 communicates via RS-485 Modbus RTU, and Siemens TIA Portal supports Modbus RTU communication through the CM PtP RS422/485 communication module on S7-1200 and S7-1500 CPUs. A standard Modbus RTU function block (FC) can be configured to poll insulation resistance values, alarm status, and pre-alarm thresholds from the IRDH275B-425 at user-defined scan intervals. The data can then be mapped to HMI tags for visualization on SIMATIC HMI panels or exported to a historian for trend analysis. No additional protocol converter is required for TIA Portal-based architectures.

Q2: Is the IRDH275B-425 compatible with IT systems that include frequency inverters or variable speed drives, and how does it handle the capacitive leakage current generated by these devices? Yes. The IRDH275B-425 is specifically designed for IT systems containing frequency inverters and variable speed drives, which generate significant capacitive leakage currents due to their EMC filter capacitors. The device uses Bender's proprietary AMPPlus measurement technology, which applies a superimposed DC measurement voltage that is immune to AC leakage currents generated by drive EMC filters. This ensures accurate insulation resistance measurement even in systems with multiple Siemens SINAMICS, ABB ACS, or Danfoss VLT drives connected to the same IT bus. The adjustable response threshold allows engineers to set appropriate alarm levels that account for the baseline capacitive leakage of the installed drive population.

Q3: What is the warranty coverage for the IRDH275B-425, and what is the typical lead time for replacement units? All IRDH275B-425 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects, component failure, and measurement accuracy deviation beyond published specifications. In the event of a warranty claim, NANKMOS provides a replacement unit dispatch within 3–5 business days from claim confirmation, minimizing system downtime. For critical infrastructure projects requiring guaranteed spare availability, NANKMOS recommends maintaining one spare IRDH275B-425 per 10 monitored IT system segments as part of the site's strategic spare parts inventory. Stock availability is maintained for immediate dispatch; contact [email protected] or +86 18359268345 for current lead time confirmation on volume orders.
