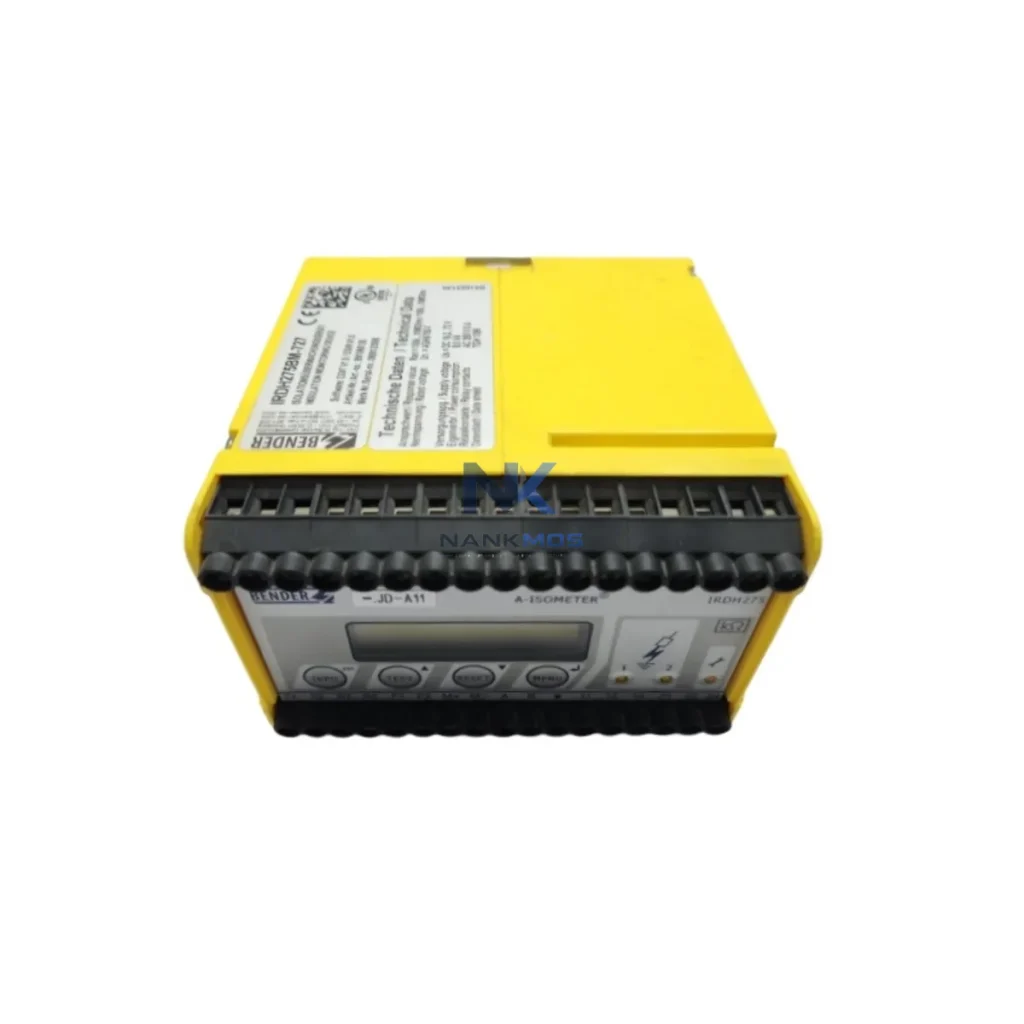

Bender IRDH275B-435 Insulation Monitoring Device

Product Details

IRDH275B-435 Product Description

The Bender IRDH275B-435 is a high-performance insulation monitoring relay engineered for ungrounded IT power systems and isoPV photovoltaic installations. Designed to operate continuously in demanding industrial environments, it delivers real-time insulation resistance measurement, ground fault detection, and multi-protocol network communication — forming a critical node in the smart factory data chain. From signal acquisition at the field device level through to SCADA visualization and remote diagnostics, the IRDH275B-435 ensures that insulation integrity data flows seamlessly across every layer of the automation architecture.

In a modern smart factory or renewable energy plant, insulation monitoring is not a standalone function — it is an active participant in the plant-wide data loop. The Bender IRDH275B-435 connects directly to the RS-485 fieldbus backbone, where it exchanges insulation resistance values and alarm states with upstream Modbus RTU masters or Profibus DP controllers. In a typical isoPV installation, the IRDH275B-435 sits between the PV array combiner box and the inverter DC bus, continuously measuring insulation resistance to ground and transmitting live readings to the plant SCADA system.

At the field level, the IRDH275B-435 works alongside Bender ISOMETER® iso685 series devices and EDS460 insulation fault locators to pinpoint the exact location of a ground fault across multi-branch PV strings. These devices share the same Bender COM465IP communication module, which acts as an Ethernet gateway — bridging the RS-485 Modbus segment to the plant LAN and enabling data ingestion by Siemens WinCC, Wonderware InTouch, or Ignition SCADA platforms.

On the control side, the IRDH275B-435 alarm relay outputs integrate directly with Siemens S7-1200 or S7-300 PLCs via digital input modules, triggering automatic load disconnection sequences when insulation resistance drops below the configured threshold. For larger installations, the Profibus DP variant of the IRDH275B-435 connects natively to Siemens ET 200SP or ET 200M remote I/O stations, allowing the PLC to poll insulation data cyclically without additional gateways.

At the network transport layer, managed industrial Ethernet switches — such as the Hirschmann MICE series or Phoenix Contact FL SWITCH — carry the converted Ethernet frames from the COM465IP gateway to the plant historian and MES layer. Redundant ring topologies (MRP/RSTP) ensure that a single cable fault does not interrupt insulation monitoring data flow, which is critical in 24/7 energy and process environments.

For HMI visualization, operators interact with insulation status through Siemens SIMATIC HMI TP700 Comfort or Weintek cMT series panels, which display real-time resistance curves, alarm history, and fault location maps. The IRDH275B-435 data is also forwarded to edge computing nodes — such as the Bender BMS55 building management server or third-party IIoT gateways — where AI-based predictive maintenance algorithms analyze insulation degradation trends over time.

In energy storage and UPS applications, the IRDH275B-435 pairs with Bender RCMS460 residual current monitoring systems to provide a comprehensive ground fault and leakage current picture across the entire DC/AC power chain, from battery racks through inverters to the MV transformer. This dual-layer monitoring architecture is increasingly mandated by IEC 62109 and NEC 690 standards for utility-scale PV and BESS installations.

Many industrial and renewable energy sites still operate with isolated insulation monitoring instruments that generate local alarms but contribute no data to the plant network. This creates dangerous blind spots: a developing ground fault in a PV string or an IT-powered medical device circuit may go undetected at the SCADA level until a protection relay trips, causing unplanned downtime or safety incidents.

The Bender IRDH275B-435 directly addresses these data gaps. Its dual-protocol support (Modbus RTU + Profibus DP) eliminates the need for external protocol converters in most existing automation architectures, reducing integration cost and latency. Insulation resistance values, alarm thresholds, and fault codes are mapped to standard Modbus registers, making them immediately readable by any Modbus-capable SCADA, DCS, or PLC without custom programming.

For sites struggling with data silos between electrical protection systems and process automation networks, the IRDH275B-435 serves as the bridge. Its network-connected alarm outputs can trigger automated responses in the PLC — such as isolating a faulty PV string, activating a backup power path, or sending an SMS/email alert via the plant's alarm management system — all without operator intervention. This closes the loop between insulation health monitoring and production continuity management.

Remote diagnostics capability is equally important for distributed energy assets. With the IRDH275B-435 integrated into the Modbus network, maintenance engineers can remotely query insulation resistance trends, review alarm logs, and adjust warning thresholds from the control room or via VPN — eliminating the need for on-site visits to remote substations or rooftop PV installations. Combined with pre-shipment functional testing and a 12-month warranty, the IRDH275B-435 delivers a low-risk, high-reliability connectivity solution for insulation monitoring in smart factory and energy environments.

Q1: What communication protocols does the Bender IRDH275B-435 support, and how does it integrate with existing SCADA systems? The IRDH275B-435 supports Modbus RTU over RS-485 and Profibus DP. Both protocols are natively supported by major SCADA platforms including Siemens WinCC, Ignition, and Wonderware. Insulation resistance values and alarm states are mapped to standard registers/process data objects, enabling plug-and-play integration without custom drivers.

Q2: How does the IRDH275B-435 handle network latency and ensure alarm reliability in time-critical automation environments? The device triggers alarm relay outputs in under 1 second, independent of network communication status. Hardware relay contacts provide a fail-safe alarm path even if the Modbus/Profibus network is temporarily interrupted, ensuring that insulation fault alarms always reach the PLC or safety relay regardless of network conditions.

Q3: Can the IRDH275B-435 be expanded or integrated into larger insulation monitoring networks with fault location capability? Yes. The IRDH275B-435 is designed to work within the Bender ecosystem. It can be combined with EDS460 insulation fault locators and COM465IP Ethernet gateways to build a fully networked insulation monitoring system capable of pinpointing faults across hundreds of circuit branches — all accessible from a single SCADA dashboard.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed? Every IRDH275B-435 unit undergoes pre-shipment functional testing covering insulation measurement accuracy, alarm relay operation, and communication protocol response. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. In-stock units are available for immediate dispatch, supporting urgent maintenance and project timelines.
