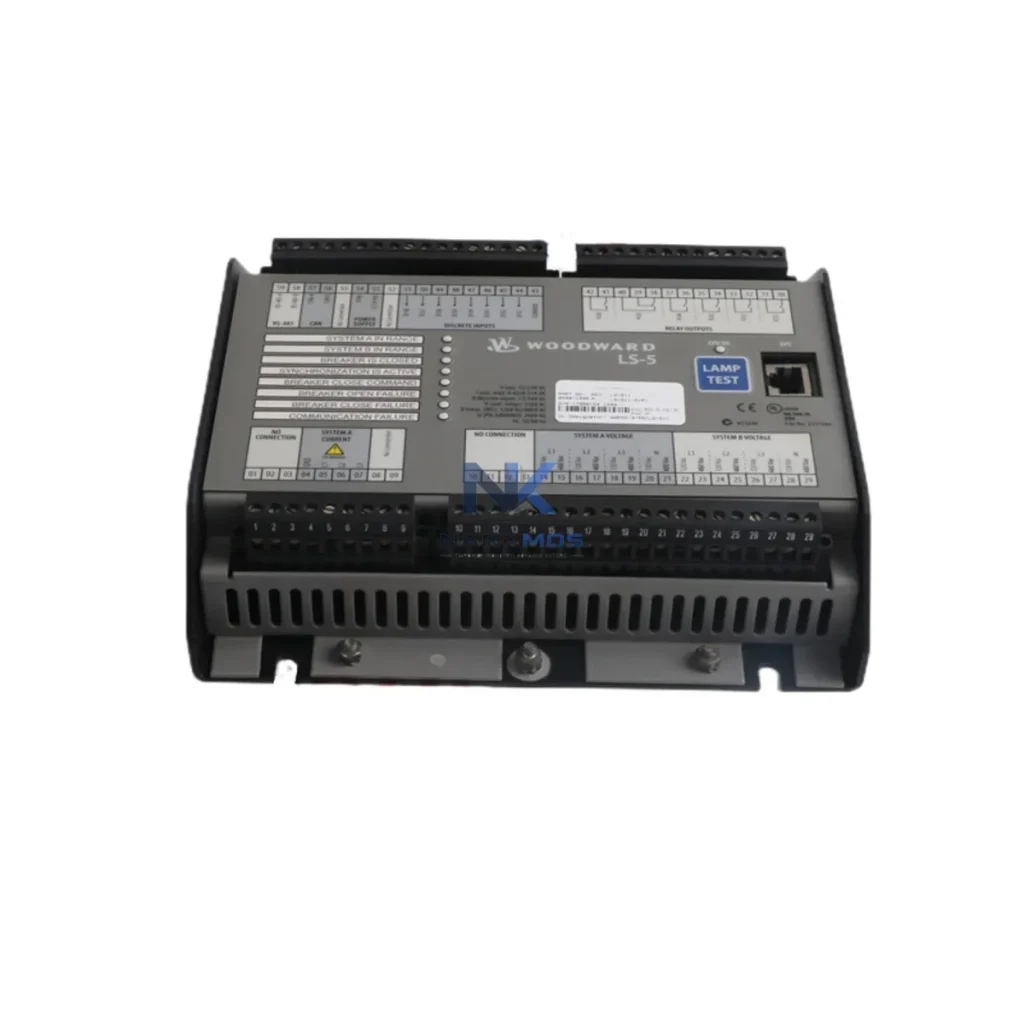

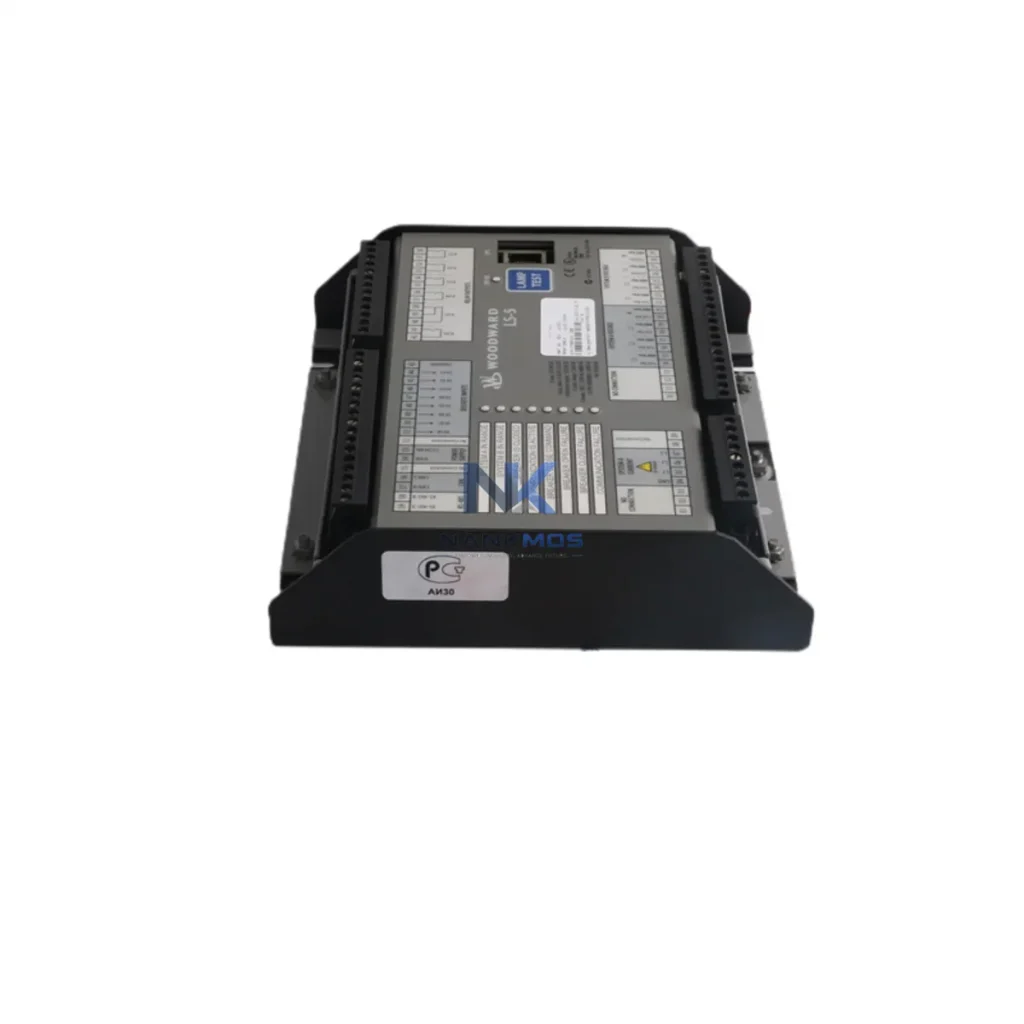

Woodward LS-5 8440-1946 Load Sharing Module

Product Details

LS-5 8440-1946 Product Description

The Woodward 8440-1946 LS-5 Load Sharing Module is an advanced energy-control component engineered for industrial power management systems where generator synchronization, load distribution accuracy, and energy efficiency are mission-critical. Designed for parallel generator sets and distributed power architectures, the LS-5 continuously monitors real and reactive power flows across multiple generator units, dynamically adjusting governor and AVR signals to maintain balanced load sharing and minimize unnecessary fuel consumption and thermal stress. In smart production environments where uptime and energy cost directly impact profitability, the Woodward 8440-1946 delivers the precision and reliability that modern industrial facilities demand.

Built on Woodward's proven LS-series platform, the 8440-1946 integrates seamlessly into both new installations and retrofit projects. Its analog signal interface is compatible with a wide range of governor control systems, including Woodward's own EG3P actuators and 2301A/2301D speed controls, enabling a cohesive energy management architecture without requiring full system replacement. The module's load-sharing bus architecture allows multiple LS-5 units to operate in concert, ensuring that as production line demand fluctuates — during shift changes, equipment startups, or peak machining cycles — power is redistributed automatically and without operator intervention.

In a fully integrated smart factory or industrial power plant, the Woodward 8440-1946 LS-5 does not operate in isolation — it functions as the load-balancing backbone of a broader energy-aware automation architecture. When paired with a Woodward 2301D Load Sharing & Speed Control, the LS-5 receives and transmits real-power signals across the load-sharing bus, enabling the 2301D to make precise governor corrections that prevent any single generator from carrying disproportionate load. This coordination is essential in facilities where CNC machining centers, injection molding machines, or large HVAC compressors create sudden demand spikes that would otherwise destabilize the power bus.

On the reactive power side, the LS-5 interfaces with automatic voltage regulators (AVRs) such as the Basler Electric DECS-100 or Woodward's own VAR/PF controllers to balance reactive load sharing and maintain stable voltage across the bus. This prevents circulating currents between generators — a common source of winding overheating and premature insulation degradation — directly reducing thermal load and extending generator service life.

For facilities running Siemens S7-1500 or Allen-Bradley ControlLogix PLCs as the primary automation controller, the LS-5's analog output signals can be fed into dedicated analog input modules, allowing the PLC's energy management logic to log load-sharing data, trigger alarms on load imbalance, and coordinate with variable frequency drives (VFDs) such as the ABB ACS880 or Siemens SINAMICS G120 to shed non-critical motor loads during peak demand periods. This VFD coordination is particularly valuable in facilities with large pump or fan arrays, where even a 10–15% reduction in motor speed translates to 25–35% energy savings per the affinity laws.

Power monitoring modules such as the Schneider Electric PowerLogic ION7650 or the Yokogawa WT500 power analyzer can be integrated upstream of the LS-5 installation to provide real-time kW, kVAR, and power factor data to the SCADA system. When this data is correlated with the LS-5's load-sharing bus signals via a Modbus RTU or PROFIBUS DP communication module, plant operators gain a complete picture of generator utilization, enabling predictive maintenance scheduling before efficiency losses escalate into critical failures. HMI panels such as the Siemens TP900 Comfort or Weintek MT8103iE can display live load-sharing status, generator contribution percentages, and alarm histories, giving operators immediate situational awareness without requiring access to the central control room.

In facilities using Woodward's own GAP (Generator Application Package) software platform, the 8440-1946 integrates natively with GAP-based control programs running on Woodward MicroNet or easYgen controllers, enabling fully automated isochronous load sharing with minimal external wiring. This tight integration reduces commissioning time and eliminates the signal conditioning hardware that would otherwise be required when interfacing third-party load-sharing modules with Woodward governor platforms.

The Woodward 8440-1946 LS-5 addresses one of the most persistent energy waste sources in industrial facilities: unbalanced generator loading. When generators in a parallel configuration carry unequal loads, the overloaded unit operates at reduced efficiency, generates excess heat, and consumes more fuel per kWh produced than it would at its rated load point. The underloaded unit, meanwhile, operates in an inefficient partial-load regime. The LS-5 eliminates this imbalance by continuously equalizing real power contributions across all paralleled units, ensuring each generator operates as close to its optimal efficiency point as possible.

For production lines with variable energy demand profiles — such as automotive stamping lines, food processing facilities, or semiconductor fabrication plants — the LS-5's fast response to load transients prevents the voltage and frequency excursions that can trip sensitive CNC equipment or cause PLC watchdog faults. By stabilizing the power bus during demand transitions, the module directly reduces unplanned downtime and the associated production losses. Facilities that have implemented proper load sharing report measurable reductions in generator fuel consumption (typically 3–8% in multi-genset installations) and significant reductions in generator maintenance intervals due to lower thermal cycling stress.

From a predictive maintenance perspective, consistent load-sharing data logged via the SCADA system provides early warning of governor or AVR degradation — a generator that begins to carry disproportionate load despite LS-5 correction signals is exhibiting a symptom that warrants inspection before it becomes a forced outage. This data-driven maintenance approach, enabled by the LS-5's precise load-sharing bus signals, transforms reactive maintenance into a scheduled, cost-controlled activity that supports overall equipment effectiveness (OEE) improvement programs and production line rhythm stability.

Stock is maintained for the Woodward 8440-1946 to support urgent replacement and MRO procurement needs. Each unit undergoes functional testing prior to shipment and is covered by a 12-Month Warranty, ensuring that your production line investment is protected from day one of installation.

Q1: What energy efficiency improvements can I expect from installing the Woodward 8440-1946 LS-5? In parallel generator installations, the LS-5 typically reduces fuel consumption by 3–8% by ensuring each generator operates near its optimal efficiency point rather than in an unbalanced partial-load or overload condition. Additionally, reduced thermal cycling extends generator winding life and lowers cooling system energy demand, contributing to further operational savings over the equipment lifecycle.

Q2: Is the 8440-1946 compatible with my existing governor and AVR systems? The LS-5 uses a standard analog load-sharing bus interface that is compatible with most Woodward governor controls (including the 2301A, 2301D, and EG3P series) and a wide range of third-party AVR systems with analog signal inputs. For specific compatibility verification with your installed governor model or AVR brand, please contact us with your system details prior to ordering.

Q3: Can the Woodward 8440-1946 replace a failed LS-5 unit in an existing parallel generator system? Yes. The 8440-1946 is a direct replacement for LS-5 modules in existing Woodward load-sharing installations. No reconfiguration of the load-sharing bus is required in most cases. We recommend verifying the load-sharing bus voltage range and signal polarity of your existing installation before installation to ensure a seamless drop-in replacement.

Q4: What does the 12-Month Warranty cover, and how is the unit tested before shipment? Every Woodward 8440-1946 unit is functionally tested prior to shipment to verify load-sharing bus signal integrity, analog I/O response, and power supply operation. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with protective packaging to prevent transit damage. For warranty claims or technical support, contact us directly at [email protected].
