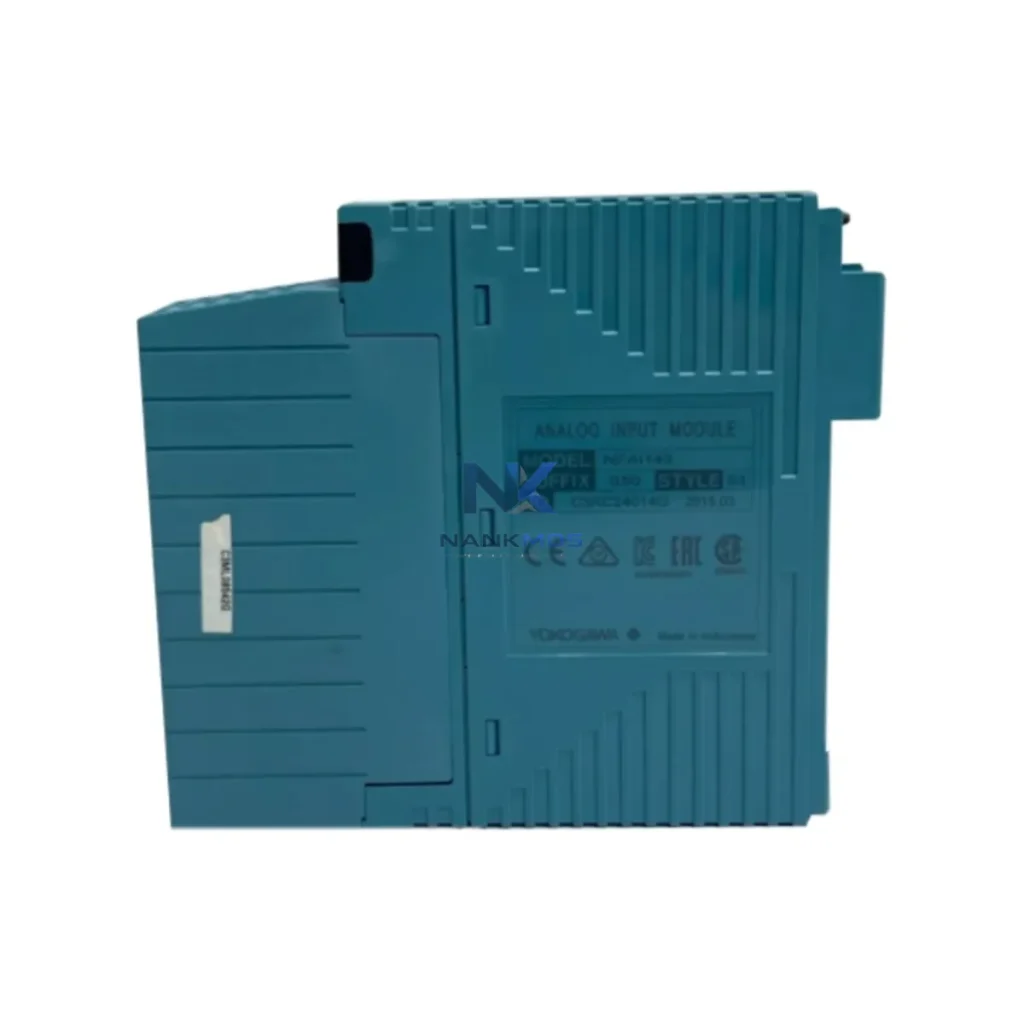

YOKOGAWA NFAI143-H50 Analog Input Module

Product Details

NFAI143-H50 Product Description

The Yokogawa NFAI143-H50 is a high-integrity analog input module engineered for deployment within the STARDOM FCN/FCJ distributed control system platform. Designed to deliver precise signal acquisition across multi-loop process environments, this module serves as a foundational I/O layer component in control architectures spanning power generation, petrochemical processing, water treatment, and advanced manufacturing. Its role extends beyond simple signal conversion — the NFAI143-H50 is a contextual integration asset that reinforces system consistency, signal stability, and long-term diagnostic efficiency across every layer of the automation hierarchy.

In modern industrial control architecture, the analog input layer is the primary interface between field instrumentation and the control logic engine. The NFAI143-H50 fulfills this role with high channel density, reliable 4–20 mA signal handling, and seamless compatibility with the STARDOM FCN autonomous controller backplane. When deployed alongside complementary I/O modules such as the NFAO143 analog output module and NFDI143 digital input module, the NFAI143-H50 enables a fully coordinated I/O subsystem that supports both standard and redundant control configurations. This modular approach reduces engineering overhead during commissioning and simplifies long-term maintenance cycles.

The NFAI143-H50 achieves its full operational value when integrated within a complete STARDOM FCN control node. A typical architecture begins with the FCN autonomous controller as the processing core, supported by the NFCP280 power supply module to ensure stable, uninterrupted power delivery to all rack-mounted I/O modules. The NFAI143-H50 occupies the I/O layer, receiving 4–20 mA signals from field transmitters — pressure, temperature, flow, and level instruments — and passing conditioned data to the FCN CPU for real-time loop execution.

On the output side, the NFAO143 analog output module closes the control loop by driving final control elements such as control valves and variable frequency drives. For discrete process interlocks and status monitoring, the NFDI143 digital input module and NFDO143 digital output module extend the I/O architecture to cover binary signal domains. Communication upward to the supervisory layer is handled via the STARDOM FCN's built-in Ethernet port, supporting Modbus TCP and OPC-UA protocols for seamless SCADA and historian integration — including platforms such as Yokogawa's own FAST/TOOLS SCADA or third-party systems.

For applications requiring redundancy, the FCN platform supports dual-CPU configurations where a standby FCN controller mirrors the active node. In such architectures, the NFAI143-H50 continues to provide deterministic analog input scanning, ensuring that failover events do not interrupt process variable acquisition. This redundancy capability is critical in power plant distributed control systems, offshore platform automation, and continuous chemical process environments where unplanned downtime carries significant operational and safety consequences.

At the HMI layer, operator stations running Yokogawa's FAST/TOOLS or compatible OPC-UA clients display real-time analog values sourced directly from NFAI143-H50 channels, enabling operators to monitor process trends, configure alarm thresholds, and initiate control actions with full situational awareness. The signal chain — from field transmitter through NFAI143-H50 to FCN CPU to HMI — is engineered for minimal latency and maximum data fidelity, supporting both regulatory control and advanced process optimization strategies.

In power generation facilities, the NFAI143-H50 is deployed within turbine control panels and boiler management systems, where precise analog signal acquisition from thermocouples, RTDs, and pressure transmitters is essential for safe and efficient operation. The module's compatibility with the STARDOM FCN platform allows power plant engineers to standardize their I/O architecture across multiple control nodes, reducing spare parts inventory and simplifying technician training.

In petrochemical and oil & gas processing plants, the NFAI143-H50 supports continuous process monitoring across distillation columns, heat exchangers, and pipeline pressure management systems. Its robust signal isolation characteristics protect the FCN controller from field-side electrical noise, a common challenge in environments with high-voltage motor drives and variable frequency drives operating in close proximity to instrumentation wiring.

For water and wastewater treatment applications, the module enables multi-point flow and level monitoring across pump stations, filtration systems, and chemical dosing loops. The STARDOM FCN's compact form factor and the NFAI143-H50's modular design make this combination well-suited for distributed remote terminal unit (RTU) deployments across geographically dispersed water infrastructure.

In mining and metallurgical operations, the NFAI143-H50 supports analog signal acquisition from conveyor load cells, crusher motor current sensors, and flotation cell level transmitters. The module's industrial-grade construction ensures reliable operation in high-vibration, high-dust environments typical of mineral processing facilities.

For marine and offshore automation, the NFAI143-H50 integrates into vessel automation systems and offshore platform control architectures, where compact, reliable I/O modules are required to operate within space-constrained control panels under demanding environmental conditions.

Q1: Is the NFAI143-H50 compatible with both FCN and FCJ STARDOM controllers, and can it be used in a redundant CPU configuration? The NFAI143-H50 is designed for the STARDOM FCN/FCJ platform and is compatible with the standard FCN rack backplane. In redundant CPU configurations, the I/O modules — including the NFAI143-H50 — remain shared between the active and standby controllers, providing continuous analog input scanning regardless of which CPU is in control. This architecture ensures zero-interruption process variable acquisition during controller failover events, making it suitable for high-availability process control applications.

Q2: What communication protocols does the STARDOM FCN platform support for SCADA integration when using the NFAI143-H50? The STARDOM FCN controller communicates with supervisory systems via its built-in Ethernet interface, supporting Modbus TCP and OPC-UA as primary integration protocols. Analog values acquired by the NFAI143-H50 are processed by the FCN CPU and made available to SCADA historians, DCS gateways, and HMI platforms in real time. This contextual integration capability allows the NFAI143-H50 to serve as a data source within broader Industry 4.0 architectures, including cloud-connected process monitoring and predictive maintenance platforms.

Q3: What is the warranty coverage and pre-shipment testing process for the NFAI143-H50? Every NFAI143-H50 unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes pre-shipment functional testing to verify analog input channel performance, backplane communication integrity, and signal isolation characteristics prior to dispatch. Units are sourced from verified inventory channels and are inspected against Yokogawa's original manufacturing specifications. In-stock availability ensures rapid order fulfillment for both planned project deployments and urgent maintenance replacement scenarios.
