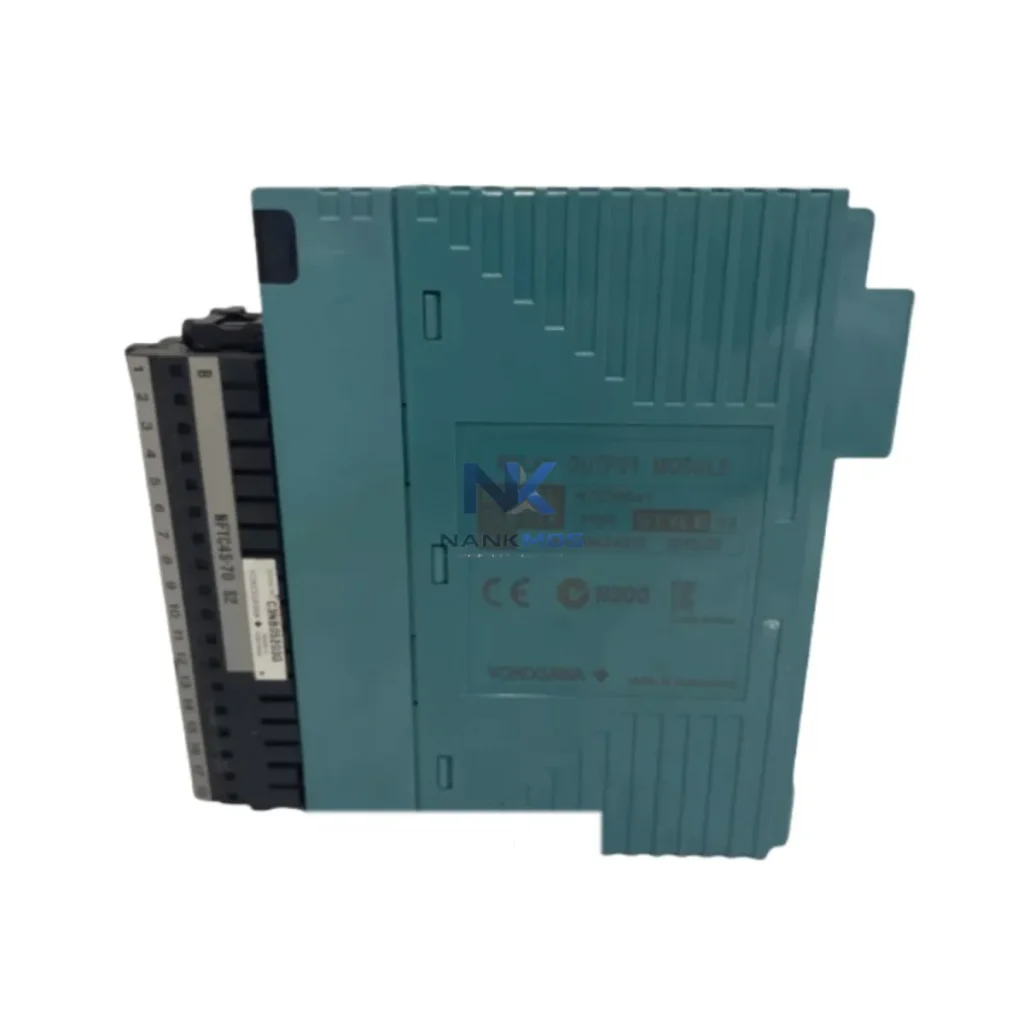

YOKOGAWA NFDR541-P50 Relay Output Module

Product Details

NFDR541-P50 Product Description

The Yokogawa NFDR541-P50 is a high-reliability relay output module engineered for the STARDOM FCN/FCJ distributed control system platform. Designed to serve as a critical node in industrial data link architectures, the NFDR541-P50 bridges field-level relay switching with upper-layer SCADA, HMI, and DCS networks — enabling seamless, real-time command execution across smart factory environments. Whether deployed in power generation, petrochemical processing, water treatment, or marine propulsion systems, this module delivers deterministic output control with the network transparency demanded by modern Industry 4.0 operations.

At its core, the NFDR541-P50 integrates into the STARDOM FCN autonomous controller rack, where it receives digital command signals from the FCN CPU module via the internal high-speed backplane bus. This internal communication path eliminates latency introduced by external fieldbus wiring, ensuring that relay switching commands — whether sourced from a local PLC ladder program, a remote SCADA operator station, or an automated alarm response sequence — are executed with sub-millisecond determinism. The module's relay contacts are rated for industrial-grade switching loads, making it suitable for controlling motor starters, solenoid valves, circuit breakers, and safety interlock circuits in demanding process environments.

From a data flow perspective, the NFDR541-P50 participates in a layered communication architecture. At the field level, relay output signals actuate physical devices — pumps, fans, actuators, and isolation valves — based on commands propagated down from the control layer. The FCN controller hosting the NFDR541-P50 communicates upstream via Ethernet-based protocols including Modbus/TCP and OPC-UA, transmitting real-time output status, relay state feedback, and diagnostic data to SCADA servers and historian platforms. This bidirectional data flow enables operators to monitor relay contact status, detect welded contacts or coil failures, and log switching events for compliance and predictive maintenance purposes.

In a typical smart factory deployment, the NFDR541-P50 works in concert with complementary STARDOM I/O modules such as the NFDV141 digital input module — which captures field device feedback signals — and the NFAI141 analog input module, which acquires process variable measurements from transmitters and sensors. Together, these modules populate the FCN I/O rack with a complete picture of field conditions, enabling closed-loop control strategies that respond dynamically to process deviations. The NFDR541-P50's relay outputs serve as the final control element in these loops, translating digital control decisions into physical switching actions.

For facilities integrating legacy instrumentation with modern network infrastructure, the STARDOM FCN platform — and by extension the NFDR541-P50 — supports protocol conversion between traditional hardwired I/O and Ethernet-based communication networks. When paired with the Yokogawa F3SP71 or F3SP76 CPU modules in hybrid rack configurations, the system can simultaneously manage legacy relay-based control circuits and modern Modbus/TCP or PROFINET data exchanges, eliminating data silos between older plant sections and newly commissioned smart factory zones. This protocol bridging capability is essential for phased modernization projects where full system replacement is not economically viable.

Remote diagnostics represent another key value proposition of the NFDR541-P50 within the STARDOM ecosystem. The FCN controller continuously monitors module health parameters — including relay cycle counts, contact resistance trends, and coil drive current — and exposes this data via OPC-UA to connected asset management platforms such as Yokogawa's Plant Resource Manager or third-party CMMS systems. Maintenance teams can configure threshold-based alarms that trigger work orders automatically when relay wear indicators approach end-of-life limits, shifting maintenance strategy from reactive replacement to condition-based intervention. This remote visibility reduces unplanned downtime and extends the operational life of relay output infrastructure.

Integration with HMI and SCADA layers is straightforward. The NFDR541-P50's relay states are mapped as discrete output tags within the FCN controller's tag database, making them immediately accessible to Yokogawa's FAST/TOOLS SCADA platform, third-party Wonderware or iFIX HMI systems, and edge gateway devices such as the Yokogawa OpreX Edge Controller. Operators can issue manual override commands, view real-time relay status on process mimic diagrams, and review historical switching logs — all without requiring physical access to the control panel. For distributed sites with limited on-site staffing, this remote operability is a significant operational advantage.

The NFDR541-P50 is supplied pre-shipment tested and verified against Yokogawa factory acceptance criteria, ensuring that relay contact integrity, coil response timing, and backplane communication are confirmed before dispatch. Each unit is covered by a 12-month warranty from the date of shipment, with in-stock availability supporting rapid deployment for both new installations and emergency replacement scenarios. NANKMOS maintains verified inventory of the NFDR541-P50 and associated STARDOM FCN I/O modules, enabling same-week fulfillment for qualified industrial customers.

In a fully connected smart factory, the NFDR541-P50 occupies the output execution layer of a multi-tier data architecture. Field sensors — including Yokogawa EJA-series differential pressure transmitters and YTA-series temperature transmitters — feed process variable data into the FCN rack via NFAI141 analog input modules. The FCN CPU processes this data against control logic and issues switching commands to the NFDR541-P50 relay outputs, which actuate field devices such as motor control center contactors, pneumatic valve solenoids, and emergency shutdown relays.

Simultaneously, the FCN controller aggregates I/O status data — including NFDR541-P50 relay states and NFDV141 digital input feedback — and transmits it upstream via Modbus/TCP to plant-level SCADA servers. Edge gateway devices, such as the Yokogawa OpreX Edge Controller or third-party Moxa industrial routers, may be deployed to aggregate data from multiple FCN controllers across a facility and forward consolidated datasets to cloud-based analytics platforms or enterprise MES systems. Industrial managed switches — such as those from the Hirschmann MACH or Cisco IE series — provide the network backbone for this data flow, with VLAN segmentation ensuring that control traffic and monitoring traffic remain isolated for cybersecurity compliance.

Variable frequency drives (VFDs) controlling pump and fan motors receive start/stop commands via NFDR541-P50 relay contacts, while their speed reference and fault status signals are communicated back to the FCN controller via PROFIBUS or Modbus RTU interfaces on dedicated communication modules. This hybrid hardwired-plus-network architecture ensures that critical safety functions — such as emergency stop and motor protection relay tripping — remain operational even during network communication interruptions, while non-critical monitoring data continues to flow via the Ethernet backbone.

Many industrial facilities operate with fragmented control architectures where legacy relay panels, standalone PLCs, and modern DCS platforms coexist without a unified data layer. The NFDR541-P50, deployed within the STARDOM FCN platform, addresses these data gaps by providing a network-transparent relay output capability that integrates with both legacy hardwired systems and modern Ethernet-based control networks.

Protocol inconsistency is resolved through the FCN controller's multi-protocol support: Modbus/TCP for SCADA integration, OPC-UA for secure data exchange with MES and cloud platforms, and traditional hardwired relay contacts for legacy device compatibility. Data islands — isolated control subsystems with no network visibility — are eliminated by mapping all NFDR541-P50 relay states as OPC-UA nodes, making them accessible to any standards-compliant SCADA or historian platform without custom integration work.

Remote monitoring challenges are addressed through the FCN's built-in web server and OPC-UA server, which expose real-time relay status and diagnostic data to authorized remote clients without requiring VPN tunneling to the control network. Production line transparency is achieved by integrating relay switching event logs with plant historian platforms, enabling operators and engineers to correlate relay actuation events with process variable trends for root cause analysis and alarm rationalization. System expansion is supported through the modular FCN rack architecture, where additional NFDR541-P50 modules can be added to existing racks without controller reconfiguration, scaling relay output capacity in line with plant expansion requirements.

Q: What communication protocols does the NFDR541-P50 support for SCADA integration? A: The NFDR541-P50 operates within the STARDOM FCN controller rack and communicates with SCADA and HMI systems via the FCN CPU's Ethernet ports, which support Modbus/TCP and OPC-UA. This enables direct integration with Yokogawa FAST/TOOLS, Wonderware, iFIX, and other OPC-UA-compliant SCADA platforms without additional protocol converters.

Q: How does the NFDR541-P50 support remote diagnostics and predictive maintenance? A: The FCN controller continuously monitors NFDR541-P50 module health — including relay cycle counts and contact integrity — and exposes this data via OPC-UA to connected asset management systems. Threshold-based alarms can be configured to notify maintenance teams when relay wear indicators approach end-of-life limits, enabling condition-based maintenance scheduling.

Q: Can the NFDR541-P50 be integrated with legacy relay panels and modern Ethernet networks simultaneously? A: Yes. The NFDR541-P50 provides hardwired relay contact outputs for legacy device compatibility while the FCN controller communicates relay status and control commands via Modbus/TCP and OPC-UA over Ethernet. This hybrid architecture supports phased modernization projects without requiring full system replacement.

Q: What is the warranty coverage and delivery lead time for the NFDR541-P50? A: Each NFDR541-P50 is covered by a 12-month warranty from the date of shipment. NANKMOS maintains in-stock inventory with pre-shipment testing completed, supporting same-week fulfillment for qualified industrial customers. Contact [email protected] or +86 18359268345 for availability confirmation and RFQ.
