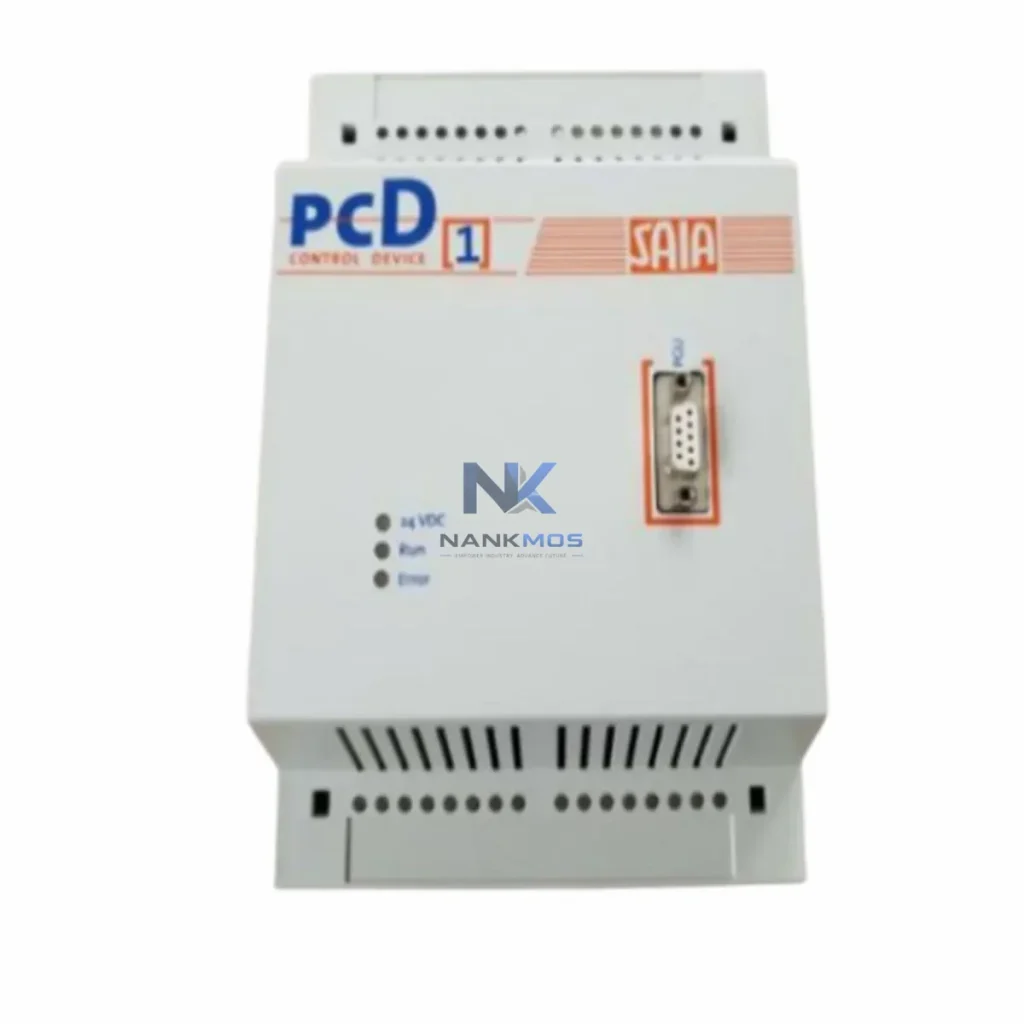

Saia-Burgess PCD1.M110 Communication Gateway

Product Details

PCD1.M110 Product Description

The Saia PCD1.M110 is a dedicated communication gateway module engineered for the Saia PCD1 Series programmable logic controller platform. Designed to bridge field-level devices with supervisory control and data acquisition systems, the PCD1.M110 delivers reliable S-Bus and Profibus protocol support across multi-node industrial networks. In smart factory environments where data continuity, protocol interoperability, and real-time visibility are non-negotiable, the PCD1.M110 serves as the critical link between automation hardware and digital management layers.

From signal acquisition at the sensor level through to data visualization on SCADA dashboards, the PCD1.M110 enables a complete and uninterrupted data flow chain. Its compact form factor integrates directly into the PCD1 rack, minimizing wiring complexity while maximizing communication throughput across distributed control architectures.

In a modern smart factory, data must travel seamlessly from the physical process layer to the digital decision layer. The Saia PCD1.M110 occupies a pivotal position in this chain, acting as the communication backbone between field instruments and upper-level control systems.

At the field level, sensors — including temperature transmitters, pressure transducers, and flow meters — feed analog and digital signals into remote I/O modules such as the Saia PCD3.E110 or PCD3.A110 analog input modules. These signals are aggregated and passed to the PCD1 Series CPU, where the PCD1.M110 gateway module handles protocol translation and network transmission. Via the S-Bus protocol, the PCD1.M110 communicates upstream to Saia PCD2 Series or PCD3 Series controllers acting as network masters, enabling coordinated multi-PLC architectures across production zones.

For Profibus DP networks, the PCD1.M110 connects the PCD1 controller to Profibus-compatible field devices including variable frequency drives such as the ABB ACS580 or Siemens SINAMICS G120, enabling closed-loop speed and torque control with real-time feedback. Profibus DP slaves — including distributed I/O stations, valve terminals, and smart actuators — are polled cyclically, ensuring deterministic data delivery with sub-millisecond response times critical for motion-sensitive applications.

At the supervisory layer, SCADA platforms such as Saia PG5 Controls Suite or third-party systems like Wonderware and Ignition connect to the PCD1.M110 via S-Bus Ethernet bridges or serial gateways, pulling live process data for trend analysis, alarm management, and production reporting. HMI panels — including Saia PCD7.D Series operator terminals — display real-time process states, enabling operators to monitor and intervene without leaving the control room.

Edge gateway devices, such as the Saia PCD3.M5540 with integrated web server and FTP capabilities, can aggregate data from multiple PCD1.M110-equipped controllers and push structured datasets to cloud-based MES or ERP platforms. This edge-to-cloud pipeline supports predictive maintenance algorithms, OEE calculations, and digital twin synchronization — all dependent on the reliable, low-latency data delivery that the PCD1.M110 provides.

Industrial Ethernet switches with managed VLAN support segment the network traffic between the automation layer and the enterprise IT layer, ensuring that time-critical PLC communications are isolated from bandwidth-intensive reporting traffic. The PCD1.M110's deterministic S-Bus communication ensures that even in high-traffic network environments, process data integrity is maintained.

Many industrial sites operate with legacy PLCs, proprietary fieldbus systems, and isolated control islands that cannot natively exchange data. The Saia PCD1.M110 directly addresses these integration challenges:

Protocol Fragmentation: Sites running mixed Profibus DP and S-Bus architectures face translation bottlenecks. The PCD1.M110 resolves this by natively supporting both protocols within a single module, eliminating the need for external protocol converters and reducing network latency.

Data Silos: When PCD1 controllers operate in isolation without network connectivity, production data remains trapped at the machine level. The PCD1.M110 breaks down these silos by connecting PCD1 nodes into a unified S-Bus network, making all process variables accessible to SCADA and MES systems in real time.

Remote Monitoring Gaps: Without a reliable communication gateway, remote diagnostics require on-site visits. With the PCD1.M110 integrated into the network, maintenance engineers can access live PLC data, fault registers, and I/O states remotely via SCADA or web-based HMI interfaces, reducing mean time to repair (MTTR) and minimizing unplanned downtime.

Production Line Transparency: Real-time OEE tracking, shift-based production counts, and alarm history logging all depend on continuous data flow from the PLC layer. The PCD1.M110 ensures that every cycle count, fault event, and setpoint change is captured and transmitted to the reporting layer without data loss.

System Scalability: As production capacity expands, additional PCD1 nodes can be added to the S-Bus network without architectural redesign. The PCD1.M110's multi-node support allows the network to scale incrementally, protecting the initial infrastructure investment.

Q1: What communication protocols does the Saia PCD1.M110 support? The PCD1.M110 supports Saia S-Bus (serial and Ethernet variants via bridge) and Profibus DP. This dual-protocol capability allows it to serve as both a PCD1 network node on S-Bus master-slave architectures and as a Profibus DP slave or master, depending on configuration. This makes it suitable for mixed-protocol factory environments without requiring additional hardware converters.

Q2: How does the PCD1.M110 ensure network stability and data integrity in high-noise industrial environments? The PCD1.M110 uses RS-485 physical layer signaling for S-Bus communication, which provides inherent noise immunity and supports cable runs up to 1,200 meters. Profibus DP communication follows the IEC 61158 standard with built-in error detection and retry mechanisms. The module's deterministic polling cycle ensures that data is delivered within predictable time windows, critical for real-time control applications.

Q3: Can the PCD1.M110 be integrated with third-party SCADA and HMI systems? Yes. Via S-Bus protocol drivers available for major SCADA platforms including Ignition, Wonderware, and WinCC, the PCD1.M110 exposes all PCD1 data registers to supervisory systems. For HMI integration, Saia PCD7.D Series panels natively support S-Bus communication. Third-party HMIs with Modbus or OPC-UA support can connect via an S-Bus to Modbus gateway bridge.

Q4: What quality assurance and warranty coverage applies to the PCD1.M110? Every Saia PCD1.M110 unit supplied by NANKMOS undergoes functional communication testing prior to shipment, verifying S-Bus node addressing, Profibus DP enumeration, and data register read/write integrity. All units are covered by a 12-month warranty from the date of delivery. In-stock units are available for immediate dispatch to support urgent project timelines.
