Saia-Burgess PCD2.F522 Communication Interface Module

Product Details

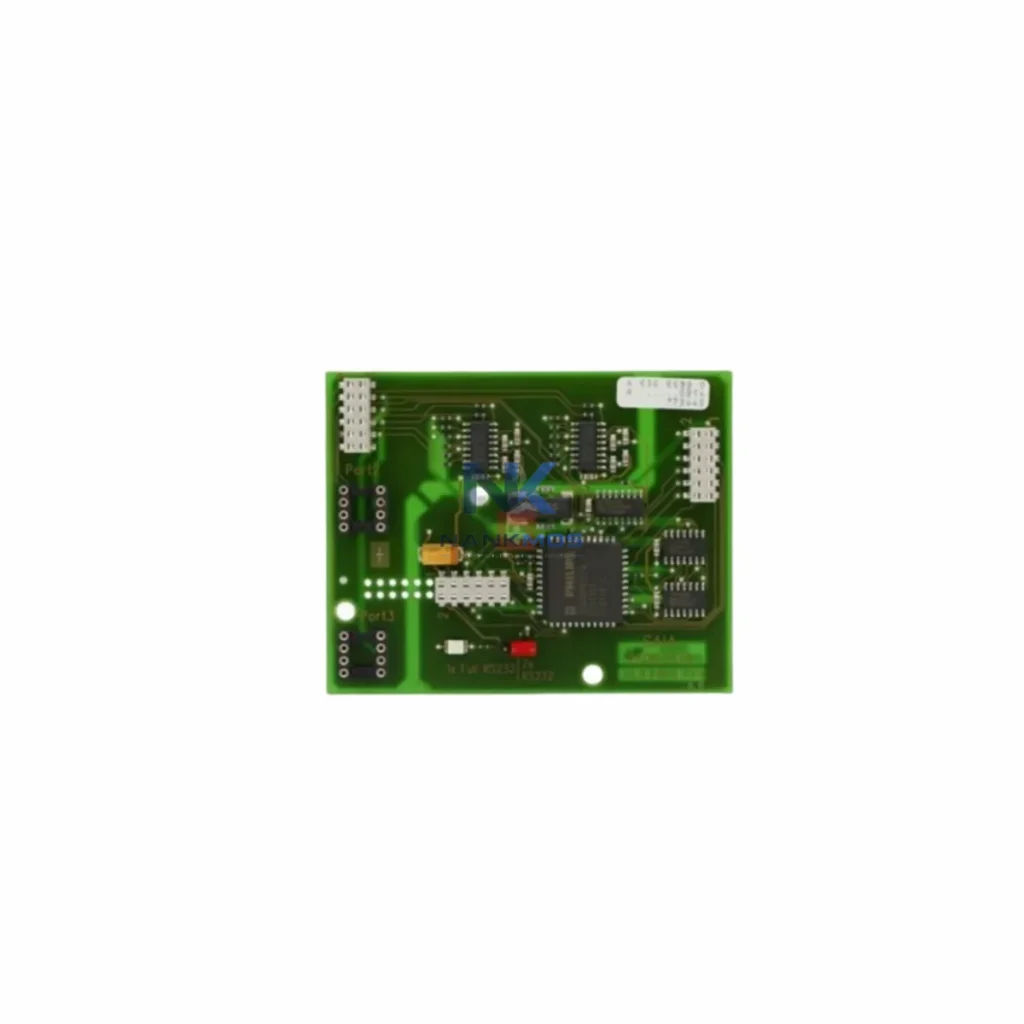

PCD2.F522 Product Description

The Saia-Burgess PCD2.F522 is a dedicated communication interface module engineered for seamless integration within the PCD2 modular controller platform. Designed to serve as the communication backbone of distributed automation architectures, the PCD2.F522 enables reliable, high-speed data exchange between the PCD2 CPU layer and field-level devices, supervisory systems, and peer controllers. Its role within a complete control architecture extends far beyond simple protocol bridging — it is a structural enabler of system coherence, signal integrity, and long-term operational stability across multi-layer industrial environments.

In modern industrial automation, no module operates in isolation. The PCD2.F522 is conceived as a system-level component, designed to function in concert with the full PCD2 ecosystem. When deployed alongside the PCD2.M480 or PCD2.M5540 CPU modules, the F522 provides the communication layer that allows the controller to participate in PROFIBUS DP networks, enabling deterministic, cyclic data exchange with remote I/O stations, variable-speed drives, and intelligent field instruments. This architecture eliminates the latency and signal degradation risks associated with serial point-to-point wiring, replacing them with a structured, diagnostics-capable network topology.

The module's physical design conforms to the PCD2 rack form factor, allowing direct insertion into standard PCD2 backplane slots without additional mounting hardware or interface adapters. This mechanical compatibility ensures that system integrators can expand communication capacity incrementally, adding F522 modules as network complexity grows, without redesigning the control cabinet layout or replacing existing CPU or power supply infrastructure. The PCD2.W2 rack and PCD2.W5 rack systems both accommodate the F522, making it a versatile choice for both compact panel installations and full-scale distributed control cabinets.

From a signal flow perspective, the PCD2.F522 manages the handshake between the PCD2 CPU's internal process image and the external PROFIBUS DP segment. Cyclic input and output data are mapped directly into the CPU's I/O image table, ensuring that the PLC program logic accesses field data with the same determinism as hardwired I/O. This transparent integration is critical in applications where scan-cycle consistency directly affects process quality — such as tension control in web handling lines, synchronisation in multi-axis packaging machinery, or flow regulation in chemical dosing systems.

Redundancy and fault tolerance are central considerations in the PCD2.F522's deployment profile. In architectures where communication continuity is non-negotiable — such as power distribution substations, water treatment SCADA systems, or continuous process plants — the F522 can be configured within redundant communication topologies. When paired with a secondary PCD2 CPU module operating in hot-standby mode, the F522 ensures that a CPU switchover does not interrupt the PROFIBUS DP cycle, preserving process state and avoiding unplanned shutdowns. This capability is particularly valued in applications governed by IEC 61511 functional safety requirements or utility-grade availability standards.

Diagnostic efficiency is another dimension where the PCD2.F522 delivers measurable engineering value. The module supports PROFIBUS DP diagnostic telegrams, allowing the PCD2 CPU to interrogate the health status of every slave device on the network segment. Fault conditions — including slave absence, configuration mismatch, and communication timeout — are surfaced directly in the PLC diagnostic buffer, enabling maintenance teams to identify and resolve issues without physical inspection of field devices. This capability reduces mean time to repair (MTTR) and supports predictive maintenance strategies in facilities operating under continuous production schedules.

The PCD2.F522 is equally relevant in hybrid architectures where PROFIBUS DP coexists with other communication layers. In installations where the supervisory layer uses OPC-UA or Modbus TCP — facilitated by modules such as the PCD7.D457 HMI panel or the PCD3.T665 Ethernet gateway — the F522 serves as the field-level communication anchor, ensuring that data originating from PROFIBUS DP slaves is accurately aggregated and made available to higher-level systems. This layered communication model is the foundation of modern SCADA integration, where data from hundreds of field points must be consolidated, timestamped, and transmitted to historian servers or cloud-based analytics platforms without loss or distortion.

For engineering teams responsible for long-term asset management, the PCD2.F522 offers a stable, well-documented hardware platform with a proven track record in demanding industrial environments. Its compatibility with the Saia PG5 programming environment means that configuration, parameterisation, and diagnostic access are all managed through a single, unified software toolchain — reducing training overhead and ensuring consistency across multi-site installations. The module's firmware is field-upgradeable, allowing operators to adopt new PROFIBUS DP features or address protocol stack updates without hardware replacement.

Inventory availability for the PCD2.F522 is maintained to support both planned project deployments and urgent replacement requirements. Each unit undergoes functional testing prior to dispatch, covering communication initialisation, data exchange integrity, and diagnostic response verification. All units are supplied with a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. This warranty commitment reflects NANKMOS's quality assurance standards and its understanding of the operational continuity requirements that govern industrial automation procurement decisions.

The PCD2.F522 achieves its full engineering potential when deployed as part of a coherent, multi-layer automation platform. A representative control architecture built around the F522 typically includes the following system components, each contributing a distinct functional layer to the overall control solution.

At the control layer, the PCD2.M480 or PCD2.M5540 CPU module serves as the programme execution engine, managing the PLC scan cycle, process image update, and communication scheduling. The F522 is mapped as a communication co-processor within the CPU's module table, with its PROFIBUS DP process data automatically synchronised to the CPU's I/O image on every scan cycle. For applications requiring higher processing throughput or extended memory, the PCD3.M5540 CPU from the PCD3 platform can be considered as an upgrade path, with the F522 architecture principles remaining applicable.

The power layer is served by the PCD2.W2 or PCD2.W5 rack assembly, which integrates the backplane power distribution bus. The PCD2.T400 power supply module provides regulated 24 VDC to the rack, ensuring stable supply voltage for the CPU, F522, and co-resident I/O modules. In redundant power configurations, dual PCD2.T400 units with diode-ORing are employed to eliminate single-point power failures.

The I/O layer within the PCD2 rack is populated with modules such as the PCD2.A460 analogue input module and the PCD2.E610 digital input module, which handle hardwired signals from local sensors and actuators. Remote I/O expansion — connected via the PROFIBUS DP segment managed by the F522 — is typically implemented using PCD3.C100 remote I/O couplers or third-party DP slaves such as Siemens ET 200S or Phoenix Contact Inline stations, depending on the project specification.

The HMI layer is integrated through PCD7.D457 or PCD7.D610 operator panels, which communicate with the PCD2 CPU via the onboard serial port or Ethernet interface. In larger installations, a SCADA server running Saia PG5 Web-Editor or a third-party SCADA platform accesses the PCD2 data via OPC-UA, with the PCD3.T665 Ethernet gateway module providing the protocol translation layer between the PCD2 internal bus and the plant network.

The protection layer includes surge protection devices on all PROFIBUS DP cable entries, typically Phoenix Contact TRABTECH or Weidmüller VARISTOP series arresters, which protect the F522's RS-485 interface from transient overvoltages induced by cable runs in electrically noisy environments such as motor control centres or outdoor substations. Proper cable shielding, termination resistors at both ends of the PROFIBUS segment, and correct bus topology (linear, without stubs) are essential commissioning requirements for reliable F522 operation.

Manufacturing & Discrete Automation: In automotive body-in-white welding lines and assembly conveyor systems, the PCD2.F522 manages PROFIBUS DP communication between the PCD2 line controller and distributed servo drive stations, robot interface modules, and vision system triggers. The deterministic communication cycle ensures that weld sequence timing and conveyor indexing remain synchronised across all production cells, eliminating inter-station timing drift that would otherwise cause quality defects or mechanical collisions.

Power Distribution & Electrical Substations: In medium-voltage switchgear panels and transformer protection systems, the PCD2.F522 enables the PCD2 controller to communicate with intelligent electronic devices (IEDs) — including protection relays, energy meters, and automatic transfer switches — via PROFIBUS DP. This architecture supports centralised substation automation, where the PCD2 CPU aggregates protection status, energy consumption data, and alarm conditions from all IEDs and transmits them to the substation SCADA via the Ethernet gateway layer.

Water & Wastewater Treatment: In municipal water treatment plants and industrial effluent systems, the PCD2.F522 connects the PCD2 process controller to variable-frequency drives on pump stations, motorised valve actuators, and online water quality analysers. The PROFIBUS DP network replaces conventional 4–20 mA wiring, reducing installation cost and enabling remote diagnostics of pump health parameters — including motor current, bearing temperature, and vibration — directly from the PCD2 diagnostic buffer.

Oil, Gas & Petrochemical: In hazardous area process control applications, the PCD2.F522 is deployed in Ex-rated control panels where the PROFIBUS DP cable enters the safe area through certified cable glands and surge arresters. The F522 communicates with PROFIBUS PA field instruments — including pressure transmitters, flow meters, and level gauges — via a DP/PA coupler, providing the PCD2 CPU with continuous process variable updates for PID control loops governing distillation columns, reactor temperature profiles, and pipeline pressure regulation.

Packaging & Material Handling: In high-speed packaging lines and palletising systems, the PCD2.F522 coordinates communication between the PCD2 master controller and distributed motion control nodes, including servo amplifiers, pneumatic valve terminals, and barcode readers. The 12 Mbit/s PROFIBUS DP baud rate ensures that motion command updates and feedback data are exchanged within the sub-millisecond cycle times required for precise pick-and-place operations and label application synchronisation.

Q1: Is the PCD2.F522 compatible with both PCD2.W2 and PCD2.W5 rack systems, and can it coexist with other communication modules in the same rack?

Yes. The PCD2.F522 is mechanically and electrically compatible with both the PCD2.W2 (4-slot) and PCD2.W5 (8-slot) rack assemblies. It occupies a standard PCD2 module slot and draws power exclusively from the backplane bus, requiring no external power connection. Multiple F522 modules can be installed in the same rack — subject to available slot count and backplane power budget — allowing the PCD2 CPU to manage multiple independent PROFIBUS DP segments simultaneously. This multi-segment capability is particularly valuable in large installations where network segmentation is required to manage slave count, cable length, or traffic isolation between process areas.

Q2: What commissioning steps are required to integrate the PCD2.F522 into an existing PCD2 control architecture, and how is the PROFIBUS DP configuration managed?

Integration of the PCD2.F522 into an existing PCD2 system is performed entirely within the Saia PG5 programming environment. The commissioning workflow involves: (1) inserting the F522 module into the hardware configuration table within PG5 and assigning the PROFIBUS DP master address; (2) importing GSD files for each DP slave device and configuring the cyclic I/O data mapping; (3) downloading the updated hardware configuration to the PCD2 CPU via the programming cable or Ethernet interface; and (4) verifying communication status using the PG5 online diagnostic view, which displays the operational state of each DP slave in real time. No additional software tools or hardware configuration devices are required beyond the standard PG5 toolchain.

Q3: What does the 12-Month Warranty cover for the PCD2.F522, and what is the typical lead time for replacement units?

The 12-Month Warranty provided by NANKMOS covers manufacturing defects, component failures, and functional non-conformances under normal operating conditions as defined in the Saia-Burgess PCD2.F522 technical specification. The warranty period commences from the date of dispatch. In the event of a warranty claim, NANKMOS will arrange replacement or repair of the defective unit following receipt and inspection. For replacement units outside the warranty period, NANKMOS maintains stock of PCD2.F522 modules to support urgent replacement requirements, with standard dispatch within 3–5 business days for in-stock units. Expedited dispatch options are available for critical production environments. Contact [email protected] or +86 18359268345 to confirm current stock availability and lead time prior to placing an order.
