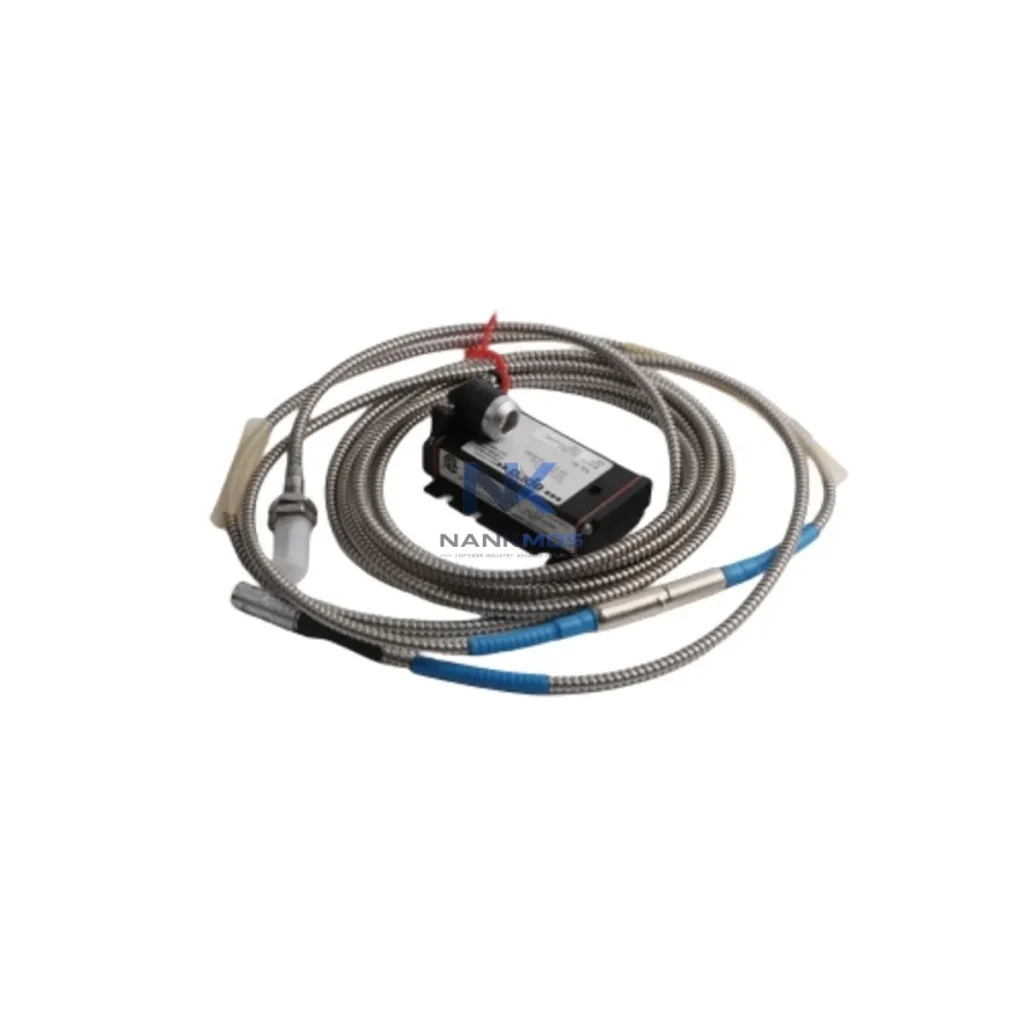

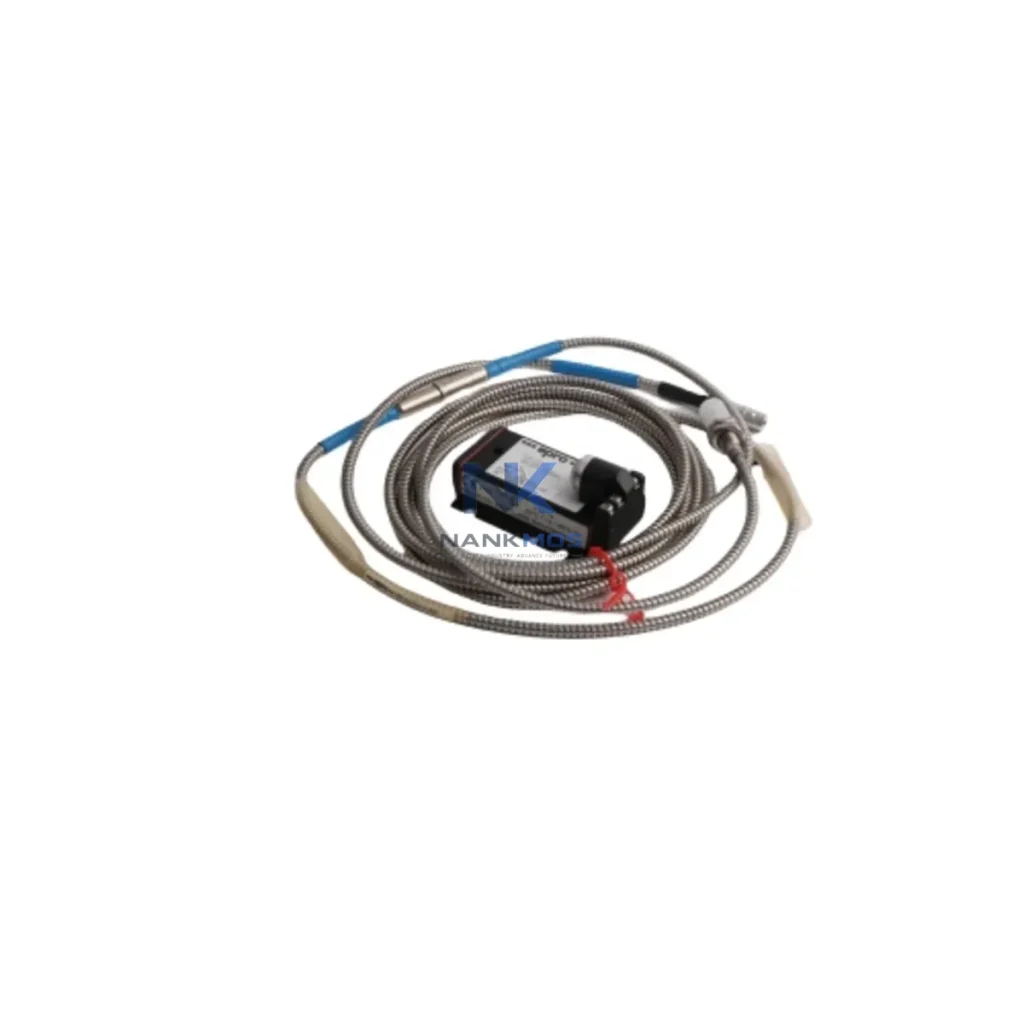

EPRO PR6423/010-000 CON021 Eddy Current Sensor

Product Details

PR6423/010-000 CON021 Product Description

The EPRO PR6423/010-000 CON021 eddy current sensor is engineered as a precision sensing node within the MMS6000 machinery monitoring architecture. Its role extends far beyond a standalone displacement transducer — it functions as the primary signal acquisition element in a layered, multi-channel protection and condition monitoring platform designed for continuous industrial operation.

Within a complete MMS6000 monitoring rack, the PR6423/010-000 CON021 interfaces directly with the MMS6110 or MMS6120 signal conditioner modules, which process the raw eddy current output into calibrated displacement and vibration signals. These conditioned signals are then routed to MMS6210 or MMS6220 monitor modules responsible for alarm threshold management, relay output activation, and real-time trend logging. The rack architecture is completed by the MMS6800 power supply module, which provides regulated, isolated DC power to all monitoring channels, ensuring signal integrity across the entire measurement chain.

For systems requiring redundant protection, the PR6423/010-000 CON021 can be deployed in dual-sensor configurations alongside a second PR6423 probe, with both channels feeding independent conditioner modules within the same rack. This redundancy architecture is critical in turbine protection systems where a single sensor failure must not interrupt continuous monitoring. The MMS6350 communication gateway module enables Modbus RTU or PROFIBUS DP integration, allowing the MMS6000 rack to transmit vibration, displacement, and alarm data upstream to a DCS (Distributed Control System) or SCADA platform for plant-wide condition monitoring.

At the control layer, the MMS6000 system integrates with ABB AC800M or Siemens S7-400 process controllers via hardwired relay contacts or fieldbus communication, enabling coordinated machine trip logic and protective interlock sequences. The PR6423/010-000 CON021 sensor signal, once processed through the MMS6000 rack, can trigger emergency shutdown sequences in coordination with ESD (Emergency Shutdown Device) systems, SIL-rated safety relays, and solenoid valve actuators in the protection layer.

For HMI integration, the MMS6000 system supports connection to ABB Panel 800 or Siemens TP1200 Comfort operator panels, providing maintenance engineers with real-time vibration trend displays, alarm history, and sensor health diagnostics. This visibility layer is essential for predictive maintenance programs in rotating machinery-intensive facilities. The CON021 extension cable included with this sensor model provides the necessary coaxial signal path between the probe tip and the signal conditioner input, maintaining signal fidelity over the required installation distance without impedance mismatch or electromagnetic interference.

In power distribution and signal conditioning layers, the PR6423/010-000 CON021 operates within a system that may also include Phoenix Contact MINI MCR signal isolators or Pepperl+Fuchs KFD2 series barriers for hazardous area installations, ensuring ATEX or IECEx compliance where required. The complete sensing-to-control signal chain — from the PR6423 probe tip through the MMS6000 conditioner, monitor module, communication gateway, and DCS integration — represents a fully validated, system-matched architecture for rotating machinery protection in demanding industrial environments.

The EPRO PR6423/010-000 CON021 is deployed across a broad spectrum of rotating machinery protection applications in industries where continuous operation and early fault detection are operationally critical.

In power generation, this sensor monitors shaft radial vibration and axial displacement on steam turbines, gas turbines, and hydro generators. Utilities rely on the MMS6000 architecture to detect rotor imbalance, bearing wear, and shaft misalignment before they escalate to catastrophic failure, protecting assets valued in the tens of millions of dollars. In oil and gas processing, the PR6423/010-000 CON021 is installed on centrifugal compressors, expanders, and booster pumps in upstream and downstream facilities. The sensor's IP67 rating and wide operating temperature range make it suitable for outdoor compressor stations and offshore platform environments where environmental exposure is severe.

In petrochemical and refinery applications, the sensor supports API 670 machinery protection requirements for critical rotating equipment, providing the non-contact displacement measurement mandated by international machinery protection standards. For steel and metallurgical plants, the PR6423/010-000 CON021 monitors rolling mill drive motors, blast furnace blower compressors, and continuous casting machine drives, where vibration anomalies directly impact product quality and production continuity.

In water and wastewater treatment facilities, the sensor is applied to large vertical pump motors and blower units in aeration systems, where early vibration detection prevents unplanned downtime in critical municipal infrastructure. Marine and shipboard applications include main propulsion shaft monitoring and auxiliary machinery protection on LNG carriers and offshore support vessels, where the MMS6000 system's compact rack design suits space-constrained machinery rooms. In mining and mineral processing, the sensor monitors SAG mill drives, conveyor drive motors, and slurry pump units, providing continuous protection in high-vibration, dust-laden environments.

For packaging and process manufacturing lines, the PR6423/010-000 CON021 supports condition monitoring programs on high-speed rotary equipment, enabling predictive maintenance scheduling that minimizes production interruptions. Across all these applications, the sensor's Contextual Integration capability — its ability to function as a calibrated, system-matched component within the MMS6000 monitoring architecture — ensures that vibration and displacement data is accurate, reliable, and actionable at every level of the control hierarchy.

Q1: Is the EPRO PR6423/010-000 CON021 directly compatible with existing MMS6000 monitoring racks without additional signal conditioning hardware? Yes. The PR6423/010-000 CON021 is designed as a system-matched component for the MMS6000 series. The included CON021 extension cable provides the correct coaxial interface to MMS6110 or MMS6120 signal conditioner modules within the MMS6000 rack. No additional signal conditioning hardware is required for standard installations. The sensor's output sensitivity and impedance characteristics are factory-calibrated to MMS6000 input specifications, ensuring accurate displacement and vibration measurements without field calibration adjustments in most applications.

Q2: What are the key considerations for installing the PR6423/010-000 CON021 in a redundant dual-sensor protection architecture? For redundant configurations, both PR6423 sensors should be mounted at 90° intervals around the shaft (X-Y plane) to capture radial vibration in two orthogonal directions, as required by API 670 standards. Each sensor must be connected to an independent signal conditioner channel within the MMS6000 rack to ensure that a single sensor or cable failure does not disable the protection function. Cable routing should maintain physical separation between the two sensor signal paths to prevent common-mode failure from mechanical damage or electromagnetic interference. All sensors and extension cables should be sourced from verified stock with pre-shipment testing documentation to confirm calibration consistency before installation.

Q3: What warranty and supply chain support is available for the EPRO PR6423/010-000 CON021, and how does this affect long-term maintenance planning? Every EPRO PR6423/010-000 CON021 supplied through NANKMOS carries a 12-Month Warranty covering manufacturing defects and performance deviations from published specifications. All units undergo pre-shipment functional testing to verify output sensitivity, cable continuity, and connector integrity before dispatch. For long-term maintenance planning, NANKMOS maintains verified inventory of PR6423 series sensors and MMS6000 compatible components, enabling rapid replacement supply for scheduled overhauls and emergency maintenance events. Customers are encouraged to maintain a minimum spare parts inventory of one sensor per critical measurement point to support planned maintenance intervals without extended lead times.
