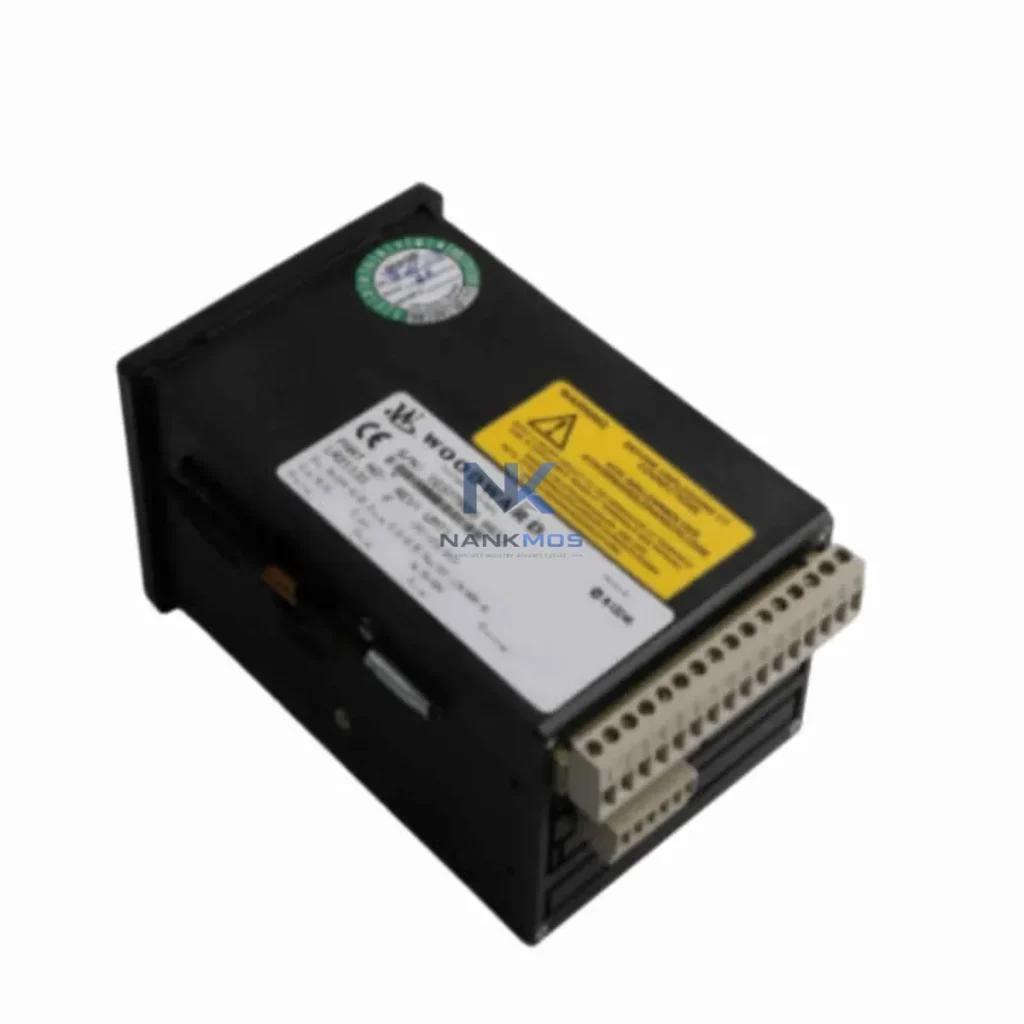

Woodward UMT1 UMT145B A3 LR20523 Turbine Control Module

Product Details

UMT1 UMT145B A3 LR20523 Product Description

The Woodward UMT1 UMT145B-A3 LR20523 is not a standalone component — it is a precision-engineered node within the Woodward MicroNet distributed turbine control platform. Its value is fully realized when deployed within a coherent, layered automation architecture where each module contributes to system-wide stability, signal integrity, and operational continuity.

At the control layer, the UMT145B-A3 executes turbine governor logic, speed reference tracking, and load-sharing algorithms. It interfaces directly with the MicroNet backplane, coordinating with companion CPU modules such as the Woodward MicroNet Plus CPU and MicroNet TMR (Triple Modular Redundant) processor cards to deliver fault-tolerant control execution. In redundant configurations, the UMT1 module participates in hot-standby switchover sequences, ensuring zero-interruption control continuity during module replacement or fault events.

At the I/O layer, the UMT145B-A3 relies on MicroNet analog input modules for speed sensor signals (magnetic pickups, proximity probes) and thermocouple or RTD inputs for exhaust temperature monitoring. Digital I/O modules handle trip relay outputs, valve position feedback, and permissive logic. Signal conditioning is critical: Woodward MicroNet signal isolator cards and terminal base modules ensure clean, noise-free signal paths from field instruments to the control processor, preventing spurious trips in high-EMI turbine hall environments.

At the communication layer, the UMT1 platform integrates with plant-level DCS and SCADA systems via Woodward MicroNet communication gateway modules supporting Modbus RTU/TCP, PROFIBUS DP, and DeviceNet. This enables seamless data exchange with Emerson DeltaV, Honeywell Experion, or ABB System 800xA distributed control systems without requiring protocol conversion at the field level. The gateway modules mount directly on the MicroNet backplane, preserving rack density and minimizing wiring complexity.

At the power layer, dedicated MicroNet 24 VDC power supply modules provide regulated, filtered power to the UMT145B-A3 and all co-resident I/O and communication modules. Redundant power supply configurations — using dual Woodward MicroNet PSU modules with automatic failover — eliminate single-point power failures from the control architecture. Proper power sequencing and inrush current management are handled natively by the MicroNet power distribution backplane.

At the HMI and diagnostics layer, Woodward's Toolkit software (running on an engineering workstation connected via the MicroNet service port) provides real-time parameter monitoring, trend logging, and configuration management for the UMT145B-A3. Operators can view governor setpoints, speed droop curves, and alarm histories without interrupting live turbine operation. Integration with panel-mounted HMI terminals via Modbus TCP further extends operator visibility to the turbine control room.

At the protection layer, the UMT145B-A3 coordinates with Woodward MicroNet overspeed detection modules and external trip relay assemblies to enforce turbine protection logic. Emergency trip solenoids, hydraulic trip valves, and flame detection systems are wired through MicroNet digital output modules, ensuring that protection actions are executed within deterministic scan cycle times regardless of communication network load.

At the maintenance layer, the modular architecture of the MicroNet platform allows the UMT145B-A3 to be replaced without powering down the entire control rack in redundant configurations. Woodward's hot-swap capability, combined with NANKMOS's tested and pre-verified inventory, minimizes mean time to repair (MTTR) and supports planned maintenance windows in power generation, oil and gas, and marine propulsion applications.

The Woodward UMT1 UMT145B-A3 LR20523 is deployed across a broad spectrum of turbine-driven industrial processes where precise speed and load control are non-negotiable.

In power generation, the module governs gas turbine and steam turbine generators in combined-cycle and simple-cycle power plants. It manages load-sharing between parallel generating units, coordinates with AVR (Automatic Voltage Regulators) for reactive power balance, and interfaces with plant-level EMS (Energy Management Systems) for dispatch optimization. Utilities operating aging MicroNet-based turbine control systems rely on verified replacement modules like the UMT145B-A3 to extend asset life without full control system upgrades.

In oil and gas processing, the UMT145B-A3 controls gas compressor drivers and pipeline booster station turbines. Its deterministic control execution and redundancy support are essential in hazardous area installations where unplanned shutdowns carry significant safety and financial consequences. The module's compatibility with PROFIBUS DP gateways enables integration with Siemens PCS 7 and Yokogawa CENTUM VP DCS platforms common in upstream and midstream facilities.

In petrochemical and refinery applications, the UMT145B-A3 governs steam turbine drives for large centrifugal pumps and compressors. Its ability to handle complex speed droop and isochronous control modes makes it suitable for both variable-speed and constant-speed drive applications within the same control platform.

In marine propulsion and offshore platforms, MicroNet-based turbine control systems using the UMT1 series provide reliable governor control for gas turbine propulsion units and auxiliary power generation. The module's robust design tolerates shipboard vibration, humidity, and temperature cycling within the specified operating envelope.

In water treatment and municipal infrastructure, turbine-driven pump stations and blower drives benefit from the UMT145B-A3's precise speed regulation, enabling energy-efficient variable-flow operation while maintaining system pressure stability.

Q1: Is the Woodward UMT1 UMT145B-A3 LR20523 compatible with existing MicroNet Plus and MicroNet TMR racks?The UMT145B-A3 is designed for the Woodward MicroNet platform and is compatible with MicroNet Plus and MicroNet TMR backplane configurations. Slot assignment, firmware version alignment, and I/O module mapping should be verified against the existing rack configuration using Woodward Toolkit software prior to installation. NANKMOS supplies tested units with verified firmware baselines to support direct rack integration.
