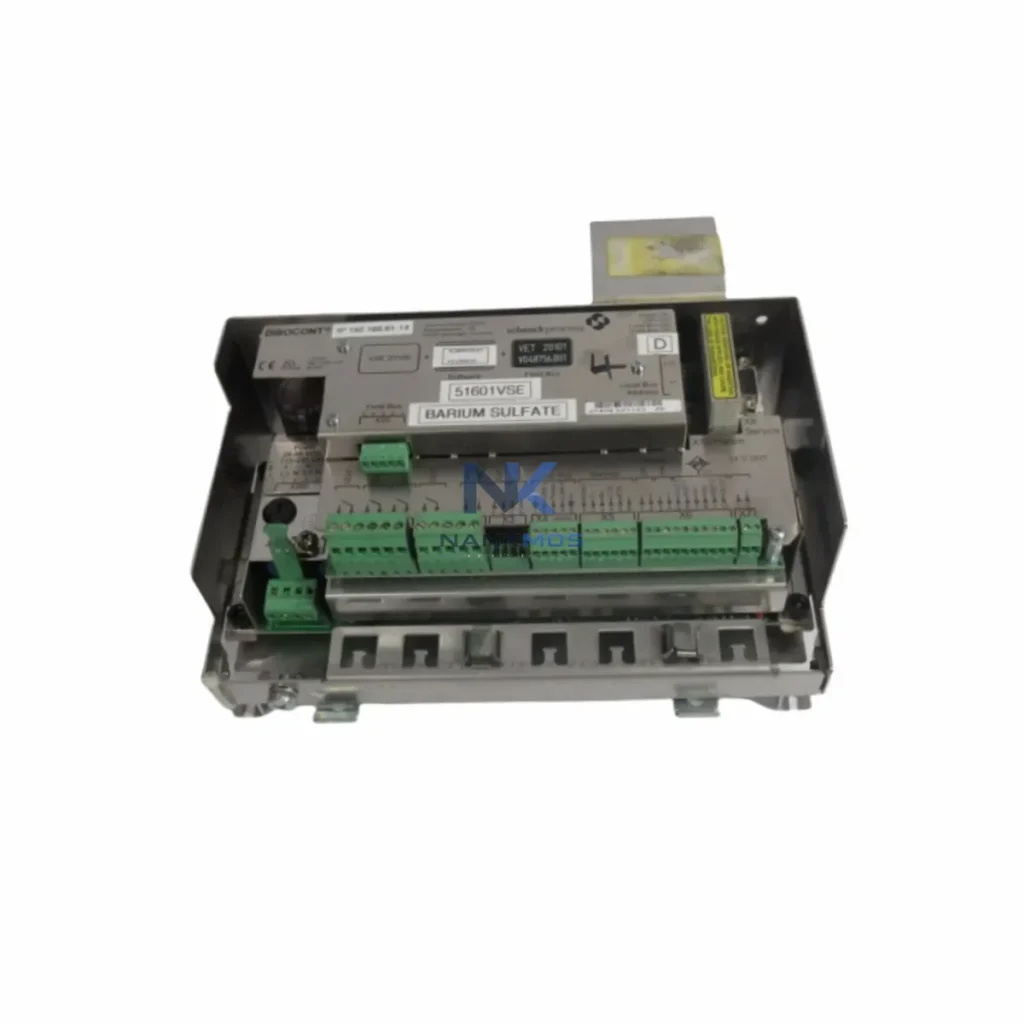

Schenck VSE20100 VLW20150 VSB20100 Weighing Control Module

Product Details

VSE20100 VLW20150 VSB20100 Product Description

The Schenck VSE20100 is not a standalone instrument — it is a system-matched weighing controller engineered for deep contextual integration within the DISOCONT automation platform. In modern bulk material handling and process dosing architectures, the VSE20100 occupies the control layer, receiving load cell signals from the VLW20150 weighing electronics module and coordinating output commands through the VSB20100 signal conditioning backplane. This three-component core forms the foundation of a deterministic, high-accuracy weighing control loop.

At the I/O layer, the VSE20100 interfaces directly with DISOCONT I/O expansion modules, enabling engineers to extend discrete and analog signal capacity without redesigning the control cabinet. Paired with Schenck DISOCONT power supply units — typically 24 VDC rail-mount modules — the system maintains stable operating voltage across all weighing and control nodes, even under variable plant load conditions. The power layer's clean DC distribution is critical for load cell signal integrity, where millivolt-level signals must be isolated from electrical noise generated by variable-speed drives and motor starters in adjacent cabinet sections.

At the communication layer, the VSE20100 supports PROFIBUS DP and PROFINET IO natively, allowing it to function as a field device under a Siemens S7-300, S7-400, or S7-1500 PLC acting as the plant-level master controller. In mixed-protocol environments, Modbus TCP gateways — such as those from the Anybus or Moxa product families — can bridge the VSE20100 into DCS platforms from Yokogawa CENTUM VP or ABB System 800xA, enabling unified supervisory control across heterogeneous control architectures. This communication flexibility is a key advantage in retrofit projects where legacy DCS infrastructure must coexist with modern fieldbus-based weighing systems.

For HMI integration, the VSE20100 connects to Schenck's dedicated DISOCONT operator panels or to third-party HMI terminals from Siemens (TP700, TP1200 Comfort series) and Schneider Electric (Magelis HMIGTO series) via standard Ethernet or serial interfaces. Operators can monitor real-time belt speed, material flow rate, totalizer values, and alarm states from a single HMI screen, reducing the need for dedicated weighing display instruments at each feeder station.

In the execution layer, the VSE20100 generates 4–20 mA analog output signals that drive variable-frequency drives (VFDs) — such as the Siemens SINAMICS G120 or ABB ACS880 — controlling belt conveyor motors and screw feeder drives. The closed-loop dosing algorithm embedded in the VSE20100 continuously adjusts drive speed references based on real-time weight deviation from setpoint, achieving gravimetric accuracy within ±0.5% of full scale under steady-state conditions. This level of control precision is essential in cement blending, chemical batching, and food ingredient dosing applications where recipe accuracy directly impacts product quality.

For redundancy design, the VSE20100 supports hot-standby configurations when paired with a secondary DISOCONT controller module. In critical process lines — such as coal feeding to power plant boilers or reagent dosing in hydrometallurgical circuits — redundant weighing controllers ensure uninterrupted material flow even during a primary controller fault. The switchover logic is managed at the backplane level through the VSB20100, with no interruption to the 4–20 mA output signal during transition.

At the protection layer, the VSE20100 integrates with plant safety systems through hardwired interlock inputs. Overload conditions, belt slip detection, and zero-speed signals from proximity sensors are wired directly to the module's discrete input terminals, triggering controlled shutdowns without relying on PLC scan-cycle latency. This direct hardware interlock path is a fundamental requirement in ATEX Zone 2 and IECEx-classified environments where response time to hazardous conditions must be deterministic.

For long-term maintenance efficiency, the VSE20100's modular architecture allows field replacement of individual DISOCONT modules without disturbing adjacent wiring or reconfiguring the entire control system. Calibration parameters, PID tuning values, and communication node addresses are stored in non-volatile memory within the module, surviving power cycles and module swaps. This design significantly reduces commissioning time during planned maintenance shutdowns, a critical factor in continuous process industries where unplanned downtime carries substantial production cost penalties.

Cement and Building Materials Manufacturing: The VSE20100 controls raw meal proportioning on multi-component belt scale systems feeding rotary kilns. Accurate dosing of limestone, clay, iron ore, and corrective materials directly determines clinker quality and kiln thermal efficiency. The module's PROFIBUS integration allows the weighing system to receive recipe setpoints from the plant DCS and report actual feed rates in real time, enabling closed-loop kiln feed control without manual operator intervention.

Power Generation — Coal and Biomass Handling: In coal-fired and biomass co-firing power plants, the VSE20100 manages gravimetric belt feeders supplying fuel to pulverizers and boiler burners. The module's redundancy capability and hardwired interlock inputs meet the reliability requirements of boiler management systems, where feeder trips must be coordinated with burner management system (BMS) logic to prevent furnace pressure excursions.

Chemical and Petrochemical Processing: Loss-in-weight feeder systems controlled by the VSE20100 dose solid catalysts, polymer additives, and specialty chemicals into continuous reactors and extruders. The module's high-resolution analog output and fast PID update rate support the tight dosing tolerances required in polymerization and compounding processes, where additive concentration deviations of more than ±1% can cause off-specification product batches.

Water and Wastewater Treatment: The VSE20100 controls lime and polymer dosing systems in water treatment plants, where chemical feed rates must track influent flow variations in real time. Integration with plant SCADA systems via PROFINET allows automatic adjustment of chemical dosing setpoints based on turbidity and pH sensor feedback, reducing chemical consumption and improving treatment efficiency.

Mining and Mineral Processing: In ore processing plants, the VSE20100 manages belt scale systems on conveyor lines feeding crushers, mills, and flotation circuits. The module's robust operating temperature range and IP65 field enclosure option make it suitable for the dusty, high-vibration environments typical of underground and open-pit mining operations. Integration with plant historians via Modbus TCP enables long-term production data logging for metallurgical accounting and shift reporting.

Packaging and Food Processing Lines: The VSE20100 supports high-speed checkweigher and filling machine control in food and pharmaceutical packaging lines. Its fast analog output response and deterministic control loop timing ensure that fill weight corrections are applied within the machine cycle time, maintaining throughput while meeting regulatory weight compliance requirements.

Q1: Is the VSE20100 compatible with both DISOCONT Tersus and DISOCONT Classic backplane systems? The VSE20100 is designed for the DISOCONT platform and is compatible with both the Tersus and Classic backplane variants when used with the appropriate VSB20100 backplane module. Engineers should verify the firmware revision of the VSE20100 against the DISOCONT system software version to ensure full feature compatibility, particularly for advanced functions such as multi-component dosing and redundancy switchover. NANKMOS supplies VSE20100 units with pre-verified firmware and provides system compatibility documentation upon request.

Q2: How does the VSE20100 maintain calibration integrity over long-term operation, and what is covered under the 12-Month Warranty? The VSE20100 stores all calibration coefficients, span values, and zero-point references in non-volatile EEPROM memory, ensuring that calibration data is retained through power cycles, module replacements, and firmware updates. The 12-Month Warranty covers manufacturing defects in the control electronics, signal conditioning circuitry, and communication interfaces. It also covers firmware integrity verification and factory recalibration if signal drift exceeds published accuracy specifications. All units supplied by NANKMOS undergo full functional testing and calibration verification prior to shipment, with test records available upon request.

Q3: What is the lead time and inventory availability for the VSE20100, and can NANKMOS support urgent project requirements? NANKMOS maintains global inventory of Schenck DISOCONT modules including the VSE20100, VLW20150, and VSB20100, sourced through authorized distribution channels and verified surplus stock. Standard lead time for in-stock units is 3–7 business days for international shipments. For urgent project requirements — including unplanned shutdowns, emergency replacements, or fast-track commissioning schedules — NANKMOS offers expedited dispatch with same-day processing for orders confirmed before 14:00 CST. Contact [email protected] or +86 18359268345 to confirm current stock levels and delivery timelines for your specific project location.
