Schneider Electric 170INT11000 Communication Adapter

Product Details

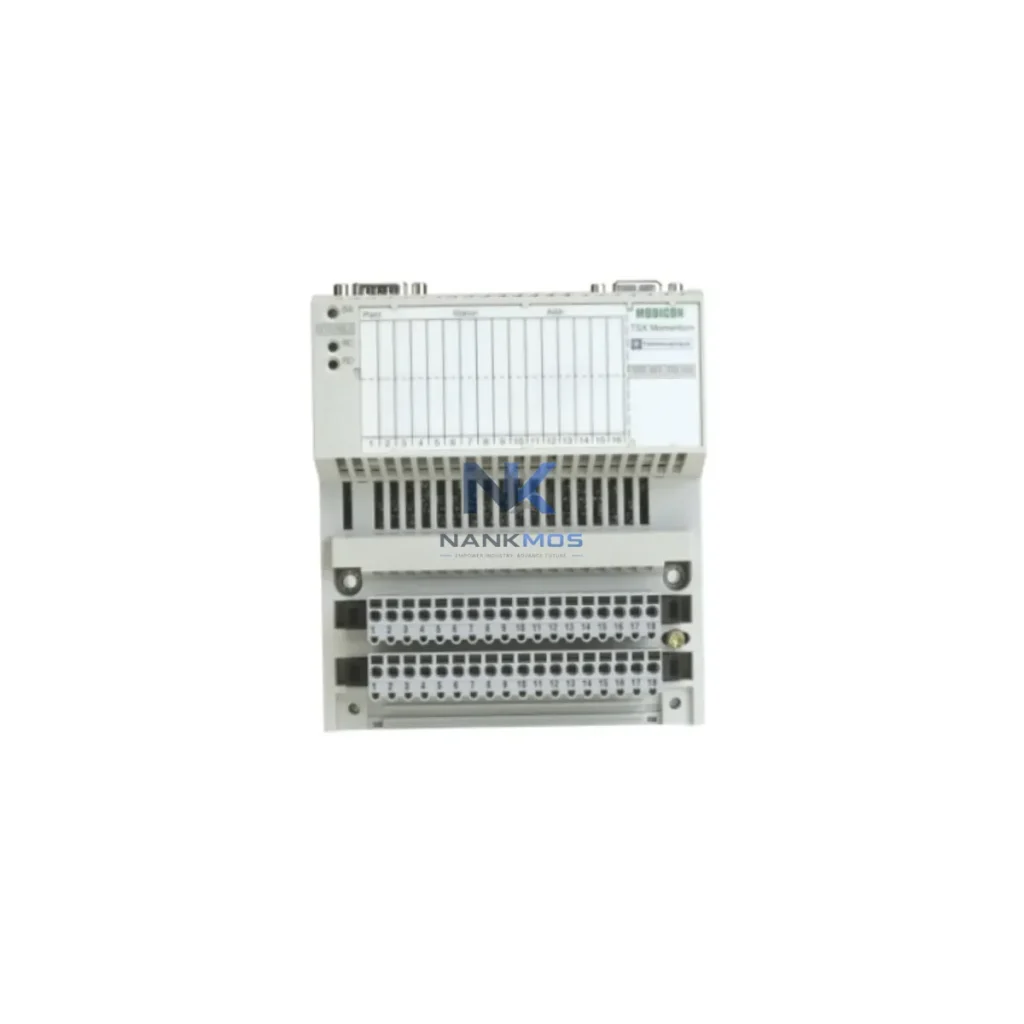

170INT11000 Product Description

The Schneider Electric 170INT11000 is a dedicated Interbus communication adapter engineered for the Modicon Momentum distributed I/O platform. Within a complete industrial automation architecture, this adapter occupies the critical communication layer, bridging the Momentum I/O subsystem to an Interbus master controller or PLC network. Its role is not isolated — it is a precision interface component that defines how the entire I/O tier communicates upstream to the control tier.

In a typical Modicon Momentum deployment, the 170INT11000 snaps directly onto a Momentum I/O base such as the 170ADI34000 (16-channel digital input) or 170ADO34000 (16-channel digital output), forming a complete distributed I/O node. The adapter handles all Interbus protocol framing, cyclic data exchange, and node addressing, allowing the I/O base to appear transparently on the Interbus ring. This architecture eliminates the need for separate gateway hardware and reduces panel wiring complexity significantly.

At the control layer, the 170INT11000 is designed to interface with Interbus master modules hosted in Modicon Premium or Quantum PLCs, such as the TSX IBY 100 Interbus master card for the Premium platform. The adapter supports the full Interbus ring topology, enabling daisy-chain connection of multiple Momentum nodes across a single fieldbus segment. Each node on the ring is individually addressable, and the master controller can perform per-node diagnostics, cyclic I/O polling, and acyclic parameter access without interrupting the ring operation.

Power architecture integration is equally important. The Momentum I/O base paired with the 170INT11000 draws logic power from the backplane, while field-side I/O power is supplied separately through the base's terminal block. This separation ensures that communication integrity is maintained even during field-side power fluctuations — a critical requirement in petrochemical, water treatment, and energy distribution applications where signal stability directly impacts process safety.

For HMI and SCADA integration, the Interbus ring connected through the 170INT11000 can be monitored via Schneider Electric's Vijeo Citect or EcoStruxure Operator Terminal Expert platforms, with I/O status and diagnostic data surfaced through the PLC's communication stack. Operators gain real-time visibility into each Momentum node's health, input/output states, and communication quality metrics — enabling proactive maintenance scheduling rather than reactive fault response.

In redundant architecture designs, the 170INT11000 can be deployed in parallel ring configurations where the Interbus master supports dual-ring redundancy. Combined with redundant power supplies such as the 170PNT11000 Momentum power supply adapter, the system achieves high availability suitable for continuous process industries. The adapter's deterministic cyclic communication ensures that I/O scan times remain consistent even as the ring expands with additional nodes.

For modular cabinet builds, the 170INT11000 pairs naturally with 170XTS00100 Momentum terminal bases and 170FNT11000 Fipio network adapters in mixed-protocol environments where different fieldbus segments serve different machine zones. Engineering teams can standardize on the Momentum mechanical form factor across all fieldbus variants, reducing spare parts inventory and simplifying technician training. The consistent snap-on adapter interface means that swapping a 170INT11000 for a Profibus or DeviceNet adapter requires no base hardware changes — only the adapter module is replaced.

Signal isolation and noise immunity are inherent to the Interbus physical layer used by the 170INT11000. The RS-485-based differential signaling provides robust rejection of common-mode noise, making the adapter well-suited for installation in high-EMI environments such as variable frequency drive (VFD) panels, motor control centers, and arc furnace control rooms. Cable runs of up to 400 meters per segment are supported, enabling distributed I/O placement across large plant floor footprints without signal degradation.

All units supplied by NANKMOS undergo pre-shipment functional verification, including communication initialization testing, protocol handshake validation, and physical inspection. Each 170INT11000 is shipped with full traceability documentation and is covered by a 12-Month Warranty from the date of shipment, ensuring long-term supply confidence for MRO procurement teams and system integrators managing multi-year maintenance contracts.

The 170INT11000 Interbus adapter serves a broad range of industrial sectors where distributed I/O and deterministic fieldbus communication are essential to process reliability:

Manufacturing & Assembly Lines: In automotive body shop and general assembly applications, the 170INT11000 enables high-speed cyclic I/O exchange between robot controllers and Momentum I/O nodes monitoring conveyor position sensors, pneumatic valve banks, and safety light curtains. The Interbus ring topology minimizes wiring runs across long transfer lines, reducing installation cost and improving fault isolation speed.

Power Generation & Electrical Distribution: Substation automation and generator control panels benefit from the adapter's deterministic communication timing, which ensures that protection relay status, breaker position feedback, and transformer tap changer signals are updated within defined scan cycle windows. The 170INT11000's CE and UL certifications support deployment in IEC 61850-adjacent architectures where fieldbus I/O supplements primary protection systems.

Petrochemical & Refinery Process Control: In hazardous area control rooms, Momentum nodes equipped with the 170INT11000 are installed in purged and pressurized enclosures, connecting to intrinsically safe I/O bases for field instrument signals. The adapter's separation of logic power and field power supports zone 2 installation strategies and simplifies ATEX compliance documentation for system integrators.

Water & Wastewater Treatment: Pump station automation and SCADA-connected remote terminal units (RTUs) use the 170INT11000 to aggregate analog and digital I/O from flow meters, level transmitters, and valve actuators across geographically distributed lift stations. The long cable reach of Interbus reduces the need for intermediate repeaters in large treatment plant layouts.

Mining & Metallurgy: Conveyor drive control, crusher monitoring, and ore processing automation systems deploy Momentum I/O with the 170INT11000 in high-vibration, high-dust environments. The adapter's robust mechanical snap-on connection to the I/O base ensures reliable contact integrity even under continuous vibration loads typical of mining machinery.

Packaging & Material Handling: High-speed packaging lines require deterministic I/O response times to synchronize servo drives, reject mechanisms, and vision system triggers. The Interbus cyclic communication managed by the 170INT11000 provides the consistent scan timing needed for coordinated multi-axis motion sequences without jitter-induced synchronization errors.

Q1: Is the 170INT11000 compatible with all Modicon Momentum I/O bases, and can it coexist with other adapter types on the same Interbus ring? The 170INT11000 is compatible with the full range of Modicon Momentum 170-series I/O bases, including digital input, digital output, analog input, analog output, and mixed I/O variants. Multiple 170INT11000 nodes can coexist on the same Interbus ring alongside other Interbus-compatible devices from third-party manufacturers, provided the total ring node count and cable length remain within the Interbus master's specifications. Each Momentum node is independently addressed and does not interfere with other nodes on the ring.

Q2: What are the installation and commissioning requirements for integrating the 170INT11000 into an existing Interbus network? Installation requires snapping the 170INT11000 onto a compatible Momentum I/O base — no tools are required for the mechanical connection. The adapter is automatically recognized by the Interbus master during ring initialization, and node addressing is configured via the master's configuration software (such as CMD or Schneider's SyCon equivalent). Commissioning involves verifying ring continuity, confirming cyclic data mapping in the PLC program, and performing an I/O force test to validate field wiring. NANKMOS recommends using shielded twisted-pair cable for all Interbus segments to maximize noise immunity in industrial environments.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term MRO supply for the 170INT11000? The 12-Month Warranty covers manufacturing defects, communication failures, and physical integrity issues identified under normal operating conditions from the date of shipment. NANKMOS maintains dedicated inventory of the 170INT11000 and related Momentum adapter modules to support MRO procurement cycles, planned maintenance shutdowns, and emergency replacement requirements. For long-term supply agreements or volume procurement, contact NANKMOS directly to discuss stocking arrangements and lead time commitments tailored to your maintenance schedule.
