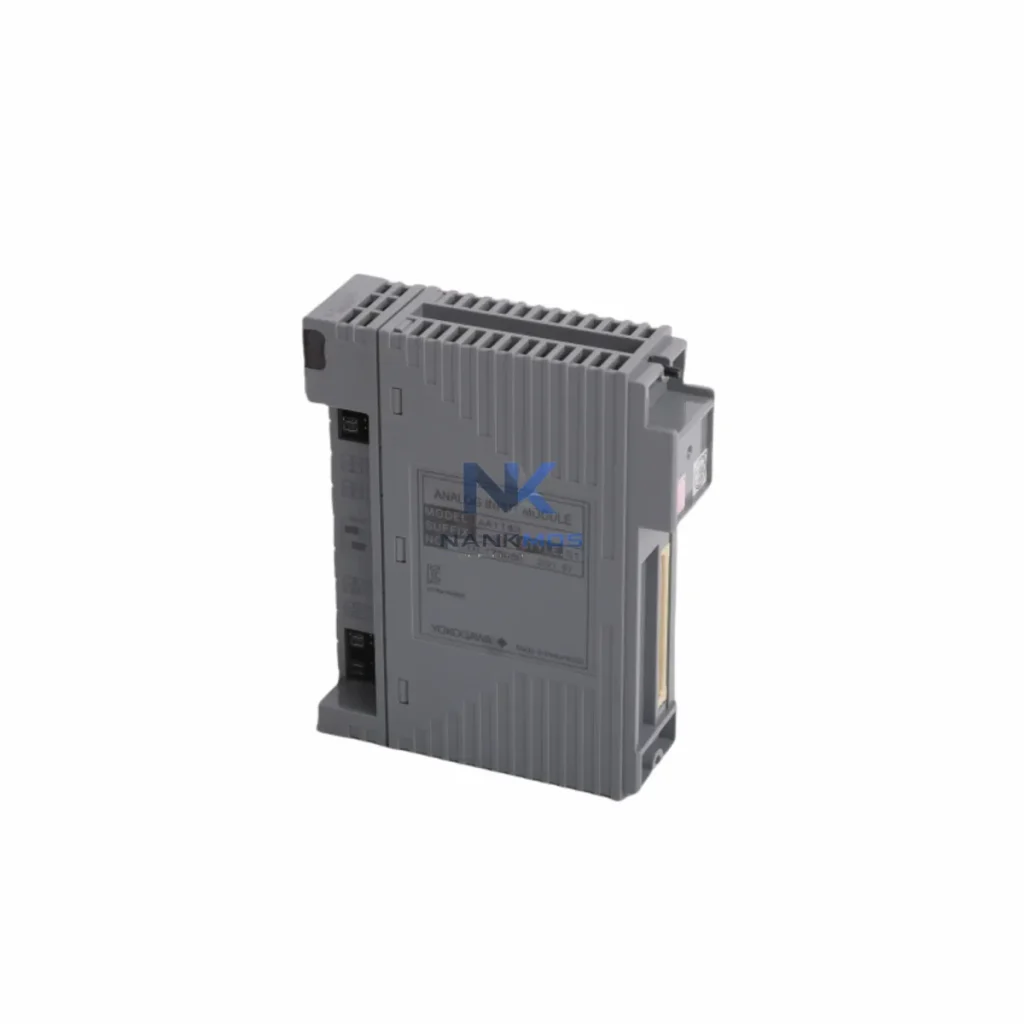

Yokogawa AAI143-H50 S1 Analog Input Module

Product Details

AAI143-H50 S1 Product Description

The Yokogawa AAI143-H50/S1 is a high-density HART Analog Input Module engineered for the Centum VP Distributed Control System (DCS), delivering reliable signal acquisition, protocol-level communication, and seamless integration across the full industrial data chain. Designed for process industries including oil and gas, chemical, power generation, and advanced manufacturing, this module serves as a critical node in the smart factory data architecture — bridging field-level sensors and transmitters with upper-layer SCADA, HMI, and MES platforms through structured, real-time data flow.

In modern automation sites, the ability to acquire accurate analog signals and simultaneously carry HART digital communication over the same 4–20mA loop is fundamental to achieving process transparency. The AAI143-H50/S1 supports this dual-layer communication model natively, enabling field devices such as pressure transmitters, flow meters, temperature sensors, and level gauges to report both process values and diagnostic data without additional wiring infrastructure. This architecture reduces installation complexity while expanding the diagnostic visibility available to control engineers and maintenance teams.

Within the Centum VP control network, the AAI143-H50/S1 integrates directly with the Field Control Station (FCS), passing real-time analog values and HART device variables into the DCS database. From there, data flows upstream to Yokogawa's FAST/TOOLS SCADA platform or third-party supervisory systems via OPC-DA/UA interfaces, enabling operators to monitor process trends, configure alarm thresholds, and execute remote diagnostics from centralized control rooms or remote engineering workstations. This end-to-end data path — from field transmitter through the AAI143-H50/S1 to SCADA visualization — forms the backbone of connected factory operations.

The AAI143-H50/S1 occupies a pivotal position in the connected factory data flow. At the field level, HART-enabled transmitters — such as Yokogawa EJA110E differential pressure transmitters, Rosemount 3051 pressure sensors, or Endress+Hauser Promag electromagnetic flow meters — connect directly to the module's input channels. The 4–20mA loop carries the primary process variable continuously, while the superimposed HART signal delivers secondary variables, device status, and configuration parameters on demand.

Within the Centum VP cabinet, the AAI143-H50/S1 slots into the I/O module nest alongside complementary modules such as the AAI141-S03 (standard analog input) and AAI543-H50 (analog input/output combination), forming a scalable I/O subsystem that can be expanded as process requirements grow. The Field Control Station processes all incoming signals in real time, executing control logic, PID loops, and interlock functions at scan rates appropriate for process control applications.

Data from the FCS travels across the Vnet/IP control network — Yokogawa's high-speed, redundant Ethernet-based control bus — to the Human Interface Station (HIS), where operators interact with process graphics, trend displays, and alarm management screens built in Yokogawa's Exaopc OPC server environment. For sites requiring integration with third-party SCADA platforms such as Wonderware System Platform, Ignition by Inductive Automation, or Siemens WinCC, the OPC-UA gateway layer translates Centum VP data into standard formats consumable by any supervisory system.

Remote diagnostic capability is a key value of the HART communication layer embedded in the AAI143-H50/S1. Using Yokogawa's PRM (Plant Resource Manager) asset management software, maintenance engineers can poll individual HART devices remotely, retrieve loop diagnostics, check transmitter calibration status, and schedule predictive maintenance actions — all without interrupting the live 4–20mA process signal. This capability directly supports the smart factory objective of reducing unplanned downtime and shifting maintenance strategies from reactive to condition-based models.

For edge computing and IIoT integration scenarios, the Centum VP system can interface with Yokogawa's OpreX Edge Gateway or third-party edge devices such as Moxa MGate HART-to-Modbus gateways, enabling HART device data to be forwarded to cloud analytics platforms, digital twin environments, or AI-driven process optimization engines. Industrial Ethernet switches — including managed switches from Hirschmann or Cisco IE series — provide the network infrastructure layer that ensures deterministic, low-latency data delivery across the plant floor and into the enterprise network.

Many automation sites face persistent challenges around protocol fragmentation, data silos, and limited remote visibility. Legacy field devices may communicate only via 4–20mA analog signals with no digital diagnostic layer, leaving maintenance teams blind to device health until a failure occurs. The AAI143-H50/S1 addresses this directly by enabling HART communication on existing wiring infrastructure, unlocking device-level diagnostics without requiring rewiring or field device replacement.

Protocol inconsistency between field instruments and control systems is another common barrier to plant-wide data integration. The HART protocol supported by the AAI143-H50/S1 is universally recognized across major DCS, PLC, and asset management platforms, ensuring that data collected at the field level can be consumed by any supervisory or enterprise system without custom protocol conversion middleware. This interoperability reduces integration costs and accelerates commissioning timelines for new process units.

For sites pursuing production line transparency and real-time KPI monitoring, the AAI143-H50/S1 provides the reliable, high-resolution analog data foundation that SCADA dashboards and MES reporting systems depend on. Alarm tracking, trend analysis, and batch reporting all rely on accurate, timestamped process data — and the module's integration with the Centum VP historian ensures that every data point is captured, archived, and available for post-event analysis and regulatory compliance reporting.

System expansion is straightforward within the Centum VP architecture. Additional AAI143-H50/S1 modules can be added to existing I/O nests as process requirements grow, with no changes required to the control network or supervisory software configuration. This scalability protects the initial capital investment and supports phased smart factory rollouts where new process areas are brought online incrementally.

Q1: Does the AAI143-H50/S1 support simultaneous analog and HART digital communication on the same loop? Yes. The module supports the standard HART FSK (Frequency Shift Keying) protocol superimposed on the 4–20mA analog signal, allowing both the primary process variable and HART digital data to be transmitted simultaneously without signal interference. This dual-layer communication is fundamental to the module's remote diagnostic and asset management capabilities.

Q2: What is the network latency for HART data retrieval through the Centum VP system? HART communication operates at 1200 baud, which is inherent to the HART protocol standard. For time-critical process control, the 4–20mA analog signal provides continuous, real-time process variable updates at the FCS scan rate. HART digital polling for diagnostics and secondary variables is performed asynchronously and does not affect the primary control loop performance.

Q3: Can the AAI143-H50/S1 integrate with third-party SCADA systems outside of Yokogawa's ecosystem? Yes. The Centum VP system exposes process data via OPC-DA and OPC-UA interfaces, enabling integration with any OPC-compliant SCADA, MES, or historian platform. Third-party systems including Wonderware, Ignition, and Siemens WinCC can subscribe to real-time and historical data from the AAI143-H50/S1 channels through the standard OPC server layer.

Q4: What warranty and pre-shipment testing does the AAI143-H50/S1 carry? All AAI143-H50/S1 modules supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional testing to verify channel integrity, HART communication capability, and signal accuracy before dispatch. In-stock units are available for immediate shipment with full documentation support.
