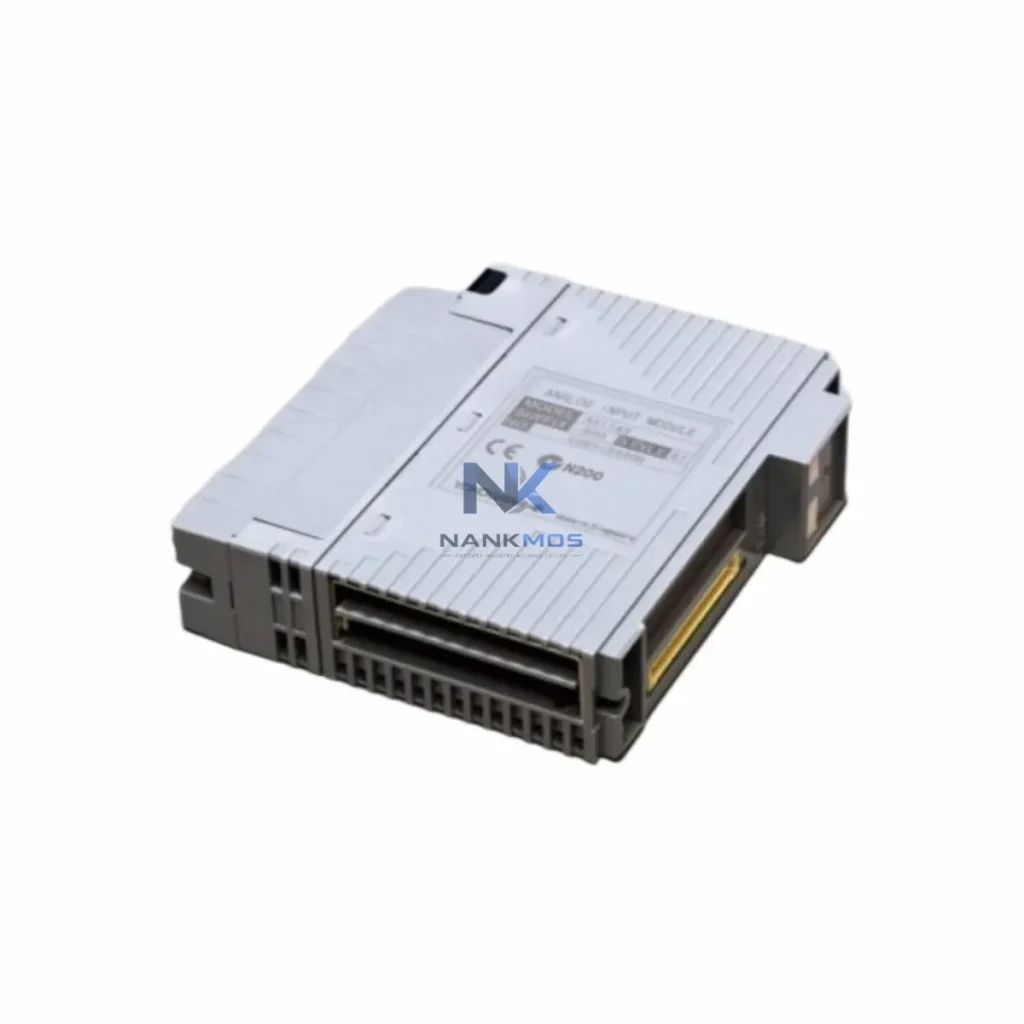

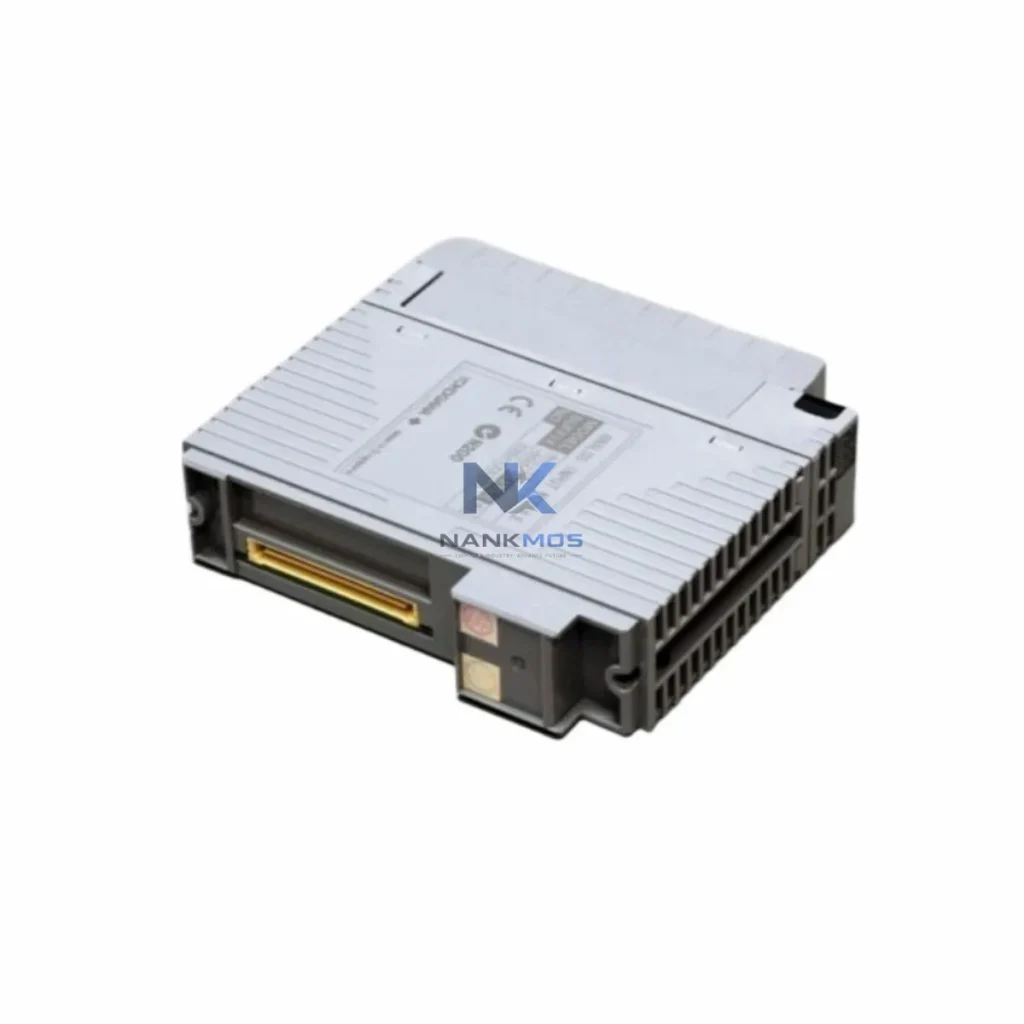

Yokogawa AAI143-S00 S1 Analog Input Module

Product Details

AAI143-S00 S1 Product Description

The Yokogawa AAI143-S00 S1 is a 16-channel HART-compatible analog input module engineered for the Centum CS 3000 distributed control system. Designed to meet the rigorous demands of energy-intensive industrial environments, this module delivers high-accuracy 4–20 mA signal acquisition with integrated HART communication, enabling real-time process visibility that is fundamental to energy-efficient plant operations. Whether deployed in oil and gas, chemical processing, power generation, water treatment, or advanced manufacturing, the AAI143-S00 S1 serves as a critical data gateway between field instrumentation and the control layer — directly supporting load management, predictive maintenance, and production line optimization strategies.

In a fully integrated Centum CS 3000 architecture, the AAI143-S00 S1 operates as a high-density signal acquisition node that feeds real-time process data into the DCS control bus. Its 16-channel HART capability allows plant engineers to simultaneously monitor multiple field devices — including Yokogawa EJA110E differential pressure transmitters and Yokogawa EJX910A multivariable transmitters — without adding additional wiring infrastructure, directly reducing installation energy overhead and cable heat losses.

The module integrates seamlessly with the Yokogawa ACM12 communication module and the Yokogawa AIP588 I/O power supply module, forming a low-impedance, thermally stable I/O subsystem. When paired with the Yokogawa CP345 controller processor, the AAI143-S00 S1 enables sub-second scan cycles that are essential for tight load-following control loops in energy management applications. This tight integration reduces unnecessary controller polling cycles, lowering CPU thermal load and extending hardware service life.

For motor-driven systems, the analog signals acquired by the AAI143-S00 S1 — such as motor current feedback from Yokogawa WT series power analyzers or speed reference signals from Yaskawa A1000 variable frequency drives — are processed by the CS 3000 DCS to dynamically adjust drive setpoints. This closed-loop energy control strategy prevents motor over-excitation, reduces reactive power demand, and lowers thermal stress on both the drive and the motor windings. The result is measurable reduction in kWh consumption per production cycle.

In SCADA-integrated environments, the AAI143-S00 S1 data streams are forwarded via the Yokogawa FAST/TOOLS SCADA platform or third-party OPC-DA/UA servers, enabling plant-wide energy dashboards that correlate analog input trends with production throughput KPIs. Combined with Yokogawa PRM (Plant Resource Manager) for HART device management, maintenance teams can remotely diagnose sensor drift, valve stiction, and pump cavitation — all of which are hidden energy waste contributors in continuous process plants.

The Yokogawa AAI143-S00 S1 plays a foundational role in factory energy optimization by ensuring that every analog signal from the field is captured with high fidelity and delivered to the control system without latency or data loss. In energy-intensive production lines — such as those found in petrochemical cracking units, pharmaceutical batch reactors, or steel rolling mills — even a 0.1% improvement in signal accuracy can translate into significant reductions in energy waste through better setpoint adherence and reduced process variability.

By enabling HART pass-through communication, the AAI143-S00 S1 allows the CS 3000 DCS to access secondary process variables from smart field instruments without additional hardware. This means that a single Yokogawa EJA530E absolute pressure transmitter can simultaneously report process pressure, sensor temperature, and loop current — giving the energy management system three data points from one device and one cable run. This multi-variable acquisition strategy reduces the total number of I/O modules required per control loop, lowering rack power consumption and cooling requirements in the control room.

Predictive maintenance workflows benefit directly from the continuous analog trending provided by the AAI143-S00 S1. By monitoring the 4–20 mA output stability of critical field instruments over time, the DCS can detect early signs of sensor fouling, heat exchanger scaling, or pump bearing wear — all of which cause energy consumption to rise before a visible process fault occurs. Early intervention based on these analog trends reduces unplanned downtime, avoids energy-intensive emergency restarts, and maintains stable production line throughput.

The module's channel isolation architecture also contributes to thermal load reduction in high-density I/O cabinets. By preventing ground loop currents between channels, the AAI143-S00 S1 eliminates a common source of parasitic heat generation in multi-loop analog systems. In large DCS installations with hundreds of analog input channels, this thermal benefit accumulates into measurable reductions in cabinet cooling energy — a factor that is increasingly important in energy-conscious plant designs targeting ISO 50001 certification.

Q1: How does the AAI143-S00 S1 contribute to plant energy savings? The AAI143-S00 S1 enables high-accuracy, 16-channel analog signal acquisition with HART communication, allowing the Centum CS 3000 DCS to implement precise closed-loop energy control strategies. By providing reliable real-time data from field instruments such as flow meters, pressure transmitters, and temperature sensors, the module supports tighter process control, reduces setpoint deviations, and minimizes energy waste from over-processing or equipment over-excitation.

Q2: Is the AAI143-S00 S1 compatible with current Yokogawa CS 3000 systems and HART field devices? Yes. The AAI143-S00 S1 is fully compatible with Yokogawa Centum CS 3000 R3 and later revisions. It supports HART protocol communication on all 16 channels, making it interoperable with a wide range of HART-enabled field instruments from Yokogawa and other manufacturers. Before installation, verify the firmware revision of your CP345 or CP451 controller to ensure compatibility with the S1 hardware suffix.

Q3: What is the recommended replacement or upgrade path for aging AAI143 modules? For plants migrating from CS 3000 to the Yokogawa Centum VP platform, the equivalent analog input module is the AAI143-H03 H4 or the AAV141 series for voltage input applications. NANKMOS maintains stock of both legacy CS 3000 modules and Centum VP equivalents, enabling phased migration without full system shutdown. Contact our technical team for a compatibility assessment and migration timeline.

Q4: What testing and warranty coverage is provided with the AAI143-S00 S1? Every AAI143-S00 S1 unit supplied by NANKMOS undergoes full functional testing prior to shipment, including channel-by-channel signal verification, HART communication handshake testing, and isolation resistance checks. All units are covered by a 12-Month Warranty from the date of shipment. In-stock units are available for same-week dispatch, and expedited shipping options are available for urgent production line requirements. For order inquiries, contact [email protected] or call +86 18359268345.
