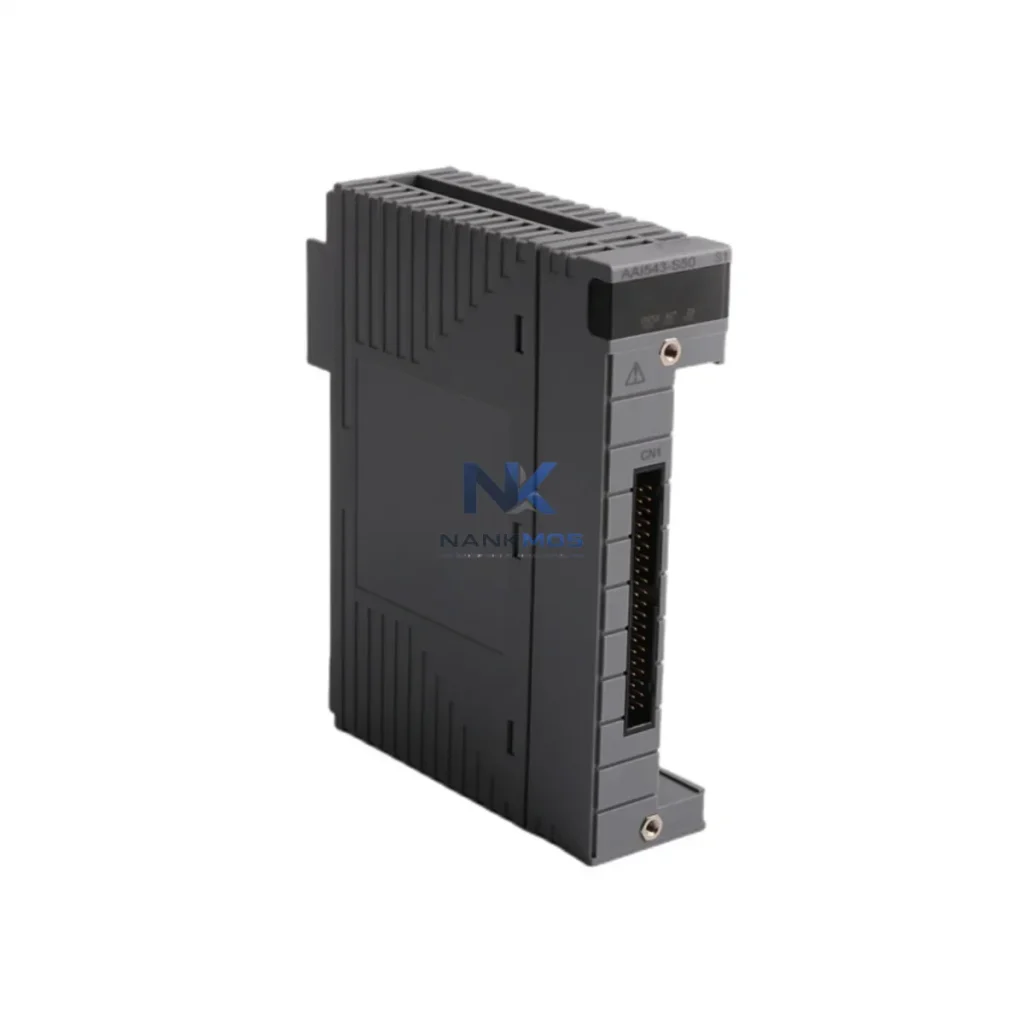

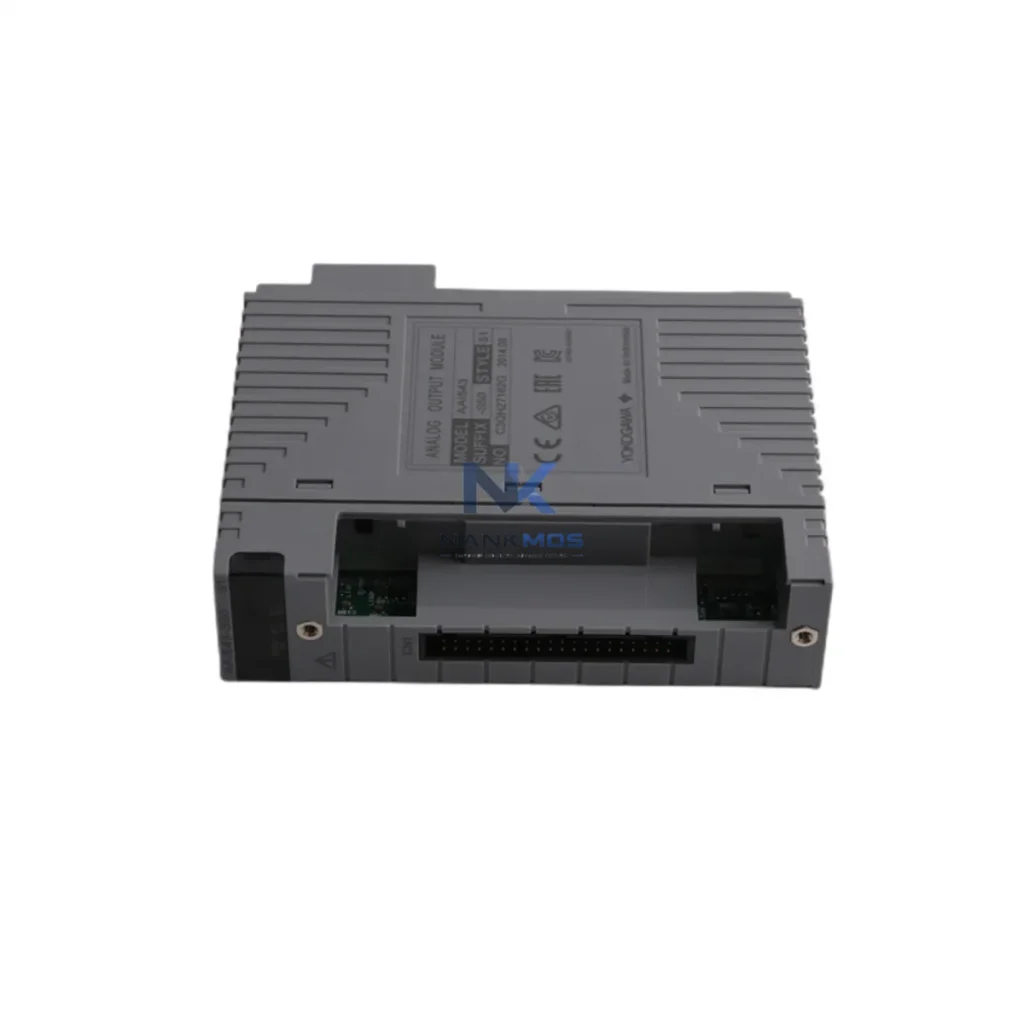

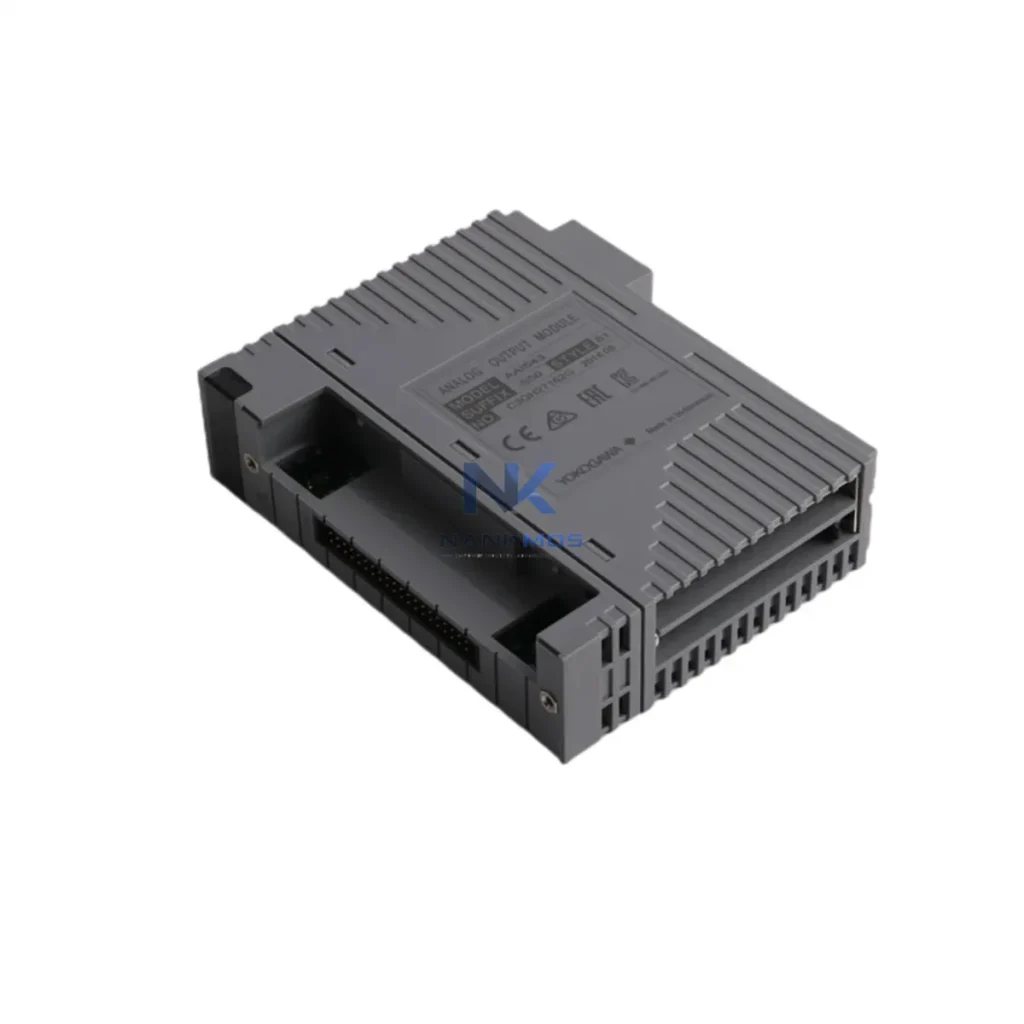

Yokogawa AAI543-S50/S1 Analog Output Module

Product Details

AAI543-S50/S1 Product Description

The Yokogawa AAI543-S50/S1 is a high-precision analog output module engineered for deployment within the AAI500 series I/O subsystem of Yokogawa's CENTUM VP Distributed Control System (DCS). Designed to deliver stable, repeatable 4–20 mA current output signals to field-mounted actuators, control valves, and variable-speed drives, this module occupies a critical position in the signal flow hierarchy of modern process automation architectures. Its role extends beyond simple signal conversion — the AAI543-S50/S1 functions as a precision interface between the control layer and the execution layer, ensuring that setpoint commands issued by the CENTUM VP controller are faithfully translated into calibrated analog outputs with minimal latency and maximum signal integrity.

In large-scale DCS environments, the analog output module is the final deterministic link in the control loop. The AAI543-S50/S1 supports this function with a design philosophy centered on modularity, long-term reliability, and seamless integration within Yokogawa's established I/O architecture. Whether deployed in a greenfield process plant or as a replacement module in an existing CENTUM VP installation, the AAI543-S50/S1 delivers consistent performance across demanding industrial environments including oil and gas, petrochemical refining, power generation, water treatment, and advanced manufacturing.

From an engineering integration perspective, the AAI543-S50/S1 is designed to slot directly into the AAI500 series I/O nest without requiring additional wiring adapters or signal conditioning hardware. This plug-and-play compatibility reduces commissioning time, minimizes the risk of wiring errors, and supports rapid module replacement during scheduled maintenance windows — a critical advantage in continuous-process industries where unplanned downtime carries significant operational cost.

The AAI543-S50/S1 achieves its full operational value when integrated within a complete Yokogawa CENTUM VP control architecture. At the control layer, the Yokogawa AFV10D Field Control Station (FCS) or AFV30D FCS serves as the primary controller, executing PID control strategies and issuing analog setpoint commands that are routed through the V-net communication bus to the I/O subsystem. The AAI543-S50/S1 receives these commands via the AAI500 nest backplane and converts them to precision 4–20 mA output signals directed to field devices.

At the I/O layer, the AAI543-S50/S1 operates alongside complementary modules including the AAI141-S03/S1 Analog Input Module for process variable feedback, the AAI841-S03/S1 Analog Input Module for high-density signal acquisition, and the ADV151-P50/S1 Digital Output Module for discrete actuator control. Together, these modules form a cohesive I/O subsystem capable of managing complex multi-loop control strategies within a single I/O nest assembly.

At the communication layer, the Yokogawa ALR111 V-net/IP Router bridges the internal V-net bus with Ethernet-based supervisory networks, enabling seamless data exchange between the field control station, the Yokogawa CENTUM VP HIS (Human Interface Station), and higher-level MES or historian platforms. This communication architecture ensures that analog output commands are traceable, logged, and auditable — a requirement in regulated industries such as pharmaceutical manufacturing and nuclear power.

For power distribution, the Yokogawa PW481 Power Supply Module provides stable 24 VDC to the I/O nest, with redundant power configurations supported through dual PW481 installations. This redundancy eliminates single-point power failure risk and is particularly important in continuous-process applications where control loop interruption is unacceptable.

At the HMI layer, the Yokogawa CENTUM VP HIS Workstation provides operators with real-time visibility into analog output values, loop status, and alarm conditions. Operators can monitor the output of each AAI543-S50/S1 channel in real time, enabling rapid identification of valve positioning errors, actuator faults, or signal drift conditions before they escalate into process upsets.

For installations requiring enhanced signal isolation or long-distance field wiring, the Yokogawa JUXTA Signal Isolator Series can be deployed between the AAI543-S50/S1 output terminals and field-mounted control valves, providing galvanic isolation and protecting the module from ground loop interference in electrically noisy environments such as motor control centers or high-voltage switchgear rooms.

In redundant control architectures, the AAI543-S50/S1 can be paired with a redundant FCS configuration using the Yokogawa AFV10D-R Redundant Field Control Station, ensuring that analog output commands continue to be issued without interruption even in the event of a primary controller failure. This redundancy architecture is standard practice in safety-critical applications including offshore platform control, LNG terminal automation, and nuclear auxiliary systems.

Petrochemical and Refinery Process Control: In crude oil distillation and catalytic cracking units, the AAI543-S50/S1 drives control valve positioners that regulate feed flow rates, reflux ratios, and product draw-off streams. Its 16-bit output resolution ensures that valve positioning commands are executed with the precision required to maintain product quality specifications and minimize energy consumption in heat exchanger networks.

Power Generation and Utility Automation: In coal-fired, gas turbine, and combined-cycle power plants, the AAI543-S50/S1 interfaces with turbine governor systems, boiler feedwater control valves, and combustion air damper actuators. Its stable 4–20 mA output ensures that load-following control strategies are executed with the speed and accuracy required to maintain grid frequency stability during demand transients.

Water and Wastewater Treatment: Municipal water treatment facilities deploy the AAI543-S50/S1 to control chemical dosing pumps, aeration blower speed references, and sludge dewatering press feed rates. The module's multi-channel architecture allows a single I/O nest to manage an entire treatment train, reducing panel space requirements and simplifying maintenance access.

Mining and Mineral Processing: In flotation cell control, grinding mill load management, and tailings pump station automation, the AAI543-S50/S1 provides the analog output signals required to drive variable-speed drive (VSD) speed references and hydraulic actuator positioners. Its robust operating temperature range supports deployment in outdoor electrical rooms and underground control enclosures.

Pharmaceutical and Fine Chemical Manufacturing: In batch reactor control and continuous fermentation processes, the AAI543-S50/S1 drives temperature control valve positioners, agitator speed references, and pH dosing pump controllers. Its high output accuracy and channel isolation support the precise control loop performance required for GMP-compliant manufacturing environments.

Q1: Is the AAI543-S50/S1 compatible with both CENTUM VP and CENTUM CS 3000 DCS platforms? The AAI543-S50/S1 is designed for use within the AAI500 series I/O nest, which is compatible with Yokogawa CENTUM VP and CENTUM CS 3000 field control stations. Before installation, engineers should verify the specific FCS model and software revision to confirm I/O module compatibility. NANKMOS provides pre-shipment compatibility verification and can supply the module with documentation confirming its suitability for the target control system. All modules are covered by a 12-Month Warranty from the date of shipment.

Q2: Can the AAI543-S50/S1 be installed in a redundant I/O configuration, and what additional components are required? Yokogawa's CENTUM VP architecture supports redundant I/O configurations for critical control loops. Implementing redundant analog output requires a redundant I/O nest assembly, a redundant FCS, and appropriate nest interconnection cables. The AAI543-S50/S1 module itself is installed in the standard manner within the redundant nest. NANKMOS maintains inventory of associated AAI500 series nest components and can supply complete redundant I/O assemblies with matched modules to simplify procurement and reduce lead time risk.

Q3: What is the recommended procedure for replacing an AAI543-S50/S1 module in a live CENTUM VP system, and how does NANKMOS support long-term maintenance supply? In CENTUM VP systems with hot-swap capable I/O nests, the AAI543-S50/S1 can be replaced online without shutting down the control station, provided the replacement module is pre-configured and the control loop is placed in manual mode prior to module extraction. NANKMOS maintains a dedicated inventory of Yokogawa AAI500 series modules to support long-term maintenance supply for installed CENTUM VP systems. All replacement modules are functionally tested prior to shipment, and each unit is supplied with a 12-Month Warranty. For planned maintenance programs, NANKMOS can provide scheduled supply agreements to ensure module availability aligns with plant turnaround schedules.
