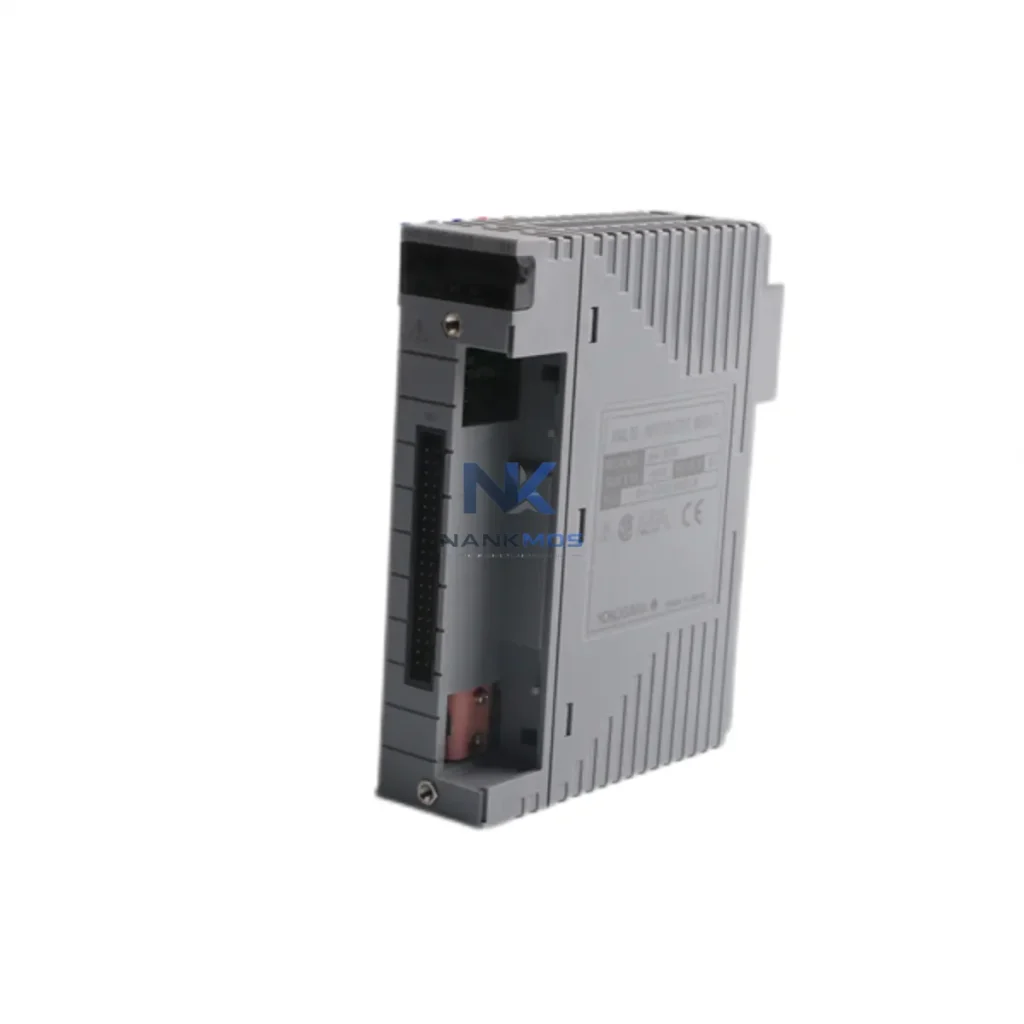

Yokogawa AAI835-H03 S1 Analog Input Module

Product Details

AAI835-H03 S1 Product Description

The Yokogawa AAI835-H03 S1 is a high-performance HART-enabled analog input module engineered for the CENTUM VP Distributed Control System (DCS). Designed to serve as a critical data acquisition node in smart factory environments, this module bridges field-level instrumentation — including pressure transmitters, flow meters, temperature sensors, and level gauges — with the upper-layer control and monitoring infrastructure. By supporting the HART communication protocol over standard 4-20mA signal loops, the AAI835-H03 S1 enables simultaneous analog process data transmission and digital diagnostic communication, forming the backbone of a transparent, connected industrial data chain.

In modern process automation sites — spanning oil and gas, chemical processing, power generation, water treatment, and pharmaceutical manufacturing — the ability to deliver uninterrupted, high-fidelity signal data from field devices to the DCS controller is non-negotiable. The AAI835-H03 S1 fulfills this requirement with precision, supporting multi-channel analog input acquisition, real-time signal conditioning, and seamless integration into the CENTUM VP I/O bus architecture. Its compact form factor and hot-swap capability make it an ideal choice for both greenfield installations and brownfield upgrades where minimizing downtime is paramount.

The AAI835-H03 S1 sits at the intersection of field instrumentation and plant-wide data infrastructure. In a typical smart factory deployment, field devices such as Yokogawa EJA110E differential pressure transmitters and EJA530A absolute pressure transmitters connect directly to the AAI835-H03 S1 input channels via 4-20mA wiring. The HART protocol layer embedded within these signal loops allows the module to extract not only the primary process variable but also secondary variables, device health status, and calibration data — all without interrupting the analog control loop.

This enriched data stream is then passed through the CENTUM VP Field Control Station (FCS) backplane to the Vnet/IP control network — Yokogawa's high-speed, redundant Ethernet-based control bus. From there, the CENTUM VP Controller Unit (CU) processes the incoming signals in real time, executing control logic and forwarding data upstream to the CENTUM VP Human Interface Station (HIS) for operator visualization. Operators monitoring the HIS can observe live process trends, configure alarm thresholds, and initiate remote diagnostic sessions — all from a centralized control room.

For sites requiring integration with third-party SCADA platforms, the CENTUM VP Exaopc OPC server acts as a protocol gateway, translating internal Vnet/IP data into OPC DA/UA formats compatible with systems such as Wonderware, IgnitionSCADA, or OSIsoft PI. This enables the AAI835-H03 S1's field data to flow seamlessly into enterprise-level data historians, MES platforms, and cloud-based analytics dashboards — completing the digital thread from sensor to boardroom.

In multi-node installations, the AAI835-H03 S1 operates alongside complementary I/O modules such as the AAI841-S (analog input, non-HART), AAT141-S (analog output), and ADV151-P (digital input) within the same FCS node, enabling a unified, mixed-signal I/O architecture. For remote field stations or satellite process units, Yokogawa's STARDOM FCN/FCJ autonomous controllers can serve as edge nodes, collecting data locally and forwarding aggregated process values to the central CENTUM VP system via Ethernet — extending the data chain to geographically distributed assets without sacrificing real-time performance.

Industrial network switches — such as managed Layer 2 switches supporting PROFINET or EtherNet/IP — can be deployed at the field cabinet level to segment and prioritize control traffic, ensuring that the time-sensitive data from the AAI835-H03 S1 reaches the FCS controller within deterministic latency windows. This network architecture supports the AAI835-H03 S1's role not just as a signal acquisition device, but as an active participant in the plant's industrial IoT data fabric.

Many industrial facilities face persistent challenges around data fragmentation, protocol incompatibility, and limited remote visibility — problems that directly undermine operational efficiency and maintenance responsiveness. The Yokogawa AAI835-H03 S1 addresses these challenges at the hardware level by providing a standardized, protocol-aware interface between legacy 4-20mA field devices and modern DCS architectures.

In plants where field instruments from multiple vendors coexist — Emerson Rosemount pressure transmitters alongside Endress+Hauser flow meters, for example — the HART capability of the AAI835-H03 S1 provides a common digital communication layer that normalizes device data into a unified format consumable by the CENTUM VP system. This eliminates the data silos that arise when analog-only modules are used, enabling maintenance teams to access device-level diagnostics, predictive health indicators, and calibration records directly from the control room.

For remote monitoring and alarm management, the AAI835-H03 S1's integration with the CENTUM VP alarm management framework ensures that any deviation in field device status — whether a sensor drift, loop break, or transmitter fault — triggers an immediate alarm notification at the HIS operator station. Combined with Yokogawa's Plant Resource Manager (PRM) asset management software, maintenance engineers can remotely interrogate connected HART devices, schedule preventive maintenance, and document calibration history — all without dispatching field technicians unnecessarily.

As production lines expand or process configurations change, the AAI835-H03 S1 supports system scalability through the modular CENTUM VP FCS architecture. Additional I/O nodes can be added to the control network without disrupting existing operations, and the module's compatibility with Yokogawa's R6.09 and later CENTUM VP software revisions ensures long-term supportability and access to the latest firmware enhancements.

Q1: Does the AAI835-H03 S1 support HART pass-through communication for remote device configuration? Yes. The AAI835-H03 S1 supports HART pass-through, allowing engineers to communicate with connected HART-enabled field instruments directly from the CENTUM VP engineering workstation or via Yokogawa's PRM software. This enables remote configuration, calibration, and diagnostics without physical access to the field device.

Q2: What is the communication latency between the AAI835-H03 S1 and the CENTUM VP controller? The AAI835-H03 S1 communicates with the FCS controller via the internal I/O bus at scan rates configurable from 100ms to 1000ms, depending on the control application. For standard process control loops, a 500ms scan cycle is typical, providing real-time responsiveness well within the requirements of most analog process control applications.

Q3: Can the AAI835-H03 S1 be integrated with third-party SCADA systems outside of CENTUM VP? Yes. Through the CENTUM VP Exaopc OPC server, data acquired by the AAI835-H03 S1 can be published to any OPC DA/UA-compatible SCADA or historian platform. This includes widely deployed systems such as Wonderware InTouch, OSIsoft PI, and Ignition SCADA, enabling cross-platform data integration without custom middleware development.

Q4: What warranty and pre-shipment testing does the AAI835-H03 S1 include? Every AAI835-H03 S1 unit supplied by NANKMOS includes a 12-Month Warranty covering manufacturing defects and functional performance. All units undergo functional verification and communication testing prior to shipment to ensure out-of-box reliability. In-stock units are available for immediate dispatch, with lead time confirmation provided at the time of order.
