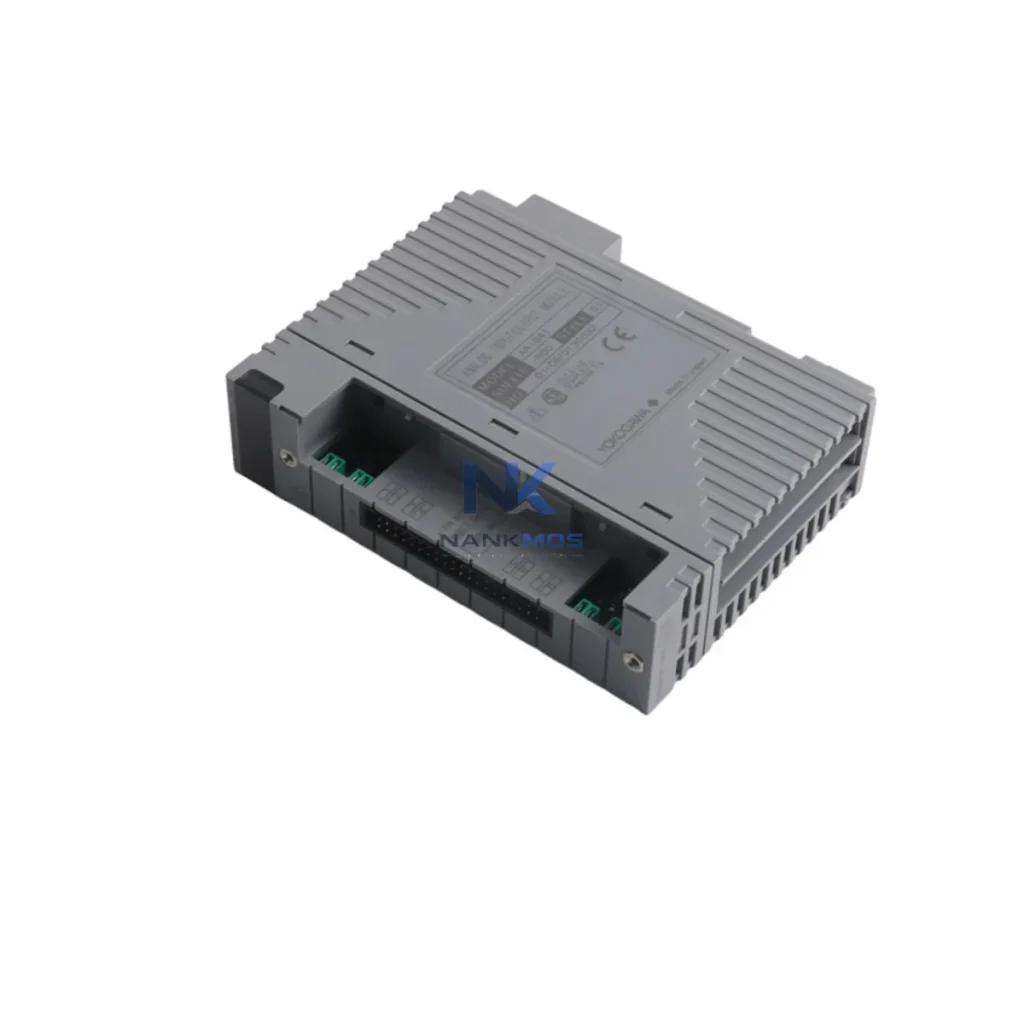

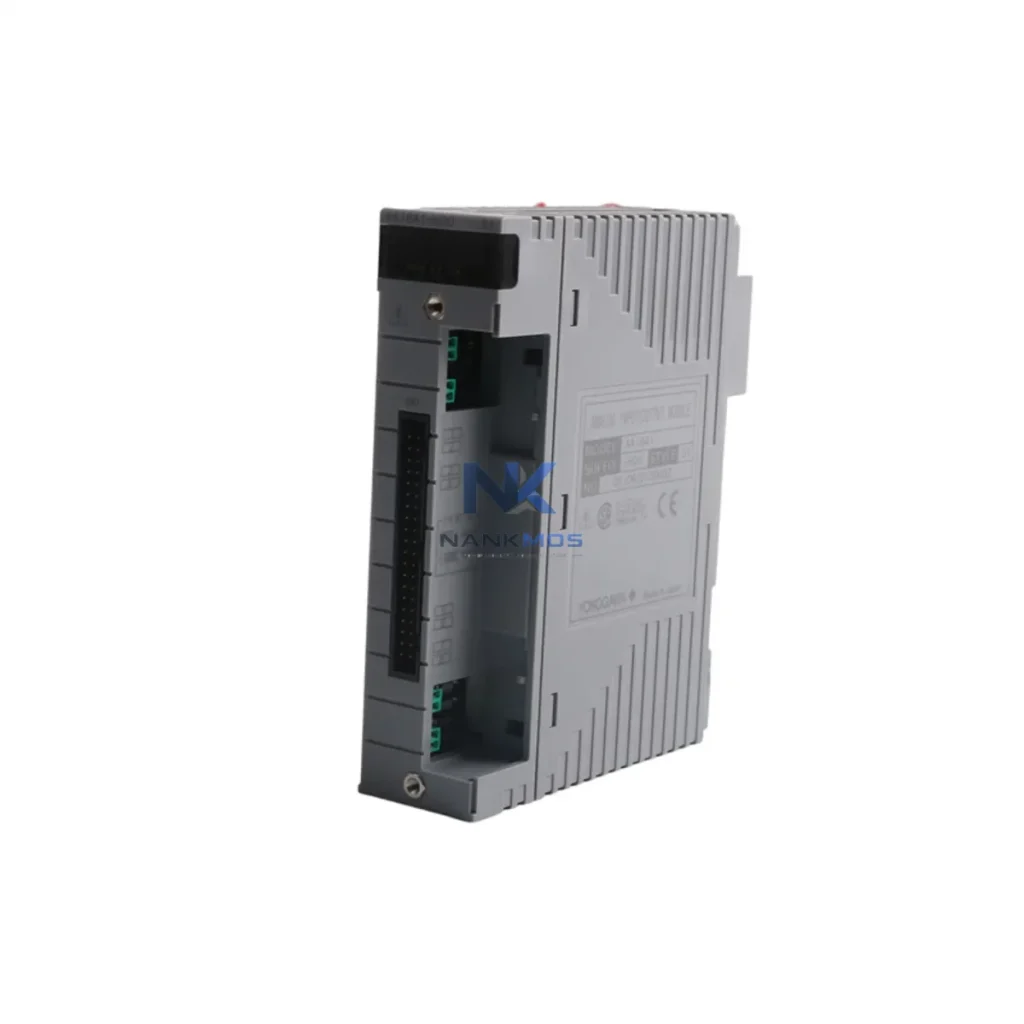

Yokogawa AAI841-H00 Analog Input Module

Product Details

AAI841-H00 Product Description

The Yokogawa AAI841-H00 is a high-density, 16-channel analog input module engineered for seamless integration within the CENTUM VP distributed control system architecture. Designed to operate within Yokogawa's field-proven I/O subsystem, this module delivers precise 4–20 mA signal acquisition with HART communication support, enabling real-time process data collection across demanding industrial environments. Its modular form factor and hot-swap capability make it a cornerstone component for engineers building scalable, redundant, and maintainable control architectures in sectors ranging from oil and gas to power generation and chemical processing.

Within a complete CENTUM VP system, the AAI841-H00 occupies the I/O layer, interfacing directly with field transmitters and feeding conditioned analog signals to the controller domain. Its role is not isolated — it functions as part of a coordinated signal chain that begins at the field instrument level and terminates at the operator HMI, passing through redundant controller cards, communication buses, and engineering workstations. Understanding this layered architecture is essential for system integrators who require consistent signal fidelity, deterministic scan cycles, and long-term maintainability across multi-loop process control applications.

The AAI841-H00 achieves its full operational value when deployed within a coherent CENTUM VP system architecture. At the controller layer, it pairs with the Yokogawa CP451-10 or CP461-50 Field Control Station processor cards, which execute the control logic and manage I/O scanning across all connected modules. Redundant controller configurations using dual CP cards ensure continuous operation even during single-point failures, with the AAI841-H00 maintaining uninterrupted signal acquisition throughout controller switchover events.

Power integrity for the I/O nest is maintained by the Yokogawa PW481 or PW482 power supply units, which deliver regulated DC power to the backplane and all installed I/O modules. For remote I/O applications, the Yokogawa RIO (Remote I/O) node extends the I/O subsystem over optical fiber or coaxial ESB bus, allowing the AAI841-H00 to be installed in field junction boxes or marshalling cabinets located hundreds of meters from the main control room.

At the communication layer, the CENTUM VP system employs the Vnet/IP high-speed control network, connecting FCS nodes, HMI workstations, and engineering stations. The Yokogawa LFCS2 or PFCS node controllers manage Vnet/IP traffic, ensuring deterministic data exchange between the AAI841-H00's acquired signals and the operator display layer. For HART device management, the Yokogawa PRM (Plant Resource Manager) software integrates with the AAI841-H00's HART pass-through capability, enabling remote calibration, diagnostics, and device parameter management without interrupting process control.

On the HMI layer, Yokogawa CENTUM VP HIS (Human Interface Station) workstations display real-time analog values sourced from the AAI841-H00, with trend logging, alarm management, and operator faceplates configured through the Yokogawa Engineering Environment (ENG) software suite. For analog output coordination, the Yokogawa AAO841 analog output module operates in parallel within the same I/O nest, completing the closed-loop control chain from sensor input to final control element. Terminal assemblies such as the Yokogawa TB841 terminal block provide field wiring termination for the AAI841-H00, simplifying installation and enabling rapid module replacement without rewiring.

Oil, Gas & Petrochemical: In refinery and upstream processing facilities, the AAI841-H00 acquires pressure, temperature, and flow signals from field transmitters across distillation columns, heat exchangers, and separator vessels. Its HART capability enables online diagnostics of Rosemount, Endress+Hauser, and Yokogawa EJA transmitters without process interruption, reducing maintenance downtime and supporting predictive maintenance programs.

Power Generation & Utilities: In thermal, hydro, and combined-cycle power plants, the module handles analog inputs from turbine control loops, boiler drum level transmitters, and generator excitation monitoring circuits. Its synchronous scan cycle and high channel density reduce cabinet footprint while maintaining the signal integrity required for regulatory compliance and grid stability applications.

Chemical & Pharmaceutical Processing: Batch and continuous process plants rely on the AAI841-H00 for precise analog acquisition in reactor temperature control, pH monitoring, and pressure regulation loops. The module's channel isolation prevents ground loop interference in multi-transmitter installations, ensuring measurement accuracy in environments with high electrical noise from variable frequency drives and motor control centers.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities deploy the AAI841-H00 for flow metering, turbidity monitoring, and chemical dosing control. Its compatibility with the CENTUM VP redundancy architecture ensures continuous operation in critical infrastructure applications where system availability directly impacts public health and environmental compliance.

Mining & Metals: In mineral processing and smelting operations, the module acquires analog signals from conveyor load cells, flotation cell level sensors, and furnace temperature transmitters. Its robust operating temperature range and vibration tolerance support deployment in harsh industrial environments typical of mining control rooms and field substations.

Q1: Is the AAI841-H00 compatible with both CENTUM VP R4 and R6 system versions, and can it be used in a mixed-revision I/O nest? The AAI841-H00 is designed for CENTUM VP Field Control Station I/O nests and is compatible across CENTUM VP R4.x through R6.x revisions. Mixed-revision I/O nests are generally supported within the same FCS node, but compatibility should be verified against the specific FCS firmware version and I/O nest type (e.g., ANB10D, ANB11D) using Yokogawa's system configuration tool. NANKMOS provides pre-shipment configuration verification and can supply matching I/O nest components to ensure system consistency.

Q2: Does the AAI841-H00 support hot-swap replacement in a live CENTUM VP system, and what is the recommended procedure for module exchange without process interruption? The AAI841-H00 supports online module replacement (hot-swap) within compatible CENTUM VP I/O nests when the system is configured for redundant I/O operation. For non-redundant configurations, the associated control loops should be placed in manual mode prior to module extraction to prevent process upsets. NANKMOS recommends verifying the I/O nest's hot-swap capability in the system engineering documentation and can provide technical guidance on pre-replacement checklist procedures, including HART device re-initialization and loop checkout after module insertion.

Q3: What does the 12-Month Warranty cover for the AAI841-H00, and what is the typical lead time for replacement units? All AAI841-H00 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects, functional failures under normal operating conditions, and out-of-specification performance verified through pre-shipment functional testing. The warranty period begins from the date of shipment. NANKMOS maintains in-stock inventory of AAI841-H00 modules and associated CENTUM VP I/O components, with standard lead times of 3–7 business days for international shipments. Expedited shipping options are available for urgent plant maintenance requirements. Contact [email protected] or +86 18359268345 for availability confirmation and warranty claim procedures.
