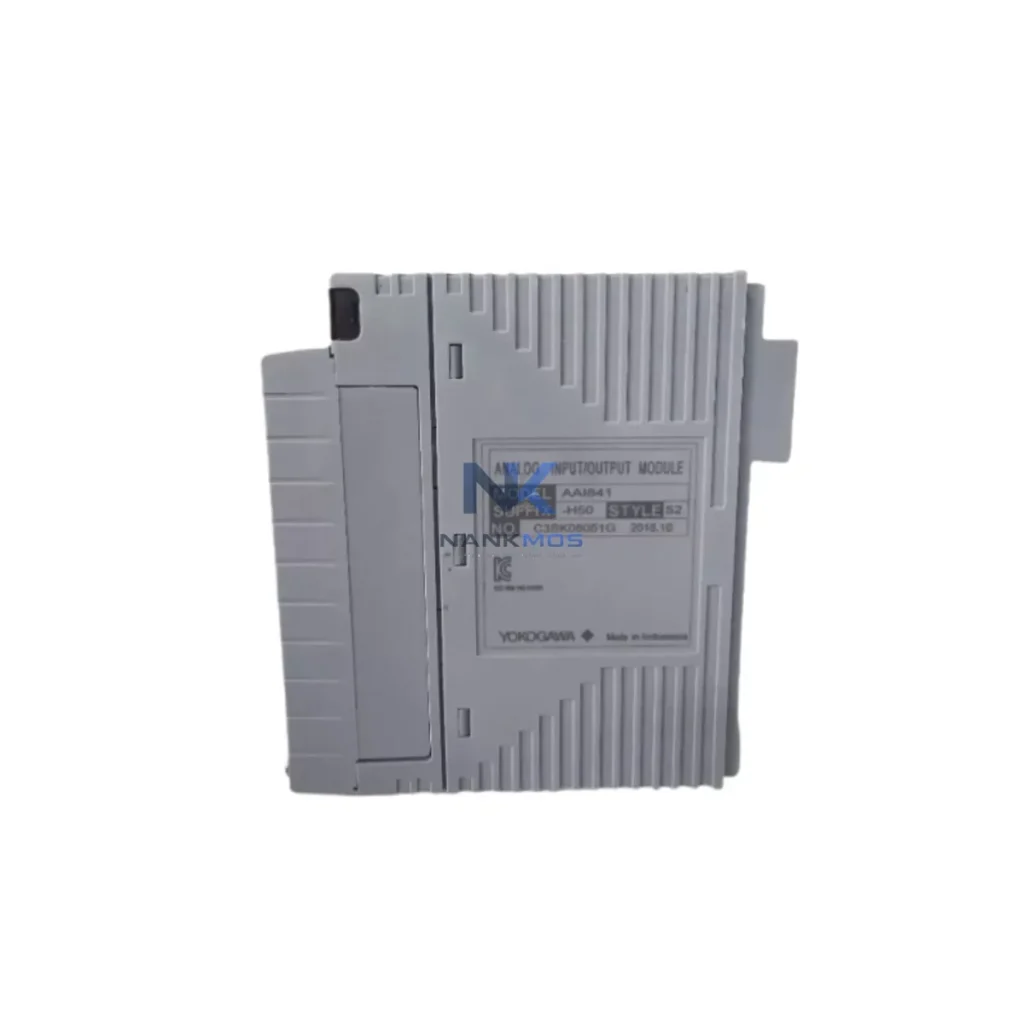

Yokogawa AAI841-H50 HART Analog Input Module

Product Details

AAI841-H50 Product Description

The Yokogawa AAI841-H50 is a 16-channel HART 5/6/7 analog input module engineered for seamless integration within the Centum VP Distributed Control System (DCS) platform. Designed to serve as a critical data link between field instrumentation and upper-level control networks, the AAI841-H50 bridges the gap between legacy 4–20 mA analog signals and modern digital communication protocols — enabling real-time data acquisition, remote diagnostics, and full SCADA/HMI visibility across industrial automation sites.

In today's smart factory environment, the ability to extract digital process variables from HART-enabled field devices — including pressure transmitters, flow meters, temperature sensors, and valve positioners — without disrupting the primary analog loop is a fundamental requirement. The AAI841-H50 fulfills this requirement by simultaneously processing both the analog 4–20 mA signal and the superimposed HART digital signal on each of its 16 channels, delivering dual-layer data transparency to the Centum VP controller and connected SCADA systems.

The AAI841-H50 sits at the heart of a layered industrial data architecture. At the field level, HART-enabled instruments — such as Yokogawa EJX910A multivariable transmitters, Rosemount 3051 pressure transmitters, and Endress+Hauser Promag electromagnetic flowmeters — transmit both analog process values and rich digital diagnostic data simultaneously. The AAI841-H50 captures this dual-layer signal on all 16 channels and forwards structured process data upward through the Centum VP I/O bus.

Within the Centum VP architecture, the AAI841-H50 connects to the Field Control Station (FCS) via the high-speed Vnet/IP Ethernet control network. The FCS executes real-time control logic — PID loops, cascade control, and interlock sequences — using the live process values delivered by the module. Simultaneously, the Centum VP Engineering Station aggregates HART device variables, secondary variables, and device status flags, making them available to the plant's SCADA layer via OPC-UA or OPC-DA interfaces.

At the SCADA and HMI level, systems such as Yokogawa FAST/TOOLS, Wonderware System Platform, or Ignition SCADA receive structured tag data from the Centum VP OPC server. Operators at HMI workstations — including Yokogawa Exaopc-connected displays — can monitor real-time process trends, acknowledge alarms, and initiate remote diagnostic queries to individual HART field devices without leaving the control room. This eliminates the need for manual field walks during routine diagnostics, significantly reducing maintenance downtime.

For remote I/O architectures, the AAI841-H50 can be deployed in Centum VP Remote I/O (RIO) nodes located in field junction boxes or remote marshalling cabinets, with data transmitted back to the main FCS over fiber-optic Vnet/IP links. This topology is particularly effective in large petrochemical complexes, offshore platforms, and power generation facilities where field instruments are distributed across wide geographic areas.

Edge computing integration is also supported through the Centum VP's open data interface. Industrial edge gateways — such as the Yokogawa OpreX Data Acquisition Recorder or third-party IIoT edge nodes — can subscribe to real-time tag streams from the Centum VP OPC-UA server, enabling local data buffering, anomaly detection, and cloud forwarding to platforms such as Yokogawa OpreX Asset Management or third-party CMMS systems. This creates a complete data chain from the HART field device through the AAI841-H50, across the Vnet/IP network, into the SCADA layer, and onward to cloud-based analytics and predictive maintenance dashboards.

Power distribution within the I/O node is handled by dedicated Centum VP power supply modules, ensuring stable 24 VDC supply to the AAI841-H50 and co-located modules such as the AAI835 analog input module, AAT141 analog output module, and ADV151 digital input module. This modular co-location approach simplifies cabinet design and reduces wiring complexity in high-density I/O applications.

Many industrial facilities operate with a fragmented instrumentation landscape — a mix of legacy 4–20 mA devices, newer HART-enabled transmitters, and digital fieldbus instruments — all feeding into control systems that were not originally designed to handle multi-protocol data streams. The result is data silos: process values that exist at the field level but never reach the SCADA historian, diagnostic alerts that are generated by smart instruments but never surfaced to maintenance teams, and calibration records that exist only in paper form.

The AAI841-H50 directly addresses these data gaps. By enabling HART pass-through communication on all 16 channels simultaneously, it allows the Centum VP system to poll secondary and tertiary HART variables — such as sensor temperature, loop current, and device diagnostic status — in addition to the primary process variable. This data is then structured into the Centum VP tag database and made available to the plant historian, alarm management system, and SCADA dashboards without requiring additional field wiring or protocol converters.

For facilities undergoing digital transformation initiatives, the AAI841-H50 provides a cost-effective migration path. Existing 4–20 mA wiring infrastructure is fully preserved, while HART digital communication is activated at the module level — eliminating the capital expenditure associated with full fieldbus migration projects. Plant engineers can progressively enable HART diagnostics on a device-by-device basis, prioritizing critical rotating equipment, custody transfer meters, and safety-instrumented system (SIS) transmitters first.

Remote monitoring capabilities enabled by the AAI841-H50 also support alarm rationalization and predictive maintenance programs. HART device status flags — including sensor degradation warnings, loop integrity alerts, and out-of-range notifications — are mapped to Centum VP alarm tags and forwarded to the plant's alarm management system. Maintenance teams receive structured, prioritized alerts rather than undifferentiated analog signal deviations, enabling faster root-cause analysis and reduced mean time to repair (MTTR).

Q1: Does the AAI841-H50 support simultaneous HART communication on all 16 channels? Yes. The AAI841-H50 supports concurrent HART communication on all 16 channels. Both primary analog (4–20 mA) and HART digital data are processed simultaneously without mutual interference, ensuring no degradation of control loop performance during HART polling cycles.

Q2: Is the AAI841-H50 compatible with HART 5, HART 6, and HART 7 field devices? Yes. The module is fully backward-compatible with HART protocol revisions 5, 6, and 7. This ensures interoperability with both legacy field instruments and modern smart transmitters from major manufacturers including Yokogawa, Emerson, Endress+Hauser, and ABB.

Q3: How does the AAI841-H50 integrate with SCADA and remote monitoring systems? The AAI841-H50 delivers HART device data to the Centum VP Field Control Station, which exposes all process and diagnostic tags via OPC-DA and OPC-UA interfaces. SCADA platforms, historians, and HMI systems connect to these interfaces to receive real-time data streams. Remote diagnostic queries can be initiated from the SCADA layer without requiring physical access to field instruments.

Q4: What warranty and pre-shipment testing does the AAI841-H50 carry? All AAI841-H50 units supplied by NANKMOS carry a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify channel integrity, HART communication performance, and analog signal accuracy prior to dispatch. In-stock units are available for immediate shipment to minimize project lead times.
