Yokogawa AAM11 S2 Analog Input Module

Product Details

AAM11 S2 Product Description

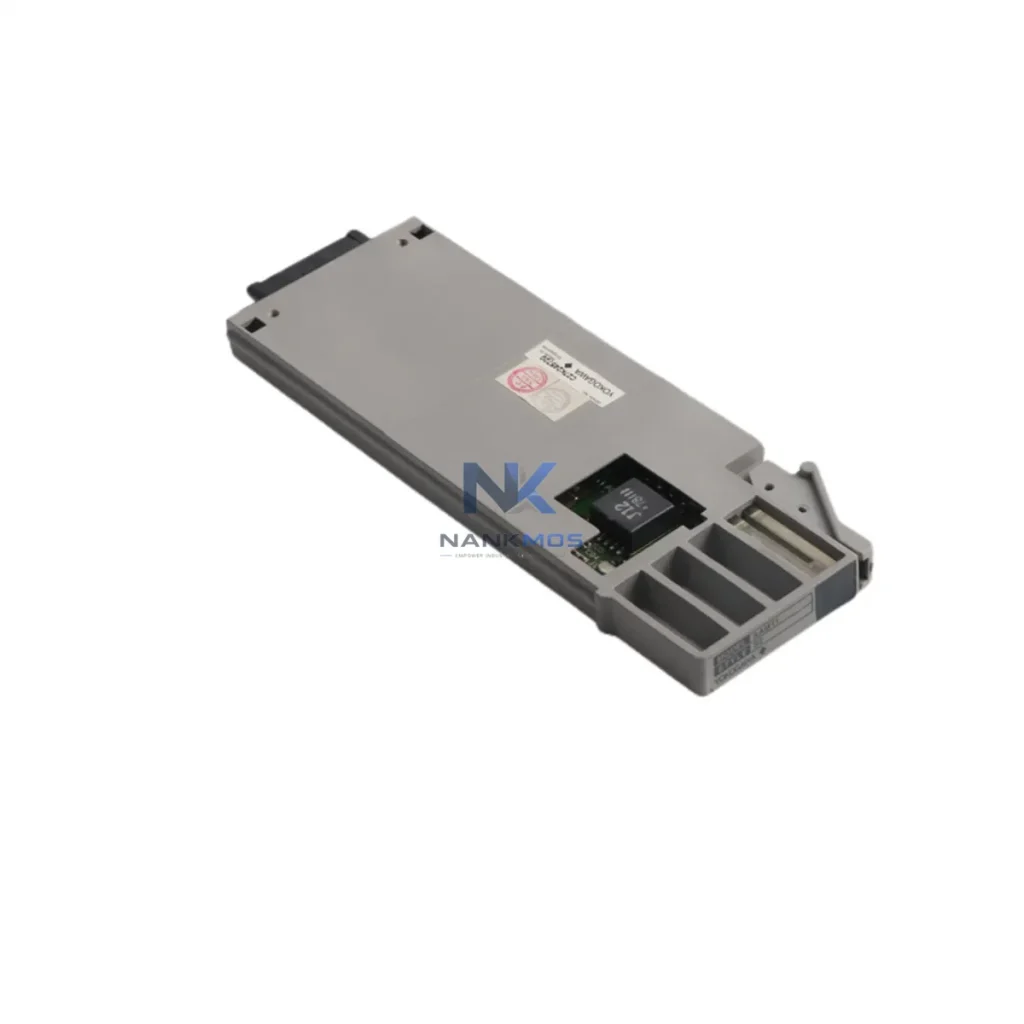

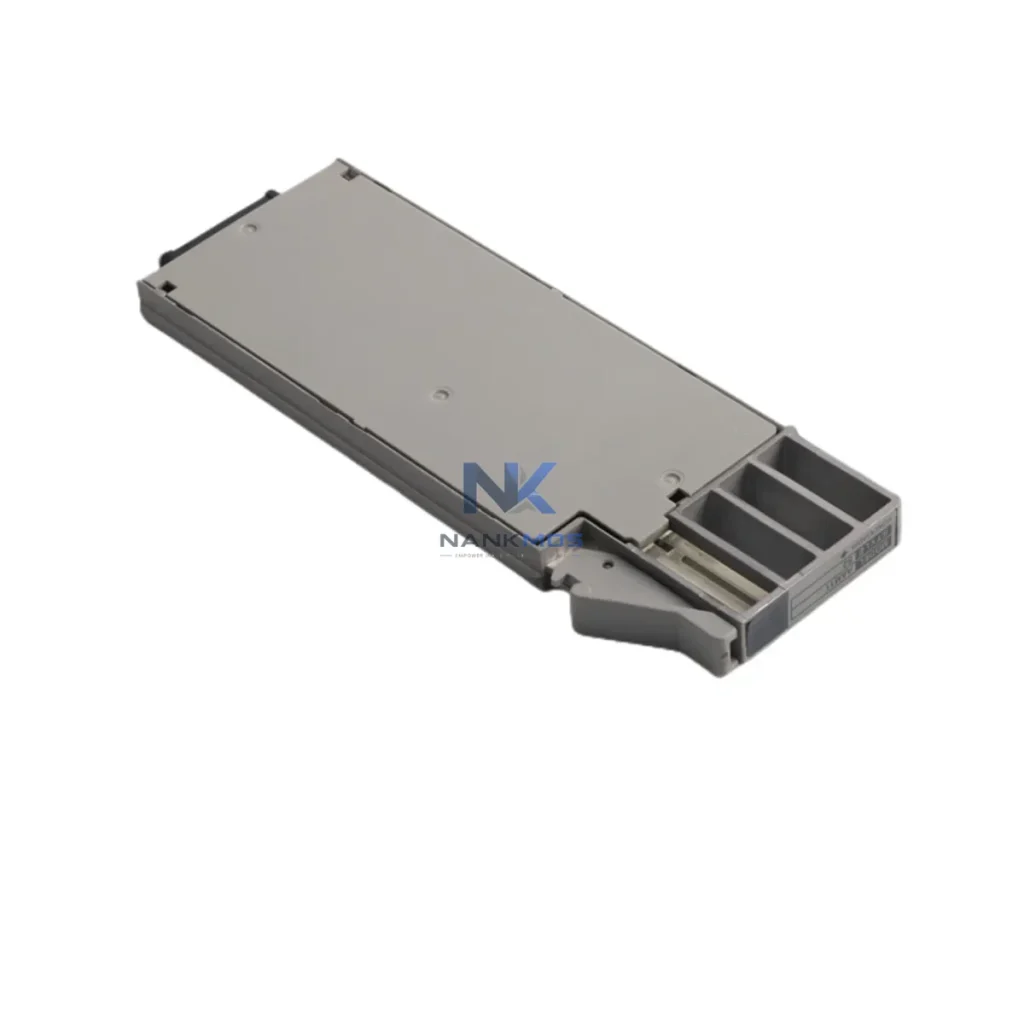

The Yokogawa AAM11-S2 is a high-precision analog input module engineered for the Centum VP and Centum CS 3000 distributed control systems. Designed to meet the rigorous demands of modern industrial automation, the AAM11-S2 delivers accurate, low-latency signal acquisition from field instruments — enabling real-time energy monitoring, load management, and process optimization across continuous and batch production environments. With its multi-channel analog input architecture, the module captures 4–20 mA and voltage signals from pressure transmitters, flow meters, temperature sensors, and power transducers, feeding critical process variables directly into the DCS controller for closed-loop energy control.

In energy-intensive industries such as petrochemicals, power generation, pulp and paper, and pharmaceutical manufacturing, the AAM11-S2 plays a central role in reducing unnecessary energy consumption. By providing high-fidelity analog data to the Centum VP controller, it enables the DCS to execute precise PID control strategies that minimize motor overrun, reduce pump and compressor cycling losses, and stabilize heat exchanger duty cycles. The result is a measurable reduction in thermal load, lower peak demand charges, and improved overall equipment effectiveness (OEE) across the production line.

The AAM11-S2 operates as a precision data acquisition front-end within a broader power-aware automation architecture. In a typical Centum VP control loop, the module collects analog signals from Yokogawa EJA-series differential pressure transmitters and ADMAG AXF electromagnetic flow meters, converting raw field measurements into calibrated process values that the DCS controller uses to regulate energy-consuming assets. When paired with the Yokogawa AAM21 analog output module, the AAM11-S2 enables full closed-loop control — for example, modulating a variable frequency drive (VFD) on a centrifugal pump to match actual process demand rather than running at fixed speed, directly reducing kilowatt-hour consumption.

Integration with the Yokogawa AMN11 communication module allows the AAM11-S2's data streams to be shared across PROFIBUS or Modbus networks, enabling energy management systems (EMS) and SCADA platforms to aggregate consumption data from multiple field nodes. The Yokogawa YFGW410 field wireless gateway further extends this capability to wireless sensor networks, allowing energy monitoring in areas where cabling is impractical. At the HMI layer, operators using the Yokogawa FAST/TOOLS SCADA or Exaopc OPC server can visualize real-time energy KPIs — including specific energy consumption per production unit — derived from the analog inputs processed by the AAM11-S2.

In motor control applications, the AAM11-S2 works alongside Yokogawa's power monitoring modules and third-party power transducers to feed current and voltage signals into the DCS. This data supports demand-side load management strategies: when the system detects that aggregate motor load is approaching a contractual peak demand threshold, the DCS can automatically shed non-critical loads or ramp down auxiliary drives — actions that are only possible with the accurate, real-time analog input data the AAM11-S2 provides. The module's compatibility with I/O bus architectures also allows it to be deployed alongside digital I/O modules such as the ADM11 for coordinated equipment state feedback, ensuring that energy control decisions are based on both analog measurements and discrete equipment status signals.

Modern production lines face increasing pressure to reduce energy intensity without sacrificing throughput or product quality. The Yokogawa AAM11-S2 addresses this challenge by providing the high-quality analog signal foundation that energy optimization strategies depend on. Inaccurate or noisy analog inputs lead to control loop instability — causing actuators to hunt, motors to cycle unnecessarily, and heat exchangers to operate outside their optimal duty range. The AAM11-S2's low-drift, high-resolution signal acquisition eliminates these inefficiencies at the source, enabling tighter control bands and more stable production rhythms.

In batch manufacturing environments, the module supports recipe-driven energy management: as the DCS transitions between process phases, the AAM11-S2 continuously monitors temperature, pressure, and flow variables, allowing the controller to pre-emptively adjust heating, cooling, and agitation energy inputs rather than reacting to deviations after they occur. This predictive approach reduces energy waste during phase transitions and shortens batch cycle times — improving both energy efficiency and production throughput simultaneously.

For predictive maintenance programs, the analog data streams from the AAM11-S2 serve as the primary input for condition monitoring algorithms. Gradual changes in pump differential pressure, heat exchanger approach temperature, or motor current draw — all captured through the module's analog inputs — can be trended over time to detect developing faults before they cause unplanned downtime. Early intervention not only prevents costly failures but also avoids the energy waste associated with degraded equipment operating outside its efficiency curve. Combined with Yokogawa's Plant Resource Manager (PRM) asset management software, the AAM11-S2 becomes a key node in a plant-wide predictive maintenance and energy optimization network.

All units are supplied from verified inventory, subjected to functional output testing prior to dispatch, and covered by a 12-Month Warranty — ensuring reliable, energy-efficient operation from day one of installation.

Q1: How does the AAM11-S2 contribute to measurable energy savings on a production line?The AAM11-S2 provides the accurate, real-time analog process data that closed-loop energy control strategies require. By enabling the Centum VP DCS to precisely regulate motors, drives, and heat exchangers based on actual process conditions rather than fixed setpoints, the module helps eliminate overrun losses, reduce thermal waste, and lower peak demand charges — delivering quantifiable reductions in energy intensity per production unit.

Q2: Is the AAM11-S2 compatible with third-party SCADA and energy management systems?Yes. Via the Centum VP controller and communication modules such as the AMN11 (PROFIBUS/Modbus gateway), the analog data processed by the AAM11-S2 can be exposed to third-party SCADA platforms, OPC-compliant EMS software, and historian systems. This makes it straightforward to integrate into existing plant-wide energy monitoring infrastructures without replacing the broader control architecture.

Q3: Can the AAM11-S2 replace older Centum CS 3000 analog input modules, and what should I verify before substitution?The AAM11-S2 is designed for compatibility within the Centum DCS platform family. Before substitution, verify the I/O bus slot assignment, channel count requirements, signal type configuration (current vs. voltage), and firmware revision of the host controller. It is recommended to perform a bench test of the replacement module against known reference signals before installation to confirm calibration integrity.

Q4: What does the 12-Month Warranty cover, and how is inventory availability managed?The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. All AAM11-S2 units are drawn from verified stock, tested for analog input accuracy and communication integrity prior to dispatch, and shipped with documentation supporting traceability. For volume requirements or scheduled project deliveries, contact us to confirm lead times and reserve allocation.
