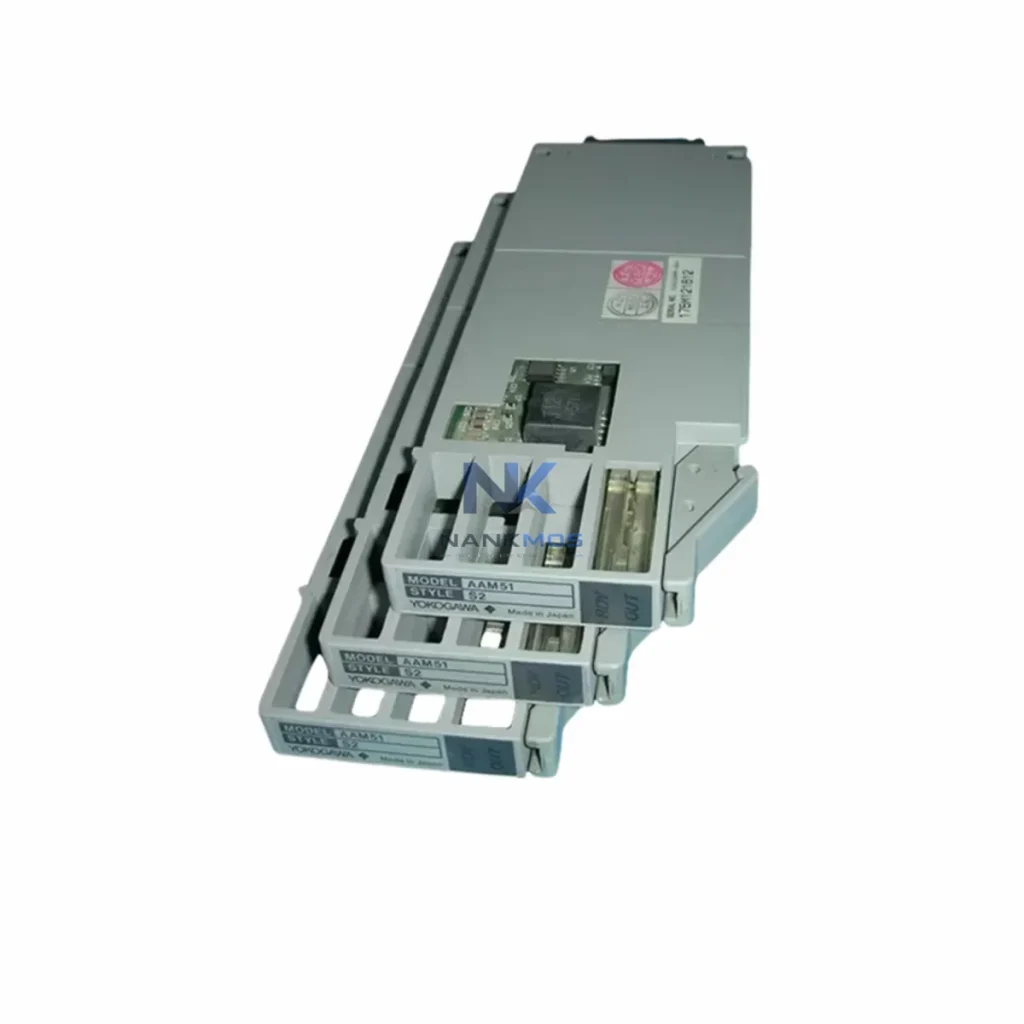

Yokogawa AAM51 S2 Analog Output Module

Product Details

AAM51 S2 Product Description

The Yokogawa AAM51-S2 is a precision analog output module engineered for seamless integration within the CENTUM CS3000 Distributed Control System (DCS) platform. Designed to deliver stable, high-resolution 4–20 mA analog signals to field actuators, control valves, and variable-speed drives, the AAM51-S2 occupies a critical role in the output layer of any process control architecture. Its system-matched design ensures direct compatibility with the CS3000 field control station (FCS) backplane, eliminating signal conditioning overhead and reducing commissioning time across complex multi-loop control environments.

At NANKMOS, every AAM51-S2 unit is subject to rigorous pre-shipment functional testing, covering channel-by-channel output linearity, loop integrity, and communication handshake verification with the FCS processor. Each module ships with a 12-Month Warranty and full traceability documentation, supporting both greenfield installations and brownfield upgrade projects where system continuity is non-negotiable.

The AAM51-S2 does not operate in isolation — it is an integral node within a layered CENTUM CS3000 automation architecture. In a typical process plant deployment, the module interfaces directly with the FCS (Field Control Station) processor card, such as the CP345 or CP451, which executes the control algorithms and dispatches setpoint commands to the AAM51-S2 output channels. The module's backplane bus communication ensures deterministic signal delivery with minimal latency, which is essential in tight PID loop applications such as flow control, pressure regulation, and temperature management.

On the input side, the AAM51-S2 works in tandem with analog input modules such as the AAI141-S and AAI543-S, which acquire process variable signals from field transmitters. Together, these modules form a closed-loop signal chain — input acquisition, FCS processing, and analog output — that underpins the core control function of the CS3000 platform. For applications requiring digital field device integration, the ALF111 FOUNDATION Fieldbus H1 communication module can be deployed alongside the AAM51-S2 to extend the architecture into smart field device territory, enabling device diagnostics and parameterization without interrupting the analog output loop.

Power integrity across the I/O nest is maintained by the PW481 or PW482 power supply modules, which provide regulated DC power to the FCS node unit. Redundant power configurations using dual PW48x units are standard practice in high-availability process environments such as petrochemical reactors, LNG terminals, and offshore platforms. The AAM51-S2's backplane-powered design means that power supply stability directly influences output signal quality, making PSU selection a critical architectural decision.

For system-level redundancy, the AAM51-S2 can be deployed in conjunction with the ACM12 or ACM22 communication modules, which manage inter-FCS data exchange across the V-net control network. In redundant FCS configurations, the AAM51-S2 continues to receive valid output commands even during primary controller failover, ensuring uninterrupted field signal transmission. This architecture is particularly valued in continuous process industries where any output interruption translates directly to process deviation and potential safety events.

At the HMI layer, operators interact with the AAM51-S2's output channels through the HIS (Human Interface Station) running CENTUM CS3000 software, where real-time output values, channel status, and diagnostic flags are displayed on process graphics. Engineering workstations running CS3000 Builder software are used during commissioning to configure channel scaling, output limits, and fail-safe values for each AAM51-S2 channel. This end-to-end integration — from HIS operator interface through FCS control logic to AAM51-S2 field output — exemplifies the tightly coupled, system-consistent design philosophy of the CENTUM CS3000 platform.

Petrochemical & Refining: In crude distillation units and catalytic cracking plants, the AAM51-S2 drives control valve positioners on feed flow, reflux ratio, and column pressure loops. Its 13-bit output resolution supports fine-grained valve positioning that is critical for product quality and energy efficiency in continuous distillation processes.

Power Generation: In coal-fired and combined-cycle power plants, the module controls boiler feedwater flow, turbine governor signals, and burner management outputs. The module's channel isolation prevents ground loop interference in high-voltage plant environments, maintaining signal integrity across long cable runs to field actuators.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the AAM51-S2 to control chemical dosing pumps, aeration blower speed references, and filter backwash valve sequences. The module's compatibility with HART-enabled field devices allows simultaneous analog control and digital device diagnostics over the same two-wire loop.

Pulp & Paper / Chemical Processing: In batch and continuous chemical reactors, the AAM51-S2 manages temperature setpoint outputs to heat exchangers, agitator speed references, and reagent addition rates. Its deterministic output update cycle, synchronized with the FCS scan period, ensures consistent process control across multi-variable reaction systems.

Mining & Minerals Processing: Flotation cell level control, thickener underflow pump speed, and reagent dosing in mineral processing plants rely on stable analog output signals. The AAM51-S2's robust operating temperature range and channel isolation make it well-suited to the electrically noisy environments typical of mining operations.

Q1: Is the AAM51-S2 compatible with both CS3000 and CENTUM VP architectures? The AAM51-S2 is specifically designed and validated for the CENTUM CS3000 FCS platform, utilizing the CS3000 V-net/ER backplane bus protocol. While Yokogawa's CENTUM VP platform shares architectural lineage with CS3000, direct module interchangeability between platforms is not guaranteed without engineering validation. For VP-based systems, Yokogawa's AAM50 series VP-native modules are the recommended path. NANKMOS can advise on cross-platform compatibility based on your specific FCS node unit model and software revision.

Q2: What fail-safe behavior does the AAM51-S2 support during FCS communication loss? The AAM51-S2 supports configurable fail-safe output behavior, which is defined during system engineering in CS3000 Builder. Options typically include hold-last-value, drive-to-preset-value (e.g., 4 mA or 20 mA), or drive-to-zero. The selected fail-safe mode is stored in the module's non-volatile configuration memory and activates automatically upon detection of FCS communication loss. This behavior is critical for process safety in applications where a defined actuator position must be maintained during controller fault conditions.

Q3: How does NANKMOS ensure the quality and warranty coverage of the AAM51-S2? Every AAM51-S2 unit supplied by NANKMOS undergoes a structured pre-shipment test protocol covering channel output accuracy across the full 4–20 mA range, channel-to-channel isolation verification, backplane bus communication handshake, and visual inspection for component and connector integrity. Units that pass all test criteria are issued a test report and shipped with a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. NANKMOS maintains global inventory of CS3000 I/O modules to support both urgent replacement requirements and planned maintenance shutdowns, with expedited shipping available to major industrial regions worldwide.
