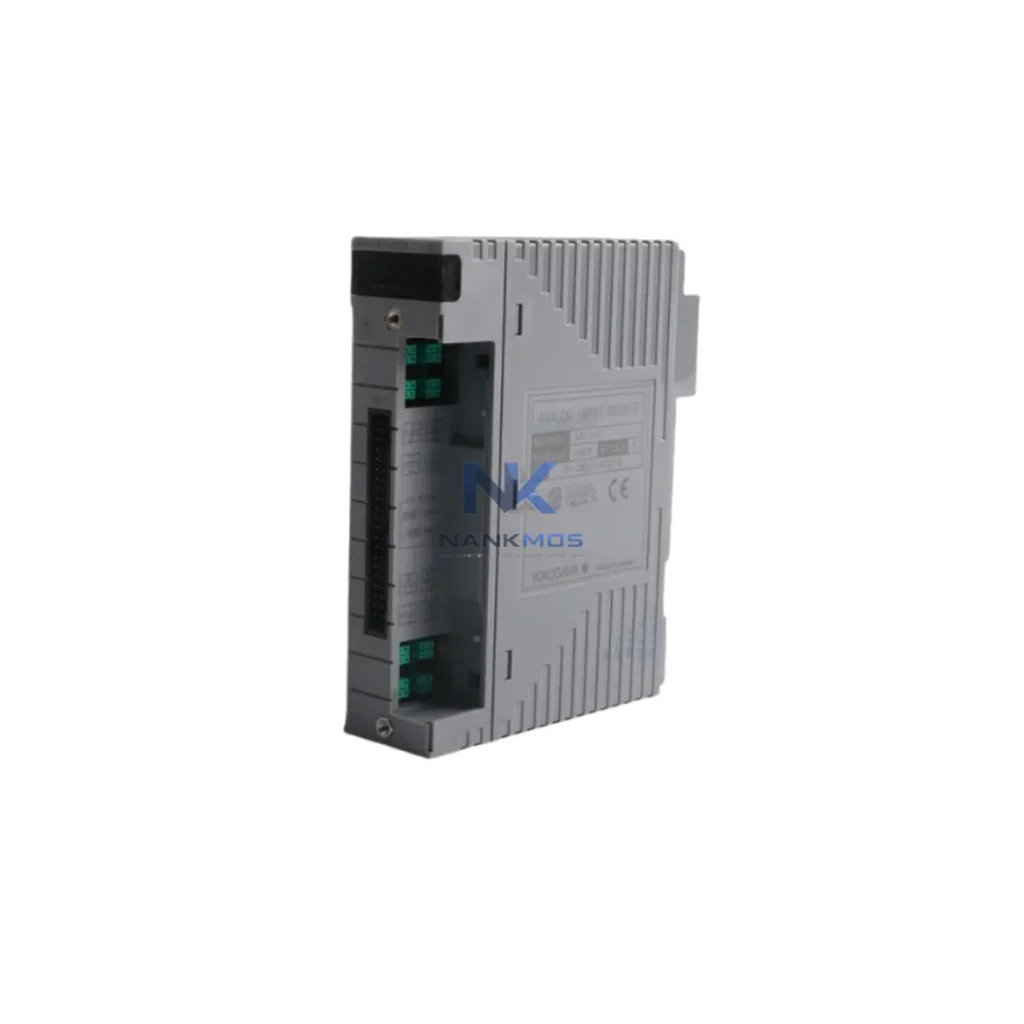

Yokogawa AAP135-S00 Pulse Input Module

Product Details

AAP135-S00 Product Description

The Yokogawa AAP135-S00 Pulse Input Module is engineered as a precision I/O component within the CENTUM VP Distributed Control System (DCS) architecture — one of the most widely deployed process automation platforms in refining, petrochemical, power generation, and water treatment industries. Rather than functioning as a standalone device, the AAP135-S00 is designed to operate as an integral node within a layered, multi-tier control architecture, where signal fidelity, system synchronization, and long-term maintainability are non-negotiable requirements.

At the control layer, the AAP135-S00 interfaces directly with the CENTUM VP Field Control Station (FCS) — such as the AFV10D or AFV30D field control units — via the high-speed Vnet/IP internal communication bus. This architecture ensures that pulse signals from flow meters, turbine meters, encoders, and proximity switches are captured with microsecond-level accuracy and transmitted to the FCS for real-time process calculations without latency or data loss.

At the I/O layer, the AAP135-S00 is installed within the CENTUM VP I/O nest alongside complementary modules such as the AAI141-S00 (Analog Input), AAI543-S00 (Analog Output), and AAI841-S00 (multi-channel analog I/O). This co-location within a shared backplane eliminates inter-module wiring complexity, reduces panel footprint, and ensures that all I/O modules share a common power rail and diagnostic bus — simplifying both commissioning and preventive maintenance cycles.

At the communication layer, the CENTUM VP architecture leverages Vnet/IP — Yokogawa's proprietary deterministic Ethernet protocol — to maintain real-time data exchange between the FCS, the HIS (Human Interface Station) operator workstations, and the EWS (Engineering Workstation). The AAP135-S00's pulse data is immediately available to all upstream systems, including historian servers and MES integration layers, without requiring additional protocol conversion or gateway hardware.

At the power layer, the I/O nest housing the AAP135-S00 is typically powered by Yokogawa's AIP835-S00 or equivalent redundant power supply modules. Redundant power configurations ensure that a single power supply failure does not interrupt pulse signal acquisition — a critical requirement in continuous process industries where flow measurement interruption can trigger unplanned shutdowns or regulatory non-compliance events.

At the HMI layer, pulse data acquired by the AAP135-S00 is rendered in real time on CENTUM VP HIS operator stations, where process engineers can monitor flow totalization, frequency trends, and alarm states. Integration with the Exaopc OPC server further enables data sharing with third-party SCADA platforms, MES systems, and advanced process control (APC) applications — extending the value of the AAP135-S00 beyond the DCS boundary.

At the protection and redundancy layer, the AAP135-S00 supports CENTUM VP's dual-redundant FCS configurations. In redundant FCS deployments, the I/O nest and its modules — including the AAP135-S00 — are shared between the primary and standby FCS units. Automatic bumpless switchover ensures that pulse signal acquisition continues uninterrupted during FCS failover events, maintaining process continuity in safety-critical applications.

At the maintenance and diagnostics layer, the AAP135-S00 participates in CENTUM VP's online self-diagnostic framework. Module health status, channel-level fault codes, and communication errors are reported directly to the HIS and EWS without requiring field intervention. This capability supports predictive maintenance strategies, reduces mean time to repair (MTTR), and enables condition-based module replacement — extending the operational life of the control system while minimizing unplanned downtime.

For projects requiring field-level device integration, the AAP135-S00 architecture is compatible with Yokogawa's STARDOM FCN/FCJ remote I/O nodes and Rosemount 8700-series magnetic flow transmitters, enabling seamless pulse signal handoff from field instruments to the DCS without signal conditioning losses. Terminal modules such as the ATD5D-S00 marshalling terminal blocks further simplify field wiring and support hot-swap maintenance without process interruption.

The AAP135-S00 is deployed across a broad spectrum of process industries where accurate pulse and frequency measurement is fundamental to operational integrity:

Refining & Petrochemical: In crude distillation units and catalytic cracking plants, the AAP135-S00 captures pulse outputs from turbine flow meters measuring feed rates, product flows, and utility streams. Accurate flow totalization is essential for material balance calculations, yield accounting, and regulatory reporting under environmental compliance frameworks.

Power Generation: In combined-cycle gas turbine (CCGT) and coal-fired power plants, the AAP135-S00 monitors fuel flow, cooling water flow, and steam condensate return rates. Integration with the CENTUM VP FCS enables real-time heat rate calculations and efficiency optimization — directly impacting fuel cost and emissions performance.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the AAP135-S00 to monitor influent and effluent flow rates, chemical dosing pump outputs, and filter backwash cycles. The module's high-resolution pulse counting capability supports accurate chemical consumption tracking and regulatory flow reporting.

Pharmaceutical & Fine Chemical: In batch manufacturing environments, the AAP135-S00 provides precise ingredient addition measurement via pulse-output Coriolis or turbine meters. Integration with CENTUM VP's batch management functions ensures that recipe-driven flow targets are met with the accuracy required for GMP compliance.

Mining & Minerals Processing: Conveyor belt speed monitoring, slurry pump flow measurement, and reagent dosing control in flotation circuits rely on the AAP135-S00's ability to process high-frequency pulse signals from proximity sensors and encoder outputs — even in electrically noisy environments typical of mining operations.

Q1: Is the AAP135-S00 compatible with both CENTUM VP and CS 3000 control systems? The AAP135-S00 is designed for the CENTUM VP I/O architecture and is physically and electrically compatible with CENTUM VP I/O nests and FCS configurations. Compatibility with CS 3000 systems depends on the specific nest and FCS revision; engineering verification against the target system's I/O nest model and FCS firmware version is recommended before deployment. NANKMOS provides pre-shipment compatibility verification for all AAP135-S00 units supplied against confirmed system configurations.

Q2: Can the AAP135-S00 be replaced online without shutting down the FCS or the process? In CENTUM VP architectures with hot-swap-capable I/O nests, the AAP135-S00 supports online module replacement without FCS restart, provided the replacement procedure follows Yokogawa's documented I/O module swap protocol. The FCS automatically re-initializes the replacement module and restores channel assignments from the FCS database. For safety-instrumented systems (SIS) or redundant FCS configurations, the replacement procedure must be coordinated with the system's redundancy switchover sequence to ensure bumpless operation.

Q3: What warranty and post-shipment support does NANKMOS provide for the AAP135-S00? All AAP135-S00 units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes functional testing prior to dispatch, including pulse input channel verification, backplane communication check, and diagnostic self-test confirmation. In the event of a warranty claim, NANKMOS provides advance replacement logistics to minimize system downtime. For long-term spares planning and multi-unit procurement, NANKMOS maintains verified stock of AAP135-S00 and related CENTUM VP I/O modules to support planned maintenance outages and emergency replacement requirements.
