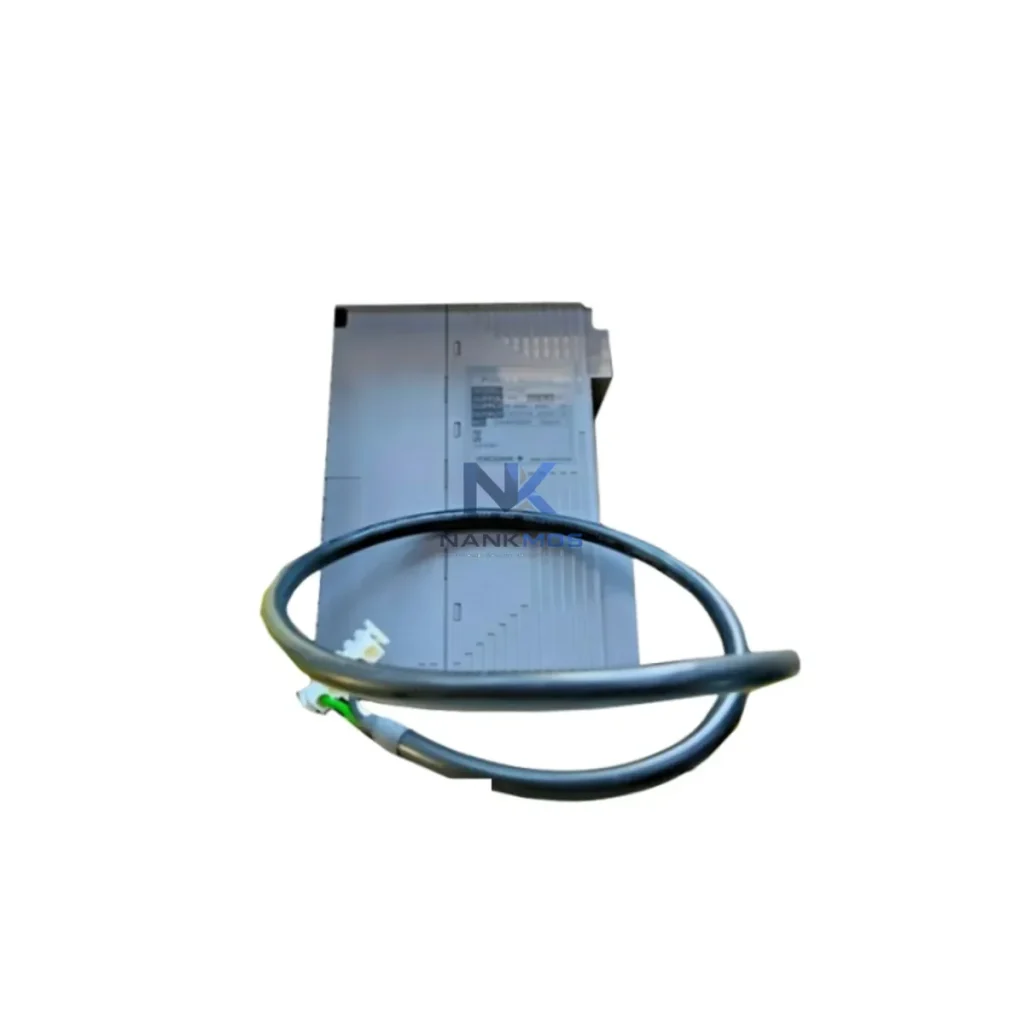

Yokogawa AAT141-S50 S2 DCS I/O Module

Product Details

AAT141-S50 S2 Product Description

The Yokogawa AAT141-S50/S2 is a precision analog current input module engineered for seamless integration within the CENTUM CS3000 Distributed Control System architecture. Designed to accept standard 4–20 mA field signals, this module serves as a critical signal acquisition node at the I/O layer of a multi-tier industrial control hierarchy. Its role extends beyond simple signal conversion — the AAT141-S50/S2 is a foundational element that enables consistent data flow from field instrumentation through to the control layer, supporting real-time process visibility, loop integrity, and system-wide diagnostic coherence across complex automation platforms.

In modern distributed control environments, the reliability of analog input modules directly determines the accuracy of process control decisions. The AAT141-S50/S2 is factory-tested and supplied with a 12-Month Warranty, ensuring that every unit dispatched from NANKMOS inventory meets Yokogawa's original performance specifications. Pre-shipment functional verification is standard practice, covering channel isolation, signal linearity, and communication handshake with the CS3000 field control station.

The AAT141-S50/S2 operates within a tightly coupled automation architecture where every layer — from field instrumentation to supervisory control — must function as a unified system. At the control layer, the Yokogawa AFV10D or AFV30D Field Control Station (FCS) processes the digitized current signals delivered by the AAT141-S50/S2, executing PID loops, cascade strategies, and feedforward compensation based on real-time field data. The integrity of this data path is non-negotiable in process industries where a 0.1 mA deviation can trigger a process alarm or initiate an emergency shutdown sequence.

At the I/O layer, the AAT141-S50/S2 is typically installed alongside complementary modules such as the AAT141-S00 (voltage input variant), AAT145 (thermocouple input), and AAT143 (RTD input), all mounted within the same S50 node enclosure. This modular co-location strategy reduces wiring complexity, simplifies loop checking during commissioning, and enables hot-swap maintenance without disrupting adjacent channels. The node backplane distributes both power and communication bus signals, ensuring that all installed I/O modules share a common timing reference and diagnostic reporting path.

Communication stability is maintained through the CS3000 V-net — Yokogawa's proprietary high-speed control network — which links field control stations, engineering workstations, and the HIS (Human Interface Station) in a deterministic, token-passing topology. The AAT141-S50/S2's data is transmitted across this network with cycle times compatible with fast-loop control applications. For plants requiring network redundancy, the V-net supports dual-ring configurations, and the AAT141-S50/S2 node participates transparently in this redundant communication scheme without requiring additional configuration.

At the power layer, the CS3000 architecture relies on dedicated power supply modules such as the Yokogawa PW481 or PW482 to deliver regulated DC power to each field control station and its associated I/O nodes. Proper power distribution design — including load balancing across nodes and provision of UPS backup — is essential to maintaining the AAT141-S50/S2's measurement accuracy and preventing signal drift during power transients. NANKMOS recommends verifying power budget calculations when expanding I/O capacity within an existing CS3000 cabinet.

For HMI integration, the CS3000 Human Interface Station (HIS) — typically running Yokogawa's CENTUM VP or CS3000 R3 software — displays real-time analog values acquired by the AAT141-S50/S2 on process graphics, trend displays, and alarm summary screens. Operators can monitor signal quality indicators and channel diagnostic status directly from the HIS, enabling rapid identification of field wiring faults, sensor failures, or out-of-range conditions without requiring physical access to the I/O cabinet.

In redundancy-critical applications, the CS3000 architecture supports dual FCS configurations where two field control stations share the same I/O node. In this topology, the AAT141-S50/S2 node is accessible from both the primary and standby FCS, enabling bumpless transfer of control in the event of a controller failure. This architecture is commonly deployed in safety-instrumented systems and high-availability process units where unplanned downtime carries significant operational or safety consequences.

For plants integrating legacy CENTUM CS3000 systems with newer Yokogawa CENTUM VP platforms, the AAT141-S50/S2 retains full compatibility with VP-based field control stations through Yokogawa's migration pathway, which preserves existing I/O wiring and node configurations while upgrading the control execution environment. This migration capability protects capital investment in installed I/O infrastructure and reduces the engineering effort required for system modernization projects.

Refining & Petrochemical: In crude distillation units and catalytic cracking plants, the AAT141-S50/S2 acquires 4–20 mA signals from differential pressure transmitters, flow meters, and level sensors distributed across the process unit. The module's channel isolation prevents ground loop interference in environments where multiple field instruments share common cable trays, ensuring that signal cross-talk does not compromise the accuracy of critical flow and level measurements used in material balance calculations and safety interlock logic.

Power Generation: In thermal power plants and combined-cycle facilities, the AAT141-S50/S2 monitors analog signals from boiler instrumentation, turbine control loops, and generator excitation systems. The module's compatibility with the CS3000 FCS enables tight integration with turbine speed governors and boiler master pressure controllers, supporting coordinated unit control strategies that optimize fuel efficiency while maintaining grid frequency compliance.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the AAT141-S50/S2 to acquire flow, pressure, pH, and dissolved oxygen signals from field analyzers and transmitters distributed across intake, treatment, and distribution systems. The module's multi-channel architecture reduces the number of I/O nodes required for large-scale water networks, lowering cabinet footprint and simplifying maintenance access in remote pump stations and treatment plant control rooms.

Pulp & Paper / Chemical Processing: Continuous process industries rely on the AAT141-S50/S2 for high-density analog input acquisition in digester control, evaporator loops, and chemical dosing systems. The module's integration with CS3000 advanced process control (APC) applications enables model predictive control strategies that use real-time analog measurements to optimize product quality and minimize energy consumption across multi-stage process trains.

Mining & Minerals Processing: In flotation circuits, grinding mills, and thickener control systems, the AAT141-S50/S2 provides reliable analog input acquisition in environments characterized by high vibration, electrical noise, and variable ambient temperatures. The module's robust isolation design and Yokogawa's proven field reliability record make it a preferred choice for remote mining operations where maintenance access is limited and module replacement lead times must be minimized through strategic spare parts inventory.

Q1: Is the AAT141-S50/S2 compatible with both CENTUM CS3000 and CENTUM VP field control stations? Yes. The AAT141-S50/S2 is natively compatible with CENTUM CS3000 field control stations and is also supported under Yokogawa's CENTUM VP migration framework. When migrating from CS3000 to VP, existing AAT141-S50/S2 nodes can be retained with their original wiring and node addresses, provided the FCS firmware and I/O builder configuration are updated to reflect the new control station type. NANKMOS recommends consulting Yokogawa's migration engineering guide and verifying node compatibility with your specific FCS hardware revision before proceeding.

Q2: What is the recommended spare parts strategy for AAT141-S50/S2 modules in a continuous process plant? For plants operating CS3000 systems in continuous or semi-continuous process environments, NANKMOS recommends maintaining a minimum of two AAT141-S50/S2 modules per critical process unit as on-site cold spares. Given that Yokogawa has transitioned CS3000 to a legacy support status, sourcing replacement modules through authorized distributors and specialist suppliers is essential to maintaining system availability. NANKMOS maintains verified stock of AAT141-S50/S2 modules with 12-Month Warranty coverage, enabling rapid dispatch to minimize unplanned downtime risk.

Q3: How should the AAT141-S50/S2 be commissioned and verified after installation? Commissioning the AAT141-S50/S2 involves three primary steps: physical installation and wiring verification, I/O builder configuration in the CS3000 engineering environment, and loop calibration using a calibrated current source (4 mA, 12 mA, 20 mA check points). Channel diagnostic status should be confirmed via the HIS alarm display before the module is placed in service. NANKMOS supplies each AAT141-S50/S2 with pre-shipment test documentation confirming channel linearity and communication handshake results, reducing on-site commissioning time and providing a baseline reference for future calibration audits.
