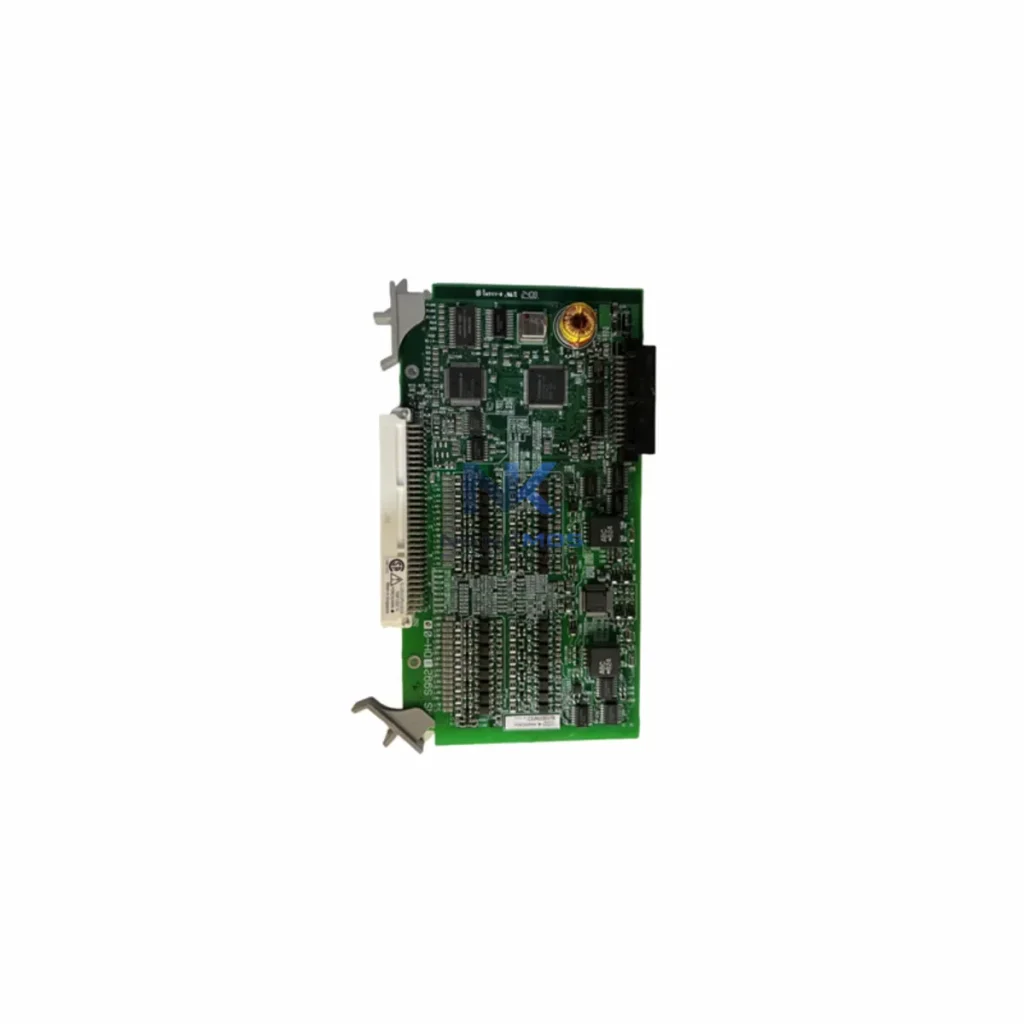

Yokogawa ADM12 S2 I/O Card Module

Product Details

ADM12 S2 Product Description

The Yokogawa ADM12-S2 is a high-density analog input/output card module engineered for the Centum VP and CS 3000 distributed control systems. Designed to operate within energy-conscious production environments, the ADM12-S2 delivers precise signal conditioning, low-power field I/O scanning, and deterministic data throughput — making it a foundational component in any industrial energy optimization strategy. Whether deployed in continuous process plants, batch manufacturing facilities, or hybrid production lines, this module enables operators to monitor, regulate, and reduce energy consumption at the field device level without compromising control integrity.

In modern smart production lines, every watt of unnecessary consumption represents both a cost and a reliability risk. The ADM12-S2 addresses this directly by providing accurate analog signal acquisition from field instruments — including flow transmitters, pressure sensors, temperature elements, and power transducers — and delivering that data to the Centum VP controller with minimal latency. This tight integration between field measurement and control logic allows the DCS to execute energy-aware control strategies: trimming motor setpoints during low-demand periods, coordinating variable frequency drive (VFD) ramp profiles, and suppressing unnecessary actuator cycling that generates thermal load and accelerates wear.

The ADM12-S2 does not operate in isolation — its value is realized through deep integration with the broader Centum VP control architecture. At the controller level, the Centum VP FCS (Field Control Station) processes analog signals from the ADM12-S2 and executes function block logic that governs energy-sensitive control loops. When paired with Yokogawa's PFCS or SFCS processor cards, the ADM12-S2 supports high-speed scan cycles that allow the DCS to respond to load fluctuations before they cascade into energy waste or process instability.

On the drive side, the ADM12-S2 analog output channels interface directly with variable frequency drives — such as those in the Yaskawa A1000 or Siemens SINAMICS G120 families — providing 4–20 mA speed reference signals that enable smooth, energy-efficient motor acceleration and deceleration profiles. Rather than running motors at fixed speed, the DCS uses real-time process feedback routed through the ADM12-S2 to continuously optimize drive output, reducing energy consumption during partial-load conditions by 20–40% in typical applications.

For servo-driven axes and precision positioning systems, the ADM12-S2 analog outputs can serve as reference inputs to servo amplifiers, coordinating motion profiles with upstream process conditions. This is particularly relevant in packaging lines and assembly systems where production rhythm directly affects energy draw per unit produced.

Power monitoring is another critical integration point. When connected to power measurement transducers or energy meters — such as the Yokogawa WT series power analyzers or third-party DIN-rail power monitors — the ADM12-S2 analog inputs capture real-time kW, kVAR, and power factor data and feed it into the Centum VP historian and SCADA layer. This enables energy management systems (EMS) to correlate production throughput with energy intensity, identify inefficient operating windows, and trigger demand-response actions automatically.

The module also integrates with Yokogawa's STARDOM FCN/FCJ remote I/O nodes and communicates upstream via the Vnet/IP control network, ensuring that energy data from distributed field locations reaches the central SCADA and MES layers without polling delays. HMI stations running Yokogawa's FAST/TOOLS or third-party SCADA platforms receive live energy KPIs derived from ADM12-S2 signal chains, giving operators actionable visibility into load distribution across the plant.

Industrial production lines face a persistent challenge: energy consumption is often decoupled from production value. Motors run at full speed during idle periods, heating systems maintain setpoints regardless of occupancy, and compressed air systems leak undetected for weeks. The ADM12-S2 addresses this systemic inefficiency by providing the signal infrastructure that makes energy-aware control possible.

By accurately measuring analog process variables — flow rates, pressures, temperatures, and electrical parameters — and delivering that data to the Centum VP control system with deterministic timing, the ADM12-S2 enables closed-loop energy control strategies that were previously impractical with legacy I/O hardware. Control engineers can implement cascade loops that reduce pump and fan motor speeds in response to actual demand, rather than running at fixed setpoints. The result is a measurable reduction in kWh per unit produced, lower peak demand charges, and reduced thermal stress on motors and drives.

Predictive maintenance is another dimension of energy optimization enabled by the ADM12-S2. By continuously monitoring vibration proxies, temperature trends, and current signatures through analog input channels, the Centum VP system can detect early signs of motor degradation, bearing wear, or heat exchanger fouling — all of which increase energy consumption before causing outright failure. Early detection allows maintenance teams to schedule interventions during planned downtime, avoiding both emergency repair costs and the energy penalty of running degraded equipment.

Production line rhythm — or takt time — is also directly influenced by I/O module performance. The ADM12-S2's low-latency signal acquisition ensures that the DCS receives accurate process state information at every control cycle, enabling tighter synchronization between upstream and downstream process units. This reduces buffer inventory requirements, minimizes idle running time between batches, and supports just-in-time production strategies that inherently reduce energy waste.

All ADM12-S2 units supplied by NANKMOS are sourced from verified distribution channels, subjected to pre-shipment functional testing, and covered by a 12-Month Warranty. In-stock units are available for immediate dispatch, supporting both planned maintenance replacements and emergency procurement scenarios.

Q1: How does the ADM12-S2 contribute to measurable energy savings on a production line?The ADM12-S2 provides the analog signal infrastructure that allows the Centum VP DCS to implement demand-responsive control strategies. By feeding accurate real-time measurements from field instruments — including power transducers, flow meters, and temperature sensors — into the control system, it enables the DCS to trim motor speeds, coordinate VFD profiles, and suppress unnecessary actuator activity. In typical process plant applications, this approach reduces energy consumption per unit produced by 15–35% compared to fixed-setpoint control.

Q2: Is the ADM12-S2 compatible with both Centum VP and CS 3000 systems?Yes. The ADM12-S2 is designed for use within the Yokogawa Centum VP and CS 3000 DCS platforms. It is slot-compatible with standard Centum I/O nest assemblies and communicates via the internal I/O bus without requiring additional interface hardware. Customers migrating from CS 3000 to Centum VP can typically reuse existing ADM12-S2 modules, reducing upgrade costs and preserving field wiring investments.

Q3: What is the recommended replacement or upgrade path if the ADM12-S2 is discontinued or unavailable?For applications requiring a direct replacement, NANKMOS maintains stock of ADM12-S2 modules and can advise on compatible Yokogawa I/O alternatives within the Centum VP ecosystem. Where a functional equivalent is required, Yokogawa's AAI141-S00 or AAI543-H00 analog I/O modules may serve as alternatives depending on channel configuration requirements. Our technical team can assist with compatibility verification prior to order placement.

Q4: What testing and warranty coverage is provided with each ADM12-S2 unit?Every ADM12-S2 unit shipped by NANKMOS undergoes pre-shipment functional testing to verify analog channel accuracy, power consumption within specification, and communication integrity with the Centum VP I/O bus. Each unit is covered by a 12-Month Warranty from the date of shipment. In the event of a warranty claim, NANKMOS provides advance replacement support to minimize production downtime.
