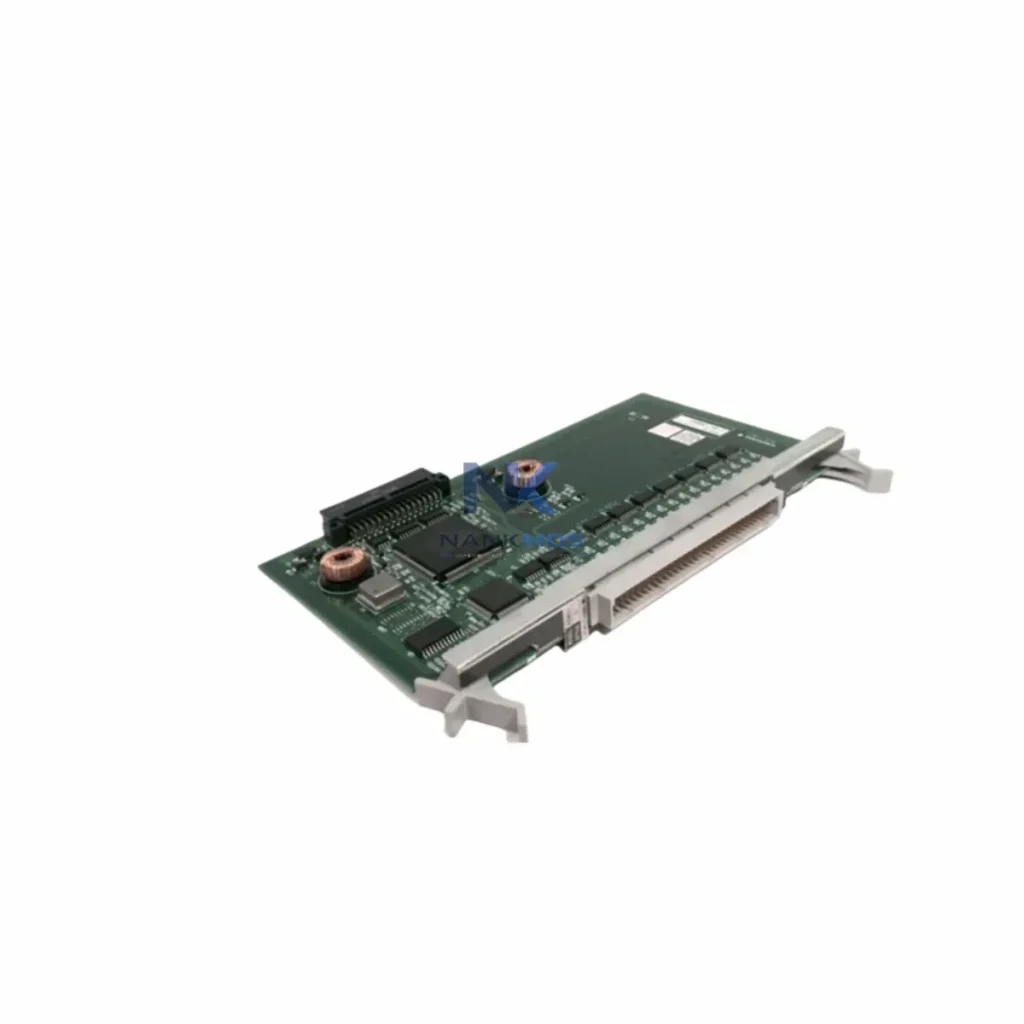

Yokogawa ADM55 S1 DCS Analog Input Module

Product Details

ADM55 S1 Product Description

The Yokogawa ADM55-S1 is a high-precision analog input module engineered for seamless integration within the CENTUM VP and CENTUM CS 3000 distributed control system (DCS) platforms. Designed to operate as a core signal acquisition node within multi-layer industrial control architectures, the ADM55-S1 delivers stable, low-drift analog signal conditioning across demanding process environments including petrochemical refining, power generation, water treatment, and continuous manufacturing. Its role within the CENTUM field control station (FCS) architecture positions it as a critical interface between field instrumentation and the supervisory control layer, ensuring signal fidelity, loop integrity, and system-wide diagnostic transparency.

Within a complete CENTUM automation platform, the ADM55-S1 does not operate in isolation. It functions as part of a coordinated I/O subsystem that includes companion modules such as the ADM51, ADM52, and ADM57 analog input variants, as well as the AAM10 and AAM11 analog output modules that close the control loop to final control elements. The module slots into the CENTUM node unit (NU) or field control unit (FCU) backplane, sharing a common communication bus with digital I/O modules including the ADV151 and ADV161 series, enabling unified field bus management and synchronized scan cycles across all I/O channels.

The ADM55-S1 achieves its full operational value when deployed within a coherent CENTUM system architecture. At the control layer, the CENTUM VP field control station (FCS) — powered by dedicated Yokogawa PSU modules such as the PW481 or PW482 redundant power supply units — provides the stable DC bus voltage that the ADM55-S1 and co-resident I/O modules depend on for uninterrupted scan cycles. Redundant power architecture eliminates single-point failure risk at the power layer, directly protecting signal acquisition continuity across all analog channels.

At the communication layer, the ADM55-S1 integrates with the CENTUM V-net optical ring network, which connects multiple FCS nodes to the human-machine interface (HMI) layer running Yokogawa's CENTUM VP HIS (Human Interface Station). This architecture ensures that analog process values acquired by the ADM55-S1 are transmitted with deterministic latency to operator workstations, enabling real-time process visualization and alarm management without communication bottlenecks. For plants requiring gateway connectivity to FOUNDATION Fieldbus or HART field devices, the Yokogawa AFV10 or AFF10 fieldbus interface modules can be co-deployed within the same node unit, extending the ADM55-S1's signal acquisition reach to smart field instruments.

Modular expansion is a key architectural advantage of the CENTUM platform. The ADM55-S1 can be installed alongside the ADM57 high-speed analog input module for applications requiring faster scan rates, or paired with the ADV151 digital input module to consolidate discrete and analog signals within a single node unit. For applications requiring signal isolation beyond the module's built-in channel isolation, external Yokogawa-compatible signal isolators or barriers can be inserted at the marshalling cabinet level, preserving signal integrity across long cable runs in electrically noisy environments such as motor control centers or high-voltage switchgear rooms.

At the execution layer, analog output modules such as the AAM10 close the control loop by driving control valves, variable frequency drives (VFDs), and other final control elements based on PID setpoints computed by the CENTUM FCS controller. The ADM55-S1's role in this loop is foundational: accurate, low-noise analog input acquisition directly determines the quality of the control response. In redundant FCS configurations, dual ADM55-S1 modules can be deployed in hot-standby arrangements, ensuring zero-interruption switchover during module maintenance or fault conditions — a critical requirement in continuous process industries where unplanned shutdowns carry significant economic and safety consequences.

In petrochemical and refining applications, the ADM55-S1 is deployed within CENTUM FCS nodes managing distillation column temperature profiles, reactor pressure loops, and flow measurement from Coriolis or differential pressure transmitters. Its channel isolation and self-diagnostic capability reduce the risk of cross-channel interference in environments with dense instrumentation wiring.

In power generation facilities — including thermal, combined-cycle, and renewable energy plants — the ADM55-S1 supports boiler control, turbine monitoring, and generator excitation feedback loops. Its compatibility with the CENTUM VP redundant FCS architecture aligns with the high-availability requirements of grid-connected generation assets.

In water and wastewater treatment plants, the ADM55-S1 acquires analog signals from flow meters, pH analyzers, dissolved oxygen sensors, and level transmitters distributed across treatment stages. Its modular slot design allows plant engineers to expand I/O capacity incrementally as treatment capacity grows, without replacing the core FCS infrastructure.

In mining and metallurgical operations, the module supports continuous monitoring of conveyor load cells, crusher motor current feedback, and flotation cell level control — environments characterized by high electrical noise, vibration, and wide ambient temperature variation. The ADM55-S1's robust isolation design and Yokogawa's proven CENTUM platform reliability make it a preferred choice for long-lifecycle mining automation projects.

Q1: Is the ADM55-S1 compatible with both CENTUM VP and CENTUM CS 3000 systems? The ADM55-S1 is designed for the CENTUM series platform. Compatibility with specific FCS generations (CENTUM CS 3000 vs. CENTUM VP) should be confirmed against the node unit hardware revision and the system's I/O module compatibility matrix. In most CENTUM VP migration projects, legacy CS 3000 I/O modules including the ADM55 series can be retained within upgraded node units, preserving existing field wiring and reducing migration cost. Our team can assist with compatibility verification prior to order confirmation.

Q2: What redundancy options are available for the ADM55-S1 in high-availability architectures? The CENTUM platform supports dual-redundant FCS configurations where paired controller modules operate in hot-standby mode. In such architectures, I/O modules including the ADM55-S1 are shared between the primary and standby FCS, with automatic bumpless switchover upon primary controller fault. For applications requiring I/O-level redundancy, dual node unit configurations with mirrored I/O modules can be engineered. All redundancy configurations are covered under the 12-Month Warranty and are validated during pre-shipment functional testing.

Q3: What does the 12-Month Warranty cover, and how is inventory availability managed for long-term projects? Every ADM55-S1 unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing includes power-on verification, channel signal accuracy checks, and communication bus integrity validation. For long-term projects requiring phased delivery or buffer stock arrangements, NANKMOS maintains dedicated inventory reserves for CENTUM series I/O modules to support multi-year maintenance contracts and planned turnaround schedules. Contact our team to discuss project-specific supply agreements.
