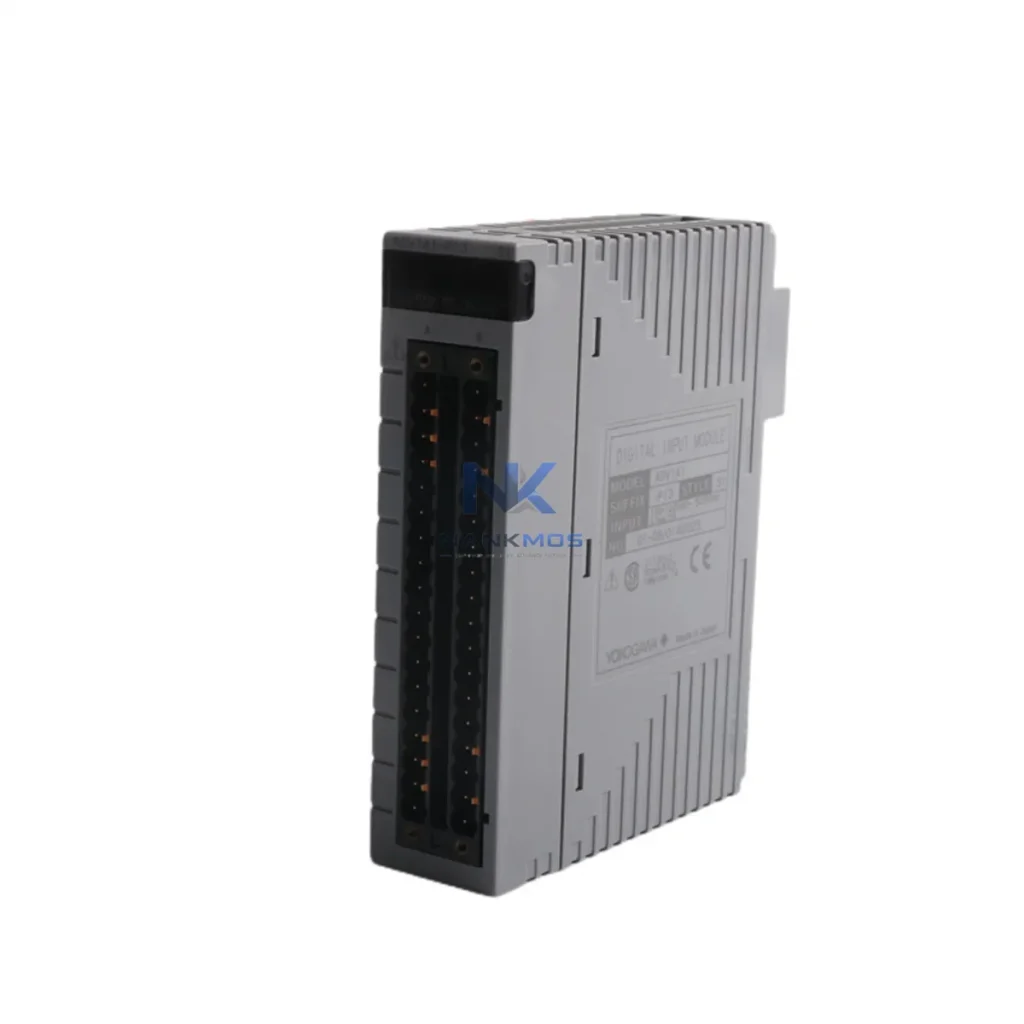

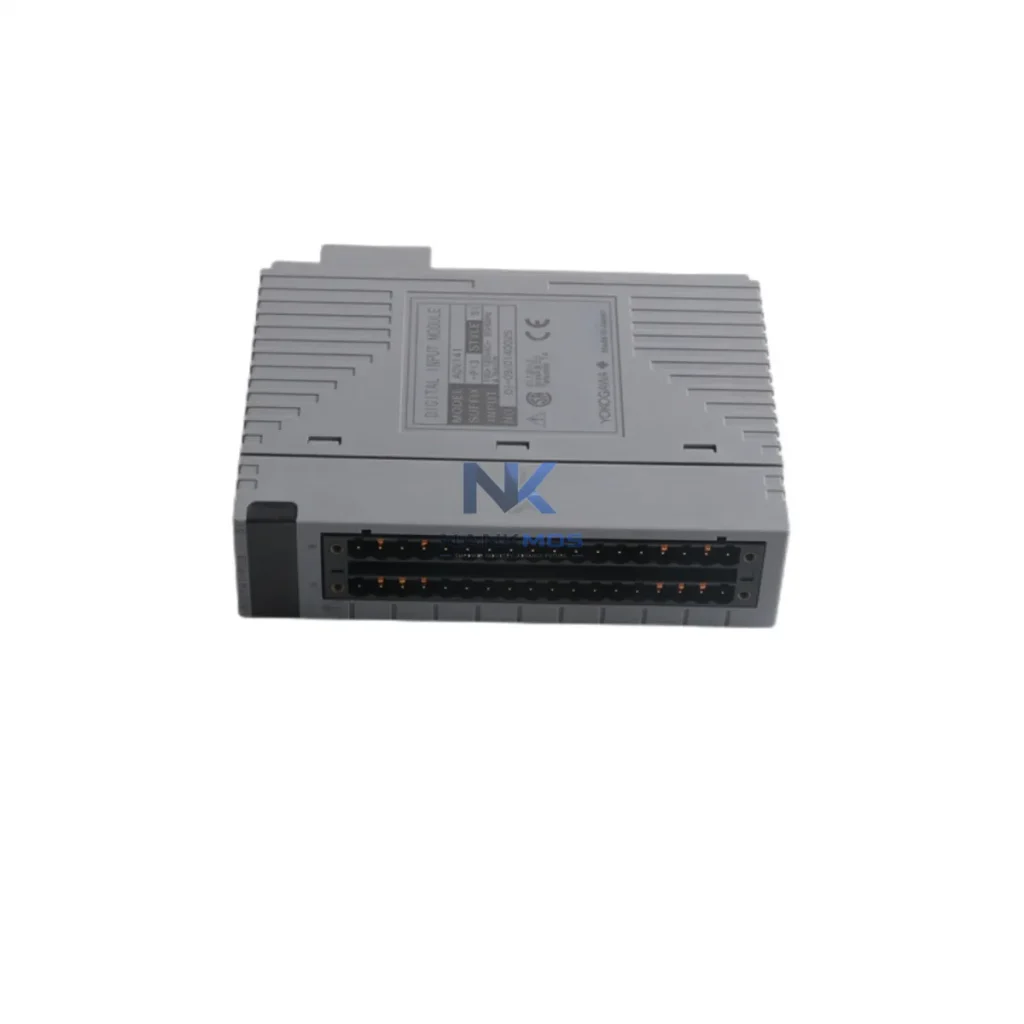

Yokogawa ADV142-P10 S1 Digital Input Module

Product Details

ADV142-P10 S1 Product Description

The Yokogawa ADV142-P10/S1 is a high-density digital input module engineered for seamless integration within the CENTUM VP Distributed Control System (DCS) architecture. Designed to operate within Yokogawa's field-proven control platform, this module delivers reliable discrete signal acquisition across demanding industrial environments including power generation, petrochemical processing, water treatment, and advanced manufacturing. Its modular form factor, deterministic scan performance, and native compatibility with the CENTUM VP I/O bus make it a foundational component for engineers building scalable, redundant, and maintainable control architectures.

As a system-matched I/O module, the ADV142-P10/S1 integrates directly into the CENTUM VP field control station (FCS) chassis, eliminating the need for signal conditioning adapters or protocol conversion layers. This native compatibility reduces engineering overhead during commissioning, simplifies loop checkout procedures, and ensures long-term diagnostic transparency through the CENTUM VP engineering workstation. Whether deployed in a greenfield automation project or as a replacement module in an existing DCS expansion, the ADV142-P10/S1 delivers consistent signal integrity and architectural coherence across the full control hierarchy.

The ADV142-P10/S1 achieves its full operational value when deployed as part of a cohesive CENTUM VP automation platform. At the control layer, the PFCS (Pair and Spare Field Control Station) or standard FCS0x series processors provide the deterministic execution environment that governs the ADV142-P10/S1's scan cycle and data delivery to the control database. The module slots directly into the ANB10S or ANB11S I/O nest, sharing the backplane power bus and internal communication path with adjacent I/O modules.

For power layer integrity, the Yokogawa PW481 or PW482 power supply modules deliver regulated 24 VDC to the I/O nest, ensuring stable operating voltage for the ADV142-P10/S1's input circuits and optical isolation stages. In redundant power configurations, dual power supply modules operate in hot-standby mode, eliminating single-point power failure risk across the I/O tier.

At the communications layer, the CENTUM VP Vnet/IP network — implemented via Yokogawa ANT1 or ANT2 communication modules — provides the high-speed, deterministic Ethernet backbone that carries I/O data from the ADV142-P10/S1 upstream to the FCS processor and onward to the Human Interface Station (HIS) and Engineering Workstation (EWS). This architecture ensures sub-second data latency from field contact closure to operator display update.

For analog signal co-location, the AAI141-S or AAI143-S analog input modules are commonly installed in adjacent slots within the same I/O nest, enabling mixed discrete and analog signal acquisition from a single field junction box. This co-location strategy reduces field wiring runs, simplifies marshalling cabinet design, and consolidates module diagnostics under a single FCS node address.

In safety-instrumented system (SIS) adjacent architectures, the ADV142-P10/S1 interfaces with Yokogawa ProSafe-RS safety controllers through hardwired interlock signals, providing the BPCS-to-SIS boundary signal path required by IEC 61511 compliant designs. The module's optical isolation ensures that field-side fault conditions do not propagate into the CENTUM VP system bus.

HMI integration is achieved through the CENTUM VP HIS (Human Interface Station), where the ADV142-P10/S1's 16 digital input channels appear as individual faceplates with real-time status, alarm annunciation, and historical trend logging. Operators can monitor contact state changes, acknowledge alarms, and review event logs without leaving the unified CENTUM VP operator environment. For remote engineering access, the Yokogawa EWS (Engineering Workstation) provides full module configuration, loop checkout, and firmware management capabilities.

Power Generation & Utilities: In thermal and combined-cycle power plants, the ADV142-P10/S1 acquires discrete status signals from motor control centers (MCCs), circuit breakers, valve limit switches, and turbine protection relays. Its optical isolation and noise immunity characteristics are critical in high-voltage switchyard environments where electromagnetic interference from bus bars and transformers can corrupt unprotected digital inputs. The module's integration with CENTUM VP enables plant-wide sequence-of-events (SOE) logging with millisecond-resolution timestamping for post-trip analysis.

Petrochemical & Refinery Processing: Refinery DCS architectures rely on the ADV142-P10/S1 to monitor pump run/stop status, compressor vibration trip signals, emergency shutdown (ESD) valve position feedback, and fire and gas detector discrete outputs. The module's compatibility with CENTUM VP's redundant FCS configurations ensures that critical process status signals remain available even during planned maintenance or unplanned controller failover events.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities deploy the ADV142-P10/S1 to monitor pump station status, level switch activations, UV disinfection system run signals, and chemical dosing pump feedback. The module's low-power design and wide operating temperature range support installation in remote pump station panels with limited climate control.

Mining & Metals Processing: In conveyor control systems, crusher monitoring, and flotation cell management, the ADV142-P10/S1 provides the discrete I/O backbone for interlocking sequences that protect equipment and personnel. Its modular plug-in design enables rapid module swap during scheduled maintenance windows, minimizing production downtime in continuous-process mining operations.

Pharmaceutical & Fine Chemical Manufacturing: GMP-compliant manufacturing environments use the ADV142-P10/S1 to capture discrete signals from clean-in-place (CIP) systems, autoclave door interlocks, and batch reactor agitator status. The module's diagnostic transparency through CENTUM VP supports 21 CFR Part 11 audit trail requirements by logging all input state changes with system-synchronized timestamps.

Q1: Is the ADV142-P10/S1 compatible with both CENTUM VP R5 and R6 system revisions, and can it be mixed with older ADV series modules in the same I/O nest? A: The ADV142-P10/S1 is validated for use in CENTUM VP R5.04 and later, including R6.xx environments. It can be installed in the same ANB10S/ANB11S I/O nest alongside other ADV-series digital I/O modules and AAI-series analog modules, provided the FCS firmware revision supports the module type. Mixed-generation I/O nests are supported within the same FCS node, but engineers should verify module compatibility tables in the CENTUM VP hardware engineering guide (TI 33Q01A10-01E) before finalizing the I/O nest configuration. NANKMOS supplies ADV142-P10/S1 units with a 12-Month Warranty and pre-shipment functional verification to confirm module readiness for system integration.

Q2: How does the ADV142-P10/S1 support redundant FCS architectures, and what happens to digital input data during an FCS switchover event? A: In a Pair and Spare (dual-redundant) FCS configuration, both the primary and secondary FCS processors continuously read I/O data from the ADV142-P10/S1 via the shared I/O nest backplane. During a switchover event — whether triggered by a hardware fault, watchdog timeout, or manual operator command — the secondary FCS assumes control within the configured switchover time (typically less than one control cycle). Because both processors share the same I/O nest, digital input data from the ADV142-P10/S1 is available to the secondary FCS without any re-initialization delay, ensuring bumpless transfer of discrete signal monitoring across the switchover boundary.

Q3: What is the recommended procedure for replacing an ADV142-P10/S1 module in a live CENTUM VP system, and does NANKMOS provide post-sale technical support? A: The ADV142-P10/S1 supports hot-swap replacement in CENTUM VP systems where the I/O nest is configured for online module replacement (OMR). The procedure involves placing the affected I/O channel group in maintenance mode via the EWS, physically extracting the faulty module, inserting the replacement unit, and confirming module recognition and channel status restoration through the CENTUM VP diagnostic display. NANKMOS provides each ADV142-P10/S1 with a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Our technical team offers pre-sale configuration consultation and post-sale integration support to ensure successful deployment within your specific CENTUM VP architecture. All units are tested prior to shipment and are available from stock for fast global delivery.
