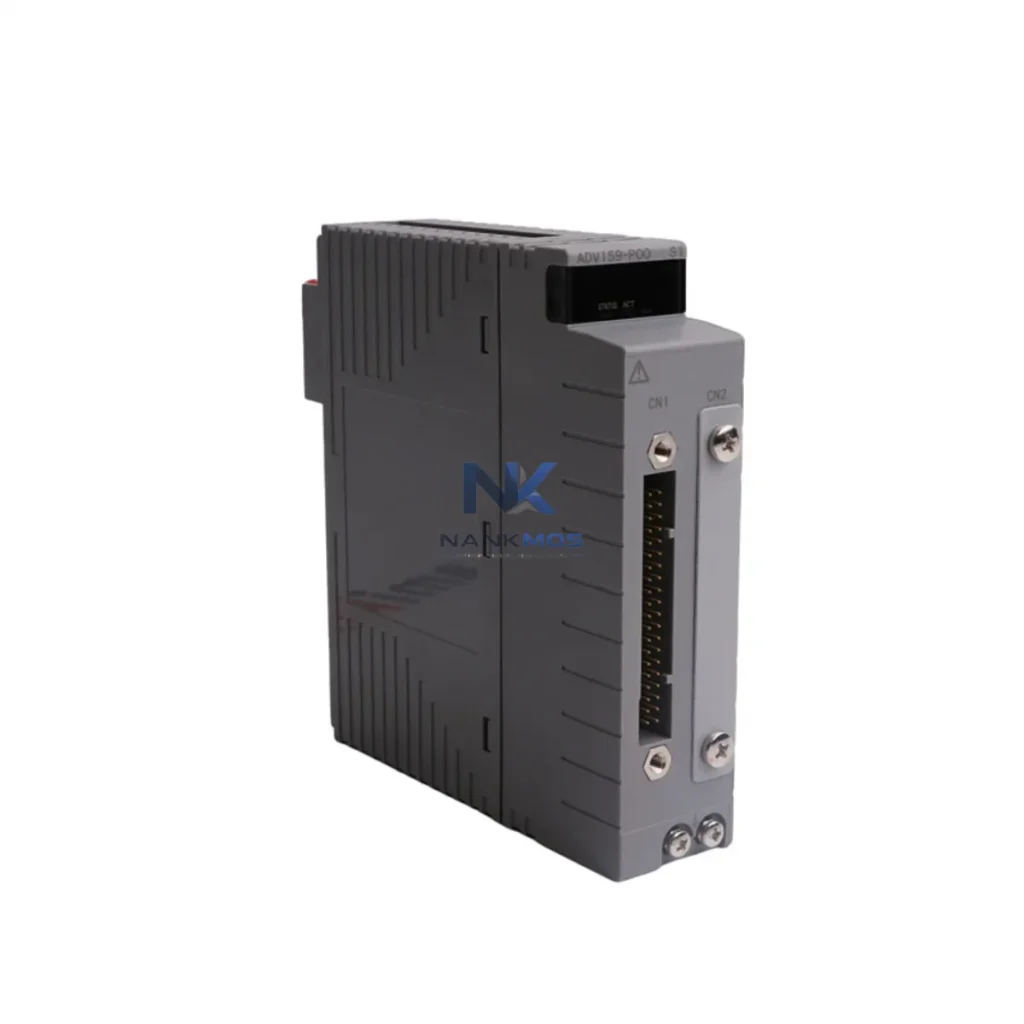

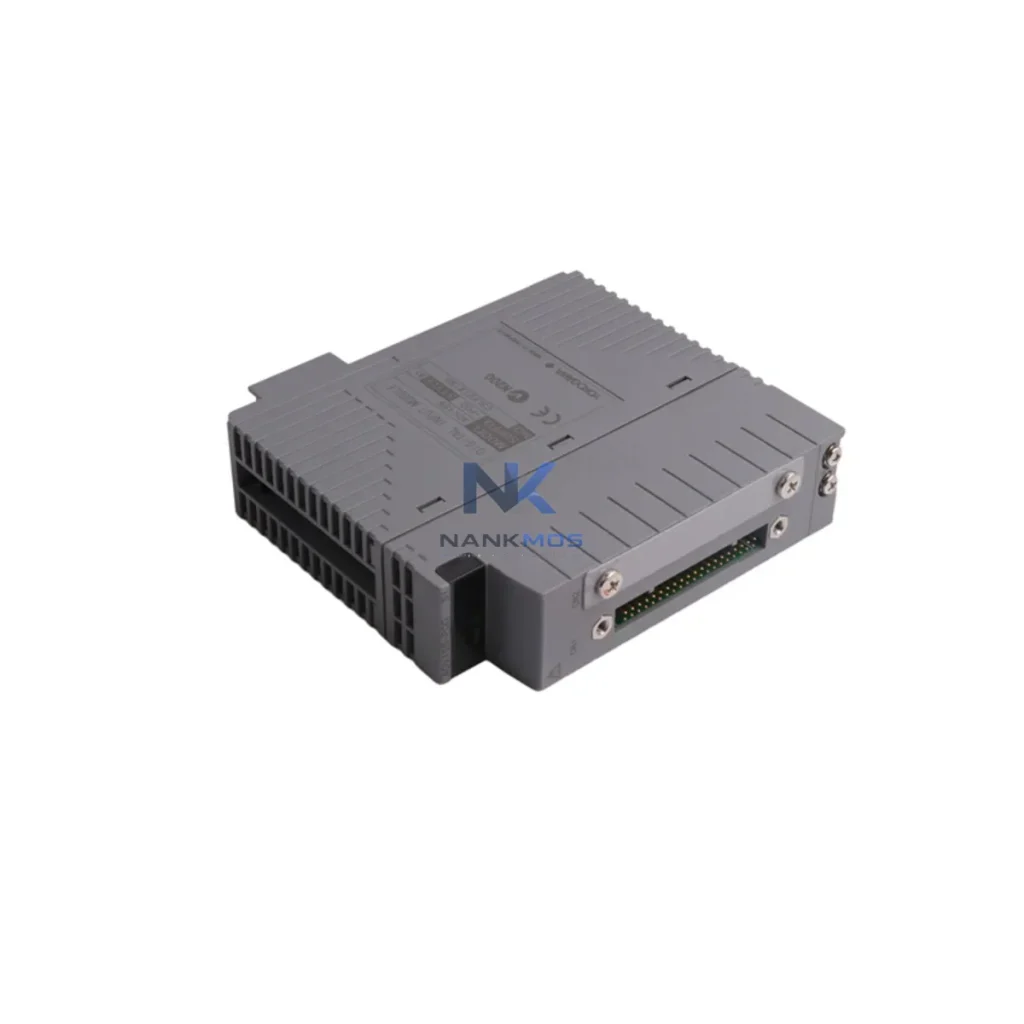

Yokogawa ADV159-P00 Digital Input Module

Product Details

ADV159-P00 Product Description

The Yokogawa ADV159-P00 is a high-density digital input module engineered for the CENTUM VP Distributed Control System, delivering precise field signal acquisition that underpins energy-aware automation across process industries. Designed for continuous operation in demanding industrial environments — including oil and gas, petrochemical, power generation, water treatment, and smart manufacturing — the ADV159-P00 captures discrete on/off states from field devices with high-speed scan cycles, enabling real-time load monitoring, equipment status feedback, and energy consumption visibility at the process level. By providing accurate, low-latency digital input data to the CENTUM VP controller, this module helps operators identify inefficient operating states, reduce unnecessary motor run times, and align equipment cycles with actual production demand, directly contributing to measurable reductions in energy waste and thermal load across the plant.

Within a fully integrated CENTUM VP architecture, the ADV159-P00 digital input module serves as the sensory foundation for power-aware control strategies. Field signals from motor contactors, valve limit switches, circuit breaker status contacts, and equipment run/stop feedback are captured by the ADV159-P00 and transmitted to the CENTUM VP Field Control Station (FCS), where the process controller evaluates equipment states in real time. This data directly informs variable frequency drive (VFD) command logic — for example, the Yokogawa VariFlex series or compatible third-party drives — allowing the control system to modulate motor speed based on actual process demand rather than fixed setpoints, eliminating unnecessary full-load motor operation and the associated energy waste.

The ADV159-P00 integrates seamlessly with Yokogawa's AAI141 and AAI143 analog input modules, which monitor current, voltage, and power factor signals from power monitoring transducers. Together, these modules feed the CENTUM VP Human Interface Station (HIS) and Exaopc OPC server, enabling operators to visualize energy consumption trends across production zones on the Plant Resource Manager (PRM) or third-party SCADA platforms via OPC-DA/UA. The ADV159-P00 also works alongside Yokogawa's ADV151 and ADV161 digital output modules to form complete discrete control loops — capturing equipment status on the input side and issuing start/stop commands on the output side — ensuring that motors, pumps, compressors, and conveyors operate only when process conditions require, reducing idle-state energy draw and thermal accumulation in motor windings and drive cabinets.

For facilities deploying Yokogawa's Exapilot procedural automation or integrating with Yokogawa's STARDOM network-based controllers for remote field nodes, the ADV159-P00 provides the discrete signal layer that enables automated energy-saving sequences — such as equipment shutdown during low-demand periods, staggered motor start sequences to reduce peak demand charges, and alarm-driven load shedding. Communication between the FCS and higher-level energy management systems is handled through the Vnet/IP control network, ensuring deterministic, high-integrity data delivery without the latency that would compromise energy optimization decision cycles.

Modern production lines face increasing pressure to reduce specific energy consumption (SEC) per unit of output while maintaining throughput and product quality. The Yokogawa ADV159-P00 addresses this challenge by providing the real-time discrete signal infrastructure that makes energy-intelligent automation possible. When integrated with the CENTUM VP process controller, the ADV159-P00 enables condition-based equipment management: motors are started and stopped based on verified process states rather than fixed timers, reducing unnecessary run hours and the cumulative energy cost of continuous operation. Valve position feedback captured by the ADV159-P00 allows the control system to confirm that isolation and control valves have reached their commanded positions before initiating downstream equipment, preventing the energy waste associated with pumping against closed valves or running compressors into blocked discharge lines.

The module's high channel density — 32 discrete inputs per card — allows a single ADV159-P00 to monitor an entire equipment group within a process unit, reducing the number of I/O cards required and the associated panel power consumption. In multi-unit facilities, this consolidation contributes to lower control room heat loads, reducing HVAC energy demand in instrument rooms and DCS equipment cabinets. Predictive maintenance strategies benefit directly from the ADV159-P00's continuous monitoring capability: by tracking equipment run/stop cycles, start counts, and fault contact states, maintenance teams can identify abnormal operating patterns — such as excessive motor starts indicating mechanical issues or process instability — before they escalate to unplanned shutdowns that disrupt production rhythm and generate energy spikes during emergency restarts.

Inventory availability for the ADV159-P00 is maintained to support both planned maintenance outages and emergency replacement scenarios. Each unit undergoes functional testing prior to shipment, verifying channel integrity, isolation performance, and communication with the CENTUM VP backplane. A 12-Month Warranty covers manufacturing defects and ensures that replacement units perform to Yokogawa's published specifications, protecting the energy optimization investments built into the plant's control architecture.

Q1: How does the ADV159-P00 contribute to energy savings in a CENTUM VP system?The ADV159-P00 provides real-time discrete input data — motor run status, valve positions, equipment fault contacts — that the CENTUM VP controller uses to implement demand-based equipment control. By ensuring motors and drives operate only when process conditions require, the module helps eliminate idle-state energy consumption and reduces peak load events, contributing to measurable reductions in plant energy costs.

Q2: Is the ADV159-P00 compatible with CENTUM CS 3000 systems?The ADV159-P00 is designed for the CENTUM VP platform. Compatibility with CENTUM CS 3000 may be achievable with appropriate adapter hardware and engineering review. For migration projects, Yokogawa's system integration team can assess compatibility and recommend the appropriate I/O migration path to preserve existing wiring and minimize retrofit costs.

Q3: What is the recommended replacement or upgrade path for aging digital input modules?For facilities operating legacy CENTUM CS 3000 or earlier DCS platforms, the ADV159-P00 within a CENTUM VP migration provides a direct path to improved I/O density, lower power consumption per channel, and access to Yokogawa's current generation of energy management and predictive maintenance tools. Engineering assessment is recommended to confirm backplane compatibility and I/O mapping before replacement.

Q4: What does the 12-Month Warranty cover, and what is the typical lead time?The 12-Month Warranty covers manufacturing defects and ensures the ADV159-P00 meets Yokogawa's published performance specifications. Stock is maintained for prompt shipment to support both planned maintenance windows and urgent replacement needs. Each unit is functionally tested prior to dispatch, including channel verification and backplane communication checks, to confirm operational readiness before installation.
