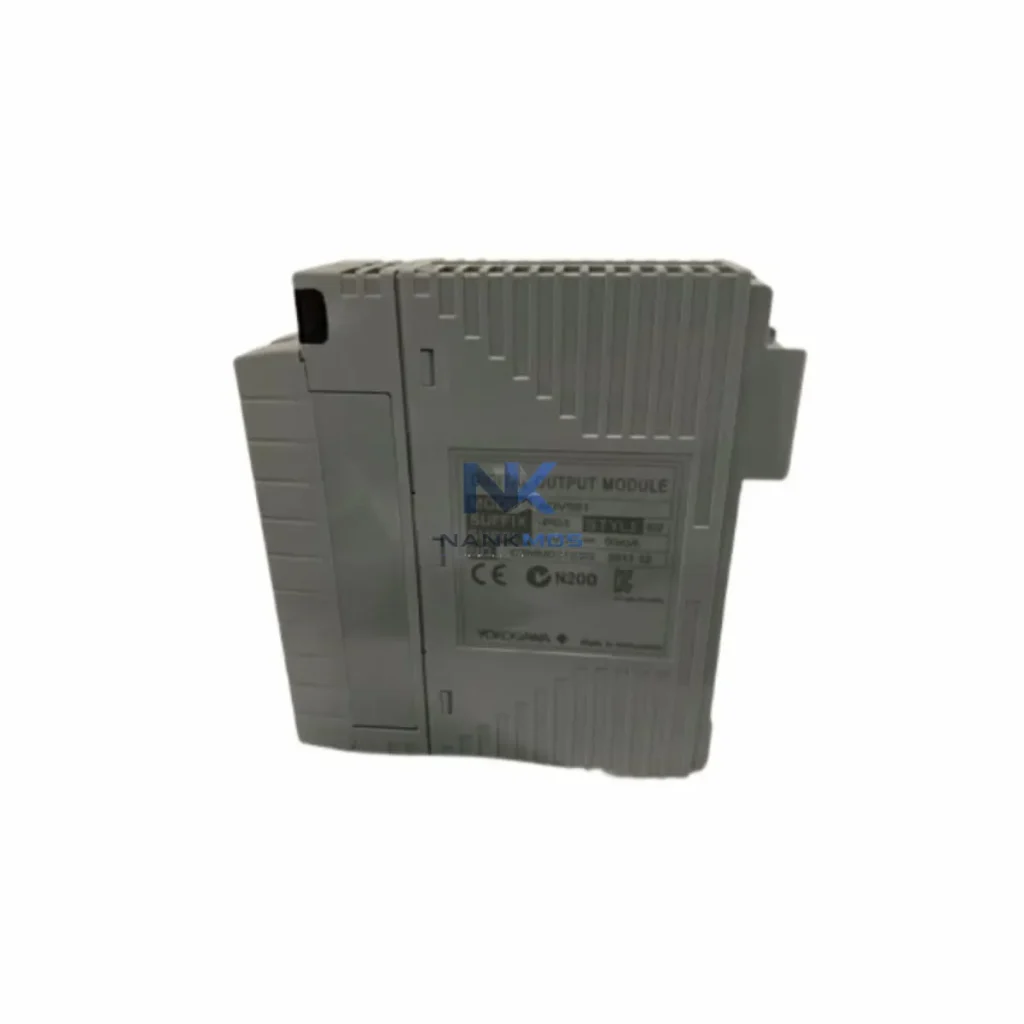

Yokogawa ADV551-P03 S2 Safety Digital Output Module

Product Details

ADV551-P03 S2 Product Description

The Yokogawa ADV551-P03 S2 is a SIL2-certified Safety Digital Output Module engineered for deployment within the ProSafe-RS Safety Instrumented System (SIS) platform. Designed to deliver deterministic, high-integrity digital output signals to final control elements, this module occupies a critical position in the safety execution layer of process automation architectures. Its role extends beyond simple signal switching — it serves as the terminal enforcement point for safety logic resolved by the ProSafe-RS Safety Controller, ensuring that shutdown commands, valve actuation signals, and interlock outputs are executed with the precision and reliability demanded by IEC 61511 and IEC 61508 functional safety standards.

In large-scale industrial installations — including oil and gas processing, petrochemical refining, LNG terminals, power generation, and offshore platforms — the ADV551-P03 S2 integrates seamlessly into the ProSafe-RS node architecture. It mounts directly onto the ProSafe-RS I/O bus backplane, communicating with the Safety Controller (e.g., SSC60S or SSC57S) via the internal safety bus, eliminating the need for external wiring between the logic solver and the output module. This tight integration reduces signal latency, simplifies cabinet layout, and supports the high-density I/O configurations required in complex safety loop designs.

The ADV551-P03 S2 achieves its full operational value when deployed as part of a coordinated ProSafe-RS and CENTUM VP integrated automation platform. At the safety logic layer, the Yokogawa SSC60S Safety Controller or SSC57S Safety Controller resolves the safety function and issues output commands to the ADV551-P03 S2 via the internal safety bus. The controller's deterministic scan cycle ensures that output state changes are propagated to the DO module within the defined safety response time, a critical parameter for SIL2 loop compliance.

On the input side, the Yokogawa ADV151-P03 Safety Digital Input Module and ADV161-P03 Safety Analog Input Module feed process variable data and field device status into the safety logic solver. The ADV551-P03 S2 then acts on the resolved logic by driving output signals to solenoid valves, motor starters, shutdown relays, and other final elements. For analog output requirements in the same safety node, the ADV561-P03 Safety Analog Output Module complements the ADV551-P03 S2, enabling mixed DO/AO configurations within a single I/O node.

The ProSafe-RS Node Unit (ANB10S or ANB11S) provides the physical backplane infrastructure into which the ADV551-P03 S2 is installed. Node units support hot-swap module replacement, allowing maintenance teams to replace a DO module during plant operation without interrupting the safety function — a capability essential for high-availability SIS installations with continuous process requirements. The Yokogawa AIP588 Power Supply Module or equivalent ProSafe-RS power supply ensures stable, redundant power delivery to the node, supporting the ADV551-P03 S2's internal diagnostics and output driver circuits.

For plants operating a unified CENTUM VP and ProSafe-RS architecture, the Yokogawa ALF111 ProSafe-RS Communication Module or the integrated SIS gateway function enables bidirectional data exchange between the safety system and the process control domain. This integration allows CENTUM VP operator stations to display SIS status, acknowledge safety alarms, and monitor the output state of the ADV551-P03 S2 channels in real time — without compromising the independence of the safety function. The Yokogawa HIS (Human Interface Station) running CENTUM VP provides the unified HMI layer for both process control and safety system visualization.

In redundant SIS architectures, the ADV551-P03 S2 supports deployment in dual-redundant node configurations where two independent I/O nodes monitor and drive the same field devices. Combined with the Yokogawa SSC60S dual-redundant Safety Controller, this architecture achieves the high availability and fault tolerance required for critical safety loops in oil and gas, nuclear auxiliary systems, and chemical processing plants.

Oil, Gas & Petrochemical: In upstream and downstream hydrocarbon processing, the ADV551-P03 S2 drives emergency shutdown (ESD) solenoid valves, blowdown valve actuators, and high-integrity pressure protection system (HIPPS) final elements. Its SIL2 certification and high diagnostic coverage make it the preferred DO module for safety loops protecting pressure vessels, separators, compressors, and pipeline isolation systems. The module's compatibility with the ProSafe-RS platform ensures seamless integration with existing CENTUM VP DCS installations common across major refinery and LNG terminal projects.

Power Generation: In thermal, combined-cycle, and nuclear auxiliary power plants, the ADV551-P03 S2 is deployed in turbine protection systems, boiler safety interlocks, and generator trip circuits. Its deterministic output response and SIL2 compliance support the stringent functional safety requirements of IEC 61511 and plant-specific safety cases. Integration with the ProSafe-RS platform allows power plant operators to manage safety and process control from a unified CENTUM VP environment.

Chemical & Pharmaceutical Manufacturing: Batch and continuous chemical processes rely on the ADV551-P03 S2 for reactor interlock outputs, agitator shutdown signals, and emergency vent valve actuation. The module's high channel density and backplane-mounted architecture support compact cabinet designs in space-constrained process skids and modular plant units. Its 12-Month Warranty and tested stock availability from NANKMOS ensure minimal procurement lead times for both new installations and replacement projects.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the ADV551-P03 S2 in pump protection interlocks, chemical dosing shutdown systems, and overflow prevention circuits. The module's robust operating temperature range and high diagnostic coverage support reliable operation in the variable environmental conditions typical of water treatment infrastructure.

Mining & Metals: In mineral processing and smelting operations, the ADV551-P03 S2 drives conveyor emergency stops, crusher protection outputs, and furnace safety interlocks. Its compatibility with the ProSafe-RS platform enables integration with existing Yokogawa CENTUM VP process control systems deployed across major mining automation projects.

Q1: Is the ADV551-P03 S2 compatible with both ProSafe-RS Compact and ProSafe-RS Standard node configurations?The ADV551-P03 S2 is designed for the ProSafe-RS I/O node backplane architecture. Compatibility with specific node unit variants (ANB10S, ANB11S, or compact node configurations) should be verified against the ProSafe-RS system configuration guide and the specific firmware revision of the Safety Controller in use. NANKMOS provides pre-shipment configuration verification and can confirm compatibility for your specific system revision before dispatch.

Q2: Can the ADV551-P03 S2 be replaced online (hot-swap) without interrupting the safety function?ProSafe-RS node architecture supports online module replacement for I/O modules including the ADV551-P03 S2, subject to the safety function configuration and the redundancy mode of the affected safety loop. In 1oo2 or 2oo3 voting configurations, one module can typically be replaced while the safety function remains active via the redundant channel. Single-channel loops require a bypass or inhibit procedure in accordance with the plant's Management of Change (MOC) and safety management system requirements. NANKMOS supplies tested replacement modules with 12-Month Warranty to support planned and emergency maintenance scenarios.

Q3: What is the stock availability and lead time for the ADV551-P03 S2, and does NANKMOS provide a warranty?NANKMOS maintains verified stock of the Yokogawa ADV551-P03 S2 and supports global shipping with typical dispatch within 3–7 business days. All units undergo pre-shipment functional testing and are supplied with a 12-Month Warranty covering manufacturing defects and operational failures under normal service conditions. For urgent plant maintenance or shutdown requirements, expedited shipping options are available. Contact NANKMOS at [email protected] or +86 18359268345 for current stock confirmation and lead time quotation.
