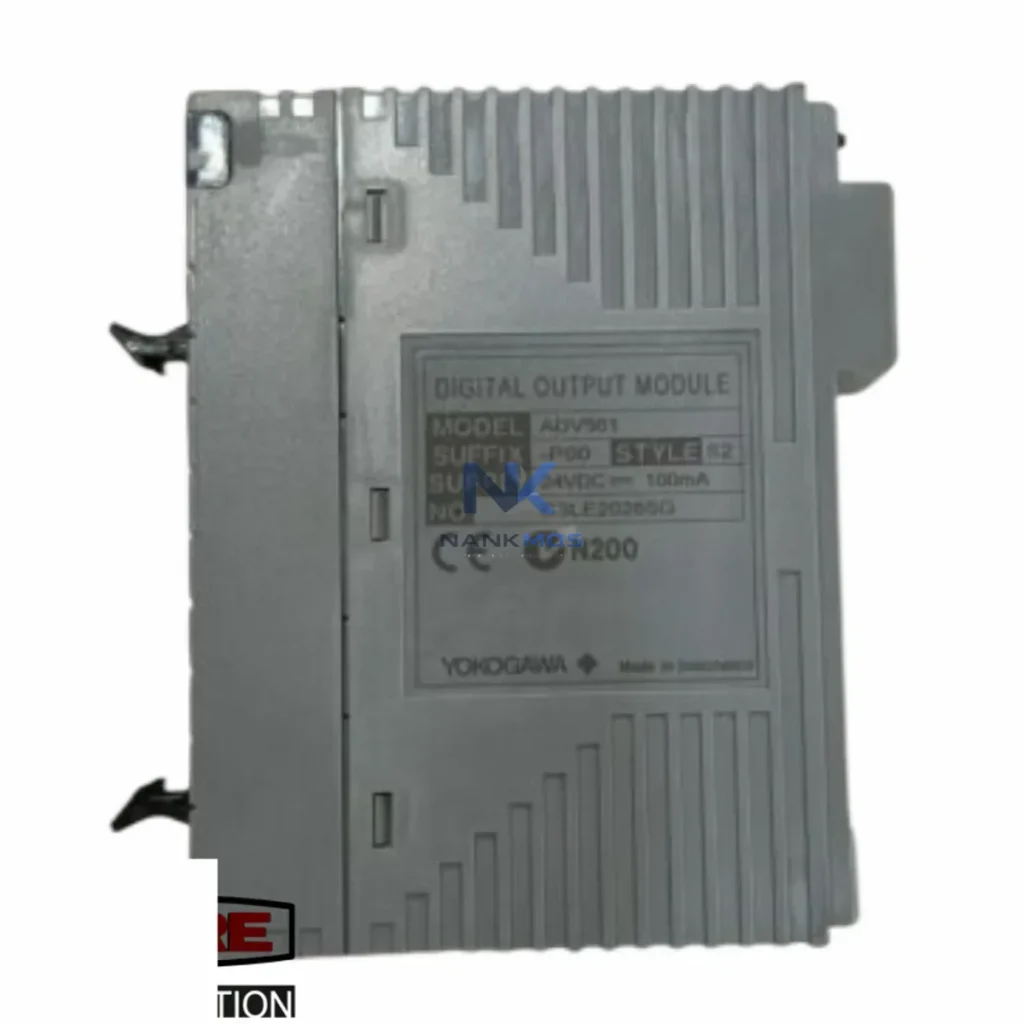

Yokogawa ADV561-P00 S2 Digital Output Module

Product Details

ADV561-P00 S2 Product Description

The Yokogawa ADV561-P00/S2 is a high-reliability digital output module engineered for the CENTUM CS and CENTUM CS3000 Distributed Control System (DCS) platform. Designed to meet the rigorous demands of energy-intensive industrial environments — including oil and gas, petrochemical, power generation, water treatment, and advanced manufacturing — this module delivers precise, low-latency digital signal output that directly supports load management, motor control sequencing, and energy-aware automation strategies. With its robust field-proven architecture, the ADV561-P00/S2 enables plant engineers to reduce unnecessary actuator cycling, minimize reactive energy losses, and maintain stable production line throughput.

In a modern energy-optimized plant, the ADV561-P00/S2 does not operate in isolation — it functions as a critical node within a tightly integrated control architecture. Within the CENTUM CS3000 platform, it works in close coordination with the Yokogawa ACM11 communication module to ensure deterministic, low-jitter signal transmission across the control bus, eliminating unnecessary polling cycles that contribute to idle power draw.

On the field side, the ADV561-P00/S2 drives discrete outputs to motor starters, solenoid valves, and contactor coils managed by variable frequency drives (VFDs) such as the Yokogawa VariFlex series or compatible third-party drives. By issuing precise start/stop commands synchronized with the DCS scan cycle, the module prevents motor inrush current spikes that inflate peak demand charges. This is particularly valuable in facilities where multiple motors are sequenced across production shifts.

The module integrates seamlessly with Yokogawa ADV151 and ADV161 analog input modules, which feed real-time process variables — temperature, pressure, flow — back into the CENTUM CS3000 controller. This closed-loop feedback allows the DCS to make energy-aware decisions: for example, reducing pump motor run time when downstream tank levels are adequate, or staging compressor loads to avoid simultaneous peak draws.

For power quality monitoring, the ADV561-P00/S2 pairs effectively with Yokogawa WT series power analyzers and dedicated power monitoring modules. When the power monitor detects a load threshold breach, the DCS can issue discrete output commands through the ADV561-P00/S2 to shed non-critical loads — a direct, hardware-level demand response capability that reduces energy costs without operator intervention.

In HMI-driven environments, operators interact with the system through Yokogawa FAST/TOOLS SCADA or the integrated CENTUM CS3000 HIS (Human Interface Station). The ADV561-P00/S2 status points are mapped directly to HMI faceplates, giving operators real-time visibility into actuator states, enabling rapid manual override when energy anomalies are detected. This visibility is further extended to enterprise-level energy management systems (EMS) via OPC-DA/UA gateways supported by the CENTUM CS3000 platform.

The module also interfaces with Yokogawa YS1700 loop controllers and Yokogawa STARDOM network-based controllers in hybrid architectures, where distributed field nodes handle local control while the CENTUM CS3000 manages plant-wide energy coordination. I/O marshalling is simplified through the use of Yokogawa AMM12 multiplexer modules, reducing wiring complexity and the associated resistive losses in long cable runs.

The Yokogawa ADV561-P00/S2 contributes to production line energy optimization through several interconnected mechanisms. First, its high-resolution scan cycle — synchronized with the CENTUM CS3000 controller — ensures that actuators receive commands at precisely the right moment in the production sequence. This eliminates the over-run time that occurs when slower I/O modules lag behind process dynamics, a common source of wasted energy in batch and continuous processes alike.

Second, the module supports load-shedding logic implemented at the DCS level. During peak tariff periods, the CENTUM CS3000 can automatically de-energize non-critical outputs — auxiliary conveyors, secondary cooling fans, standby pumps — through the ADV561-P00/S2, reducing instantaneous demand without halting primary production. This capability is especially valuable in facilities subject to time-of-use electricity pricing or demand charge structures.

Third, the ADV561-P00/S2 plays a key role in predictive maintenance workflows. By logging actuator command cycles and comparing them against expected equipment lifespans, maintenance teams can identify components approaching end-of-life before failure occurs. Unplanned downtime is one of the largest hidden energy costs in industrial facilities — idle heating, ventilation, and cooling systems continue to consume power even when production is halted. Preventing unplanned stops through predictive maintenance directly reduces this waste.

Fourth, the module's stable, low-noise digital output signal reduces false actuator trips caused by signal degradation — a common issue in aging I/O infrastructure. False trips force unnecessary restart cycles, each of which carries a significant energy penalty due to motor inrush current. By maintaining signal integrity across the full operating temperature range, the ADV561-P00/S2 contributes to a smoother, more energy-efficient production rhythm.

All units are supplied from verified inventory, subjected to outgoing functional testing prior to shipment, and covered by a 12-month warranty. Lead times are confirmed at the time of order, and expedited shipping is available for urgent plant maintenance requirements.

Q1: How does the ADV561-P00/S2 contribute to measurable energy savings on the production line? The module enables precise, scan-cycle-synchronized discrete output control within the CENTUM CS3000 DCS. By eliminating actuator over-run, supporting load-shedding logic, and preventing false trips, it reduces unnecessary energy consumption across motor starters, solenoid valves, and other field devices. Plants implementing structured load management through the CENTUM CS3000 platform typically report measurable reductions in peak demand charges and overall kWh consumption.

Q2: Is the ADV561-P00/S2 compatible with both CENTUM CS and CENTUM CS3000 systems? Yes. The ADV561-P00/S2 is designed for compatibility with the Yokogawa CENTUM CS and CENTUM CS3000 DCS platforms. For integration into newer CENTUM VP systems, compatibility should be verified with Yokogawa engineering documentation or confirmed with our technical team prior to ordering.

Q3: What is the recommended replacement or upgrade path if the ADV561-P00/S2 is discontinued? For plants migrating from CENTUM CS3000 to CENTUM VP, Yokogawa provides migration tools and equivalent VP series I/O modules. Our team can assist with cross-referencing the ADV561-P00/S2 to compatible replacement modules and advise on migration strategies that minimize production disruption and preserve existing wiring infrastructure.

Q4: What testing and warranty coverage is provided with each unit? Every ADV561-P00/S2 unit undergoes functional outgoing inspection prior to shipment, verifying channel integrity and communication bus compatibility. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch, with lead time confirmation provided at the time of order for non-stock configurations.
