Yokogawa ALR121-S00 S1 Communication Module

Product Details

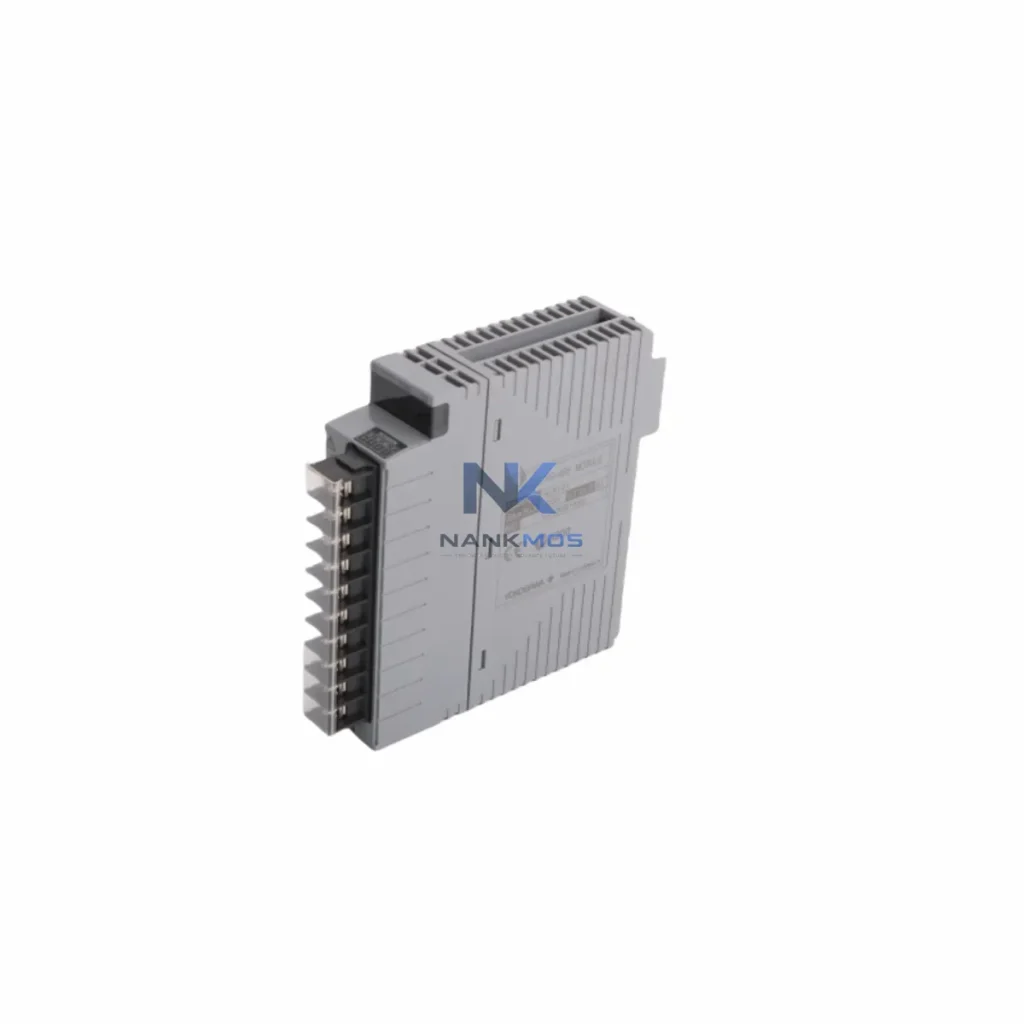

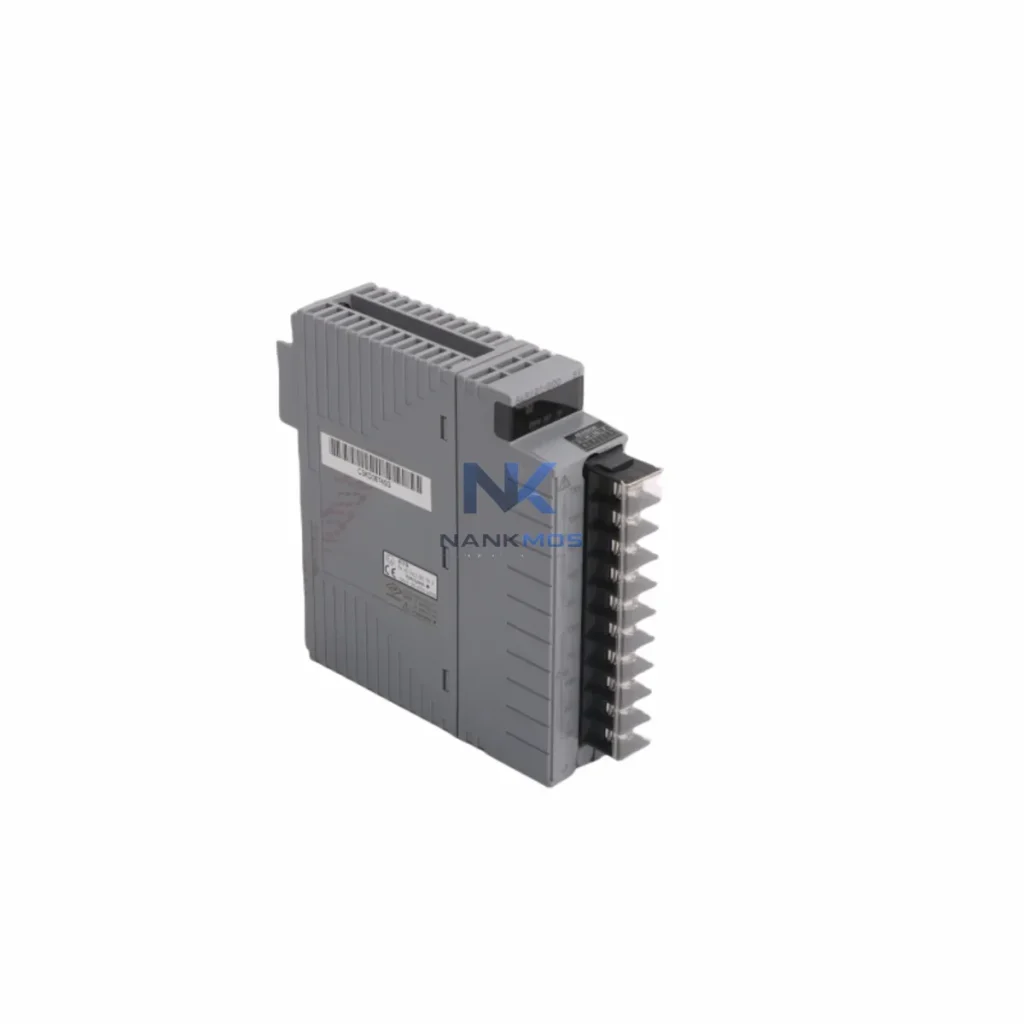

ALR121-S00 S1 Product Description

The Yokogawa ALR121-S00-S1 is a high-performance Ethernet communication module engineered for the STARDOM FCN/FCJ autonomous controller platform. Designed to serve as the backbone of industrial data flow, this network interface module bridges field-level devices with supervisory control systems, enabling seamless, real-time data exchange across every layer of the automation hierarchy. From signal acquisition at the sensor level to visualization on SCADA dashboards, the ALR121-S00-S1 delivers the connectivity precision that modern smart factories demand.

In today's industrial environment, the ability to move data reliably from the plant floor to the control room — and beyond — is not optional. The ALR121-S00-S1 addresses this need by providing a stable, low-latency Ethernet link that integrates the STARDOM controller into broader OT/IT network architectures. Whether connecting to Yokogawa CENTUM VP distributed control systems, third-party SCADA platforms, or edge computing gateways, this module ensures that process data is always available, accurate, and actionable.

The ALR121-S00-S1 sits at the heart of a layered industrial communication architecture. At the field level, sensors and transmitters — including Yokogawa EJA-series pressure transmitters and YTA-series temperature transmitters — feed process variables into the STARDOM FCN autonomous controller via analog and digital I/O modules such as the AAI143 and ADV151. The ALR121-S00-S1 then aggregates this data and transmits it upstream over Ethernet to the plant's supervisory layer.

Within the control network, the module interfaces directly with Yokogawa CENTUM VP engineering stations and operator stations, enabling operators to monitor live process values, configure control loops, and respond to alarms in real time. For facilities running third-party SCADA platforms — such as Wonderware, Ignition, or iFIX — the ALR121-S00-S1 supports OPC DA/UA and Modbus TCP, ensuring protocol-transparent data delivery without the need for additional middleware.

At the network infrastructure layer, industrial managed switches — such as those from the Hirschmann RS20 or Cisco IE3000 series — provide the switching fabric that connects the STARDOM controller network to the plant-wide Ethernet backbone. The ALR121-S00-S1 is fully compatible with VLAN-segmented networks, allowing IT and OT traffic to be isolated for cybersecurity compliance while maintaining uninterrupted data flow.

For remote monitoring and diagnostics, the module enables the STARDOM FCN to publish real-time data to edge computing gateways — such as the Yokogawa OpreX Edge Controller or compatible IIoT gateways — which then forward process data to cloud-based analytics platforms or on-premise MES systems. This end-to-end data chain — from field sensor through PLC, communication module, industrial switch, edge gateway, and up to SCADA/MES — forms the complete smart factory data link that the ALR121-S00-S1 is designed to anchor.

Variable frequency drives (VFDs) controlling pumps and compressors can also be integrated into this data flow. Yokogawa-compatible drives or third-party inverters with Modbus TCP support report speed, current, and fault status through the STARDOM I/O network, with the ALR121-S00-S1 ensuring that drive data is visible on the SCADA HMI alongside other process variables. Power supply modules — such as the Yokogawa PW481 or equivalent 24VDC DIN-rail units — provide the stable power foundation that keeps the entire communication chain operational under demanding industrial conditions.

Many industrial facilities operate with fragmented communication architectures — legacy PLCs using proprietary serial protocols, remote I/O nodes that cannot be reached by the control room, and SCADA systems that receive data too slowly to support real-time decision-making. The ALR121-S00-S1 directly addresses these challenges within the STARDOM ecosystem.

Protocol Fragmentation: By supporting Modbus TCP and OPC UA alongside native STARDOM communication, the ALR121-S00-S1 acts as a protocol gateway, allowing the FCN controller to exchange data with third-party PLCs, HMIs, and SCADA systems without custom integration work. This eliminates data silos that arise when different vendors use incompatible communication standards.

Remote Monitoring Gaps: For unmanned substations, remote pump stations, or offshore platforms, the ALR121-S00-S1 enables the STARDOM FCN to maintain a continuous Ethernet link to the central control room. Alarm events, process deviations, and equipment status changes are transmitted in real time, allowing operators to respond remotely without dispatching field personnel for routine diagnostics.

Production Line Transparency: By connecting the STARDOM controller to MES and ERP systems via OPC UA, the ALR121-S00-S1 enables production data — batch counts, cycle times, quality metrics — to flow automatically from the plant floor to business intelligence dashboards. This eliminates manual data entry and provides management with accurate, up-to-date production KPIs.

System Scalability: As production capacity grows, additional STARDOM FCN nodes can be added to the network and integrated through the same Ethernet infrastructure. The ALR121-S00-S1 supports network expansion without requiring changes to the existing communication architecture, protecting the initial investment in automation infrastructure.

All units are pre-tested prior to shipment, with full functional verification of Ethernet communication, protocol handshake, and module initialization. Stock is maintained for immediate dispatch, and every ALR121-S00-S1 is covered by a 12-Month Warranty against manufacturing defects.

Q1: What is the communication latency of the ALR121-S00-S1 in a live SCADA environment? The ALR121-S00-S1 operates over standard 100 Mbps industrial Ethernet, delivering cyclic data updates at scan rates consistent with the STARDOM FCN controller cycle time (typically 10–100 ms depending on configuration). For most process control applications — including pressure, temperature, and flow monitoring — this latency is well within acceptable limits for real-time SCADA visualization and alarm management.

Q2: Is the ALR121-S00-S1 compatible with third-party SCADA and HMI platforms? Yes. The module supports Modbus TCP and OPC DA/UA, which are industry-standard protocols supported by all major SCADA platforms including Wonderware System Platform, Ignition by Inductive Automation, Siemens WinCC, and GE iFIX. Integration with third-party HMI panels from Weintek, Proface, or Schneider Electric is also achievable via Modbus TCP without additional hardware.

Q3: How does the ALR121-S00-S1 support remote diagnostics and predictive maintenance? The module enables the STARDOM FCN to expose diagnostic data — including module health, communication error counters, and network status — to connected SCADA and asset management systems. When paired with an edge gateway, this data can be forwarded to cloud-based analytics platforms for trend analysis, anomaly detection, and predictive maintenance scheduling, reducing unplanned downtime.

Q4: What warranty and pre-shipment testing does the ALR121-S00-S1 include? Every ALR121-S00-S1 unit undergoes functional testing prior to shipment, including Ethernet link verification, protocol communication checks, and module self-diagnostic confirmation. The unit is covered by a 12-Month Warranty from the date of delivery, covering manufacturing defects and component failures under normal operating conditions. Global shipping is available with full export documentation support.
