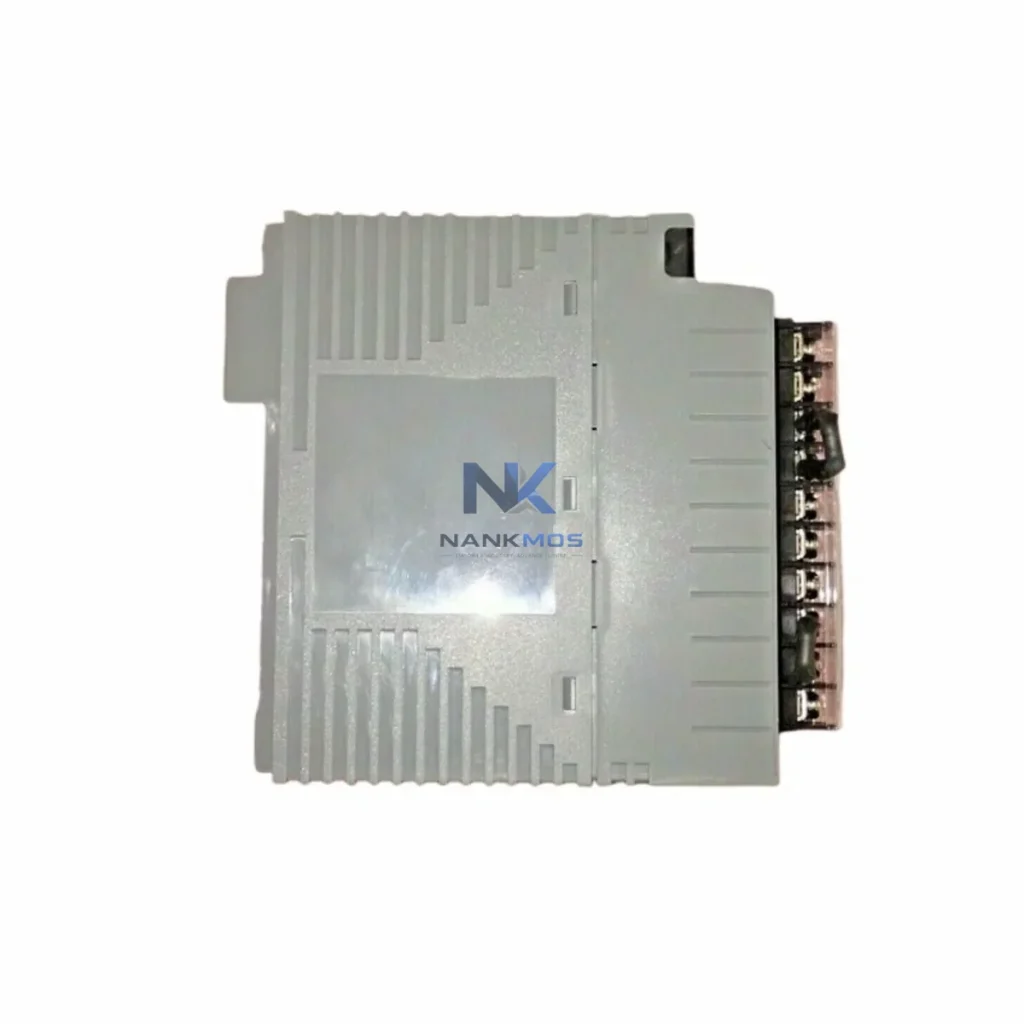

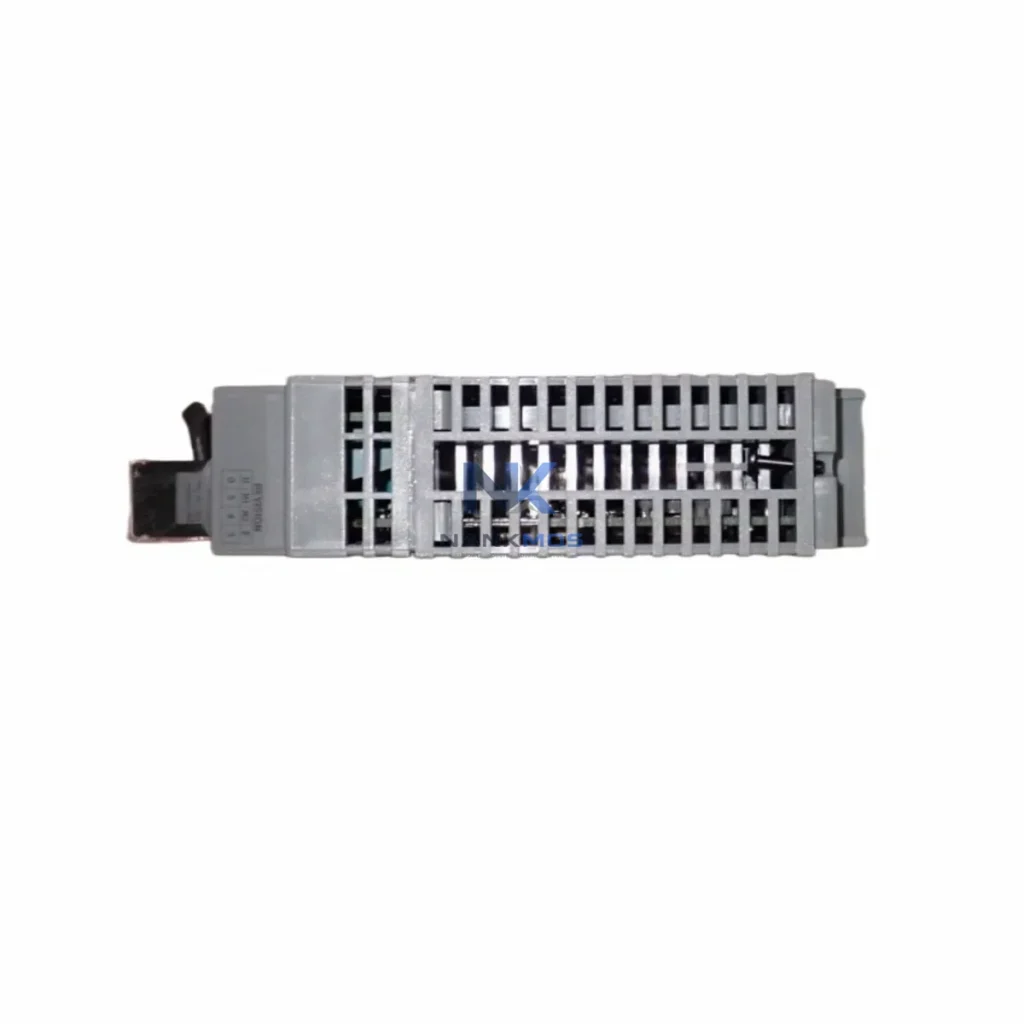

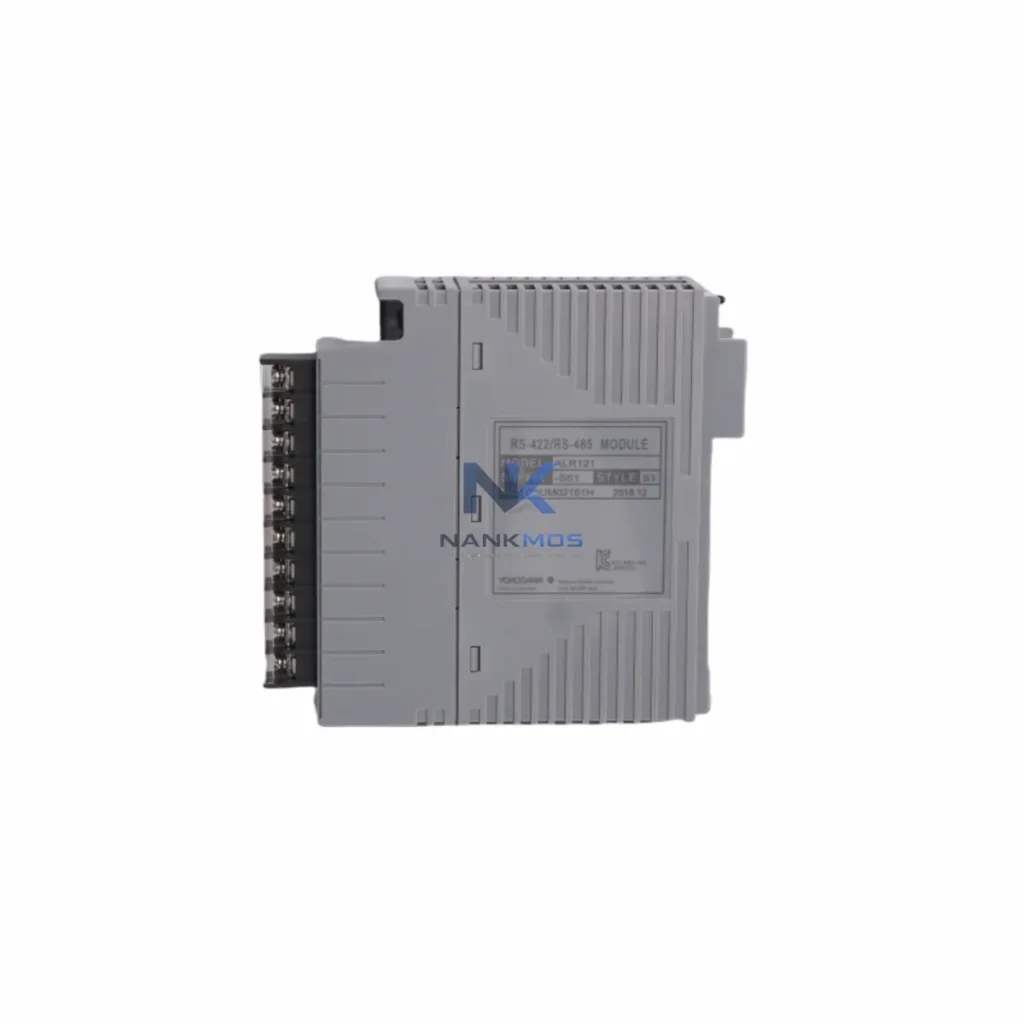

Yokogawa ALR121-S51 S1 Communication Module

Product Details

ALR121-S51 S1 Product Description

The Yokogawa ALR121-S51/S1 is a dedicated serial communication module engineered for seamless integration within the CENTUM VP and CS 3000 Distributed Control System (DCS) platforms. Designed to extend the communication reach of the control architecture, this module supports RS-232C, RS-422, and RS-485 serial interfaces, enabling reliable data exchange between field devices, third-party subsystems, and the central process control layer. In modern industrial automation environments where system coherence, signal integrity, and long-term maintainability are paramount, the ALR121-S51/S1 delivers a structured, architecture-native solution that reduces integration complexity and supports scalable deployment across multi-loop and multi-unit process plants.

The ALR121-S51/S1 is not a standalone component — it is a communication layer node within a fully coordinated Yokogawa DCS architecture. In a typical CENTUM VP deployment, the module occupies a slot within the Field Control Station (FCS) rack alongside processor cards such as the CP451 or CP461 CPU modules, which handle real-time process control logic and scan cycle management. Power integrity for the entire rack is maintained by dedicated power supply modules such as the PW481 or PW482, ensuring that communication functions remain uninterrupted even during partial load fluctuations.

On the I/O layer, the ALR121-S51/S1 works in coordination with analog input modules such as the AAI141 (4–20 mA multi-channel AI) and analog output modules like the AAO141, which handle process variable acquisition and setpoint delivery. Digital I/O modules including the ADV151 and ADV161 manage discrete signal processing for valve control, motor start/stop, and interlock logic. The serial communication module bridges these I/O layers with external subsystems — such as third-party analyzers, flow computers, motor control centers (MCCs), or SCADA gateways — that do not natively support FOUNDATION Fieldbus or PROFIBUS but require reliable serial data exchange.

For plants requiring network-level integration, the ALR121-S51/S1 complements Ethernet-based communication modules such as the ALR111 or ESB Bus interface cards, which handle higher-bandwidth data paths between FCS units and the Human Interface Station (HIS). The HIS layer, typically running Yokogawa's CENTUM VP operator interface software, provides real-time visualization of process data collected through both serial and network communication paths. In redundant architectures, the ALR121-S51/S1 can be paired with redundant FCS configurations using dual CP451 processors and mirrored I/O bus structures, ensuring that serial communication continuity is maintained during controller switchover events.

In multi-FCS plant topologies, the module supports distributed serial communication across multiple field control stations, each managing a defined process unit. This modular approach — supported by the EB401 ESB bus coupler and NB10D node interface units — allows engineering teams to expand the communication architecture incrementally without redesigning the core control network. The result is a scalable, maintainable, and diagnostically transparent communication infrastructure aligned with the long-term operational requirements of continuous process industries.

The Yokogawa ALR121-S51/S1 is deployed across a broad range of process-intensive industries where serial communication between DCS platforms and field subsystems is a fundamental architectural requirement.

In oil refining and petrochemical plants, the module enables serial data exchange between the CENTUM VP DCS and third-party analyzers, chromatographs, and blending controllers. This integration supports real-time product quality monitoring and closed-loop composition control without requiring protocol conversion gateways, reducing latency and potential points of failure in the communication chain.

In power generation facilities — including thermal, combined-cycle, and cogeneration plants — the ALR121-S51/S1 connects the DCS to turbine control systems, excitation controllers, and protection relay panels via RS-485 multi-drop buses. This architecture allows the central control room to monitor and command auxiliary systems that operate on legacy serial protocols, maintaining a unified operational picture across the entire generation unit.

In water and wastewater treatment plants, the module supports communication with dosing pump controllers, UV disinfection systems, and remote telemetry units (RTUs) distributed across geographically separated treatment stages. The RS-422 interface capability ensures signal integrity over longer cable runs typical of large treatment facilities.

In mining and mineral processing operations, the ALR121-S51/S1 integrates crusher control panels, conveyor drive systems, and weighing systems into the central DCS architecture, enabling coordinated production management and real-time throughput monitoring across the processing plant.

In pharmaceutical and fine chemical manufacturing, where batch process control and regulatory data integrity are critical, the module provides a validated serial communication path between the CENTUM VP DCS and peripheral equipment such as reactors, autoclaves, and in-line measurement systems, supporting 21 CFR Part 11-aligned data acquisition workflows.

Q1: Is the ALR121-S51/S1 compatible with both CENTUM VP and CS 3000 platforms, and can it be used in a mixed-generation architecture? Yes. The ALR121-S51/S1 is designed for use within both the CENTUM VP and CENTUM CS 3000 Field Control Station rack environments. In migration projects where CS 3000 hardware is being progressively replaced with CENTUM VP components, the module can continue to operate within legacy rack configurations, preserving existing serial communication wiring and field device connections. Engineering teams should verify slot compatibility and FCS firmware version requirements during migration planning to ensure uninterrupted communication during the transition period.

Q2: What installation and commissioning considerations apply when integrating the ALR121-S51/S1 into an existing DCS architecture? The module is installed into a standard FCS I/O slot and configured through the CENTUM VP System Builder or CS 3000 System View engineering tools. Key commissioning steps include defining the serial port parameters (baud rate, data bits, parity, stop bits), assigning the communication function block within the FCS application, and verifying cable termination for RS-422/RS-485 multi-drop configurations. For RS-485 buses with multiple field devices, proper bus termination resistors must be installed at both ends of the cable run to prevent signal reflection. Factory acceptance testing (FAT) should include loop-back communication tests and end-to-end data integrity verification before site deployment.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability for the ALR121-S51/S1? The 12-Month Warranty covers manufacturing defects and functional failures under normal operating and storage conditions from the date of shipment. NANKMOS maintains dedicated inventory of Yokogawa CENTUM VP and CS 3000 communication modules to support both planned maintenance schedules and emergency replacement requirements. Each unit undergoes pre-shipment functional testing to verify serial port operation, backplane interface integrity, and configuration parameter retention. For plants with long maintenance intervals or critical communication redundancy requirements, NANKMOS recommends maintaining at least one spare ALR121-S51/S1 module on-site. Contact [email protected] or +86 18359268345 for availability confirmation and lead time information.
