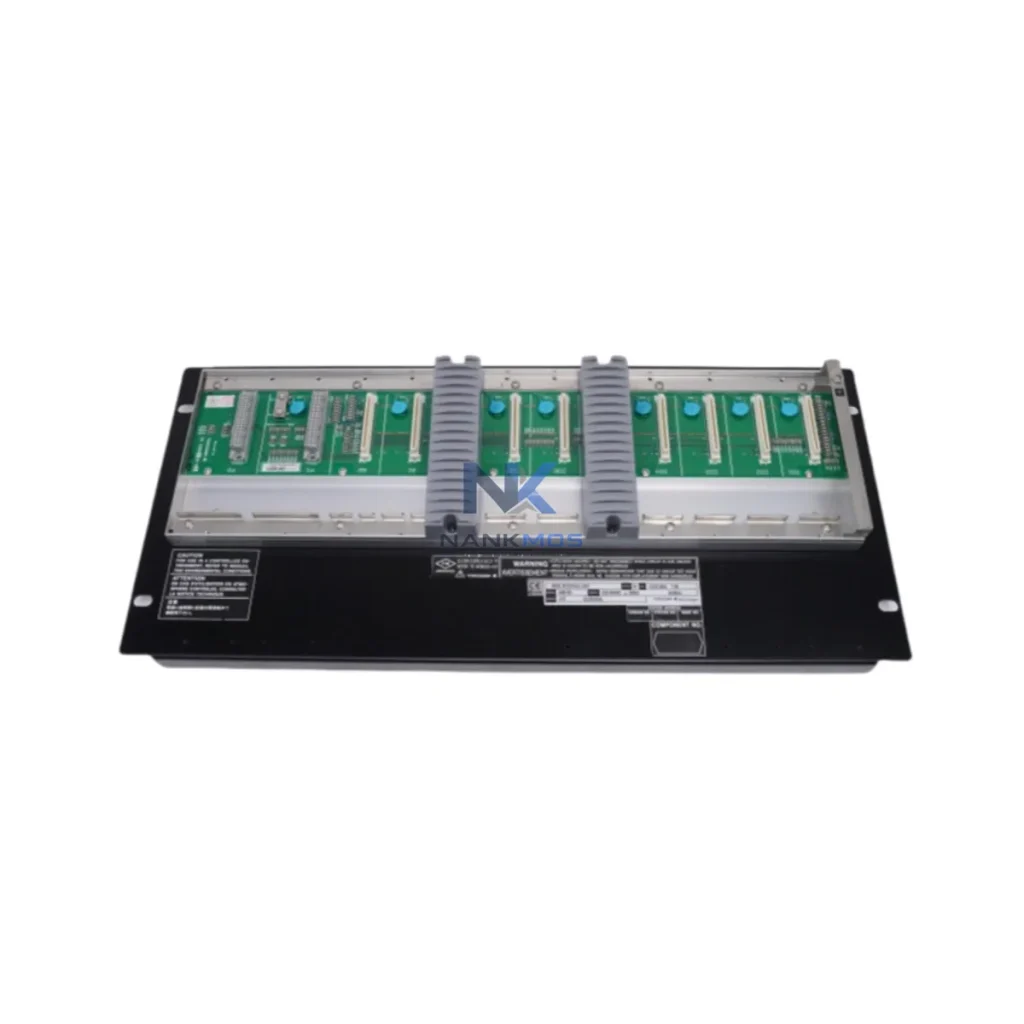

Yokogawa ANB10D-427 Analog Input Module

Product Details

ANB10D-427 Product Description

The Yokogawa ANB10D-427 is engineered as a precision analog input module within the CENTUM VP distributed control system, serving as the primary signal acquisition node at the I/O layer of a multi-tier industrial control architecture. Its role extends far beyond simple signal conversion — it is a foundational element that determines the accuracy, reliability, and scalability of the entire process control loop.

In a fully integrated CENTUM VP automation platform, the ANB10D-427 operates in close coordination with the AFV10D Field Control Station (FCS), which acts as the central processing unit of the control domain. The FCS executes the control logic — PID loops, cascade control, feedforward compensation — while the ANB10D-427 continuously feeds it with conditioned, isolated analog signals from field transmitters. This tight coupling between the I/O module and the FCS ensures deterministic scan cycles and minimal latency in closed-loop control.

At the communication layer, the CENTUM VP architecture relies on Vnet/IP, Yokogawa's high-speed, redundant Ethernet-based control network. The ANB10D-427 interfaces seamlessly with this network through the I/O nest backplane, enabling real-time data exchange with the HIS (Human Interface Station) — the operator workstation where process engineers monitor trends, configure alarms, and execute supervisory commands. The HIS provides the visualization layer that transforms raw analog readings from the ANB10D-427 into actionable process intelligence.

For projects requiring enhanced system availability, the ANB10D-427 supports deployment within redundant I/O configurations. Paired with a redundant FCS (RFCS) and dual-redundant Vnet/IP segments, the module contributes to a fault-tolerant architecture where a single hardware failure does not interrupt process control. This is particularly critical in continuous process industries such as petrochemicals, LNG terminals, and power generation, where unplanned shutdowns carry significant operational and safety consequences.

The power layer of the CENTUM VP system is managed by dedicated power supply units (PSU) mounted within the I/O cabinet. These PSUs deliver stable, regulated DC power to the I/O nest backplane, ensuring that the ANB10D-427 and co-installed modules such as the AAI141-S Analog Input Module and AAT141-S Analog Output Module receive consistent power without voltage fluctuation — a prerequisite for maintaining signal accuracy at the milliamp level.

In engineering integration scenarios, the ANB10D-427 is typically commissioned alongside FOUNDATION Fieldbus (FF) interface modules or HART multiplexer gateways that bridge legacy 4–20 mA field devices with digital diagnostic capabilities. This contextual integration allows maintenance engineers to access HART device variables, perform remote calibration, and retrieve diagnostic alerts — all without interrupting the primary analog signal path. The result is a significant reduction in scheduled maintenance downtime and an improvement in mean time between failures (MTBF) across the instrumentation layer.

For large-scale process plants, the ANB10D-427 is deployed in multi-nest, multi-cabinet configurations managed by the CENTUM VP Engineering Environment (ENG) software. This engineering tool provides a unified configuration workspace where I/O assignments, tag databases, alarm philosophies, and control strategies are defined, validated, and downloaded to the FCS. The modular architecture of the CENTUM VP system allows engineers to expand I/O capacity by adding additional nests and ANB10D-427 modules without redesigning the control network — a key advantage for phased plant expansions and brownfield upgrades.

At the field device interface, the ANB10D-427 connects to pressure transmitters, flow meters, temperature transmitters, and level sensors via standard 2-wire or 4-wire 4–20 mA loops. When integrated with Yokogawa EJA-series differential pressure transmitters or YTA-series temperature transmitters, the system achieves end-to-end signal traceability from the process variable to the control room display — a requirement for ISO 9001-compliant process documentation and regulatory reporting in pharmaceutical and food processing applications.

All ANB10D-427 units supplied by NANKMOS are sourced from verified distribution channels, subjected to pre-shipment functional testing, and covered by a 12-Month Warranty. In-stock availability ensures rapid deployment for both planned capital projects and emergency replacement scenarios, minimizing the risk of extended process downtime due to spare parts unavailability.

The ANB10D-427 finds application across a broad spectrum of process industries where the CENTUM VP platform is the DCS of choice:

Power Generation: In combined-cycle power plants and thermal generation facilities, the ANB10D-427 acquires analog signals from boiler pressure transmitters, turbine speed sensors, and generator output transducers. Its high-accuracy signal conditioning supports the tight control tolerances required for steam temperature regulation and load dispatch optimization.

Petrochemical & Refining: Refinery distillation columns, catalytic crackers, and hydroprocessing units rely on dense analog I/O to maintain product quality and process safety. The ANB10D-427 integrates into these environments as part of a CENTUM VP-based safety instrumented system (SIS) interface layer, providing the process data required by the safety logic solver for emergency shutdown (ESD) decision-making.

Water & Wastewater Treatment: Municipal water treatment plants and industrial effluent systems use the ANB10D-427 to monitor flow rates, pH levels, dissolved oxygen, and turbidity — all critical parameters for regulatory compliance and process optimization. The module's isolation characteristics prevent ground loop interference in wet, electrically noisy environments.

Mining & Metallurgy: Ore processing facilities, smelters, and mineral separation plants deploy the ANB10D-427 within CENTUM VP systems controlling conveyor drives, flotation cells, and furnace temperature profiles. The module's robust design tolerates the vibration and electromagnetic interference common in heavy industrial environments.

Marine & Offshore: Offshore production platforms and LNG carriers integrate the ANB10D-427 into CENTUM VP-based process automation systems for wellhead pressure monitoring, separator level control, and gas compression management. Its compact form factor and hot-swap capability are particularly valued in space-constrained offshore control rooms.

Packaging & Discrete Manufacturing: In hybrid manufacturing environments where batch process control is combined with discrete automation, the ANB10D-427 provides the analog acquisition backbone for recipe management systems, ensuring consistent product quality across production runs.

Q1: Is the ANB10D-427 compatible with both CENTUM VP and CS 3000 control systems? Yes. The ANB10D-427 is designed for the CENTUM VP platform and is also backward-compatible with Yokogawa CS 3000 systems in most I/O nest configurations. Engineers migrating from CS 3000 to CENTUM VP can retain existing ANB10D-427 modules, reducing hardware replacement costs during system upgrades. Always verify the specific nest and FCS firmware version compatibility with your Yokogawa system documentation before installation.

Q2: Can the ANB10D-427 be replaced online without shutting down the control system? The ANB10D-427 supports hot-swap replacement within the CENTUM VP I/O nest architecture, provided the system is configured for online module replacement and the associated FCS is in a stable control state. This capability is critical for maintaining process continuity in continuous production environments. Pre-shipment testing of each replacement module ensures that the new unit is fully functional before insertion into the live system, minimizing the risk of introducing a faulty module during a critical maintenance window.

Q3: What warranty and supply assurance does NANKMOS provide for the ANB10D-427? All ANB10D-427 modules supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify analog input accuracy, channel isolation, and bus communication integrity. NANKMOS maintains in-stock inventory of the ANB10D-427 to support both planned procurement schedules and urgent replacement requirements, ensuring that supply chain disruptions do not translate into extended process downtime for your facility.
