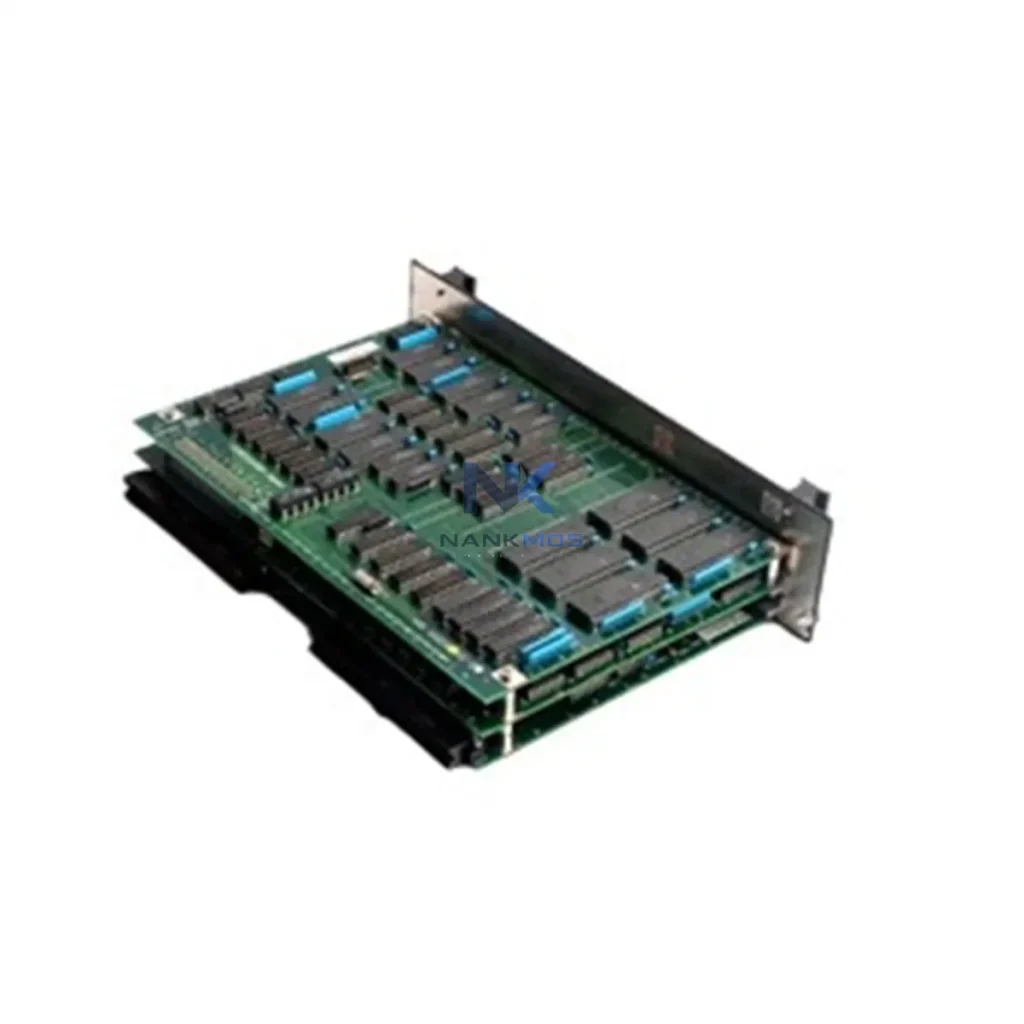

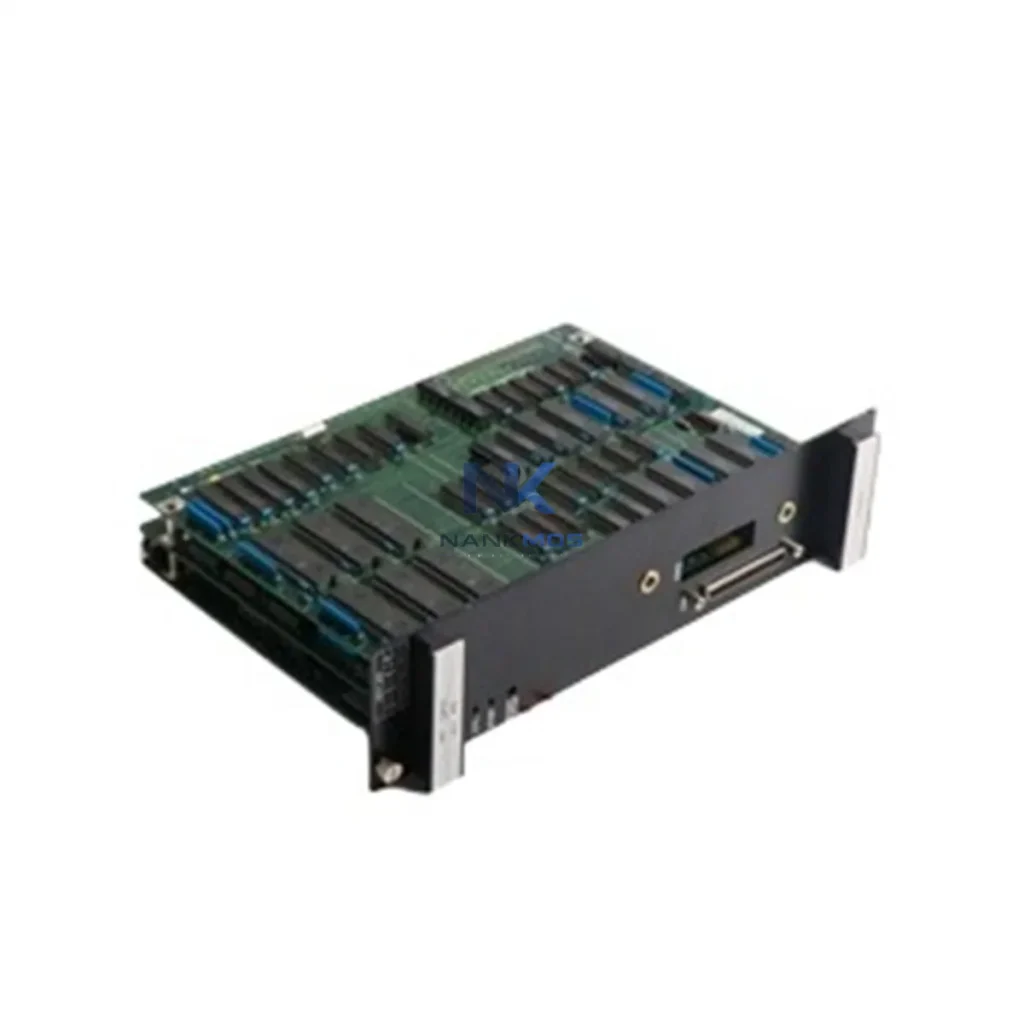

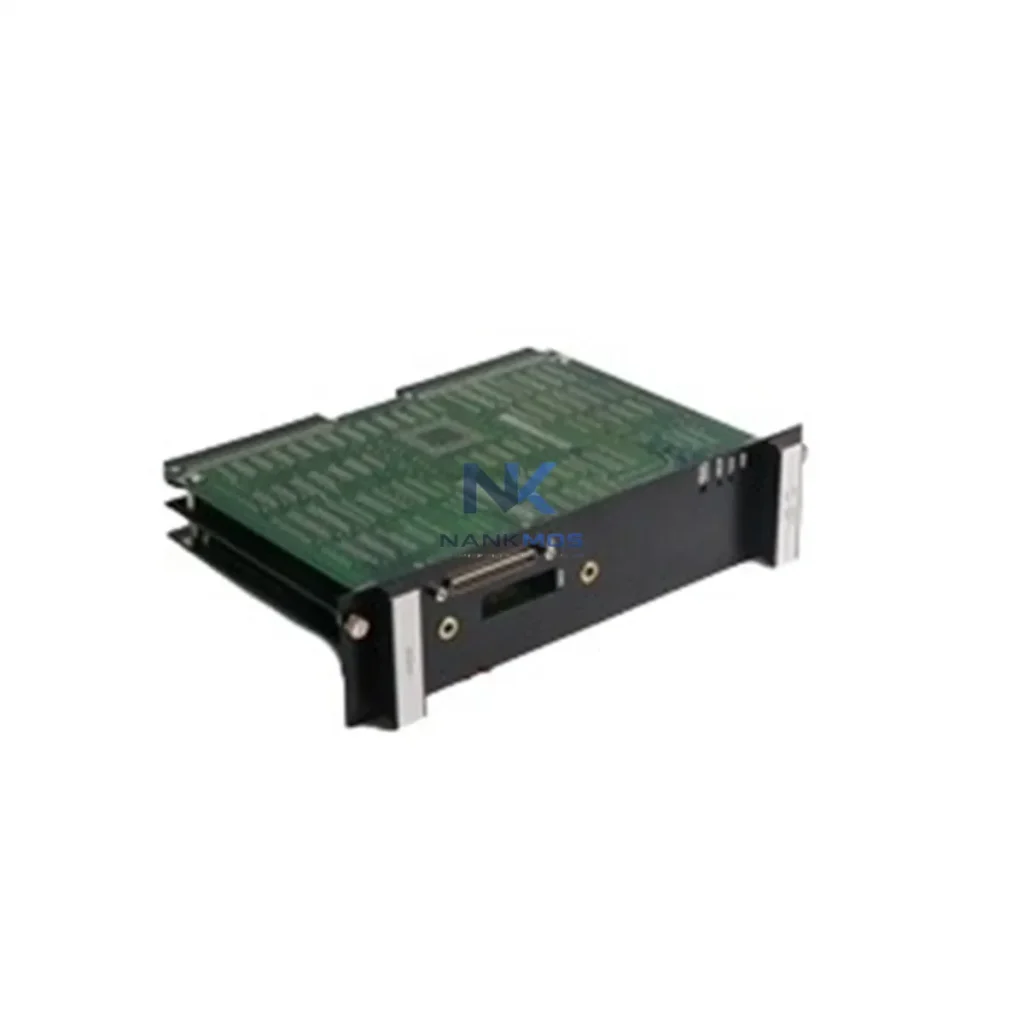

Yokogawa CP11*C ASS9291AS-0 CPU Module

Product Details

CP11*C ASS9291AS-0 Product Description

The Yokogawa CP11*C ASS9291AS-0 is a field-proven CPU module engineered for deployment within the CENTUM VP Distributed Control System (DCS) platform — one of the most widely adopted process automation architectures in refining, petrochemical, power generation, and advanced manufacturing environments. As the central processing unit of the CENTUM VP field control station (FCS), this module governs real-time scan execution, I/O data acquisition, control algorithm processing, and Vnet/IP communication arbitration across the entire control domain. Its role is not peripheral — it is the architectural anchor that determines system determinism, loop integrity, and cross-layer coordination performance.

In a fully realized CENTUM VP architecture, the CP11*C ASS9291AS-0 operates in close coordination with companion modules including the Yokogawa PW481 and PW482 power supply units, which provide redundant 24 VDC rail conditioning to the FCS chassis. The module interfaces directly with I/O nest assemblies populated by analog input cards such as the AAI141-S and AAI543-S, digital output modules including the ADO141-P, and HART-enabled signal conditioners that extend field device diagnostics to the control layer. Communication integrity is maintained through the Vnet/IP dual-ring Ethernet backbone, where the CP11*C manages token-passing arbitration and ensures deterministic cycle times even under high-load scan conditions.

For installations requiring redundancy, the CP11*C ASS9291AS-0 supports dual-CPU pairing with a standby counterpart, enabling bumpless switchover in the event of primary processor fault. This redundancy architecture is complemented by the use of Yokogawa's ESB bus coupler modules and RIO (Remote I/O) nodes, which extend the control domain across geographically distributed field junction boxes without sacrificing scan synchronization. The module's compatibility with the CENTUM VP engineering environment — including the System View, FCS Builder, and HIS (Human Interface Station) — ensures that configuration, tuning, and diagnostic workflows remain unified across the entire project lifecycle.

Signal flow within the CENTUM VP architecture begins at the field instrument layer, where transmitters, control valves, and motor starters interface with I/O modules mounted in the FCS nest. The CP11*C ASS9291AS-0 aggregates these signals, executes PID, cascade, ratio, and feedforward control algorithms at configurable scan rates, and transmits processed data upstream to the HIS operator console via the Vnet/IP network. Alarm management, trend archiving, and sequence-of-events recording are all coordinated through the CPU's real-time operating environment, making the CP11*C the single point of truth for process state within its assigned FCS domain.

From an engineering integration perspective, the CP11*C ASS9291AS-0 is designed for installation in the CENTUM VP FCS chassis with standard DIN-rail or rack-mount configurations. Its front-panel diagnostic LEDs provide immediate visual indication of CPU status, communication health, and I/O bus integrity — reducing commissioning time and simplifying fault isolation during plant startup. The module supports online replacement procedures consistent with CENTUM VP's hot-standby architecture, allowing maintenance teams to swap hardware without process interruption in redundant configurations.

NANKMOS maintains verified inventory of the CP11*C ASS9291AS-0 with pre-shipment functional testing, export documentation support, and a 12-Month Warranty covering manufacturing defects and operational failures under normal industrial service conditions. Each unit is inspected against Yokogawa's original hardware specifications before dispatch, ensuring that replacement and expansion projects receive components that meet the same performance baseline as factory-new modules.

The CP11*C ASS9291AS-0 achieves its full architectural value when deployed as part of a complete CENTUM VP automation platform. A typical FCS cabinet integrating this CPU module will include Yokogawa PW481 or PW482 redundant power supply modules providing conditioned 24 VDC to the chassis backplane, ensuring that power rail disturbances do not propagate to the processor or I/O subsystems. Analog signal acquisition is handled by AAI141-S 16-channel 4–20 mA input cards and AAI543-S HART-enabled analog input modules, which deliver field transmitter data directly to the CP11*C's scan engine. On the output side, ADO141-P digital output modules execute discrete control commands to motor starters, solenoid valves, and relay-driven actuators under CPU direction.

For installations requiring extended I/O reach, Yokogawa RIO (Remote I/O) nodes connected via the ESB bus coupler extend the FCS domain to remote marshalling panels without additional CPU resources. The Vnet/IP dual-ring network connects the CP11*C to the HIS operator console — typically running on Yokogawa's CENTUM VP HIS software — and to the ENG (Engineering Station) for online configuration and function block modification. In multi-FCS architectures, the Yokogawa BCV (Bus Converter) and domain gateway modules enable cross-domain data exchange, supporting plant-wide supervisory integration with historian servers and MES platforms. Signal isolation between field instruments and the I/O nest is maintained through Yokogawa's MTL or equivalent signal isolator barriers, protecting the CPU's I/O bus from ground loop interference and transient overvoltage events.

The CP11*C ASS9291AS-0 is deployed across a broad spectrum of process industries where CENTUM VP serves as the primary DCS platform. In petroleum refining, the module manages crude distillation unit (CDU) control loops, coordinating temperature, pressure, and flow regulation across multiple FCS domains with sub-second scan cycle performance. In LNG liquefaction and gas processing facilities, the CPU's redundant architecture ensures continuous operation of compressor surge control and refrigerant circuit management without process interruption during planned maintenance windows.

Power generation applications leverage the CP11*C for boiler combustion control, turbine governor interfacing, and balance-of-plant automation in both fossil fuel and combined-cycle configurations. Water and wastewater treatment plants deploy the module within CENTUM VP FCS cabinets to manage filtration sequencing, chemical dosing control, and SCADA data aggregation across geographically distributed pump stations. In pharmaceutical and fine chemical manufacturing, the CPU supports batch process execution under ISA-88 structured programming frameworks, with audit trail and electronic batch record integration through the CENTUM VP historian interface.

Mining and mineral processing operations use the CP11*C to coordinate crusher control, flotation cell management, and tailings pump station automation within CENTUM VP architectures that span multiple plant areas. Metallurgical and steel mill applications deploy the module for furnace temperature profiling, rolling mill speed coordination, and cooling water system management. In each of these environments, the CP11*C ASS9291AS-0 provides the processing determinism, communication reliability, and long-term hardware availability that sustain continuous production operations over multi-decade plant lifecycles.

Q1: Is the CP11*C ASS9291AS-0 compatible with existing CENTUM VP FCS chassis and I/O modules already installed in my plant? The CP11*C ASS9291AS-0 is designed for installation within the CENTUM VP FCS chassis family and is compatible with the standard ESB bus I/O nest architecture. Compatibility with specific chassis generations and I/O module combinations should be verified against the CENTUM VP hardware revision matrix for your installed system version. NANKMOS can provide hardware revision documentation and pre-shipment configuration verification to support integration planning prior to dispatch.

Q2: Can the CP11*C ASS9291AS-0 be installed in a redundant CPU configuration, and what is the switchover behavior during a primary CPU fault? Yes. The CENTUM VP architecture supports dual-CPU redundancy using matched CP11*C modules in primary and standby roles. Upon detection of a primary CPU fault — whether hardware failure, communication loss, or watchdog timeout — the standby module assumes control with bumpless switchover, maintaining all active control loops without process upset. Switchover time is governed by the CENTUM VP FCS redundancy parameters configured in the engineering station. Both modules must be at the same firmware revision level to ensure synchronization integrity.

Q3: What warranty and post-shipment support does NANKMOS provide for the CP11*C ASS9291AS-0? All CP11*C ASS9291AS-0 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and operational failures under normal industrial service conditions. Each module undergoes pre-shipment functional testing and visual inspection before dispatch. Export documentation, including commercial invoices and packing lists, is provided as standard. For post-shipment technical queries related to installation, commissioning, or fault diagnosis, NANKMOS provides direct engineering support via [email protected] or +86 18359268345.
