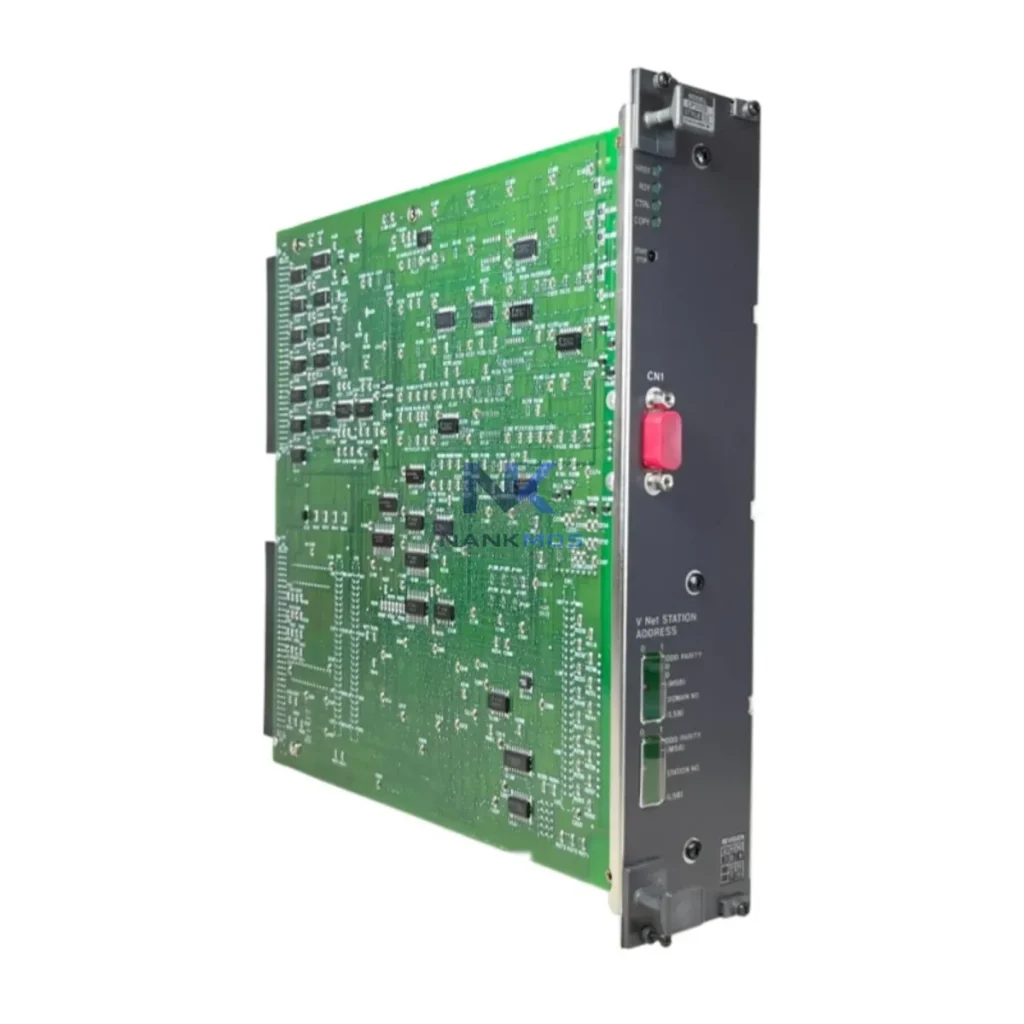

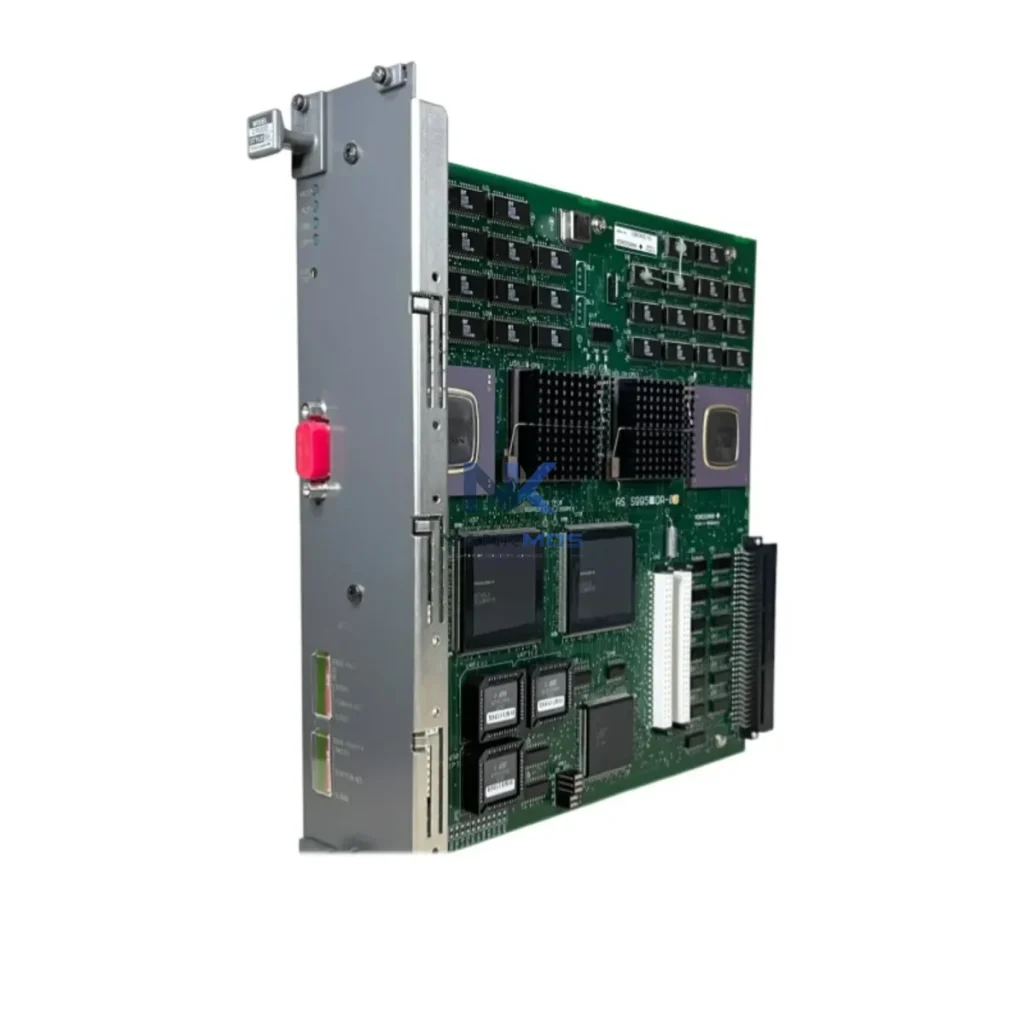

Yokogawa CP333D S3 DCS Processor Module

Product Details

CP333D S3 Product Description

The Yokogawa CP333-D S3 is a field-proven DCS processor module designed for the CENTUM CS3000 distributed control system platform. As aging CS3000 installations continue to operate across petrochemical, power generation, water treatment, and continuous manufacturing facilities worldwide, the CP333-D S3 has become one of the most critical spare and retrofit components for engineers managing legacy system lifecycles. NANKMOS maintains verified stock of this module with full pre-shipment testing and a 12-Month Warranty, supporting both emergency replacement and planned upgrade projects.

Replacing the CP333-D S3 in an active CS3000 Field Control Station requires careful pre-work to avoid unplanned shutdowns. Before pulling the module, maintenance engineers should verify the power supply status on the PWR48-D or PWR48-R redundant power module — a degraded power rail can cause the replacement processor to fail initialization. The node bus connection through the EB401 or EB501 ESB bus interface should also be inspected for loose termination or signal degradation, as communication errors on this link will prevent the new CP333-D S3 from joining the control network.

For sites running redundant FCS configurations, the paired CP333-D in the redundant slot must be confirmed as healthy before initiating the swap. Engineers should also check the ALR111 alarm module and AAI141 analog input modules connected to the same FCS node — any pre-existing I/O faults should be resolved before the processor replacement to avoid masking new issues during commissioning. The ADV151 digital output module wiring should be documented and photographed before disconnection.

On the software side, the control database and function block logic stored in the CS3000 engineering workstation must be backed up before the swap. The CENTUM CS3000 R3 engineering environment should be used to re-download the FCS configuration to the new CP333-D S3 after installation. Confirm that the module address, node number, and domain settings match the original configuration exactly — a mismatch will cause the FCS to come online with incorrect I/O mapping, which can trigger spurious outputs on connected ADV551 or ADV161 digital valve positioner circuits.

For facilities upgrading from CS3000 to CENTUM VP, the CP333-D S3 can serve as an interim solution to extend the operational life of existing FCS nodes while the migration is planned in phases. This approach allows engineering teams to migrate HMI screens on the HIS (Human Interface Station) and update SCADA data links without forcing a full cutover. The BCV-L bus converter and ACF11 communication module may be required to bridge legacy Vnet segments during phased migration.

The CP333-D S3 supports hot-standby redundancy within the CS3000 FCS architecture, which means a properly planned replacement can be executed with zero process interruption when a redundant pair is in service. The key steps are: confirm redundancy status via the CS3000 system status display, initiate a controlled switchover to the standby processor, replace the faulted CP333-D S3, re-download the FCS configuration, and verify I/O status before switching back.

For non-redundant FCS nodes, a maintenance window must be scheduled. NANKMOS recommends having the replacement CP333-D S3 on-site and pre-tested before the window opens. Our pre-shipment testing covers power-on initialization, communication link verification, and memory integrity checks — reducing the risk of receiving a non-functional module during a critical maintenance window. All units ship with a test report and are covered by a 12-Month Warranty.

Long-term, facilities managing multiple CS3000 FCS nodes should maintain at least one CP333-D S3 as a cold standby spare. Given that Yokogawa has transitioned its primary development focus to CENTUM VP and Exaopc platforms, sourcing CP333-D S3 modules through the open market requires a reliable supplier with consistent inventory. NANKMOS maintains ongoing stock of CP333-D S3 and related CS3000 components to support long-term spare parts programs.

Q1: Is the CP333-D S3 a direct replacement for the CP333-D S2? The CP333-D S3 is the revised hardware revision of the CP333-D family. In most CS3000 FCS configurations, the S3 is backward compatible with S2 installations, but firmware version and FCS software revision should be confirmed before installation. NANKMOS technical support can assist with compatibility verification based on your system revision.

Q2: What testing is performed before shipment? Every CP333-D S3 unit shipped by NANKMOS undergoes power-on functional testing, communication interface verification, and visual inspection for component condition. A test report is included with each shipment. All units are covered by a 12-Month Warranty from the date of delivery.

Q3: Can this module be used in a CENTUM VP system? The CP333-D S3 is designed for the CENTUM CS3000 platform. It is not directly compatible with CENTUM VP FCS hardware. For CENTUM VP systems, the equivalent processor is the CP345 or CP451 series. If you are planning a CS3000 to CENTUM VP migration, NANKMOS can advise on the appropriate replacement path and supply both CS3000 spare parts and CENTUM VP modules.

Q4: What is the lead time and long-term supply availability? NANKMOS maintains stock of CP333-D S3 modules for immediate shipment. For customers requiring ongoing supply as part of a spare parts program, we offer reserved stock arrangements. Contact us to discuss long-term supply agreements for CS3000 components.
